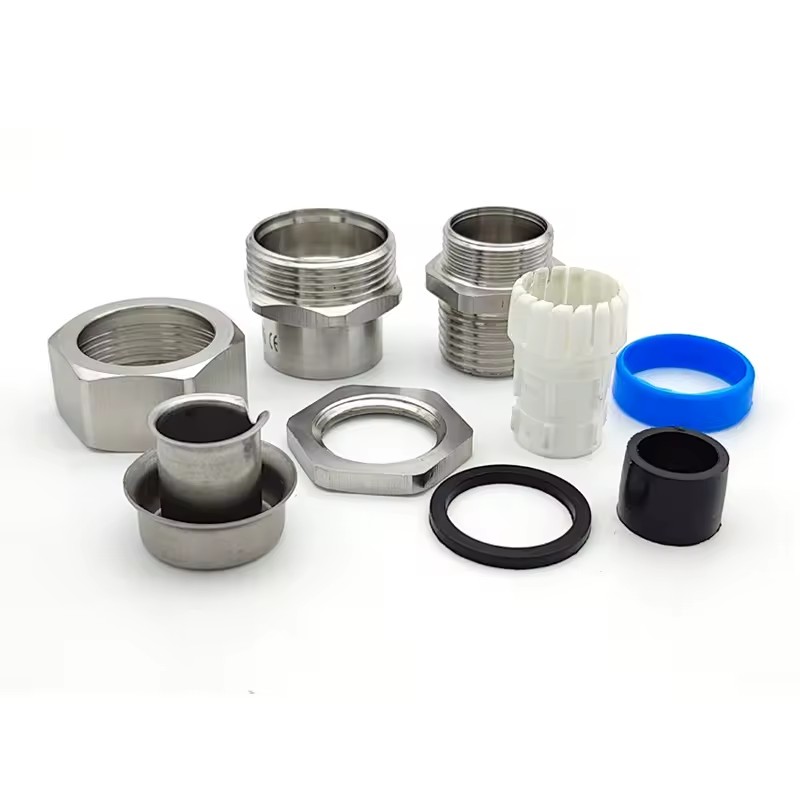

M32 Brass Nickel Plated Fittings Liquid Tight Connector Metal Flexible Conduit Connector

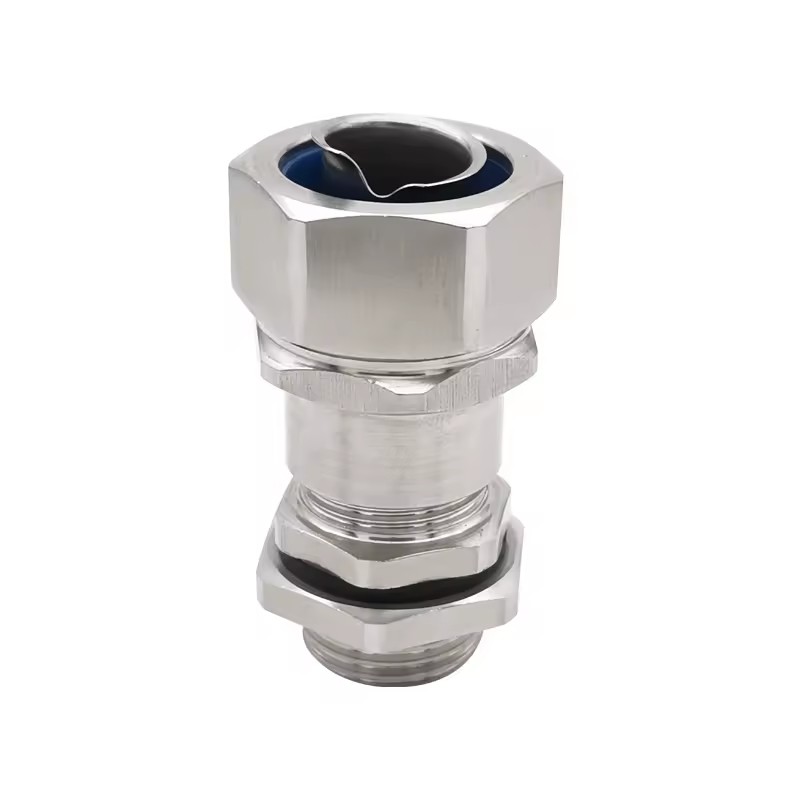

Product Importer Gallery 01 · 403c379cac

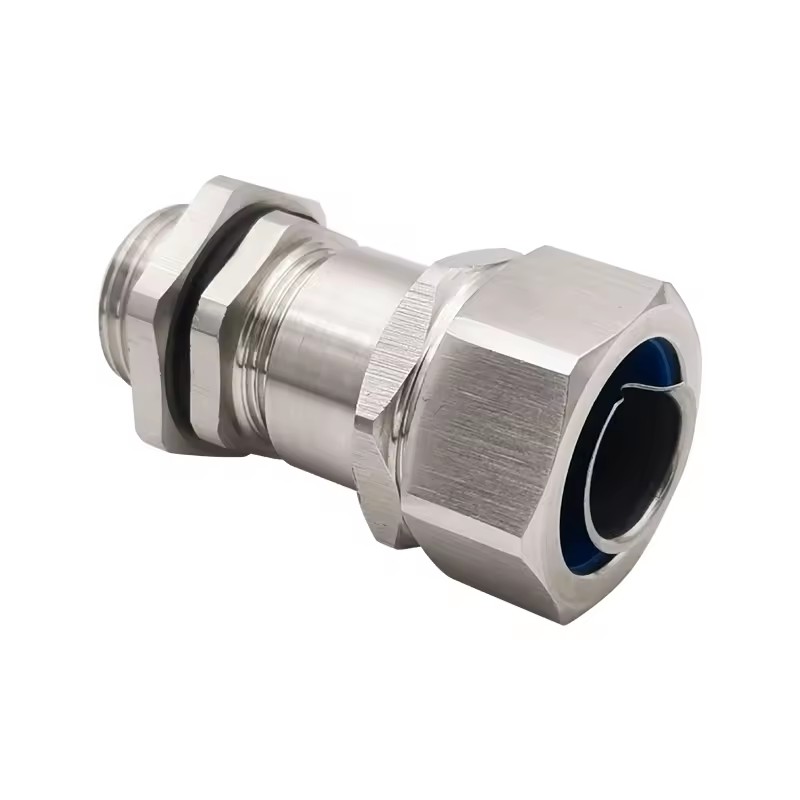

Product Importer Gallery 02 · 44729eca0f

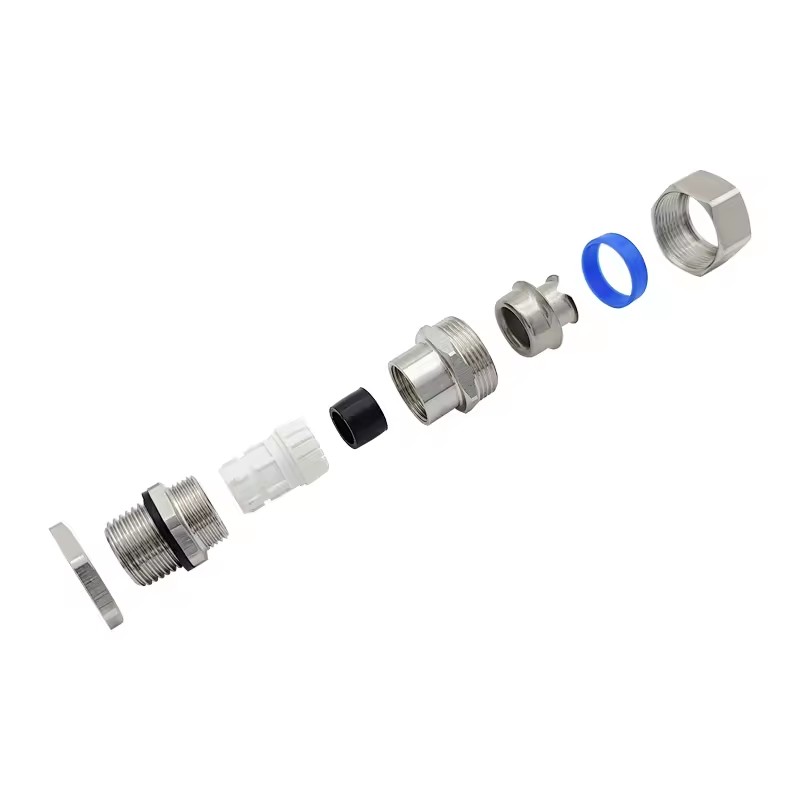

Product Importer Gallery 03 · 0065652d11

Product Importer Gallery 04 · 1235fe695a

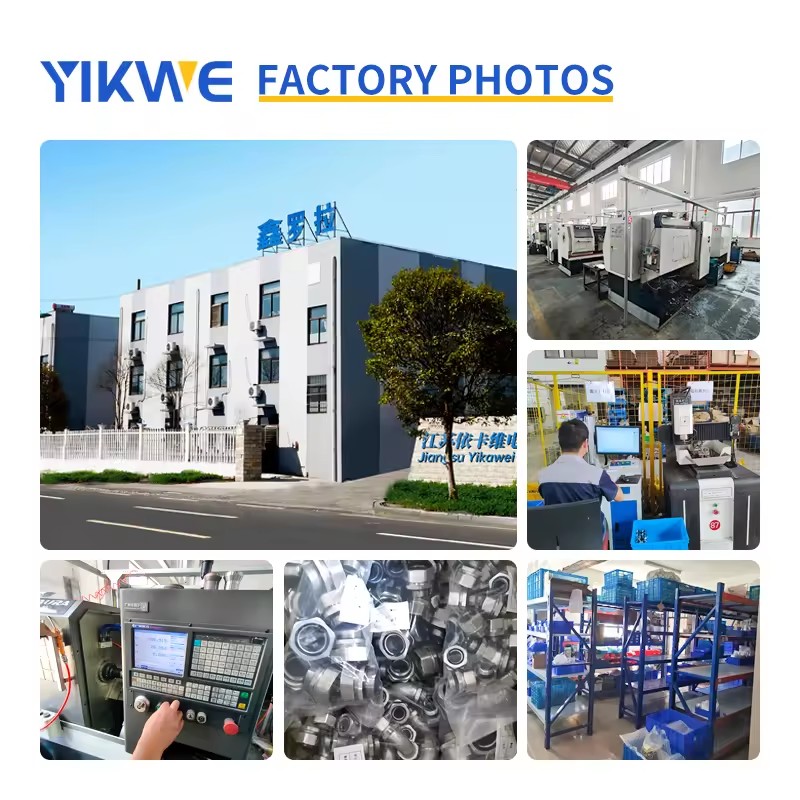

Product Importer Gallery 05 · 28bacacbac

Product video

Certifications REACH

M32 Brass Nickel Plated Fittings Liquid Tight Connector Metal Flexible Conduit Connector

Name: M32 Brass Nickel Plated Fittings Liquid Tight Connector Metal Flexible Conduit Connector
SKU: CG45-B4FD-GJRB
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 100 Units

Key attributes

View all

Material

Brass, Stainless Steel 304/316, Nickel plated brass, brass nickel plated

Type

Other

Place of origin

China, Jiangsu

Model number (Specification)

YKWS/B-DSJ

Guarding

TPE

Seal

NBR

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Standard · Approx. shipping fee: $ 86.54 for 100 pieces · Estimated delivery: Sep 18–Sep 22 (17–21 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Product Parameter

Size Customize

Model	Specification	Clamping Range(mm)	Fits To Tubing	GL (mm)	H (mm)	Wrench Size (mm)
YKWS/B-DSJ-M12/φ6	M12x1.5	3~5	φ6	6	30.7	18/17/14
YKWS/B-DSJ-M16/φ8	M16x1.5	4~7	φ8	7	33	20/19/18
YKWS/B-DSJ-M18/φ10	M18x1.5	5~8	φ10	7	37	24/22/20
YKWS/B-DSJ-M20/φ12	M20x1.5	6~11	φ12	7	42.4	26/26/22
YKWS/B-DSJ-M20/φ15	M20x1.5	6~12	φ15	7	43	30/28/22
YKWS/B-DSJ-M22/φ15	M22x1.5	8~14	φ15	7	43	30/28/24
YKWS/B-DSJ-M24/φ15	M24x1.5	8~14	φ15	7	43	30/28/27
YKWS/B-DSJ-M25/φ15	M25x1.5	10~14	φ15	7	44	30/28/28
YKWS/B-DSJ-M25/φ20	M25x1.5	13~18	φ20	7	47	36/34/30
YKWS/B-DSJ-M32/φ20	M32x1.5	13~18	φ20	8	47	36/34/36
YKWS/B-DSJ-M32/φ25	M32x1.5	15~22	φ25	8	51.8	45/40/36
YKWS/B-DSJ-M36/φ25	M36x2	15~22	φ25	8	51.8	45/40/40
YKWS/B-DSJ-M40/φ32	M40x1.5	22~30	φ32	9	62	55/52/45
YKWS/B-DSJ-M48/φ32	M48x2	22~30	φ32	9	65	55/52/55
YKWS/B-DSJ-M40/φ38	M40x1.5	22~32	φ38	9	67.3	60/55/50
YKWS/B-DSJ-M50/φ38	M50x1.5	30~37	φ38	9	68.8	60/58/55
YKWS/B-DSJ-M50/φ51	M50x1.5	30~38	φ51	9	71.7	75/75/65
YKWS/B-DSJ-M60/φ51	M60x2	37~44	φ51	10	72.7	75/75/65
Model	Specification	Clamping Range	Fits To Tubing	GL (mm)	H (mm)	Wrench Size (mm)
YKWS/B-DSJ-PG7/φ6	PG7	3~5	φ6	6	31.7	18/17/14
YKWS/B-DSJ-PG9/φ8	PG9	4~7	φ8	7	33	20/19/17
YKWS/B-DSJ-PG11/φ10	PG11	5~8	φ10	6	37	24/22/20
YKWS/B-DSJ-PG13.5/φ12	PG13.5	6~11	φ12	7	42.4	26/26/22
YKWS/B-DSJ-PG16/φ15	PG16	8~14	φ15	7	43	30/28/24
YKWS/B-DSJ-PG21/φ20	PG21	13~18	φ20	7	47	36/34/30
YKWS/B-DSJ-PG29/φ25	PG29	18~24	φ25	8	56.8	45/40/40
YKWS/B-DSJ-PG36/φ32	PG36	22~30	φ32	9	65	55/52/50
YKWS/B-DSJ-PG42/φ38	PG42	30~37	φ38	9	68.8	60/58/58
YKWS/B-DSJ-PG48/φ51	PG48	37~44	φ51	10	72.7	75/75/65
Note: According to customer installation requirements, thread length GL extension and thread customization can be provided

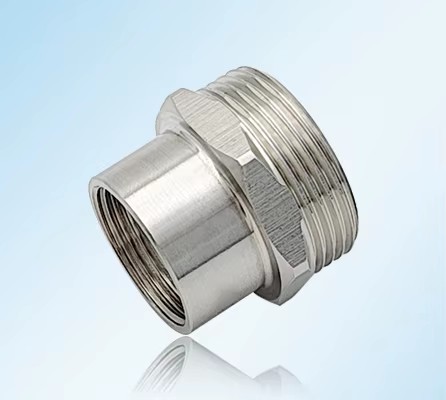

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Standard · Approx. shipping fee: $ 86.54 for 100 pieces · Estimated delivery: Sep 18–Sep 22 (17–21 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 14 fields

Material

Brass, Stainless Steel 304/316, Nickel plated brass, brass nickel plated

Type

Other

Place of origin

China, Jiangsu

Model number (Specification)

YKWS/B-DSJ

Guarding

TPE

Seal

NBR

Protection Level

IP 66

Color

Metal color(white)

Temperature

40 °C ~ 105 °C

Certificate

CE ROHS IP68 REACH ISO9001

Certification

REACH

Selling Units

Multiple of 10 items

Package size per batch

15X10X10 cm

Gross weight per batch

0.7 kg

Minimum order

100 Units
