Chemical Industry 2 Stage Pusher Centrifuge Machine Mineral Salt Separator Centrifuge & Separator

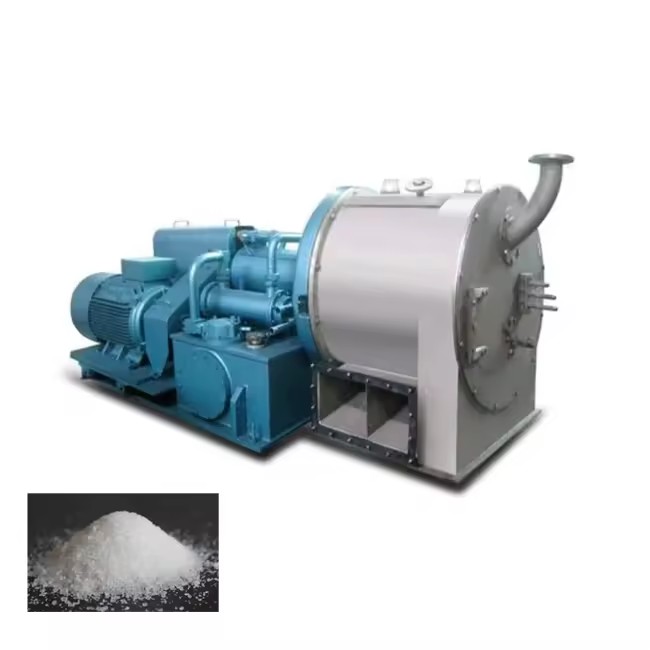

Chemical Industry 2 Stage Pusher Centrifuge Machine

Mineral Salt Separator Centrifuge & Separator

HR series horizontal double-stage piston pusher centrifuge is a continuously operated high-efficiency filter centrifuge, which can be used for continuous dehydration and washing of various granular, fibrous and other suspensions larger than 50um, such as sodium salt, ammonium salt, potassium salt, melamine, PVC, etc., and can separate more than 200 kinds of materials.

LPMIE Industry 2 Stage Pusher Centrifuge Machine Mineral Salt / Sea Salt Separator Centrifuge & Separator

HR series horizontal two-stage piston pusher centrifuge is suitable for separating the suspension of medium and coarse grained crystalline materials, that is, it is suitable for separating the suspension with a solid content of 40-70%, an average particle size of solid ≥ 0.05mm, and a temperature of not more than 80 ℃, and requires stable feed concentration and uniform feed. It is especially suitable for the separation of materials that need to be washed in the machine. This machine has the advantages of automatic continuous operation, continuous slag removal, high production capacity, low moisture content of filter cake, low power consumption, less crystal breakage, compact structure, good corrosion resistance, stable operation, small vibration, etc.

LPMIE Industry 2 Stage

Pusher Centrifuge Machine Mineral Salt / Sea Salt Separator Centrifuge Separator

Features

(1) Fully automatic continuous operation, low labor intensity

(2) Compact structure, small floor area, convenient installation and maintenance

(3) Large production capacity, low moisture content of filter cake

(4) Uniform cloth and small vibration

(5) The filter cake can be washed

(6) It can prevent grain breakage.

Chemical Industry Centrifuge for Separation of Various Chemical Crystals

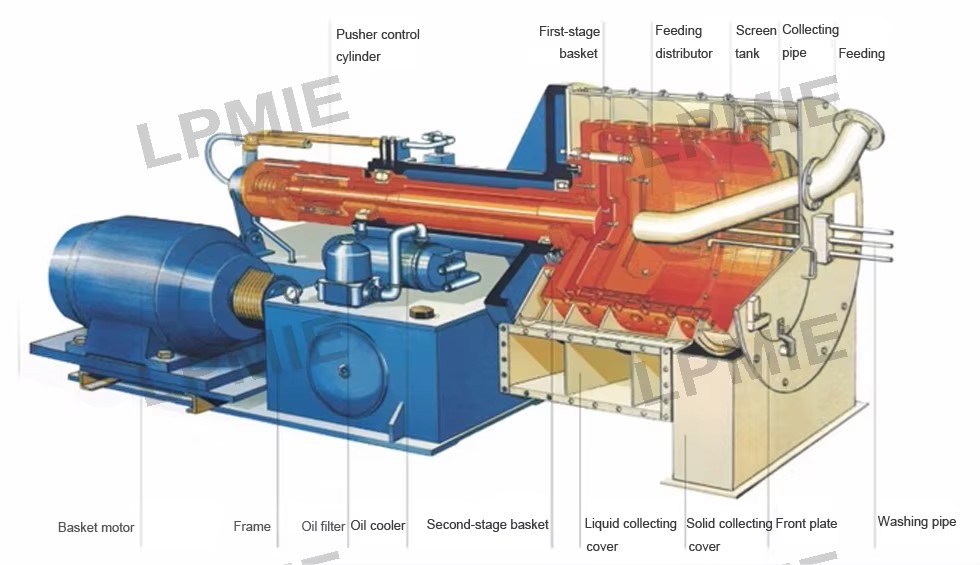

Centrifuge structure and working principle

After the inner drum and the outer drum rotate at full speed, the suspension to be separated will continuously enter the circular distribution tray installed on the outer drum through the feed pipe. Under the action of centrifugal force, the suspension will be evenly thrown along the circumference to the screen installed on the inner drum. Most of the liquid substances are thrown out of the drum through the screen gap and the wall hole of the inner drum, while the solid particles are trapped on the screen to form a slag layer. When the inner drum returns, the slag layer of the inner drum is pushed forward along the axial direction by the push plate for a certain distance. When the inner drum is in progress, the empty screen surface forms a new slag layer. At the same time, the outer end face of the inner drum moves the slag layer of the outer drum forward along the axial direction for a certain distance, with the reciprocating movement of the inner drum, The inner and outer drum filter slag layers move forward in turn and further dehydrate. The final filter slag is continuously pushed out of the outer drum and enters the aggregate tank. The filter residue is discharged from the centrifuge through the shell outlet in the tangential direction through the scraper installed on the outer drum. If the filter residue needs to be washed in the centrifuge, the washing liquid shall be continuously sprayed on the filter residue layer through the washing pipe or other washing equipment for washing, and the separated mother liquor and washing liquid shall be collected in the casing and discharged through the drain. If necessary, mother liquor and washing liquor can be discharged separately.

LPMIE Industry 2 Stage Pusher Centrifuge Machine Mineral Salt / Sea Salt Separator Centrifuge Separator

Technical parameters

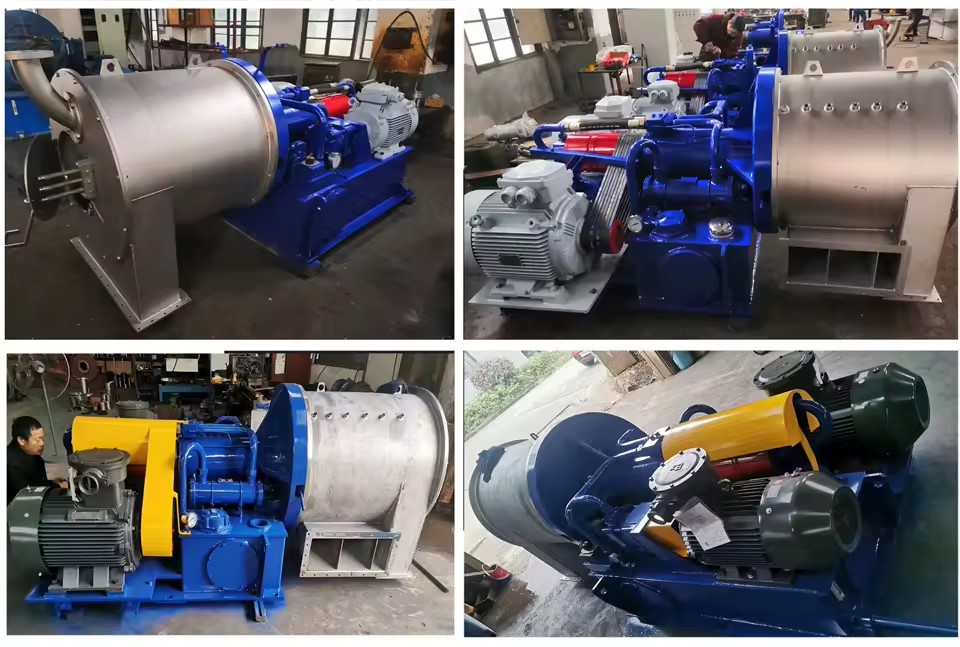

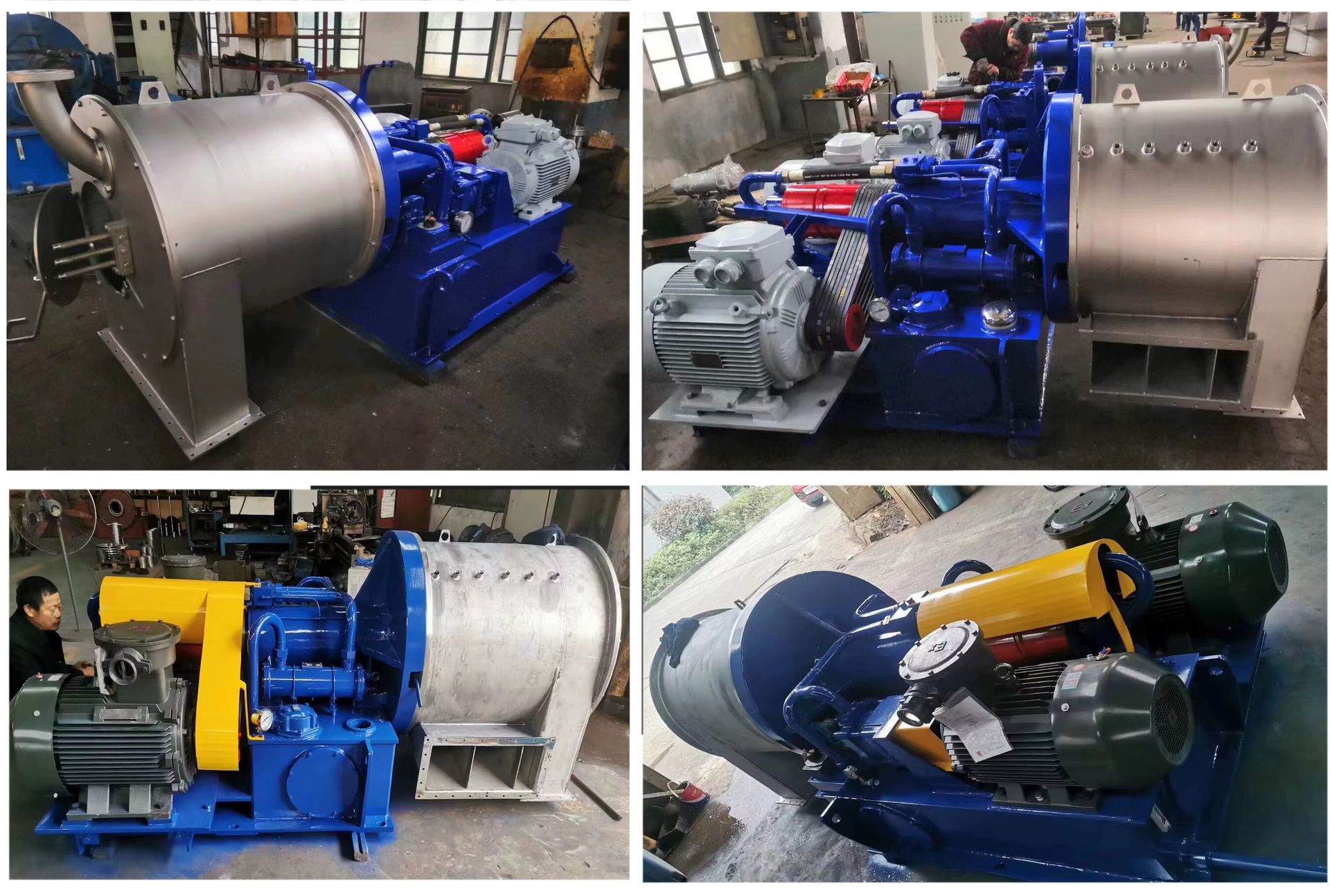

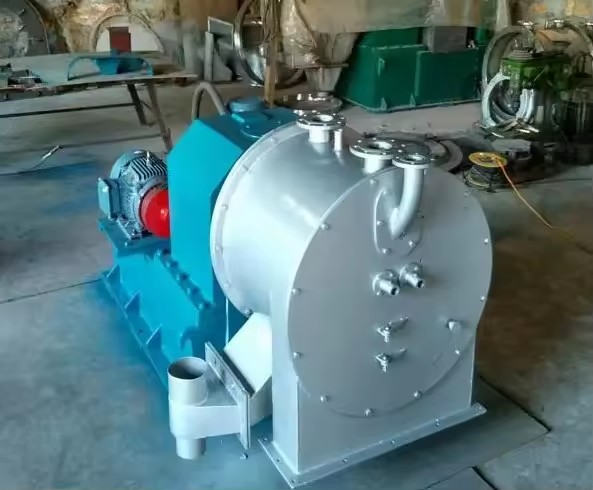

More photos

Spare parts

(LPMIE) was set up in 1992. After more than 30-year development, it has formed a group enterprise that mainly produces and sells chemical, food, packaging, and forging machinery, supplemented by light industrial products. The group has chemical machinery production factory, packaging machinery production factory, forging machinery factory, and sock industry production factory. LPMIE’s products have been best-selling nationwide and exported,,, More than 70 countries and regions, including the,,,, Turkiye,, and etc,with more than 800 products, including mixers, dryers, filling machines, tea packaging machines, centrifuges, glass lining equipment, forging machinery, etc. LPMIE has won the trust and love of customers with a complete range of products and excellent quality. To manufacture high-quality products, an excellent team must be found first. LPMIE pay great attention to the introduction and cultivation of talents. We have successively recruited many excellent talents from both domestic and abroad to join the enterprise team, laying a solid foundation for the development and growth of the enterprise. With the joint efforts of these high-quality and skilled teams, LPMIE has successively provided complete sets of chemical and packaging production lines and turnkey projects,,,,, and other countries. LPMIE's team has received great praise from customers. In the future, LPMIE will continue to adhere to the management philosophy of "people-oriented and user first", strive to cultivate and build a high-quality talent team, rely on teamwork, forge ahead, create and innovate, and make due contributions to the development of the world economy and human health with first-class products and services.

Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.

Shipping

Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
