Product video
Certifications CE Intertek EU 2006/42/EC ISO 9001-2015 Fortune 500 OSHA Compliant · CE

CE Q378 Hook Type Chain Conveyor Shot Blasting Machine Sa2.5 1000kg PLC for Aluminum Wheel Rim Hub Engine Block Descaling

Available for enquiry 0.0 · 0 reviews
USD

$ 12,720.00 12720.0 USD $ 12,720.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Use
  • Cleaning process
  • Material
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Cleaning type
  • Key selling points
  • Power(w)
  • Place of origin
  • Weight (kg)
  • Dimension(L*W*H)
  • Model
  • No Pit Design
  • Load and Speed
  • Surface Grade
  • Applications
  • Certification
  • Standard Config
  • After-sales
  • Customization
  • Factory Origin
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Feature (Product option)
  • Industry used (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Use
Descaling / Stripping, Container / Bottle Cleaning, Burnishing, Deflashing, Sterilizing / Disinfecting, Degreasing, cleaning of castings, forgings, complex metal parts
Cleaning process
blasting cleaning
Material
Metal / Coil
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Product description

Product details

No Pit Required Flat Floor Install. Save 3000 to 8000 USD in civil works. No excavation. Setup 3 days. Works in rented factory. Competitors need 1 to 2m pit 4 to 6 weeks. Q3730 runs on flat floor Day 1.

Sa2.5 Near-White Blast Cleaning Every Hook. 500 to 5000kg per hook. 15sqm per hour. 120 to 200kg per min shot flow. 4 to 8 wheels 360 degree zero blind zones. 10 to 15 min cycle. Pre-shipment full-load test signed Sa2.5 report per ISO 8501-1.

360 Degree Coverage Zero Blind Zones. Blast wheels top bottom plus and minus 45 degree. All surfaces in one pass flanges web fillets underside. No rework. No reblast. Processes castings forgings steel structure gearbox brake disc pump valve mining railway.

Fortune 500 Verified Same Standard Every Order. CE Intertek EU Machinery Directive 2006/42/EC product-specific. ISO 9001-2015 certified. OSHA-compliant chamber dust below 10 mg per cubic meter exceeding EU 98/24/EC by 3 times. CE file included.

Mn13 Liner Plates self-harden 200HB to 550HB under impact. Cr20 blasting wheel blades 800 to 1200 hours. 5-stage abrasive recovery separator elevator sieve air-wash screw conveyor cuts consumption 30 percent. Cartridge dust collector 99.5 percent filtration.

Siemens S7-1200 PLC HMI Touchscreen English Spanish Arabic. Recipe memory per part one-touch changeover. Auto hook load and unload available. Real-time monitoring wheel amperage abrasive level dust pressure. OPC-UA export for MES and ERP. Hook quantity 1 or 2.

Custom Engineered Free Proposal within 2 Hours. Hook qty 1 or 2. Voltage 380V 415V 220V 460V 50Hz or 60Hz. PLC Siemens or Mitsubishi. Chamber per workpiece. Wheel count 4 to 8. Send drawing or sample. 12 engineers deliver proposal with 3D layout in 2 hours.

Botou Hebei Shot Blasting Machinery Capital. 100 percent local supply chain Mn13 steel Cr20 wheels Siemens PLC. Lead time 25 to 35 days versus 60 to 90 standard. 11 Years Export 30 Plus Countries 3900 Sets Fortune 500 Trusted

Certifications & compliance
CE
Complies with EU standards
Frequently asked questions

Hook type suspends individual workpieces from hooks-ideal for large castings,forgings,weldments 500-5,000kg.Tumble belt rotates batches of small non-fragile parts 100-500kg inside a Mn13 le:if part>50kg individually or has precision-machined surfaces-choose hook type Q37.If processing 1,000+identical small parts/batch-choose tumble belt Q32.Many foundries and forging plants run both.(380)

No. Q378 uses pit-free design · installs directly on flat concrete floor,saving $3,000-8,000 in civil engineering costs and reducing setup to 3 days.Standard hook type machines from most manufacturers require 1-2m foundation pit and 4-6 weeks construction.Always confirm this with your supplier before ordering.Pit-free means you can even install in a rented factory and relocate anytime.

Sa2.5(ISO 8501-1)="near-white metal blast cleaning" · 95%+surface free of oil,grease,mill scale,rust,paint.Mandatory for:FBE/3PE pipeline coating,structural steel EN ISO 12944,automotive painting/powder coating,hot-dip galvanizing prep. Q378 achieves Sa2.5 every hook every batch,verified by pre-shipment full-load test with signed report.Sa3(white metal)available for critical applications like aerospace components.

Product-specific CE Declaration by Intertek(global top-3 with TUV and SGS)under EU Machinery Directive 2006/42/EC · covers exact Q3730 model,not a factory certificate.Accepted by EU customs,SASO(Saudi Standards),and Aramco procurement first review.Full CE technical file+ISO 9001:2015(also Intertek certified)+electrical schematics+GA drawings+operation manual ship with every machine.No additional testing required at port of entry.

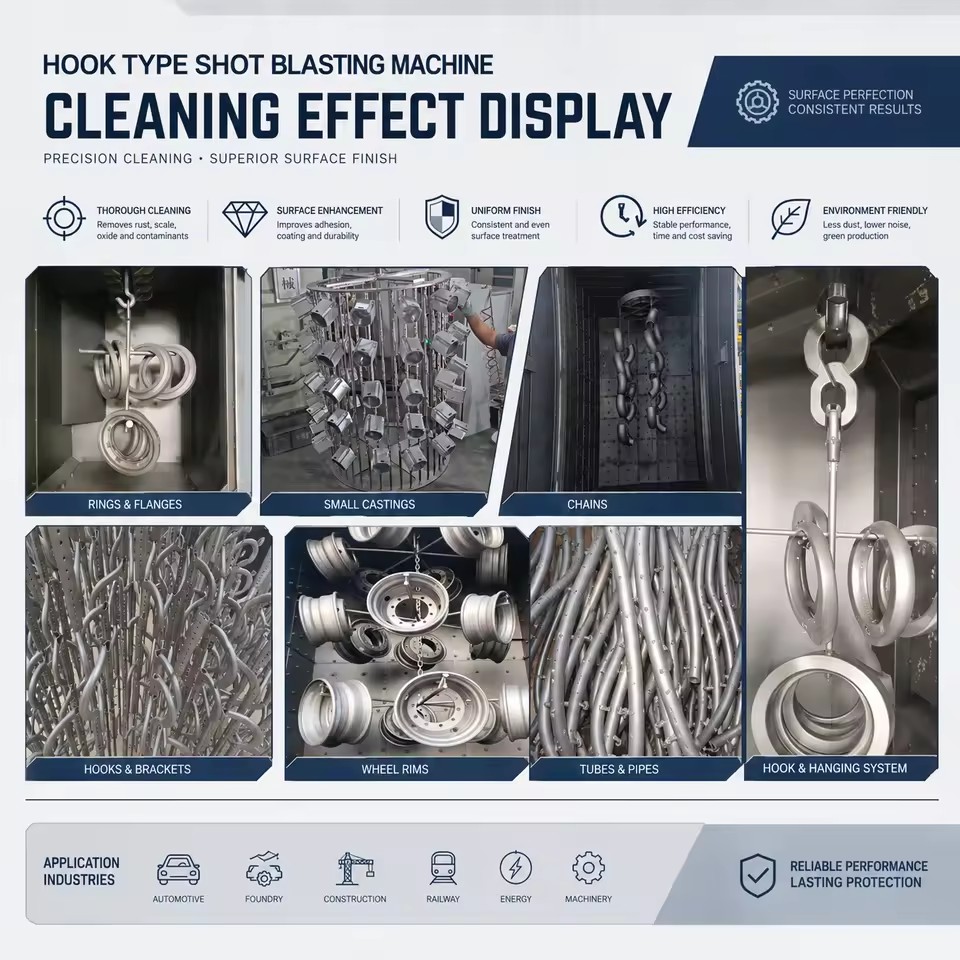

Automotive:engine blocks,cylinder heads,brake discs,gearbox housings,wheel hubs.Foundry:large iron/steel castings up to 5,000kg.Forging:crankshafts,connecting rods,large forged components.Steel structure:H-beams,columns,welded assemblies.Agricultural:tractor parts,harvester components.Mining:crusher parts,wear plates.Railway:bogies,nstruction machinery:boom arms,bucket components.Wind power:tower flanges,foundation rings.Shipbuilding:large structural castings.

Standard:500-5,000kg per hook(depending on configuration).Single hook:500-2,000kg.Double hook:1,000-5,000kg total.Processing speed:15sqm/h at Sa2.5 with 4-wheel configuration;20+sqm/h with 6-8 wheels.Shot flow:120-200kg/min per wheel.Cycle:10-15min per ntinuous operation:4-6 batches/hour at rated load.D800 H1500mm max workpiece dimensions(standard chamber;customizable larger).

Fully enclosed blast chamber with cartridge pulse-jet dust collector.≤10mg/m³ dust emission · exceeds EU 98/24/EC(≤30mg/m³)by 3 99.5% filtration efficiency with self-cleaning pulse-jet.Noise ≤80dB(A)compliant with EU 2003/10/EC.OSHA 29 CFR 1910.1000 compliant · zero operator dust exposure,zero violation risk.5-stage abrasive recovery recovers 95% media,cuts abrasive consumption 30%.Full CE technical documentation for EU chemical agent directive included.

Yes,full OEM/ODM.Hook quantity:1 or 2(customizable up to 4).Voltage:380/415/440/460/480V 50/60Hz pre-configured.PLC:Siemens S7-1200 or Mitsubishi,HMI language EN/ES/AR/RU.Wheel count:4/6/8 per coverage needs.Chamber dimensions:extended for non-standard workpiece sizes.Dust collector:upgraded filtration for stricter lor:per factory standard.Hook design:custom fixture for specific parts.Send drawing · 12 engineers deliver proposal+3D layout≤ee consultation.
Description images
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Use
Descaling / Stripping, Container / Bottle Cleaning, Burnishing, Deflashing, Sterilizing / Disinfecting, Degreasing, cleaning of castings, forgings, complex metal parts
Cleaning process
blasting cleaning
Material
Metal / Coil
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Cleaning type
Burn-Off / Thermal System
Key selling points
Automatic, Easy To Operate, Competitive Price, Multifunctional, High-Accuracy, Long Service Life, High Productivity, High Safety Level, Eco-Friendly, Energy Saving, Low Noise Level, Remote Monitoring, Flexible Manufacturing, Low Maintenance Cost, High Rigidity, Remote Control, Patented Product, Famous Brand PLC, IOT, Famous Brand Motor
Power(w)
48KW(64.37hp)
Place of origin
China, Hebei
Weight (kg)
5900
Dimension(L*W*H)
1800mm*1800mm*4500mm(70.87in*70.87in*177.17in)
Model
Q378 Single Hook Type Spinner Hanger Shot Blasting Machine No Pit
No Pit Design
Flat Floor Install No Foundation Save 3000-8000 USD 3 Days Setup
Load and Speed
500-2000kg per Hook 15sqm/h 120-200kg/min 11-22kw Blast Wheels
Surface Grade
Sa2.5 Near-White ISO 8501-1 Sa3 Optional 100 Percent Test Verified
Applications
Automotive Castings Forgings Gearbox Brake Disc Pump Valve Mining
Certification
CE Intertek EU 2006/42/EC ISO 9001-2015 Fortune 500 OSHA Compliant
Standard Config
Mn13 Liner Cr20 Wheels Siemens PLC HMI Dust Collector 10mg per m3
After-sales
24H Video Support Field Install 12Mo Warranty Spare Parts Air 7 Days
Customization
Voltage 380V 415V 220V 460V 50-60Hz Hook Qty PLC Siemens Mitsubishi
Factory Origin
Botou Hebei Foundry Capital 11Yrs Export 30 Plus Countries 3900 Units
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
Q378
Feature (Product option)
Rust / Corrosion Inhibitor, Critical Cleaning / Residue Free, Sudsing / Foaming, Non-Ionic, Non-Toxic
Industry used (Product option)
Electronic Industry, valve, Oil pump, Steel and wood furniture, Locks, spring, flange, Short pipe, Hardware, Pharmaceutical Cleaning, Beverage Processing, Food Processing, Optics, Machine tool accessories, Manhole cover, Grill (or) Sieve, Fitness equipment, Wheel hub, other industries
Certifications & Compliance
CE
Lead time
15 days
Minimum order
1 Units
