Product video
Certifications ISO 9001:2015 · CE Intertek EU 2006/42/EC · Fortune 500 Verified · CE

CE Q326 Tumble Belt Shot Blasting Machine 3000kg Heavy Duty Mn13 PLC Sa2.5 Foundry Automotive Castings Engine Gearbox Pump

Available for enquiry 0.0 · 0 reviews
USD

$ 6,720.00 6720.0 USD $ 6,720.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Use
  • Cleaning process
  • Material
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Cleaning type
  • Key selling points
  • Power(w)
  • Place of origin
  • Weight (kg)
  • Dimension(L*W*H)
  • Belt Material
  • Applications
  • Surface Process
  • Certification
  • Dust System
  • After-sales
  • Customization
  • After-sales Service Provided
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Feature (Product option)
  • Industry used (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Use
Descaling / Stripping, Container / Bottle Cleaning, Burnishing, Deflashing, Sterilizing / Disinfecting, Degreasing, Shot blasting
Cleaning process
blasting cleaning
Material
Metal / Coil
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Product description

Product details

Sa2.5 surface preparation grade (ISO 8501-1) achieved in 8-12 minutes per 200-500kg batch - verified by 100% pre-shipment full-load functional test. Every machine ships with a signed and stamped Sa2.5 test report. Ideal for paint pre-treatment, powder coating preparation, FBE/3PE anti-corrosion coating base, and hot-dip galvanizing pre-treatment across automotive, construction, agricultural machinery, and mining equipment industries. Your QC department verifies on arrival - not takes our word.

Main blasting chamber with Mn13 manganese steel liner plates - self-hardening under impact and abrasion. Mn13 tumble belt - the one that gets tougher every batch. High-Chromium Cr20 alloy blasting wheel assembly - CNC ±0.5mm precision balanced. 5-stage abrasive separation & recovery system: magnetic separator - bucket elevator - rotary sieve - air-wash classifier -screw conveyor - cuts abrasive media consumption by 30%. Cartridge pulse-jet dust collector - ≤10 mg/m³ emission, 99.5% filtration, self-cleaning. Siemens S7-1200 PLC with HMI touchscreen - English / Spanish / Arabic UI.

Fully customizable for your specific industry requirements: voltage (380V/415V/220V/460V 50Hz/60Hz), belt width, chamber dimensions, PLC brand (Siemens or Mitsubishi), dust collector configuration, color, and any non-standard workpiece adaptation for casting, forging, stamping, or fastener production.

Certifications & compliance
CE
Complies with EU standards
Frequently asked questions

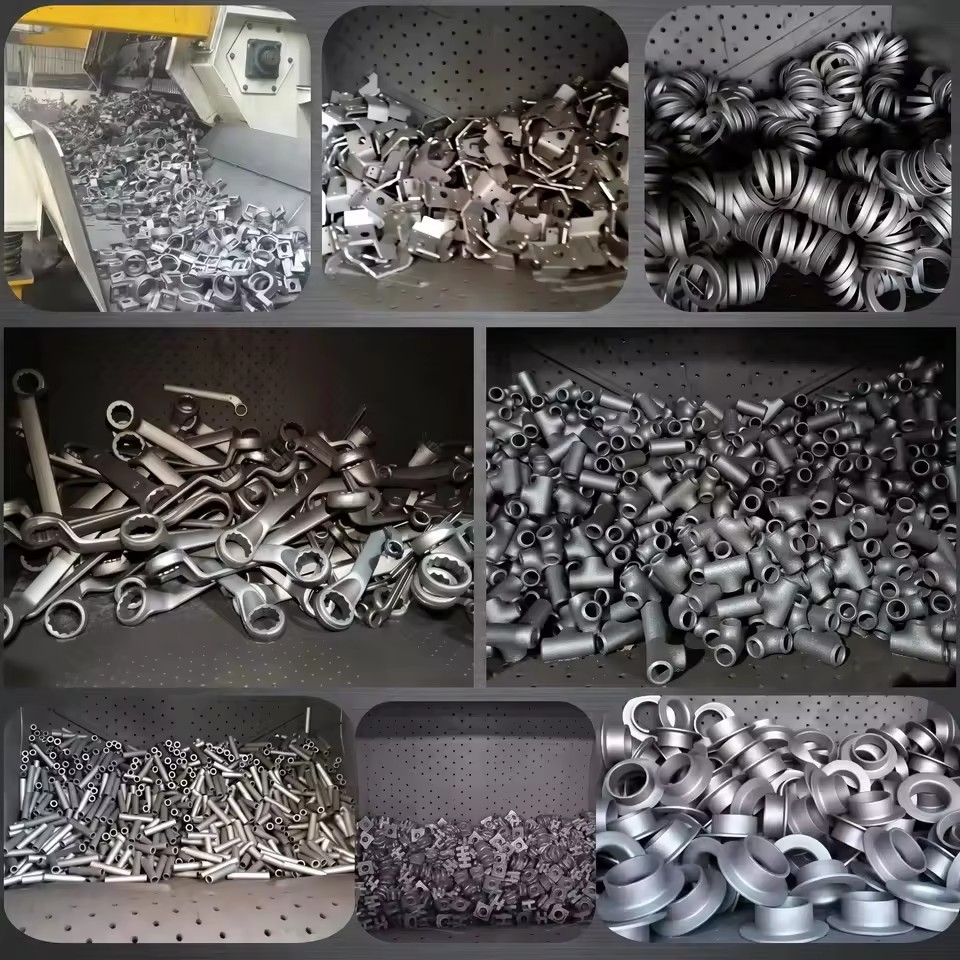

Processes batch small-to-medium metal parts for foundry casting cleaning,forging descaling,hardware surface prep.Typical workpieces:iron/steel castings,drop forgings,fasteners(bolts,nuts),springs,die-cast Al/Zn parts,bearing rings,chain links,gear blanks,brake parts,valve bodies,pump impellers,stampings,agricultural parts.Max piece:~600 400 300mm.Batch:200-500kg.

Mn13(Hadfield steel,11-14% Mn)self-hardens under impact from 200HB to 350-550HB in service.For foundry and forging use,the Q326 tumble belt lasts 2,000-3,000 operating hours-3 longer than standard carbon steel(600-800hrs).Belt replaced once every 2 years vs.3 /year.Dramatically reduces downtime in casting cleaning,hardware processing,and spring manufacturing.

Sa2.5(ISO 8501-1)="near-white metal blast cleaning"-95%+ surface free of oil,grease,mil scale,rust,paint.Mandatory for:FBE/3PE pipeline coating,structural steel EN ISO 12944,automotive painting/powder coating,hot-dip galvanizing,agricultural/construction machinery coating. Q326 achieves Sa2.5 every batch,verified by pre-shipment signed test report.

Product-specific CE Declaration by Intertek(global top-3 with TUV,SGS)under EU Machinery Directive 2006/42/EC-covers exact machine model,not a factory-level certificate.EU customs clearance without extra pliance docs accepted first review.Full technical file available.ISO 9001:2015 also Intertek certified.Ships with CE declaration,ISO cert,test report,electrical schematics,GA drawings,and operation manual.

Choose Tumble Belt when:parts<50kg each,non-fragile,batch hundreds-thousands.Typical:castings,forgings,fasteners,springs,hardware,stampings.Choose Hook Type when:parts>50kg,precision-machined surfaces,large castings/weldments,too fragile for tumbling.Typical:engine blocks,large valves,gearbox housings.Many foundries use both-tumble belt for small batches,hook type for large individual workpieces.

Daily:check abrasive level and dust collector pressure.Weekly:inspect Mn13 belt tension,blast wheel blade wear.Monthly:check separator screen,elevator belt,screw conveyor.Quarterly:full PM including bearings and PLC.Wear life:Mn13 belt 2,000-3,000hrs,Cr20 wheel blades 800-1,200hrs,Mn13 liners 3,000hrs+,cartridge filters 6-12mo.12-month spare parts kit included.Urgent parts air-shipped globally within 7 days.

Fully enclosed blast chamber with cartridge pulse-jet dust collector.≤10mg/m³ emission-exceeds EU 98/24/EC(≤30mg/m³)by 3.99.5% filtration,self-cleaning.Noise ≤80dB(A)compliant with EU 2003/10/EC.OSHA 29 CFR 1910.1000 compliant-zero operator dust exposure.5-stage abrasive recovery recovers 95% media,cuts consumption 30% vs.open blasting.Full CE technical file included.

Yes,full OEM/ODM.Chamber dimensions,belt width,voltage(380/415/440/460/480V 50/60Hz),PLC(Siemens S7-1200 or Mitsubishi)with HMI(EN/ES/AR/RU),wheel quantity/power,dust collector size,SS304 belt option for aluminum casting to prevent Fe contamination,color.Send drawing-12 engineers deliver custom proposal+3D layout≤ee consultation.No minimum order.
Description images

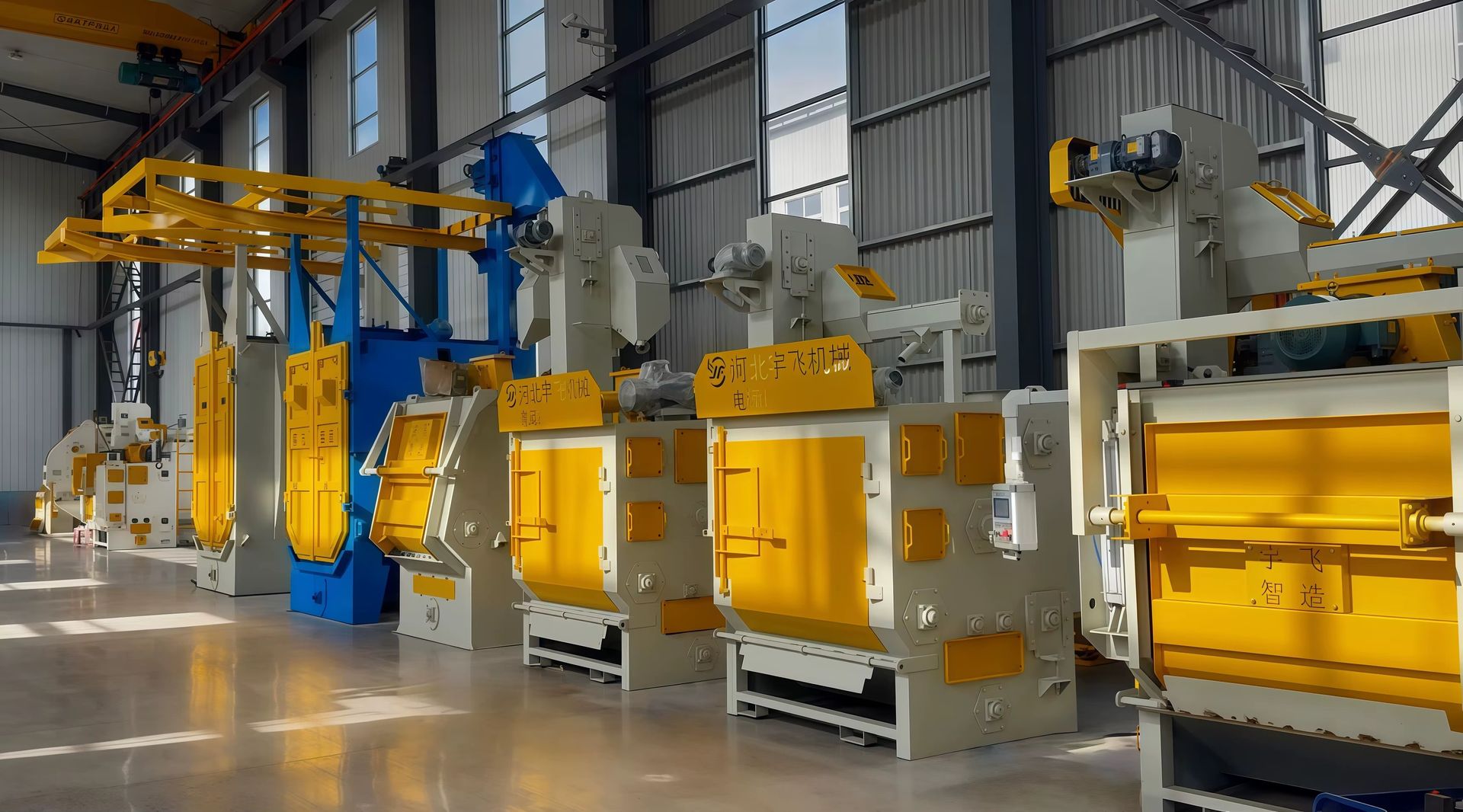

Product detail

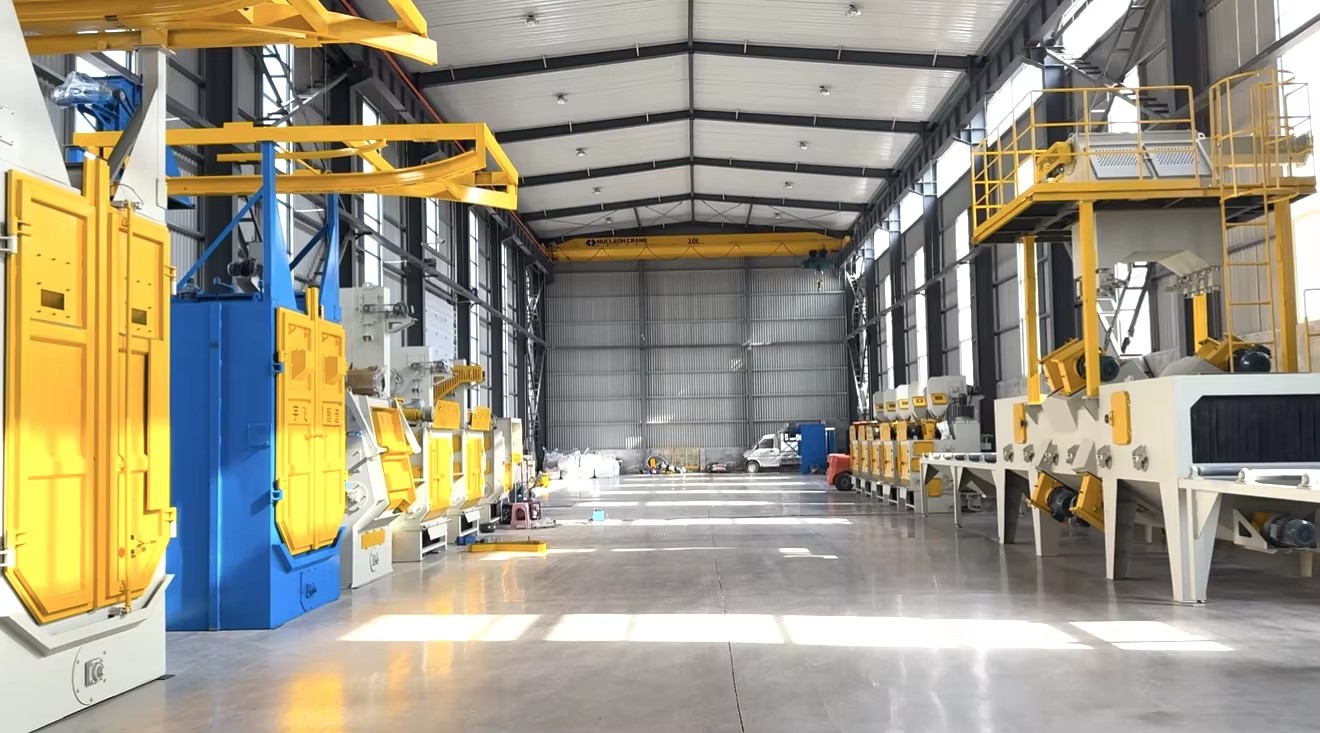

Product detail

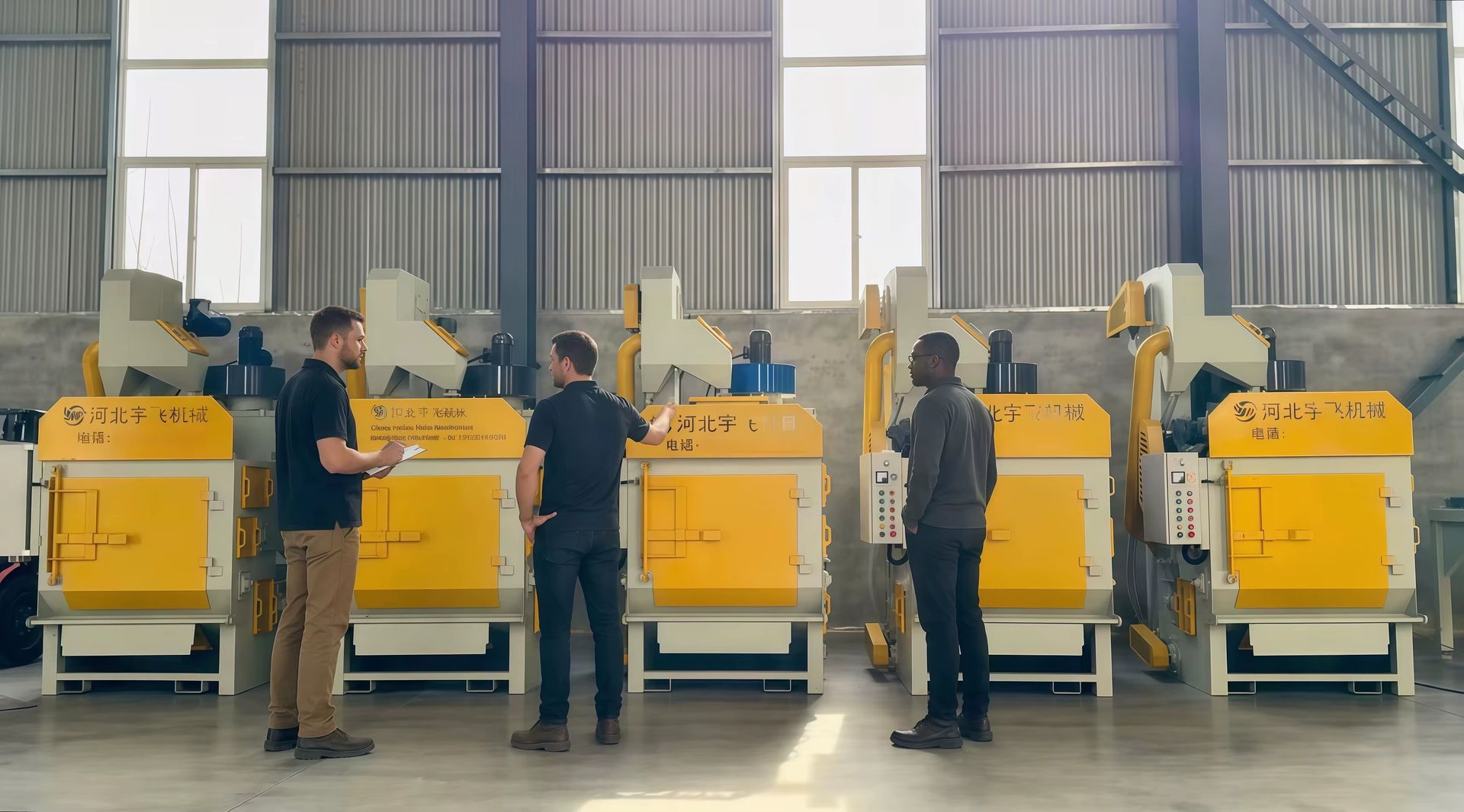

Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Use
Descaling / Stripping, Container / Bottle Cleaning, Burnishing, Deflashing, Sterilizing / Disinfecting, Degreasing, Shot blasting
Cleaning process
blasting cleaning
Material
Metal / Coil
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Cleaning type
Burn-Off / Thermal System
Key selling points
Automatic, Easy To Operate, Competitive Price, Multifunctional, High-Accuracy, Long Service Life, High Productivity, High Safety Level, Eco-Friendly, Energy Saving, Low Noise Level, Remote Monitoring, Flexible Manufacturing, Low Maintenance Cost, High Rigidity, Remote Control, Patented Product, Famous Brand PLC, Famous Brand Motor
Power(w)
23kw(30.84hp)
Place of origin
China, Hebei
Weight (kg)
3000
Dimension(L*W*H)
2200mm*2500mm*3300mm(86.61in*98.43in*129.92in)
Belt Material
Mn13 High Manganese Steel, Self-Hardening 200-550HB, 3000-5000Hrs
Applications
Foundry Castings, Forgings, Fasteners, Springs, Hardware, Die Cast, Bearings
Surface Process
Rust Removal, Descaling, Deflashing, Burnishing, Sa2.5 Paint Prep, Coating
Certification
ISO 9001:2015, CE Intertek EU 2006/42/EC, Fortune 500 Verified
Dust System
Cartridge Pulse-Jet, ≤10mg/m3 Emission,99.5% Filtration
After-sales
24H Video Support, Field Install,12Mo Warranty, Spare Parts Air 7Days
Customization
Voltage 380/415/220/460V 50/60Hz, Belt Width, PLC Siemens
After-sales Service Provided
Engineers
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
Q3210
Feature (Product option)
Rust / Corrosion Inhibitor, Critical Cleaning / Residue Free, Sudsing / Foaming, Non-Ionic, Non-Toxic
Industry used (Product option)
Electronic Industry, valve, Oil pump, Steel and wood furniture, Locks, spring, flange, Short pipe, Ship spare parts, screw, nut, support frame, Hardware, Front bumper of a car, Pharmaceutical Cleaning, Beverage Processing, Food Processing, Optics, other industries
Certifications & Compliance
CE
Lead time
15 days
Minimum order
1 Units
