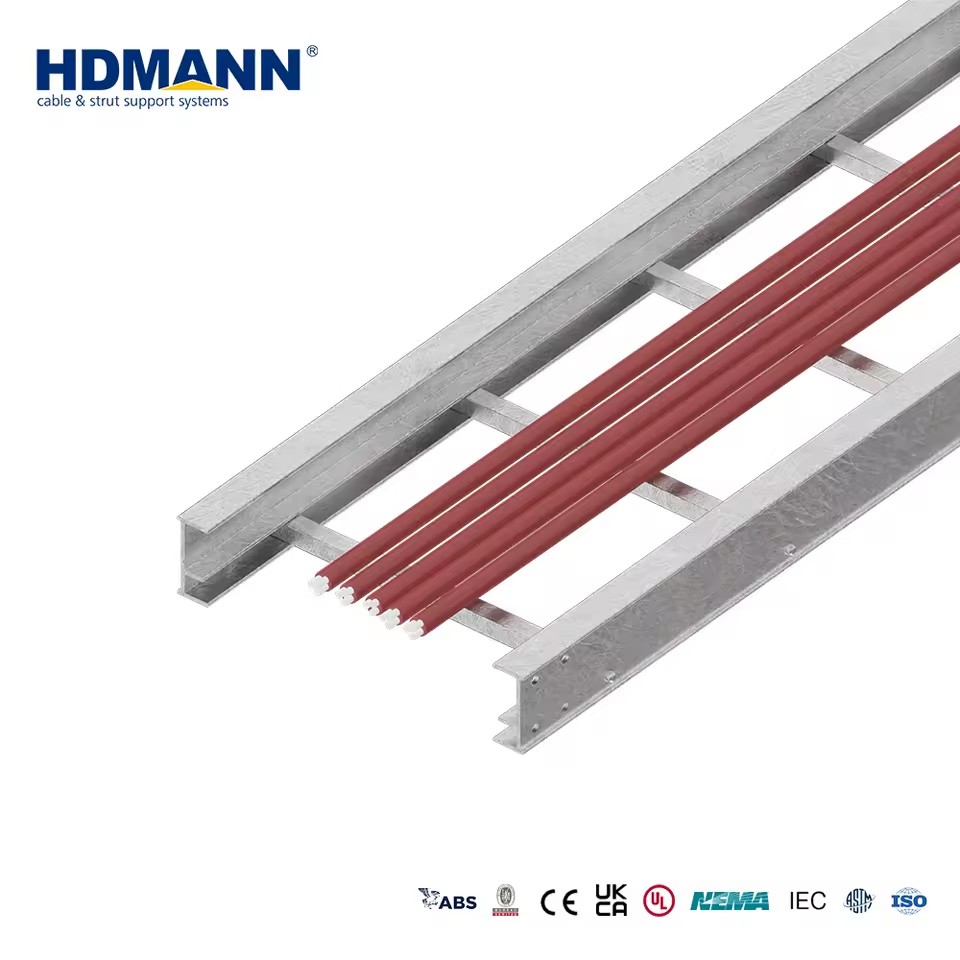

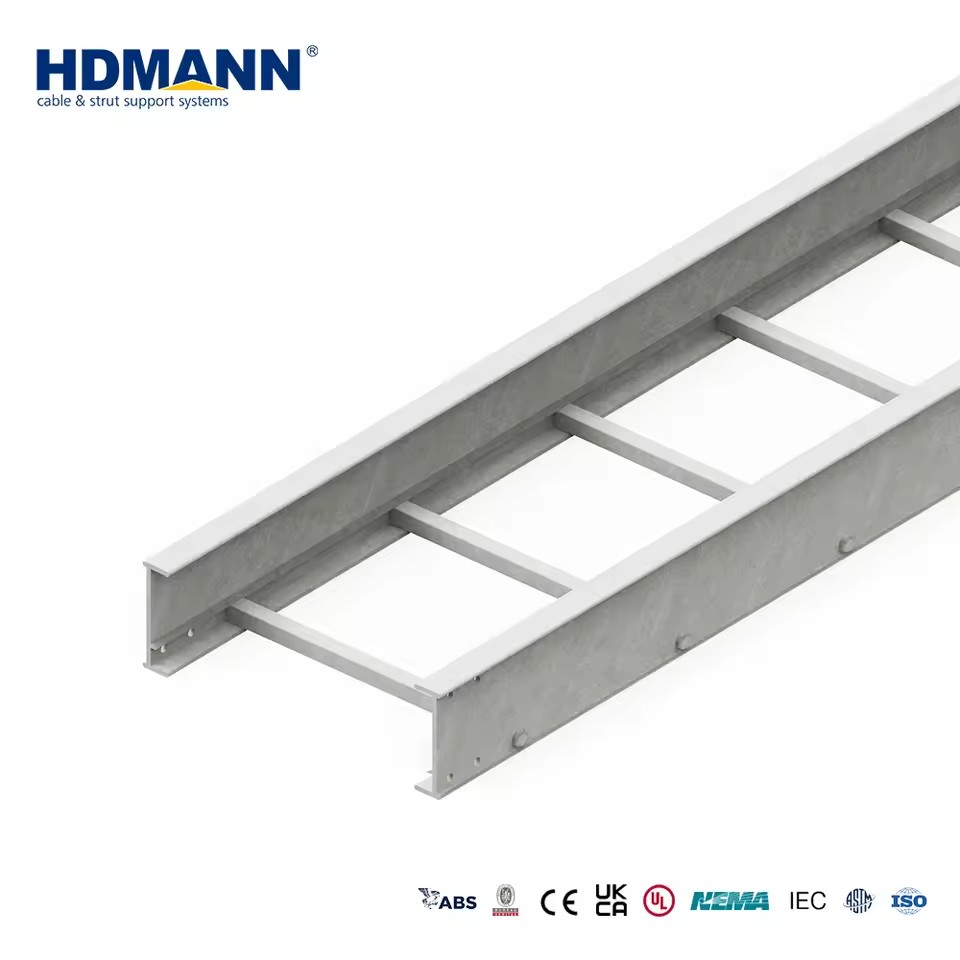

Name: CE ABS Anti-Corrosion Fire Retardant FRP GRP Fiberglass Cable Ladder for Marine and Offshore Platform Support
SKU: B2B-17824
Price: 30.0 USD
Availability: PreOrder

Product description

FCT Series Cable Ladder System

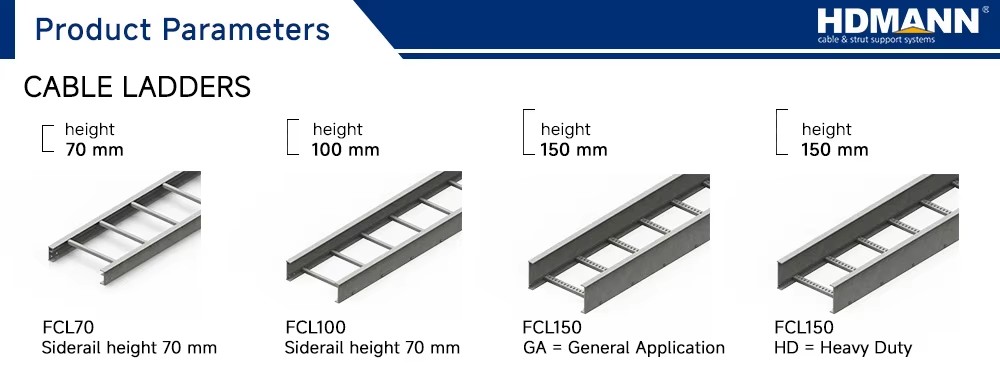

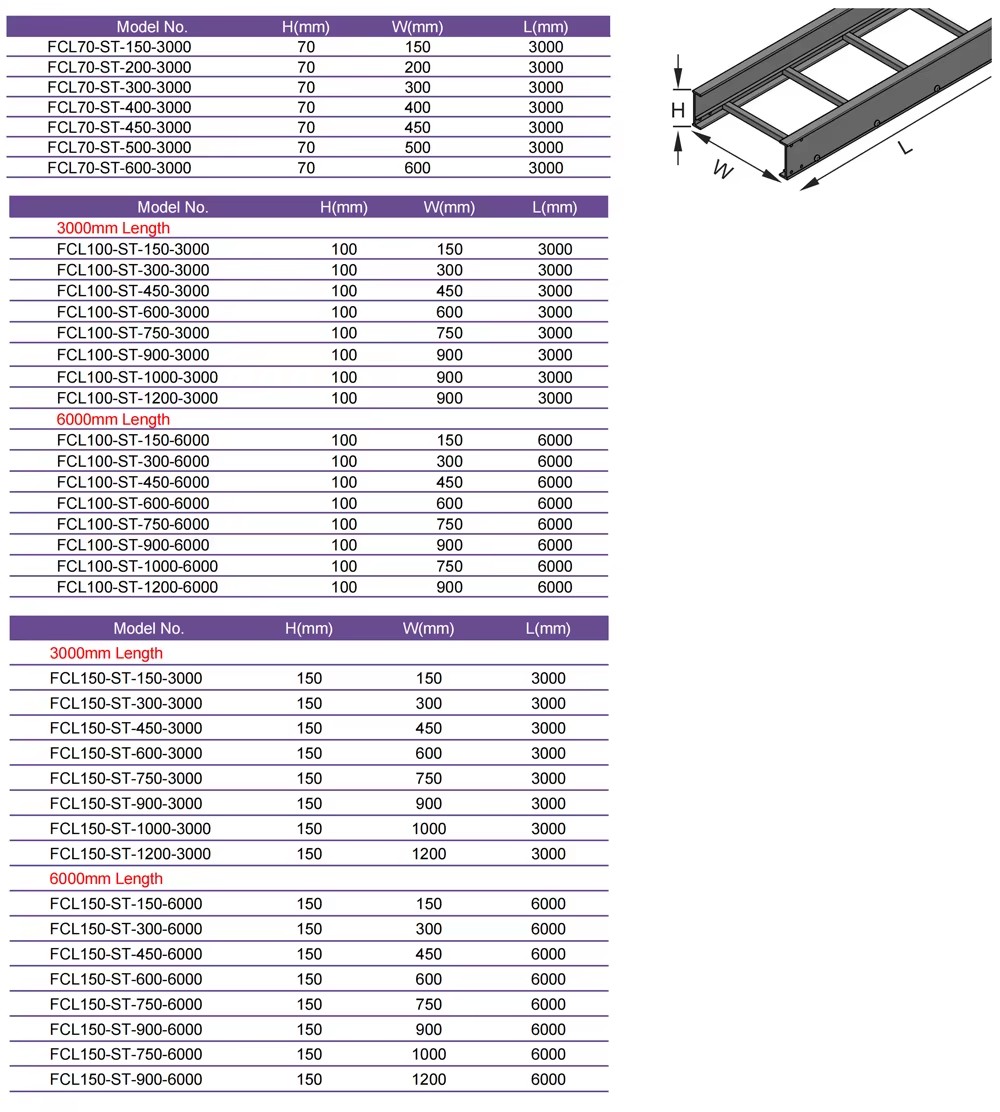

Load Data
Cable Ladder	Rail Height(mm)	Loading Depth(mm)	SWL 2m(kg/m)	SWL3m(kg/m)	Availablelengths (m)	Nema FG-1	Wallthickness FRP (mm)
FCL70	70	46	263	103	3	8A	4
FCL100	100	71	230	3/6	12C	4
FCL150 GA	150	121	402	3/6	16B	4¹/7²
FCL150 HD	150	121	460	3/6	20C	7
SWL = Safe Working Load, 1Upper Wall, 2Lower Wall Loading data according to IEC61537. The length of the end span must be reduced to 3/4 of the support spacing and with no splices on the end span

$3.99-4.99 / meter

A:Yes,you can get the free samples

A: Even with a smaller trial quantity, we can fulfill your order. However, please note that sea shipping may incur extra customs charges.

A:Standard sizes are in stock. Expect delivery within 7 to 20 days upon receipt of your deposit.

A:We have professional lab to do below test:①.safe loading test②.galvanized thickness test③.salt spray test④.electrical continuity

Certifications & compliance

UKCA

Compliance Certified

ABS(2)

Marine Compliance Standards

IEC

IEC Electrical Safety

CE(2)

Complies with EU standards

DNV(2)

Marine Risk Management

Description images

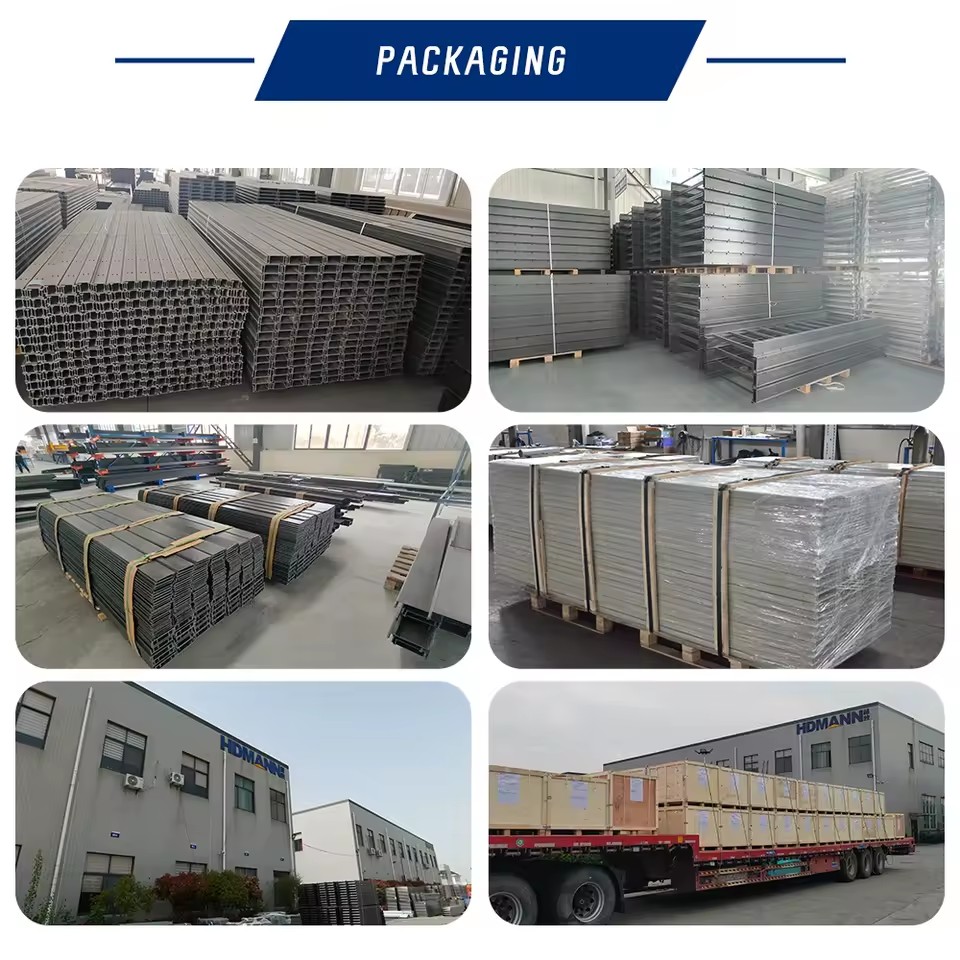

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 50 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Material

frp

Type

FRP Cable Ladder

Side Rail Height

50-200mm Cable Ladder

Max. Working Load

100-400kg upon sizes

Cable Capacity

Custom

Application

Construction, Industrial, Cable Laying, Cable Support, Cable Wiring, Managing Cables, Network

Place of origin

China, Jiangsu

Model number (Specification)

hm100

Materials for cable ladder

Pre-gal steel, GI, Alumminum, Stainless steel 304/316, FRP

MOQ

Standard sizes supplied for all

Delivary time

10-20 days for average quantity

Certification

CE, NEMA, ISO TUV ABS

Smaple

Free available steel Cable Ladder

Steel Thickness

0.8-3mm Cable Ladder

Payment terms

30% deposite Cable Ladder

Bussiness type

Fabrication&trade in one

Product Type

FRP Cable Ladder

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Length (Product option)

6 m(19.69ft), Customized, 3 m(9.84ft)

Width (Product option)

customized, 150 mm(5.91in), 300 mm(11.81in), 450 mm(17.72in), 600mm(23.62in), 750 mm(29.53in), 900 mm(35.43in)

Certifications & Compliance

CE(2), IEC, ABS(2), UKCA, DNV(2)

Lead time

30 days

Minimum order

50 Units
