HYDX-4 Full Hydraulic Diamond Core Drilling Rig Exploration Rig for Coal Gold Copper Iron Mining Project Low Cost

Available for enquiry 0.0 · 0 reviews
USD

$ 143,020.00 143020.0 USD $ 143,020.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Power Type
Electric
Voltage
380V
Warranty
12 Months
Place of origin
China, Shanghai
Product description

HYDX-4 Full Hydraulic Diamond core Drilling Rig Exploration Rig for coal gold copper iron mining project low cost

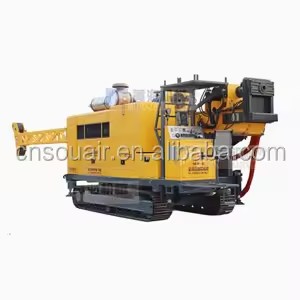

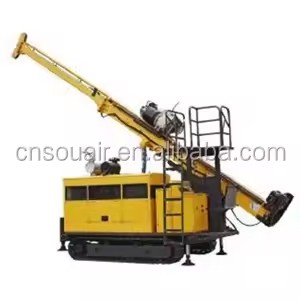

HYDX-4 Full Hydraulic Drilling Rig

Ⅱ. Main Parameters Primary Pump Hydraulic Tank Capacity of Main Capacity of Wireline Hoist Foot Clamp Others

Diesel Engine of HYDX-4 hydraulic core drilling rigModelCummins 6BTA5.9-C180 (turbocharged and charge water cooled)
Displacement5.9L (1.56 US Gallons)
Power132Kw (180HP)
Rated RPM (Factory setting)2200rpm
Drilling Capacity of hydraulic geological drill rigBQ hydraulic core drilling rig1000m(3280feet)
NQ hydraulic core drilling rig700m(2296 feet)
HQ geological drill rig500m(1640 feet)
PQ hydraulic geological drill rig300m(984 feet)
Rotation MotorHydraulic Motor-variable Maker: SAUER-DANFOSS
RPMFour Shifts/ Steeples Change 0-1100 RPM
Ratios1st 14.422:1 2nd 8.171:1 3rd 4.519:1 4th 2.652:1
Drill Head HYDX-4 hydraulic core drilling rigHead OpenerPivoting style, Manual actuated
Hydraulic Chuck(PQ)Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N
Max. Torque hydraulic geological drill rig3700 N·m(2727 lbf·ft)
Hold Diameter121 mm(4.76 inch)
Max. Lifting capacity of Spindle150 kN(33720 lbf)
Max. Feeding Power HYDX-4 hydraulic core drilling rig60 kN(13480 lbf)
Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.Maker: DANFOSS 1st Pump: 148LPM at 31.5MPa 2nd Pump: 120LPM at 28MPa 3rd Pump: 50 LPM at 16MPa
Capacity HYDX-4 hydraulic core drilling rig310 L (82 US Gallons)
Hoisting force (single wire)57kN(12814 lbf) (bare drum)
Hoisting Speed (single wire)38-70m/min(bare drum)
Hoist hydraulic geological drill rigSteel Wire Diameter18 mm(0.71 inch)
Steel Wire Length50 m(164 feet)
Hoisting Force (single wire)1200 Kg(2646 lb) (bare drum)
Hoisting Speed (single wire)60-90m/min (bare drum)
Steel Wire Diameter5.3 mm(0.2 inch)
Steel Wire Length1000 m(3280 feet)
Mast Height9.6 m(31.49 feet)
Mast Adjusting Angle0°—90°
Drilling Angle45º off horizontal to 90ºvertical down
Feed Pull15000kg(33075 lb)
MastFeed Thrust6000kg(13230 lb)
Rod Pull3m or 6m(9.84feet or 19.68feet)
Feeding Stroke3500 mm(137.80 inch)
Slippage Stroke600 mm(23.62 inch)
TypeReciprocating pump Triplex Plunger
Mud PumpModelBW160/10
Stroke70mm(2.76 inch)
Discharge pressure2.5, 4.0, 6.5, 10.0 Mpa (363, 580, 943, 1450 psi)
Clamping Scope55.5-110 mm(2.19-4.33 inch) through hole 154mm(6.06 inch)
Weight (platform type)9300 Kg(20506 lb)
OthersDimensions (L×W×H)5100×2200×2650mm (200×86.6×104.3 inch)
Transport WayCrawler

The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.

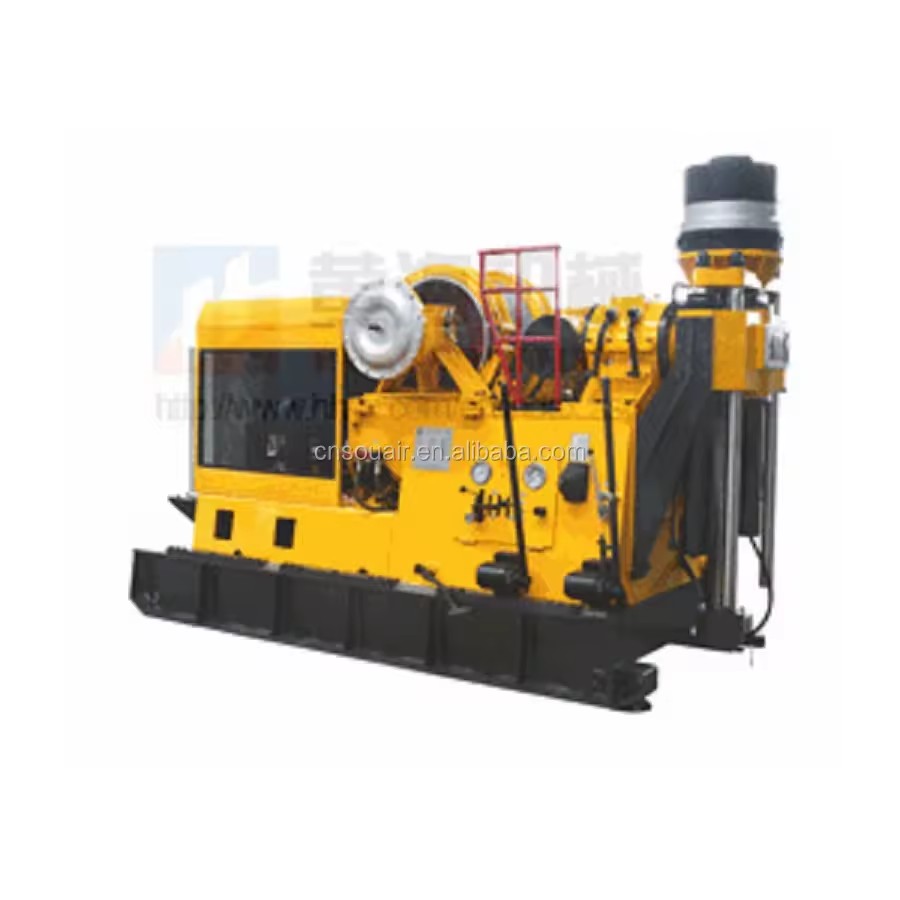

HXY-TL Crawler Drill Rigs surface diamond core drilling rig Exploration Rig for coal gold copper iron mining project low cost

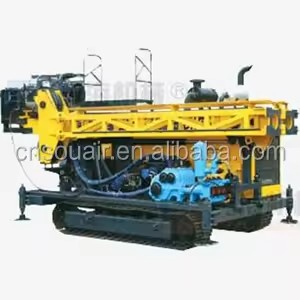

HXY-TL Crawler Drill Rigs

Description: HXY-TL crawler drill rigs are new types of rigs developed on the basis of our rich experience of rig manufacturing. They are mainly output in models of HXY-4TL, 42TL, 44TL, 5TL, 6TL and 6BTL crawler-type drill rigs, which can meet multiple needs of drill techniques, mainly on diamond drilling. They also can be applied in the fields of engineering geological exploration, hydro geological exploration, water well and large diameter piling works.

Features: 1.As a traditional geotechnical drilling equipment, HXY-TL crawler drill rig is simple in structure, easy for operation and convenient for maintenance; is a perfect integration of full-hydraulic system with traditional mechanical drill technology; 3.Equipped with auxiliary hydraulic hoister and hydraulic mud pump, HXY-TL crawler drill rig has compact structure; 4.Due to the rational design, it is convenient for installation and operation; 5.Adopting hydraulic lifting drill tower, HXY-TL crawler drill rig is flexible in operation; has perfect stability due to its four hydraulic outriggers; 7.Equipped with crawler, HXY-TL crawler drill rig offers easy and flexible movement between worksites.

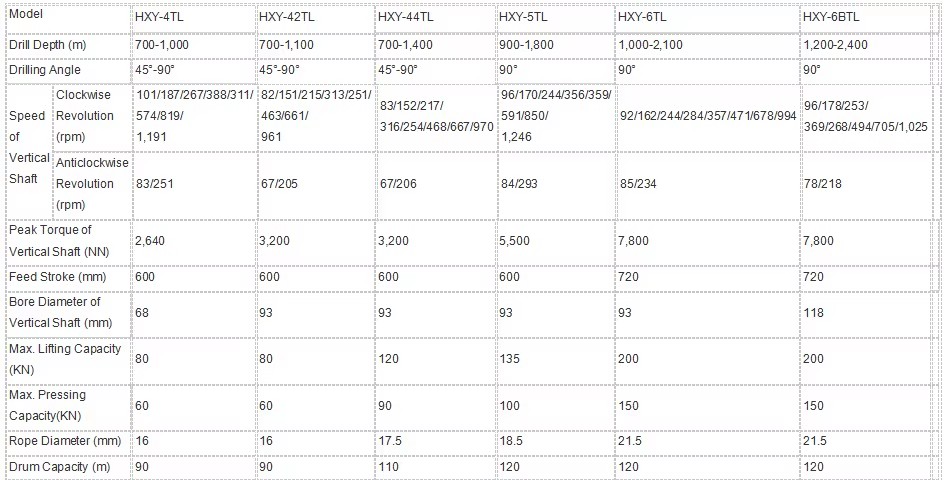

Parameters of HXY-TL Crawler Drill Rigs

Description images

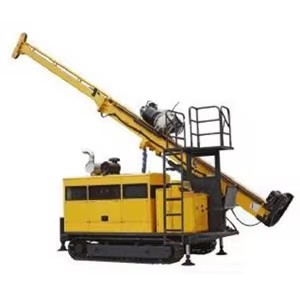

HYDX-4 Full Hydraulic Diamond Core Drilling Rig Exploration Rig for Coal Gold Copper Iron Mining Project Low Cost
HYDX-4 Full Hydraulic Diamond Core Drilling Rig Exploration Rig for Coal Gold Copper Iron Mining Project Low Cost
HYDX-4 Full Hydraulic Diamond Core Drilling Rig Exploration Rig for Coal Gold Copper Iron Mining Project Low Cost
HYDX-4 Full Hydraulic Diamond Core Drilling Rig Exploration Rig for Coal Gold Copper Iron Mining Project Low Cost
