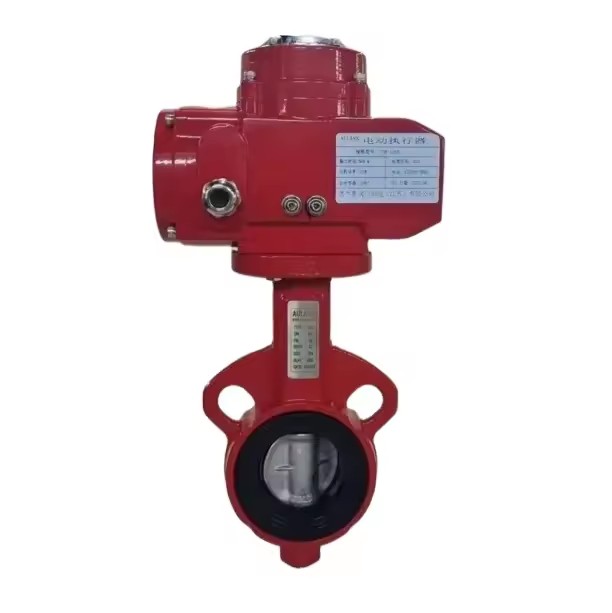

Modulating 4-20mA Cast Iron Body Stainless Steel 304 Disc Electric Actuator Motorized Butterfly Valves

Product Importer Gallery 01 · 65ddcf306e

Product Importer Gallery 02 · 8f9b9fc1be

Product Importer Gallery 03 · 9ffc7927c4

Product Importer Gallery 04 · 21815db557

Product Importer Gallery 05 · ae05864306

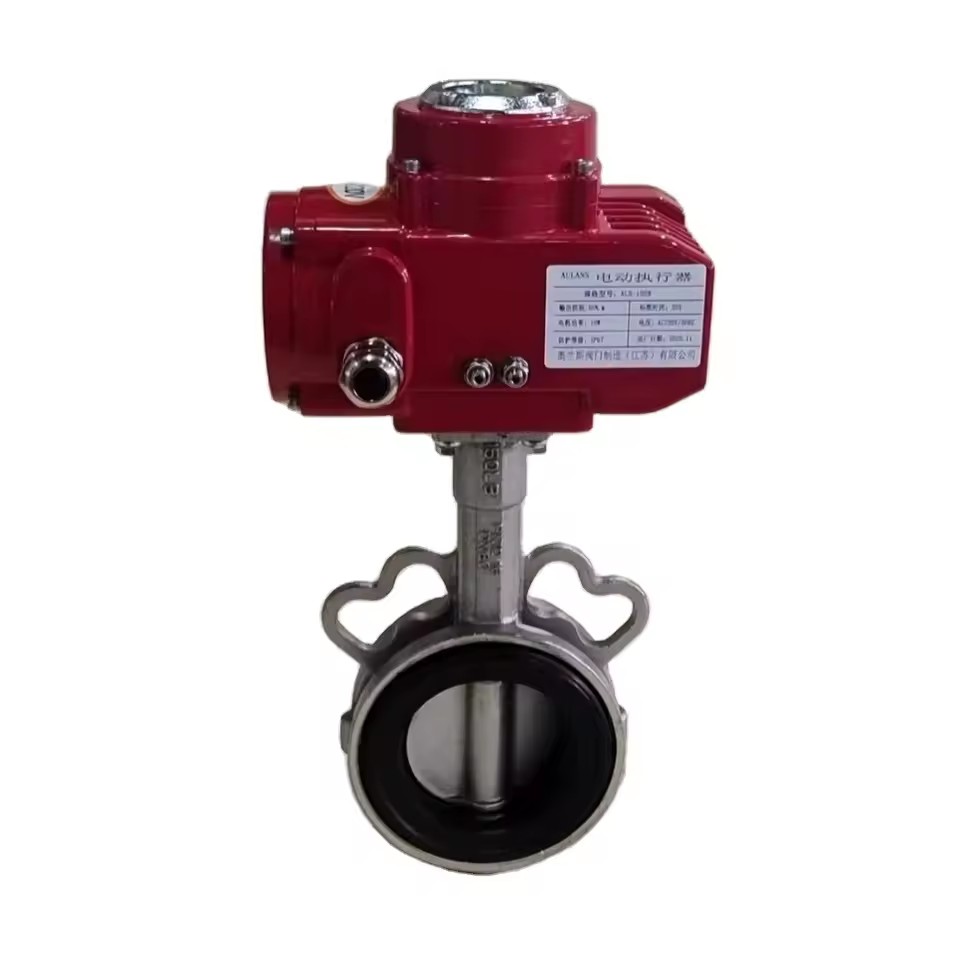

Modulating 4-20mA Cast Iron Body Stainless Steel 304 Disc Electric Actuator Motorized Butterfly Valves

Name: Modulating 4-20mA Cast Iron Body Stainless Steel 304 Disc Electric Actuator Motorized Butterfly Valves
SKU: CBYM-K28E-Z53H
Price: 50.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews 5 sold

USD

$ 50.00 50.0 USD $ 50.00

Minimum order quantity: 1 Units

Key attributes

View all

Temperature of media

Normal Temperature

Power

electric

Structure

Butterfly

Media

Water, Clean Water

Warranty

1 years

Customized support

OEM, ODM, OBM

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

summary

Technical parameters and performance
Technical parameters of technical electric actuator	Valve body parameters of d971x electric butterfly valve
Power Supply	AC110.220.380V/DC24.220V	Nominal diameter	DN40-500mm
Output torque	50N.M~2000N.M	Nominal pressure	PN10/16
Optional function	Switch type, intelligent type, adjustability	Material of valve shaft	Wcb.304.316.316l stainless steel

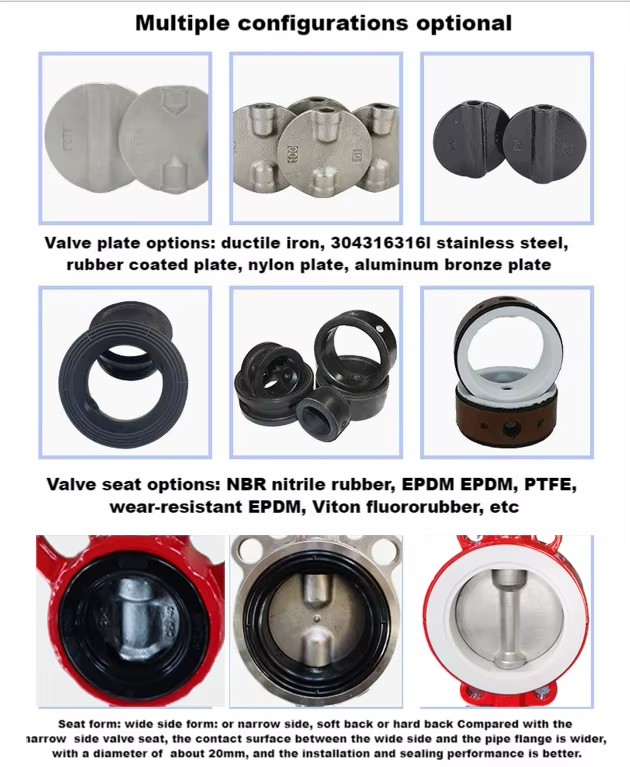

Action range	0~90°±5°	Valve plate material	Ductile iron, 304/316/316l stainless steel, nylon
Action time	15s/30s/60s	body material	Ductile iron, WCB, stainless steel
ambient temperature	30°~60°	Valve seat seal	Valve seat seal
Manual operation	With handle operation	Structural form	medium linear, non nitrate, eccentric
Limit	Electrical and mechanical double limit	temperature	EPDM≤80℃.NBR≤68℃
Degree of protection	Ip-16 (explosion proof enclosure: Exd II BT4 IP67 optional)	Applicable medium	Water, air, natural gas
Input signal	0-10, 1-5vdc/4-20ma (intelligent)	characteristic	Wide application, large flow and small flow resistance

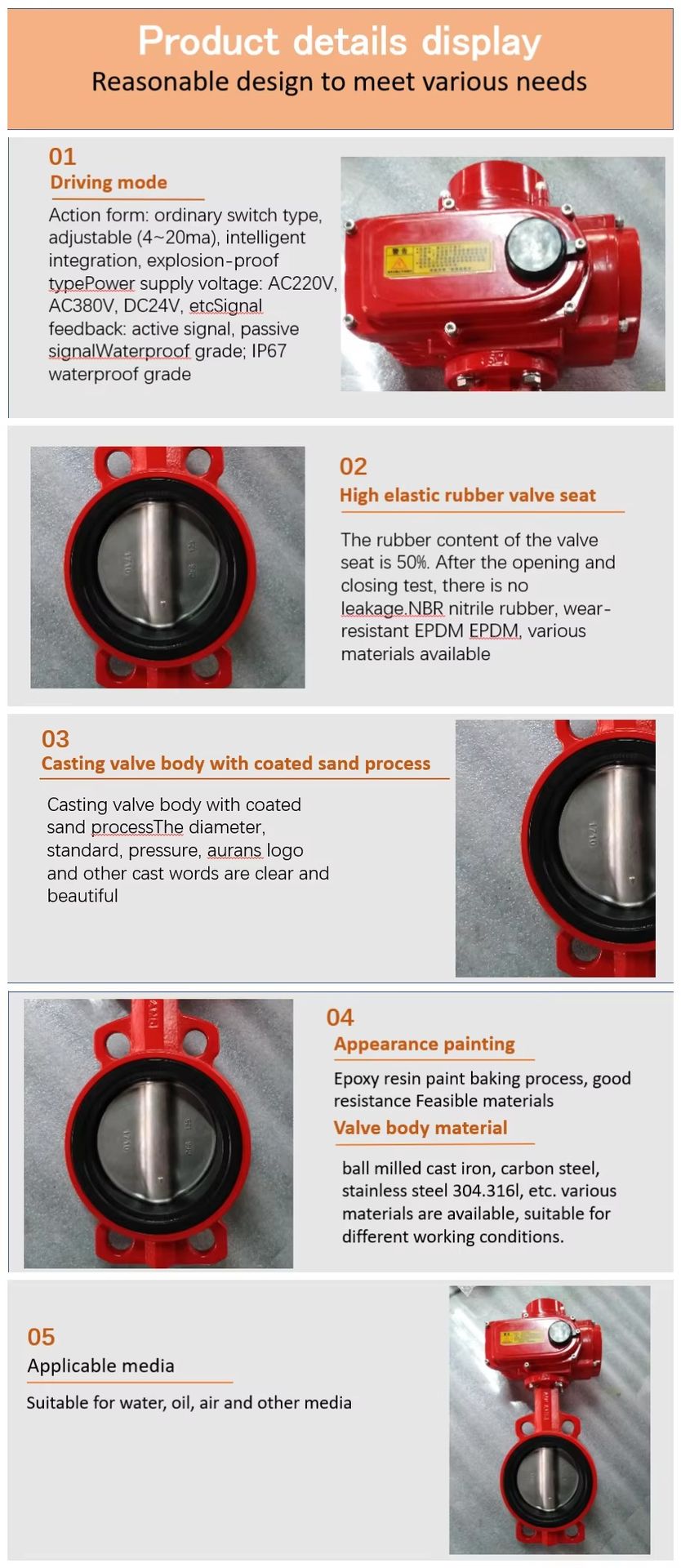

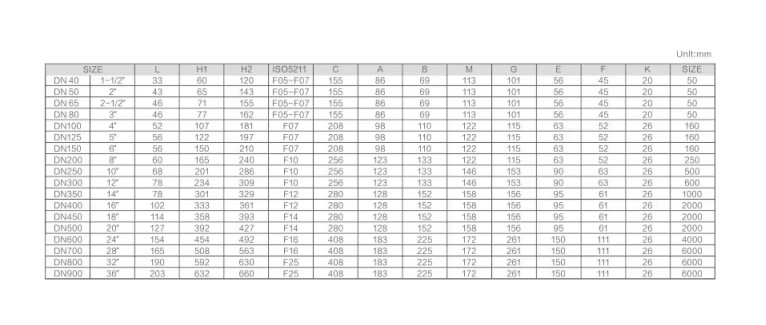

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Temperature of media

Normal Temperature

Power

electric

Structure

Butterfly

Media

Water, Clean Water

Warranty

1 years

Customized support

OEM, ODM, OBM

Application

Water Treatment, Drinking Water, Buildings

Model number (Specification)

D971X-10/16C

Place of origin

China, Jiangsu

Body Material

Stainless steel, Ductile Iron, Cast Steel, etc

Sealing Material

EPDM rubber

Valve performance characteristics

Reliable sealing, simple structure and convenient maintenance

Working medium

Water, liquid

Nominal Pressure

1.0Mpa/1.6mpa

Connection Mode

Pair clip

Actuator performance characteristics

Small size, large torque, precision and wear resistance

Selling Units

Single item

Single package size

65X50X40 cm

Single gross weight

25.0 kg

Material (Product option)

ductile iron

Pressure (Product option)

PN10/16

Size (Product option)

DN100

Minimum order

1 Units
