Name: Cantilever Type Waterjet Cutter 5 Axis Cutting Head Waterjet Cutter Machine Marble Stone Tile Water Jet Machine
SKU: B2B-2811
Price: 52340.0 USD
Availability: PreOrder

Product description

AC 5 Axis 4000*2000 Cantilever Waterjet Cutting Machine

Series

AC-4020 Water Jet

Type

Cantilever Type

Cutting Angle

0-±68 Degrees

Control Accurcy

±0.01mm

Table Size

4500mmx2200mmx200mm

Travel Of Z Axis

200mm

Cutting Precision

±0.1mm

RE-Positioning Accuracy

±0.05mm/m

Cutting Speed

11000mm/min

Certificate

CE ISO

Motor

30kw / 40HP

After-sales Service

Installation Online Service

MAX.Cutting Range

4000mmx2000mmx200mm

Material

Stainless steel

Thickness

0.33mm orifice

320Mpa

380Mpa

420Mpa

Aluminum

0.25"(6mm)

400-520mm

460-590mm

500-580mm

0.50"(13mm)

300-800mm

350-420mm

400-510mm

0.75"(19mm)

220-280mm

260-380mm

300-420mm

200-260mm

240-310mm

260-350mm

80-120mm

100-150mm

125-180mm

0.76"(20mm)

50-65mm

70-90mm

100-120mm

1.18"(30mm)

15-25mm

30-40mm

40-50mm

Glass

1200-1400mm

1600-1900mm

2100-2300mm

0.39"(10mm)

600-700mm

700-800mm

820-900mm

0.79"(20mm)

330-400mm

400-500mm

600-800mm

Marble

0.24"(10mm)

1000-1200mm

1350-1550mm

750-850mm

220-300mm

310-380mm

400-480mm

1.97"(50mm)

130-150mm

Tile

0.59"(15mm)

1400-1500mm

1600-1800mm

Copper plate

0.20"(5mm)

500-600mm

900-1000mm

190-220mm

80-100mm

120-150mm

00:00

Product Description

company supports OEM service, this equipment is 4000*2000mm AC 5 axis cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation.

waterjet cutting table

The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

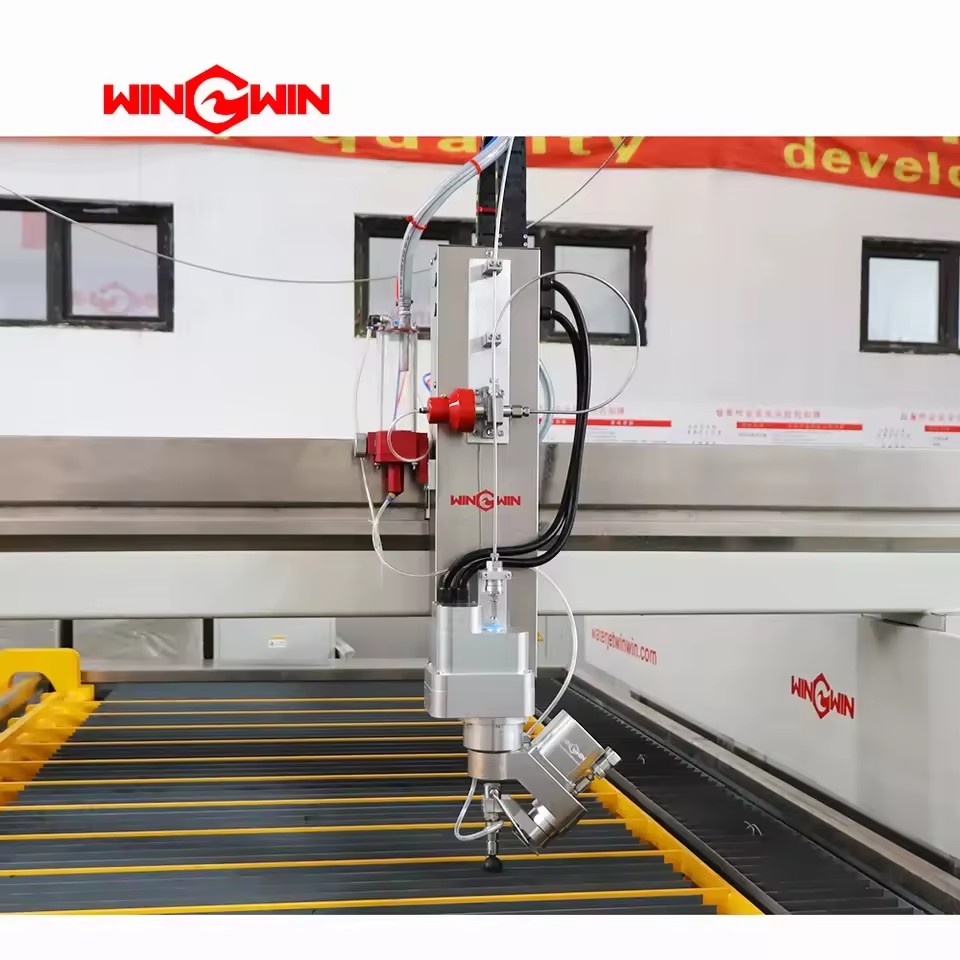

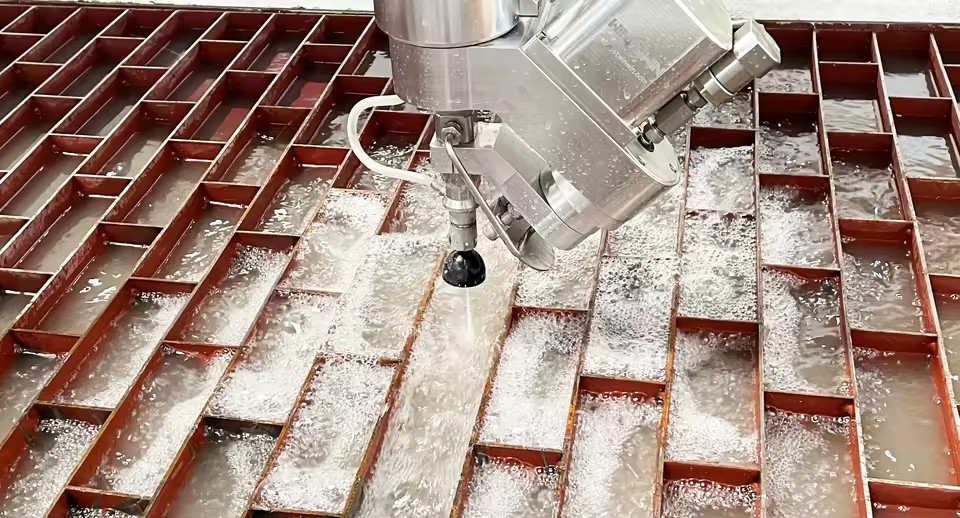

Swing angle ±68°, absolute encoder control system.

AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts

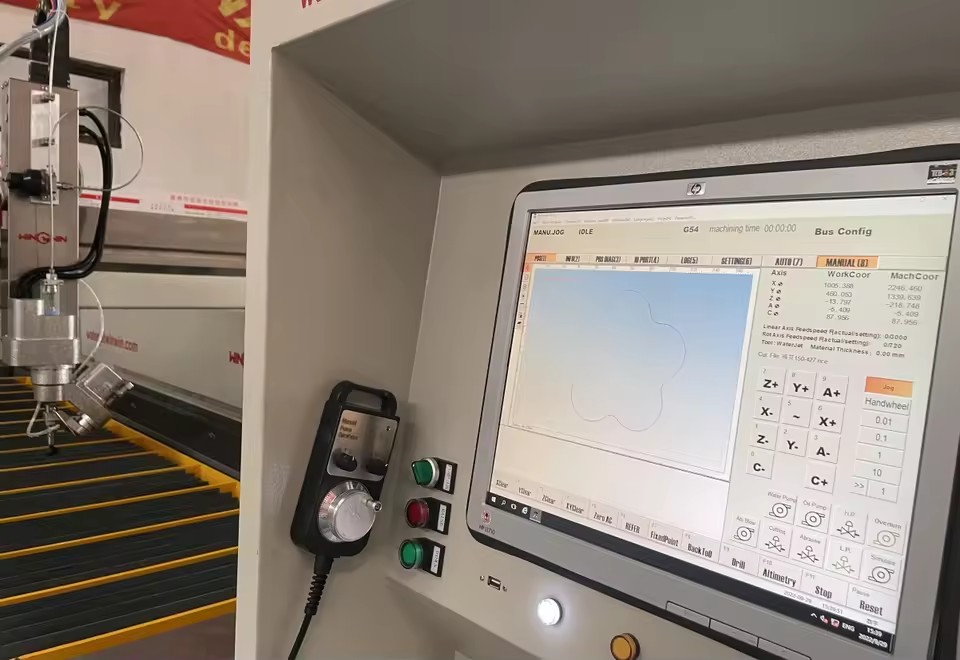

17-inch industrial display, placed in the CNC control shield, good protection, wireless keyboard, mouse and wireless remote control handle, speed can be adjusted under any circumstances, large memory capacity, no delay, smooth operation

CUSTOMER FEEDBACK

You May Also Like

Recommended by seller

$29,500-29,985

piece

$41,500-43,000

set

$20,000-22,000

About Us

Win-Win has been focusing on Waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800㎡, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

5 days
Step 3

Packaging and dispatch

Ocean + Express via Cooperate Logistics · Approx. shipping fee: $ 33.80 for 1 set · Transit time: Est. 20-28 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Voltage

380

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Liaoning

Weight (kg)

5000 KG(11023.11lb)

Table travel (x) (mm)

4000

Table travel (y) (mm)

2000

Table travel (z) (mm)

200

Application

Industrial Metal stone glass Cutting

Type

cantilever Waterjet Cutting Machine

Control system

WEIHONG CNC Controller

Cutting material

Metal.alloy.aluminum.stone.glass.or Soft Materials

MOQ

1 Piece

After-sales Service Provided

Engineers

Port of dispatch

Dalian

Selling Units

Single item

Single package size

20X20X20 cm

Single gross weight

20.0 kg

Supply Ability

50 sets per Month

Model number

WW4020-JET50

Effective cutting range (mm)

4000×2000, Other

Lead time

5 days

Minimum order

1 Units
