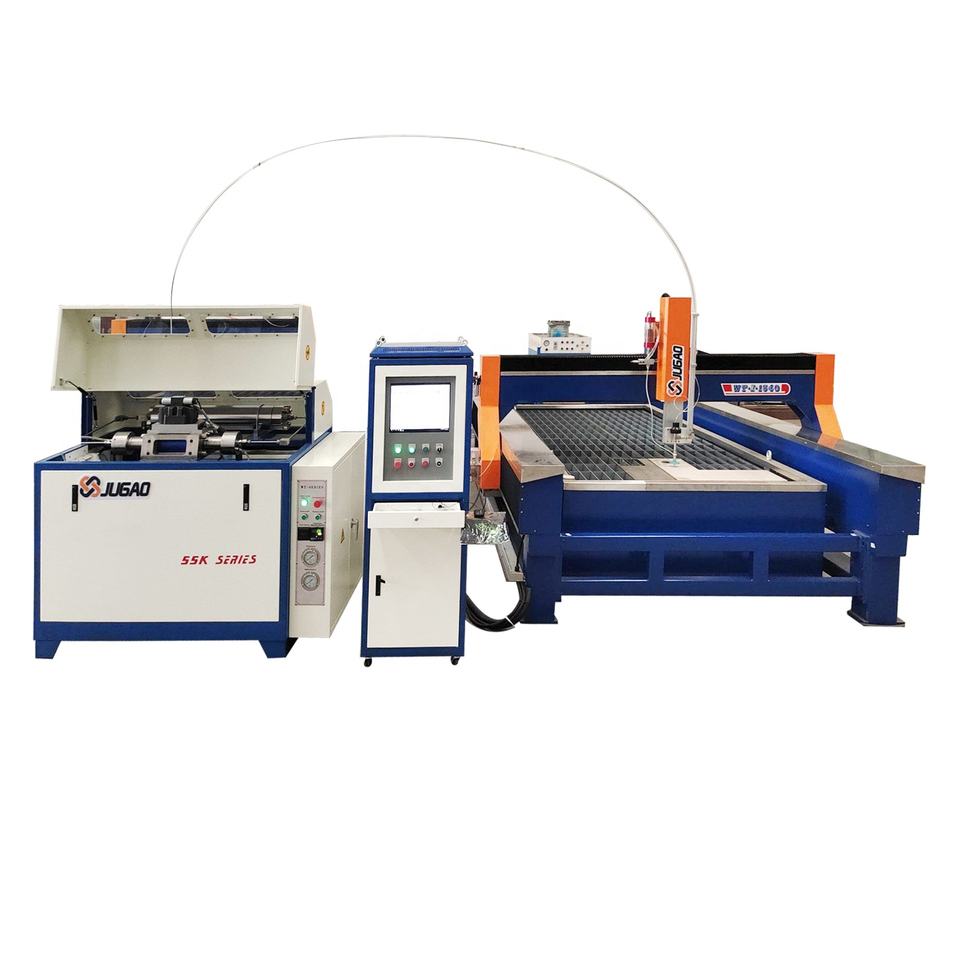

Name: Cake Waterjet Cutting Machine Water Jet Cutter Machine Table for Stone
SKU: B2B-100
Price: 55260.0 USD
Availability: PreOrder

Product description

Performance characteristics

Monoblock Design Waterjet Cutting Machine, Any material can be cut at one time for any curve (except water cutting, other cutting methods will be by the material variety); The heat generated during cutting will be immediately taken away by the high-speed flowing water jet, and no harmful substances will be produced. The material has no thermal effect (cold cutting). After cutting, it does not need or is easy for secondary processing. It is safe, environmentally friendly, fast and efficient. It can realize the cutting of arbitrary curves, convenient, flexible and widely used. Water cutting is a mature cutting process with good applicability.

# The whole processing, the water tank guide surface is formed in one time,and the geometric accuracy of the machine is fully guaranteed, including parallel and Will meet the highest requirements,and the equipment will be more stable for long-term use.

# Easy installation,saving assembly time and after-sales service.

# Use absolute servo motor and LED warning light.

# To ensure waterjet accuracy, cutting table frame is treated in overall heat treatment and stress relief treatment, it is never deformed.

# Robust and accurate design for tight tolerance cutting and reliable operation.Fastest cutting speeds and best precision compared to any competitive abrasive water jet in the industry.

Cutting sample display

Technical parameter

Net Cutting Area	X = 2.000 mm (6.56') Y = 1.500 mm (4.92' ) Z = 150 mm (5.9")
Inner Table Working Area	2.000 mm x 1.500 mm (6.56' x 4.92')
Overall Dimensions	2.200 mm x 1.700 mm (7.22' x 5.58' )
Rapid Speed	0 - 9000mm / min (0-29.53' / min)
Weight	2.000 Kg (5.000 lb)
Positioning Accuracy	± 0,02 mm (± 0,0008")
Repeatability	± 0,01 mm (± 0,003")

Guarantee period: Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation. After-sales services: Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to

Description images

Cake Waterjet Cutting Machine Water Jet Cutter Machine Table for Stone

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Key attributes 21 fields

Voltage

380V 220V Optional

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

PLC, Motor, Engine, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

customizable

Key selling points

Automatic

Rated power

50Hz

Place of origin

China, Jiangsu

Weight (kg)

2000 KG(4409.25lb)

Cutting accuracy(mm)

0.02

Gantry type

Table

Effective Cutting area(Length)

1500mm

Effective Cutting area(width)

3000mm

Run soeed

0 - 9000mm / min

Cutting positioning accuracy

± 0,02 mm

Surface roughness

Ra≤25μm

SERVO MOTOR

Software Supports HPRXD and True Hole

Application

Waterjet Machine

Packaging and delivery 5 fields

Packaging Details

Multi Functional q35y-20 hydraulic iron worker mechanical Hydraulic Combined Punching and Shearing notching Machine, Wrapped by plastic films and fixed by steel wires in the containers

Port of dispatch

ShangHai

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply capacity 1 field

Supply Ability

60 sets per Month angle iron worker

Product options 1 field

Effective cutting range (mm)

1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 1500×3000, 1300x1300, 1000×3000, 1500×2500

Lead time

30 days

Minimum order

1 Units
