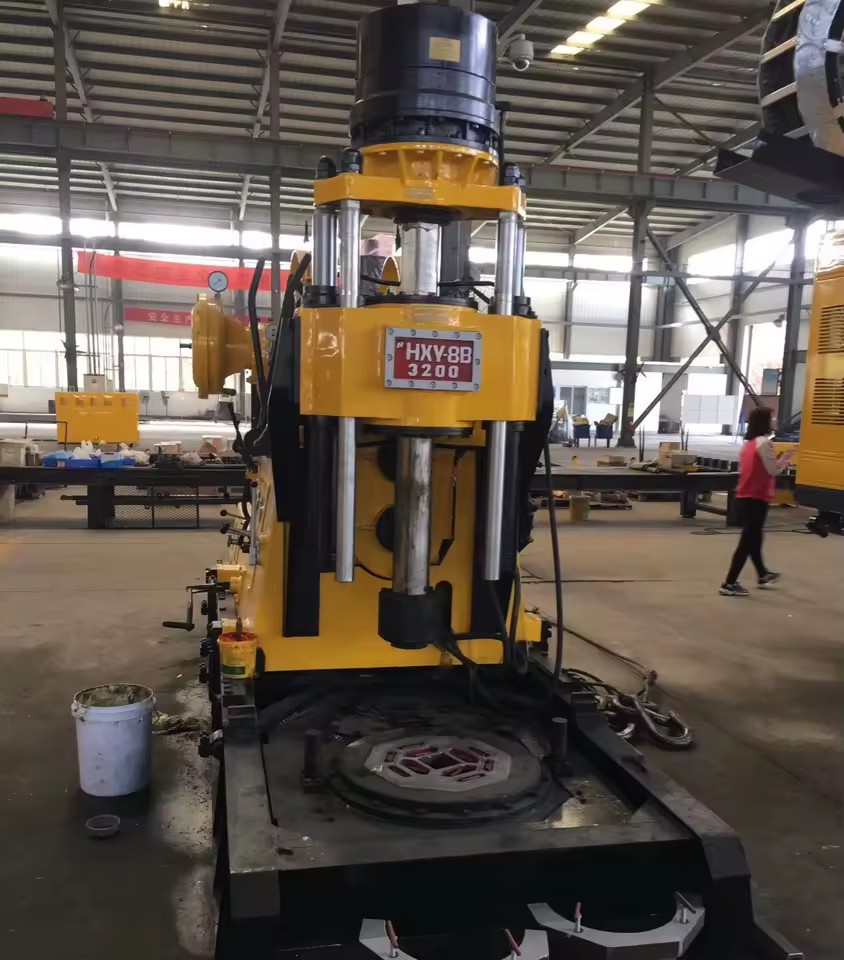

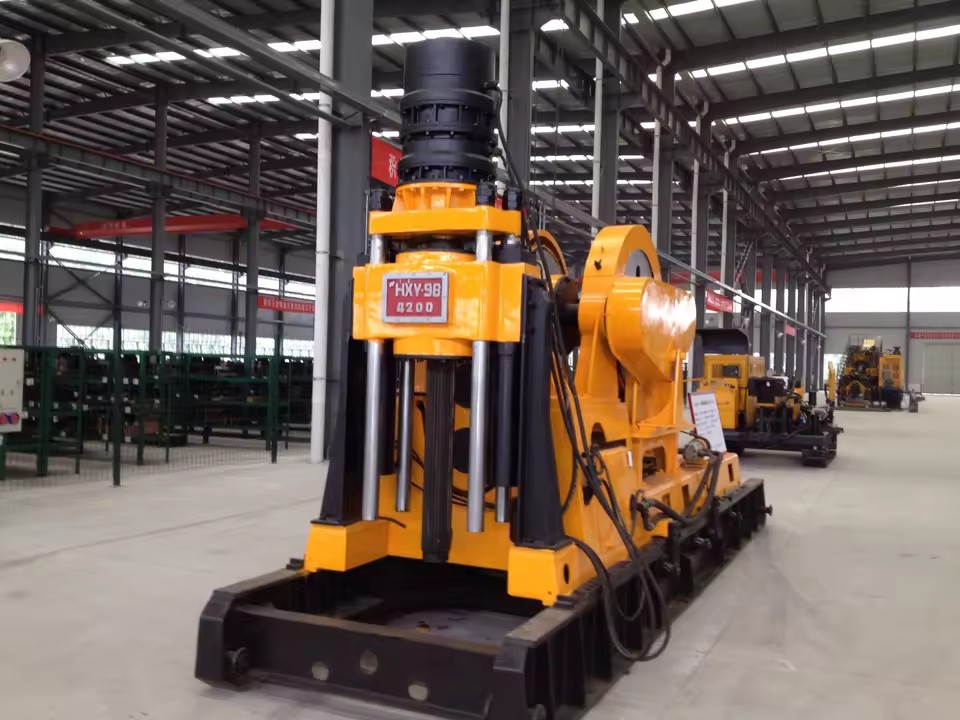

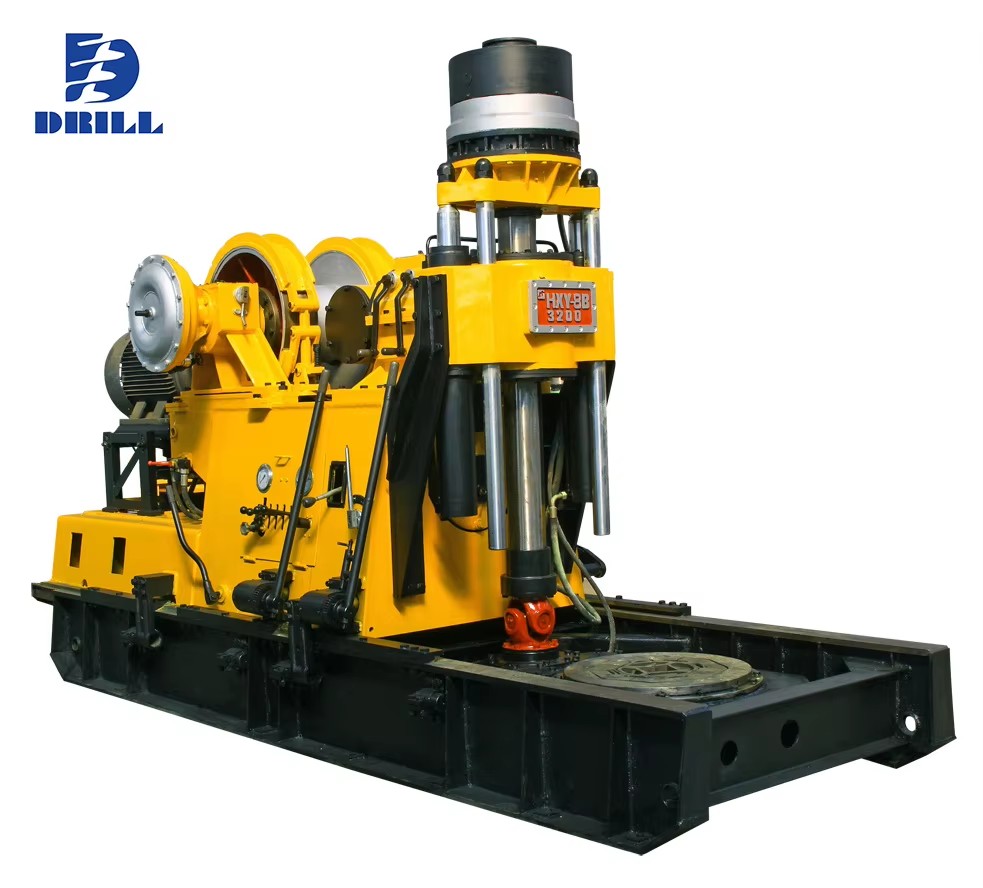

Drill 3200m Deep HXY-8B Solid Mineral Exploration Mine Core Drilling Rig Machine Water Well Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 112,990.00 112990.0 USD $ 112,990.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
1000-3000m(3280.84-9842.52ft)
Drilling Diameter
90-500mm(3.54-19.69in)
Power Type
Diesel
Voltage
134KW
Product description
Drilling depth1000—3200 m
Rotate speed(rpm)Positive 79;136;121;363;220;379;589;1011
Negative 62, 173
Turn table speed(rpm) of the diamond drilling rigPositive 27;46;72;124;75;130;202;347
Negative 17, 48
Diameter of drill rodФ50, Ф60, Ф71, Ф89, Ф114 mm
Spindle stroke800 mm
Rotation torque of spindle8682 N·m
I.D. of spindleΦ118 mm
Shift range of core drilling rig690 mm
Max. hoisting force300 KN
Max. pressuring force145 KN
Max. single-wire hoisting force135 KN
Max. content of winding drum160 m
Steel wire size of core drilling rig21.5 mm
Hoisting speed0.663, 1.09, 1.693, 2.90, 1.761, 3.034, 4.713, 8.803m/s
Turn table ApertureΦ395 mm
Rotation torque of turntable20963 N·m
Electric motor modelY2-280M-4 (90KW/1480rpm)
Diesel engine modelYC6B180D (134KW/1800rpm)
Dimensions of core drilling rigWith electromotor 4413×1692×2653 mm
With diesel engine 4413×1892×2803 mm
Weight10100 kg

$116,000-123,000 / set

Back To Homepage
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 33 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
1000-3000m(3280.84-9842.52ft)
Drilling Diameter
90-500mm(3.54-19.69in)
Power Type
Diesel
Voltage
134KW
Core components
Gear, Engine, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Low Maintenance Cost
Place of origin
Zhejiang, China
Weight
10100 KG(22266.69lb)
Dimension (L*W*H)
4413*1892*2803mm(173.74*74.49*110.35in)
Mobility
Fixed base
Drill capacity
3200m/NQ
Spindle Torque
8682Nm
Spindle stroke
8000mm
Spindle Bore (Specification)
118mm
Pulling Force
300KN
Feed force
145KN
Wire Rope
21.5mm
Hoisting Forcce
135KN
Turntable Torque
20963Nm
I.D. of Turntable
395mm
Packaging Details
Depends on Clients, Wrapped in plastic film or packed in wooden cases
Port of dispatch
Ningbo port
Selling Units
Single item
Single package size
441X189X280 cm
Single gross weight
68.0 kg
Supply Ability
15 sets per Month
Model number
HXY-8B
Power (W) (Product option)
134kW(179.70hp)
Lead time
15 days
Minimum order
1 Units
