Product description
Do you trust water can cut delicate material like cake or a modern material like thick steel pieces? Have you at any point imaged a bone surgery being directed utilizing water as a cutting apparatus? A stream of water, when pressurized up to 50,000 PSI turns into an effective cutting device that can be utilized as a part of a heap of utilizations.Water jet Machine can be used for profile cutting application on Aluminum and the machine uses cold supersonic erosion to provide through cut. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed. • Main heart of Supercharger, "Intensifier" is "". • User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. • All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts. • Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
Name: laser caliberation
uses laser caliberation to check and guid rail straightness and parallelism
Anneraling treatment for 's waterjet each parts to ensure it's machine bed strong and non deformation
High precision milling machine, high precision milling machine to guarantee the high flat surface of the main beam of the waterjet table then keep the high precision during the cutting process
Put waterjet cutting systems to the test, to guarantee the quality of the part during the assembly line.
water jet use metal hardness tester to keep every parts of the intensifer including the high pressure parts and low pressure parts working in it's best situation for the safe reason.
water jet use precision meter to guarantee the ball screw and guiding rail installed parallel and flat on the main beam for the long time running and keep the high precision as well
Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.
desktop water jet cutting machine
Cannon Destruction Water Cutting Machine
Waterjet Cutting Food
Double water jet cutting, high efficiency, stability
Drill and 3d water jet cutting machine
Multifunction composite tube plate UHP water cutting machine

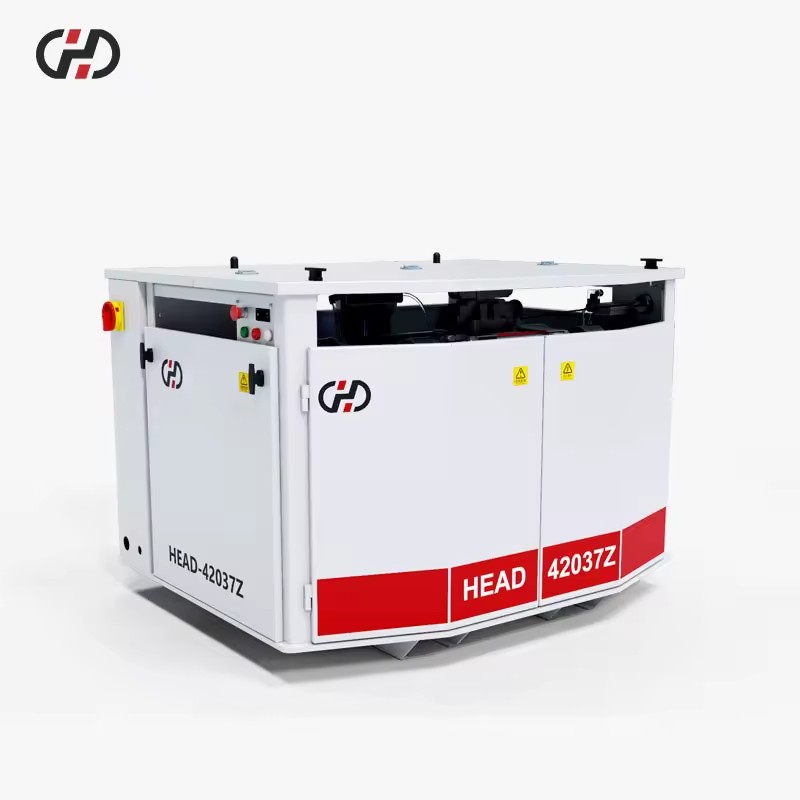

* To produce high pressure water
* Stable Running Performance
* Main parts import, Accustream
*Double linear guides and screw rods ensure stable and non-dithering of the cutting and long service life
>>>Brief Introduction Of waterjet company
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
>>View of Company honor
Part of Workshop
Office
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials. Q3: How fast of speed? A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Why Choose Waterjet The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials. Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety. Environmentally friendly As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer.
Product Description
Features
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "".
• User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
• Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.
Detailed Images
(To move marble or glass up and down easily)
MAX series 5 axis waterjet cutting machine
(bevel cutting 0-±45°)
New product
Machine parts show
* Indicate and change Advantage
* Yuken
* To produce motion energy through electrical energy
* Three-phase AC asynchronous motor
About our company
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team.
water jet, so cutting is no longer a problem!
Service & FAQ
1. Maintenance free of charge for 12 months.
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Why Choose Waterjet
The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer.
