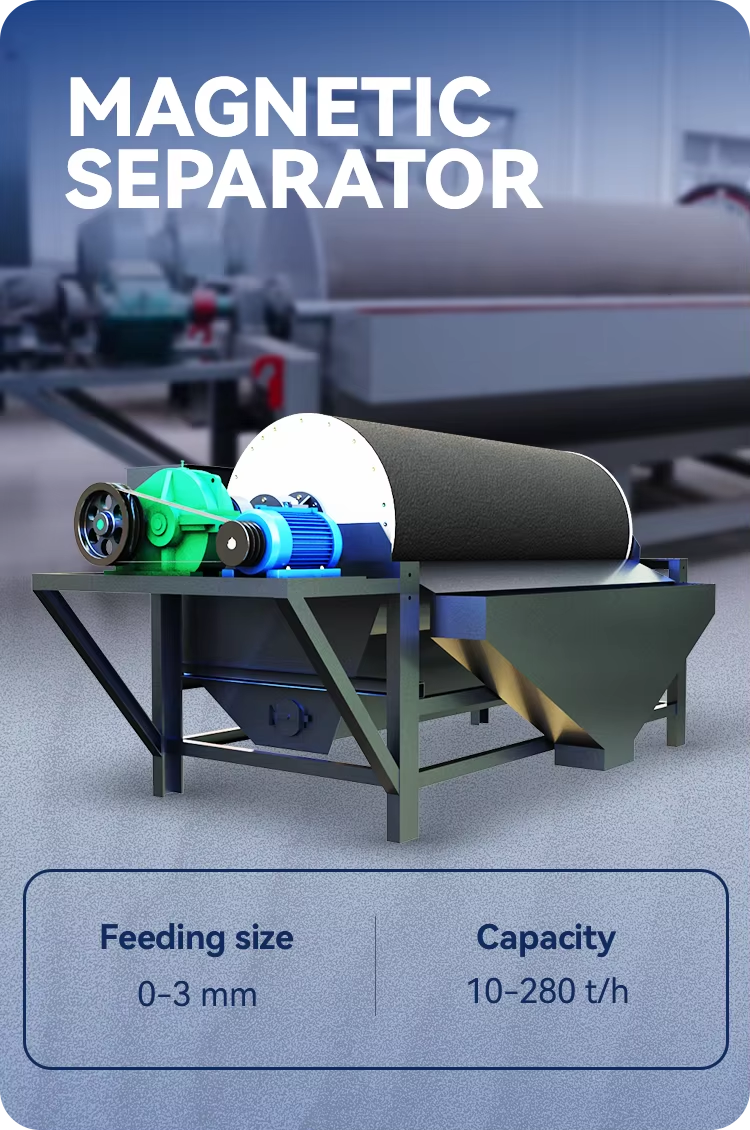

ZHONGDE Wet Type Magnetic Gravity Separator for Ore Mining with Pump Low Noise ISO/CE Certified

The magnetic separator is suitable for wet magnetic separation of materials with a particle size below 3mm, such as magnetite, pyrrhotite, roasted ore, and ilmenite. It is also used for iron removal in materials such as coal, non-metallic minerals, and building materials. According to user needs, we can provide a variety of magnetic separations with different surface strengths such as cocurrent, semi-countercurrent, and countercurrent types.

Applicable Materials

It can process iron ore, magnetite, hematite, ilmenite, chromite, and other minerals containing magnetic properties. It can also be used for iron removal in coal, foundry sand, refractory materials, ceramics, glass, wastewater, sludge, etc.

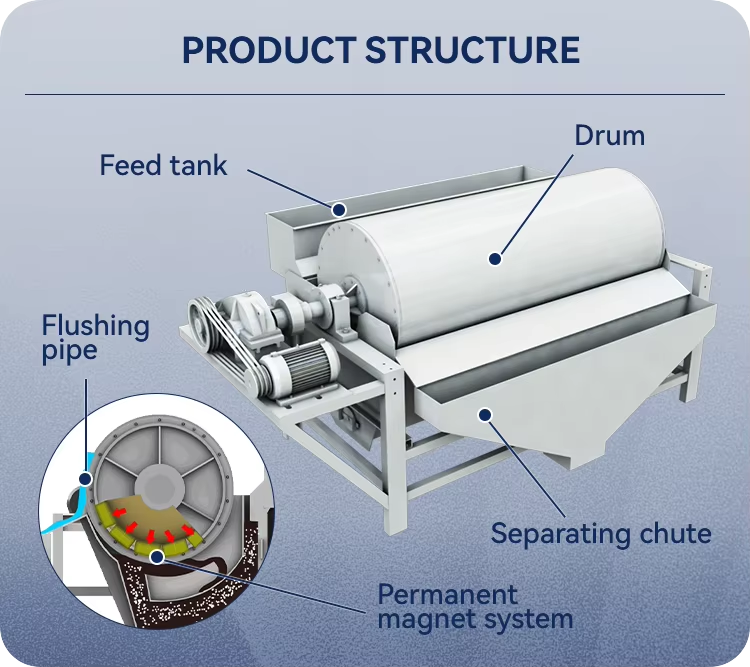

Product Structure

The permanent magnet drum separator is mainly composed of a permanent magnet system, a rotating drum, a separating chute, a feed tank, and a flushing pipe.

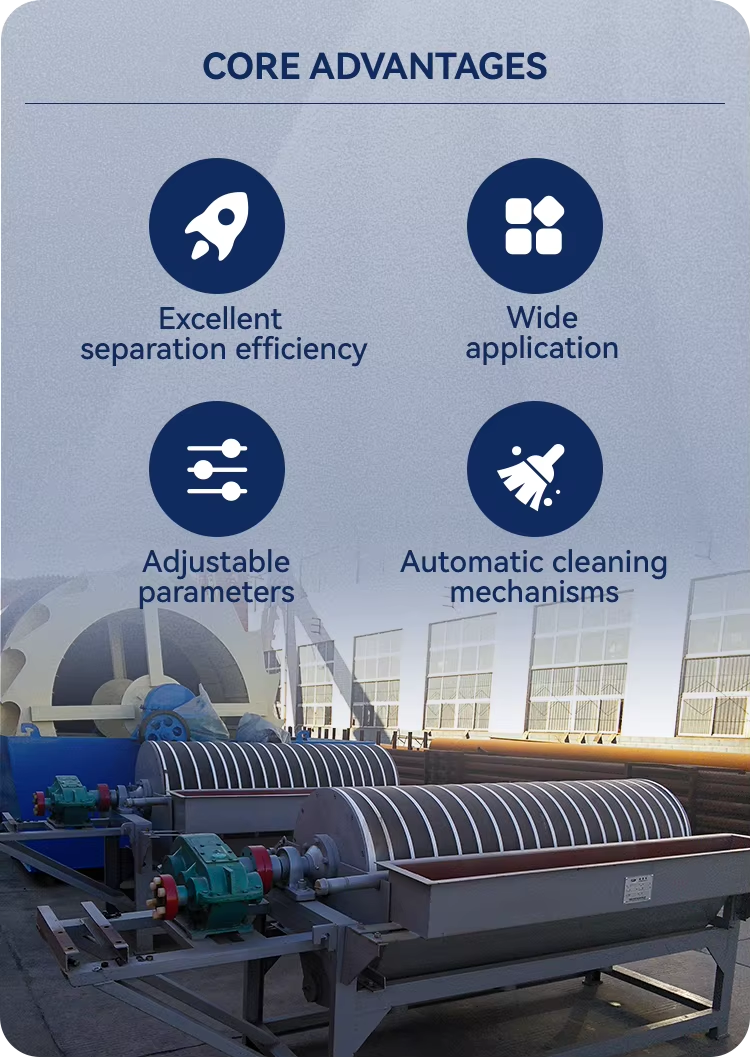

Outstanding Advantages

1. Excellent separation efficiency: Our magnetic system is made of high-quality ferrite materials or a combination with rare earth magnetic steel, with an average surface magnetic induction intensity of 100-600mT, providing optimal separation efficiency.

2. Wide application: Our equipment can be used for iron removal operations in coal mines, foundry sand, refractory materials, and other industries.

3. Adjustable parameters: Adjust parameters like drum speed, magnetic field strength or inclination to fine-tune the separation process allowing the operator to optimize separation performance for specific material properties.

4. Automatic cleaning mechanisms: Configure automatic scraper system, self-cleaning belt or air blowing system to automatically complete the cleaning process of the drum surface without manual intervention.

After slurry enters the tank from the ore feed box, the ore particles enter the feeding area in a loose state due to water flow. Under the magnetic field, magnetic ore particles form "magnetic clusters" or "chains" and are attracted to the cylinder. As the cylinder rotates, non-magnetic minerals trapped in the "clusters" or "chains" are dislodged, leaving behind the concentrate on the cylinder surface. The concentrate is discharged into the trough by flushing water when it reaches a weak magnetic area. Non-magnetic or weakly magnetic minerals are left in the slurry and discharged outside the tank as tailings.

Our Services

1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.

2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.

3. We visit customers regularly to provide lifelong service and technical support.

4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.

Quality Control

1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.

2. We take a test on each machine before delivery.
