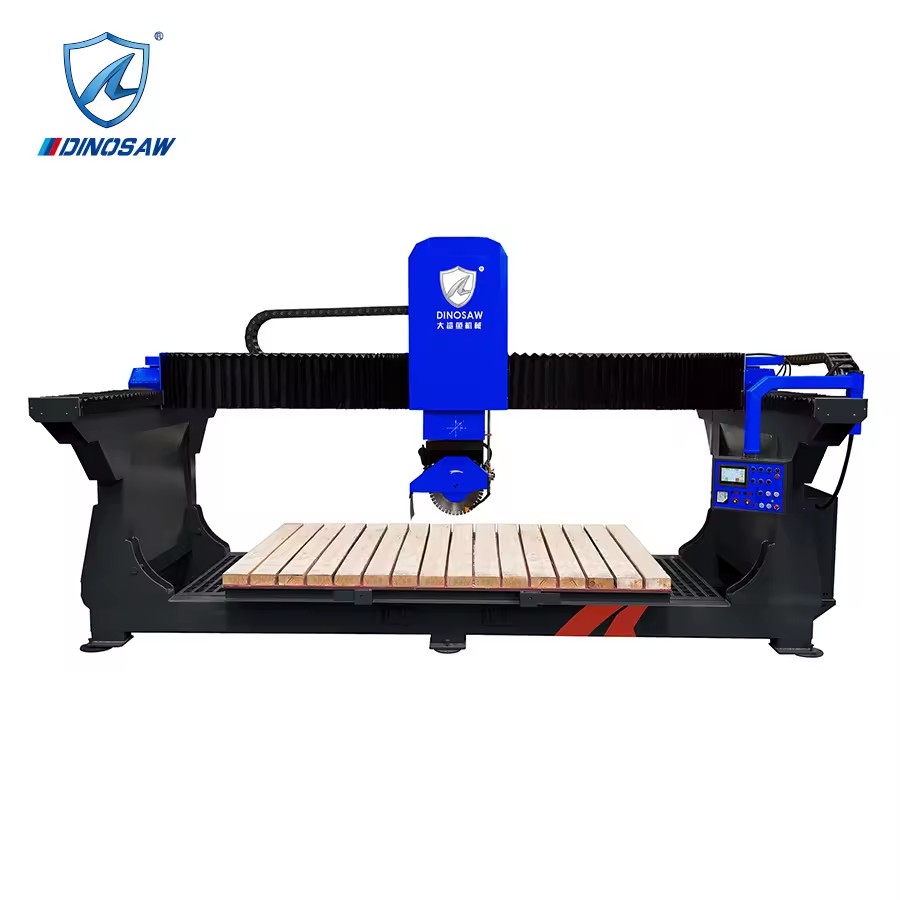

Bridge Saw 3 Axis Stone Cutting Machine Mini Slate Machine for Stone Stone Cutting

New Concrete Wire Saw Cutting Machine PLC Controlled Gear Motor High Precision Mini Stone Cutting Machinery

Model

unit

QSQJ-450

QSQJ-600

QSQJ-800

Max.diameter of blade

mm

450

600

800

Main motor power

kw

15

18.5

22

Table dimensions (LxW)

3200x2000

Cutting depth

80

180

280

Table tilting degree

n°

0-85°

Lateral Y stroke

3200

Longgitudinal X stroke

2000

The Z axis saw blade vertical stroke

220

350

570

Table rotating degree

0-90° /0-360°

Max. cutting size (LxWxH)

3200x2000x80

3200x2000x180

3200x2000x280

Overall dimensions (LxWxH)

6000x4800x3100

6000x4800x3300

6000x4800x3400

Water consumption

m³/h

3

Approximate Weight

kg

5600

5800

6000

*It can be customized according to customers’ requirement.

Product Description

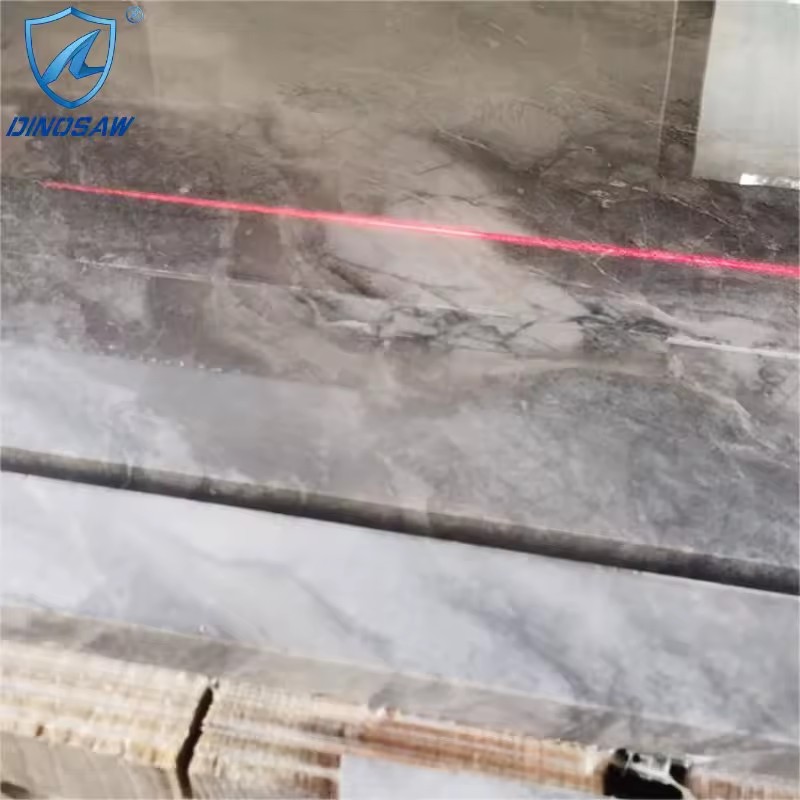

Intelligent Laser Bridge Saw Cutting Machine

This machine adopts microcomputer control, touch-type operation panel, and man-machine dialogue is flexible.

We have Models QSQJ-400, QSQJ-600, and QSQJ-800 for you to choose.

Specification

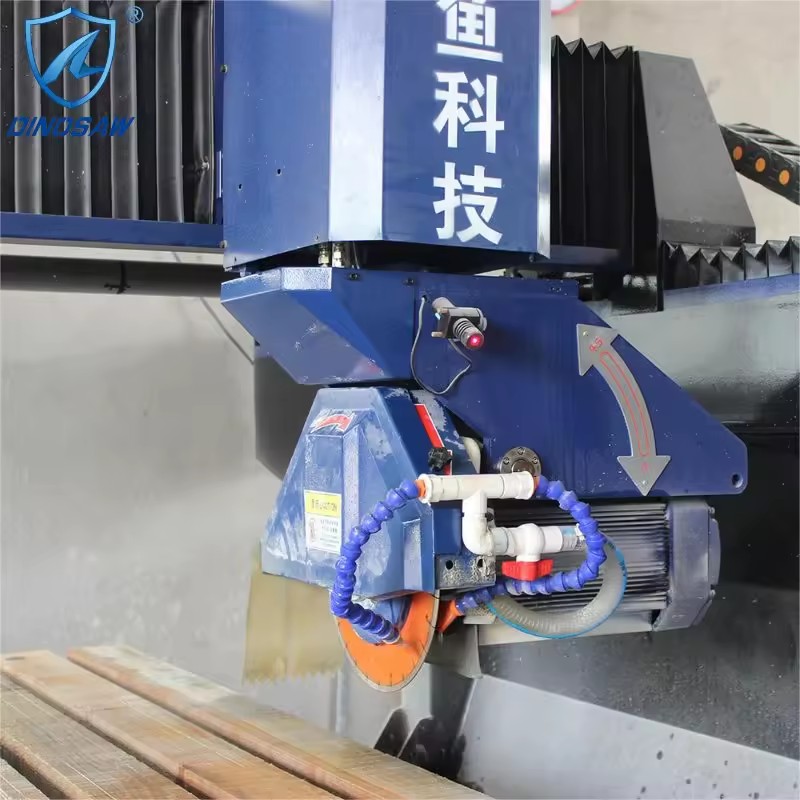

The main control components are all internationally famous brand components, the cross beam adopts an oil-immersed double V-shaped track, the transverse pass adopts step-less speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision. Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

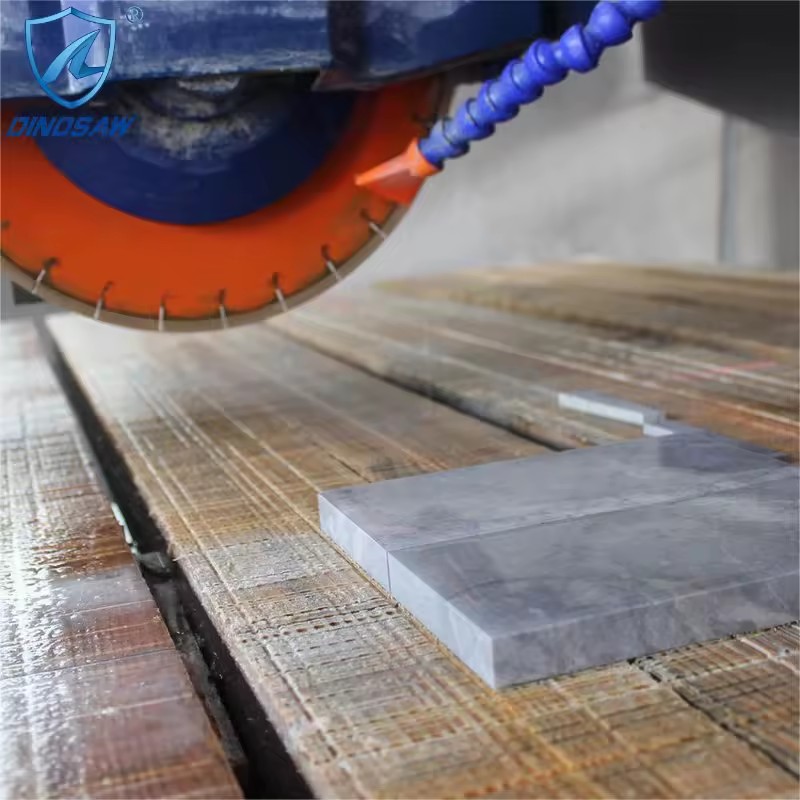

High precision cutting

uses branded motors to ensure cutting accuracy, coupled with the use of the reducer, it can ensure the high precision, high efficiency and high reliability of the stone machinery.

Safe & Stable

High-quality electrical components are used to ensure stable performance. All electrical components are

installed and wired in the electrical cabinet. This allows for easy access and repairs when needed.

Maintainance

Auto Lubrication Hydraulic System Automatic oil feeding lubrication system, make regular maintenance easy and reduce waste.

Table rotation

Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.

Stable support

The hydraulic cylinder is used to control the turning movement of the table

Maintain precision

Linear guides r

educe wear and maintain accuracy for a long time

Application&Feature

Certificate&Our partener

Company Profile

Product Processing Line

view more >>

Recommended by seller

$1,800-2,200

set

$22,000-24,000

$37,500-38,000

$23,000-24,000

$13,000

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q：Are you manufacturer or trading company?

A：

We have two factories, one for stone processing machines and another for diamond tools. Besides, we are the only new composite technology company 's stone machinery industry that integrates AI+IOT software development team, electrical engineer team, mechanical design team, and mechanical production team.

Q：What is your maximum processing size?

Our biggest model is QSQJ-800, its max. cutting size is 3200*2000*280mm. Can also be customized as per specific requirement.

Q：What's the warranty time?

One year, not including diamond blade,diamond segment etc. After warranty, we will continue to provide service support for client.

Q：

Is it difficult to operate your machine?

A：Our machine is very simple and easy to operate. It takes around 2~3 days for installation & training, no need to learn

programming or design

no need to have CNC background. We have patent for our operation system

and cutting template gallery.

Q：How do I install and operator the machine,after receiving it?

We will provide an installation video which will make the whole thing as easy as possible for the user. If there is any problem, our engineers can go abroad to help you install and debug the machine, and teach you how to operate and maintain the machine correctly.
