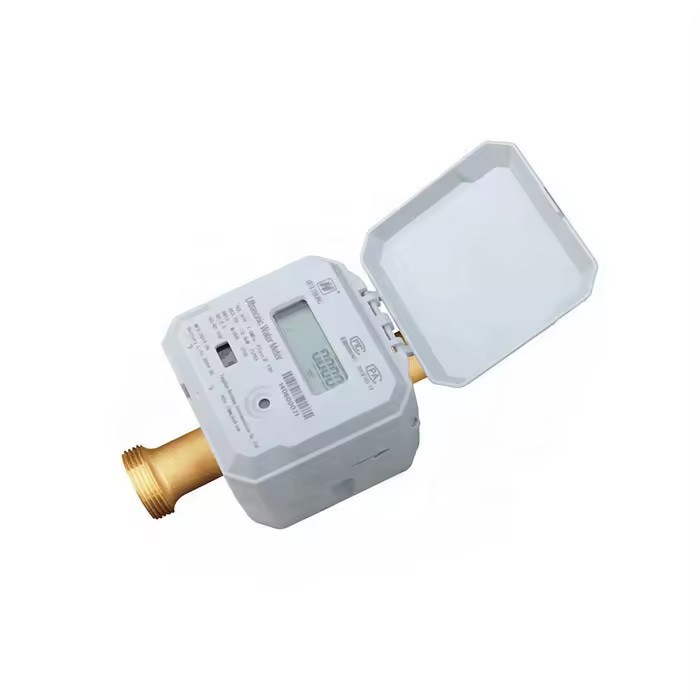

Commercial & Industrial SCL-61H Ultrasonic Water Meter for Residential

commercial & industrial SCL-61H ultrasonic water meter for residential

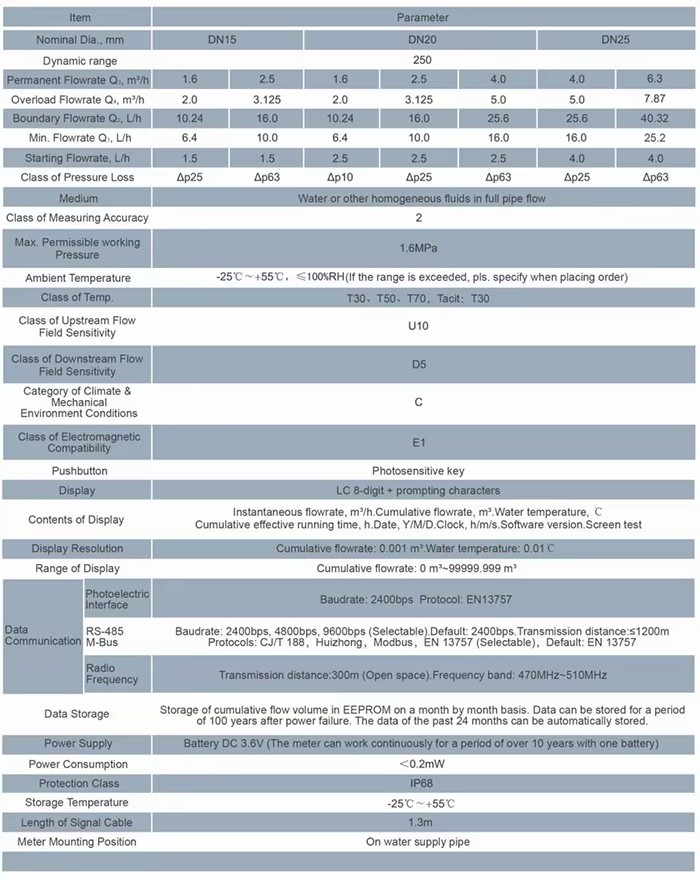

Technical Data

Special Features

1. Large dynamic range is R250 and (Metrological properties) better than Class D.

2. It is designed with a protection class of IP68. The meter can keep on working under long-term

submersion in water.

3. SCH-6H ultrasonic water meter is working with micro-power consumption technology. (The lifetime of

the battery is over 10 years).

3. A flowrate as low as 1.5L/h can be precisely measured.

4. The meter has no mechanical moving parts. Because of no pressure loss, energy consumption of water

pumps and hence operating cost of water supply enterprise is drastically reduced and the service life will

be longer.

5. The meter enjoys the merits of being compacted in size and high in stability and anti-inerference

capability.

6. Thanks to the application of ultrasonic measuring technology, it is possible to mount the meter at any

angles without being affected in measuring accuracy. Moreover, the pressure loss of pipe flow can be

reduced to a minimum.

7. It supports photoelectric, RS-485 and M-BUS output interfaces and provides Radio Frequency and remote

meter data reading functions to facilitate centralized management of users. Whenever the pipe network

runs abnormally, the abnormality information can be timely reported to upper level.

8. The meter conforms national standard GB/T 778-2007 ( Measurement of water in full flow

in closed pipe and cold drinking water meter and hot water meter)

9. Ex-works calibration is made in conformity national stardard JJG162-2009 ( cold water meter)

1. How is your price?

A: Although we have brand-name products, our prices are very favorable and

competitive. Because of our best price, customers from all over the world

come to purchase our products.

2. How long is your warranty?

A: Our Warranty is 12 month.

3. Can I get free samples?

A: Yes, we can provide you the free samples, but you need to bear their own

delivery costs.

4. Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to

your request, but you have to bear their own costs incurred during this period

and the spreads.

5. Can I request to advance the shipment?

A: It should be depends on whether there is sufficient inventory in our warehouse.

6. Could you specially design and produce for clients?

A: Sure, we have all kinds of professional engineers. We can design and produce

A: Sure, we have all kinds of professional engineers.

special products according to customers' request. Such as: special size, special

control, OEM, etc.

7. What’s the main market?

A: Our main market is African, Middle East Countries, South American, Asian.

8. What’s your payment?

1) 100% T/T

2) 30% in advance, others before shipment.

3) L/C
