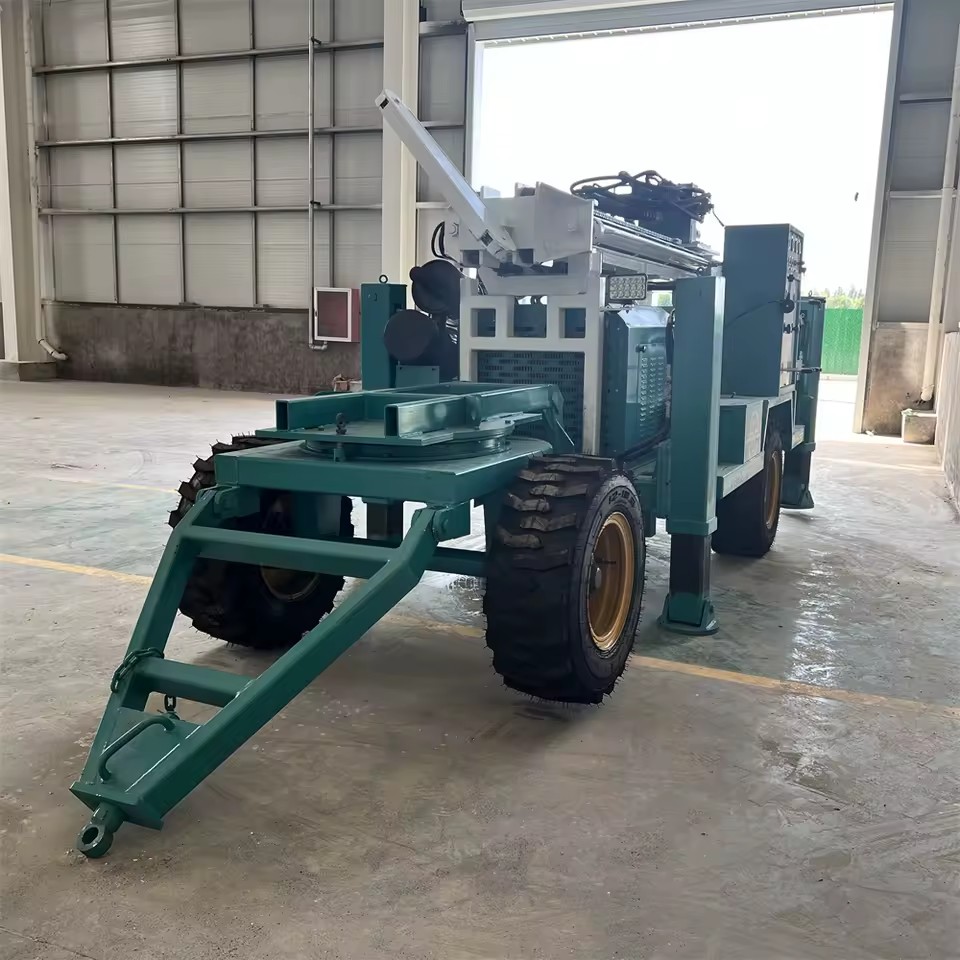

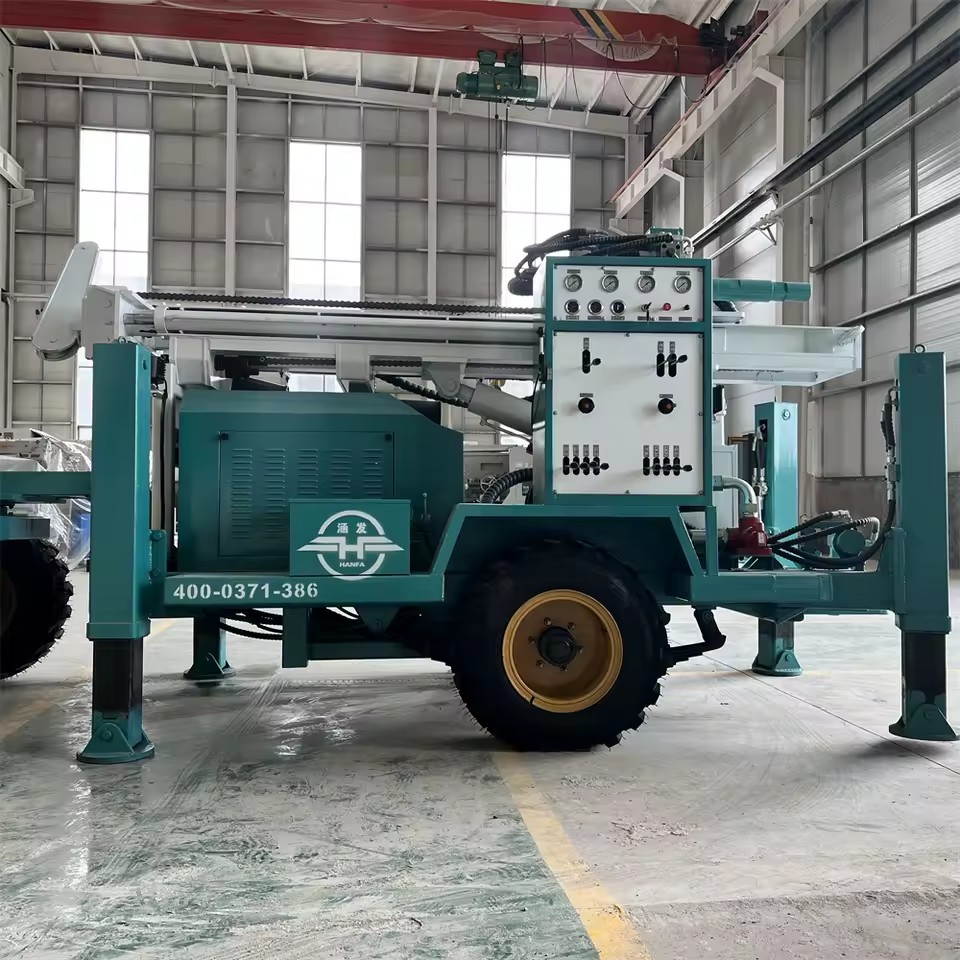

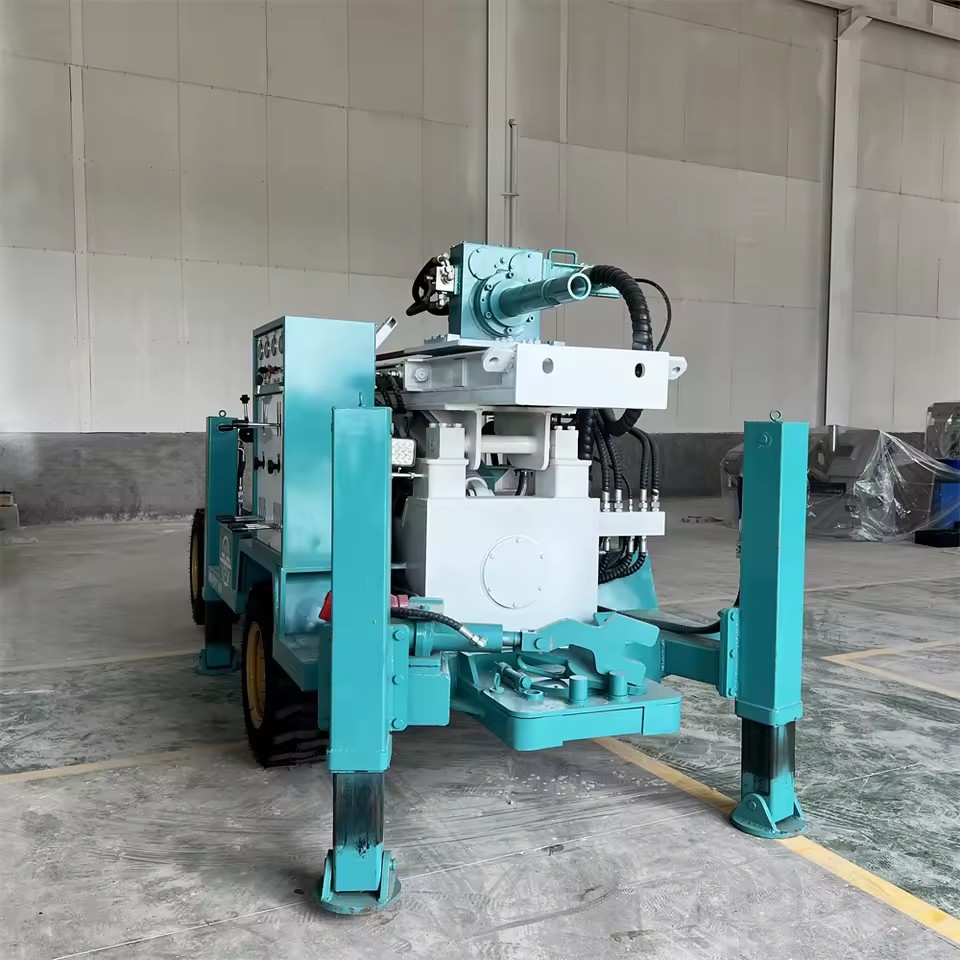

Borehole Water Well Drilling Rig Drill Rig 150m/200m Bohole Mine Drilling Machine for Sale

Available for enquiry 0.0 · 0 reviews
USD

$ 17,960.00 17960.0 USD $ 17,960.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • After-sales Service Provided
  • Engine
  • Working Air Pressure
  • Air consumption
  • Drilling rod length
  • Drilling rod diameter
  • Max. rotation torque
  • ROTATION SPEED
  • Walking speed
  • Selling Units
  • Single package size
  • Single gross weight
  • Power (W) (Product option)
  • Model number

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
water well drilling rig
Drilling Depth
70-350m(229.66-1148.29ft)
Drilling Diameter
90-140mm(3.54-5.51in)
Power Type
Diesel
Voltage
220V/380V
Product description
The price of water well drilling rig upgrade remains unchanged Drilling depth increase
Model（NEW）HFJ220THFJ260THFJ360THFJ460THFJ560T
Max. Drilling depth220m260m360m460m560m
Drilling diameter90-254mm90-315mm105-325mm105-350mm105-350mm
Working air pressure1.05-2.46Mpa1.7-3.0Mpa1.05-3.45Mpa1.05-3.45Mpa1.05-4.5Mpa
Air consumption16-30m³/min17-35m3/min16-55m3/min16-55m3/min16-60m3/min
Drilling rod length3m3m3m/4.5m/6m3m/4.5m/6m3m/4.5m/6m
Drilling rod diameter76/89mm76/89mm89/102mm89/102mm89/102/114mm
Axle pressure5T5T5T10T12T
Lifting force12T14T20T24T28T
Lifting speed2.5m/min2.5m/min3.0m/min3.0m/min3.0m/min
Pulling speed0.5-5m/min0.5-5m/min0.5-5m/min0.5-5m/min0.5-5m/min
Fast lifting speed18m/min18m/min30m/min25m/min25m/min
Fast pulling speed35m/min35m/min50m/min40m/min40m/min
Max. rotation torque4200-5600Nm4500-6500Nm6500-8500Nm7500-9500Nm8500-11000Nm
Rotation speed48-70r/min50-70r/min60-100r/min45-120r/min75-150r/min
Mud pump flow20L/min(optional)20L/min(optional)20L/min(optional)20L/min(optional)20L/min(optional)
High hydraulic leg stroke1.5m1.5m1.5m1.5m1.5m
Walking speed2.5Km/h2Km/h3.5Km/h3.5Km/h3.5Km/h
Climbing capacity30°30°30°30°30°
Weight4.7t5.4t8.5T10.5t11.5T
Dimension3600*1700*2150mm3900*1700*2150mm4800*2000*2450mm5700*2000*2550mm5800*2250*2550mm
Power55kw77.4kw93KW94KW(6 cylinder)153kw

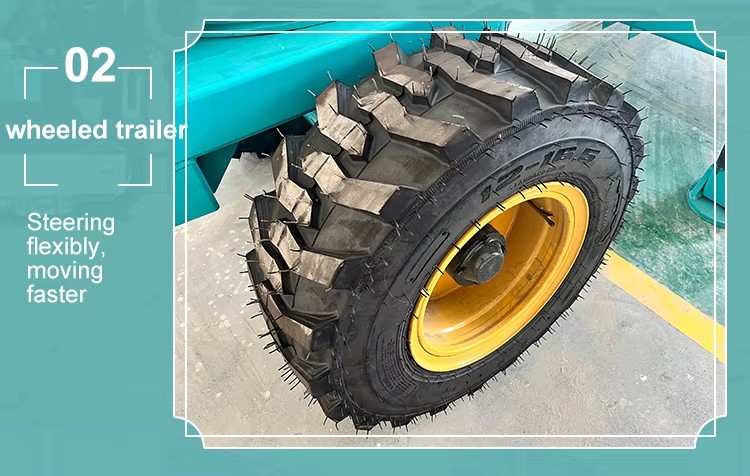

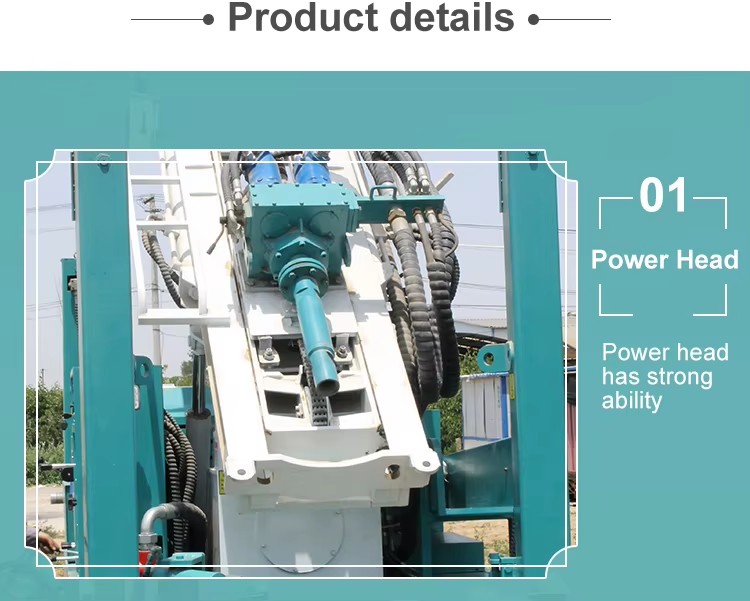

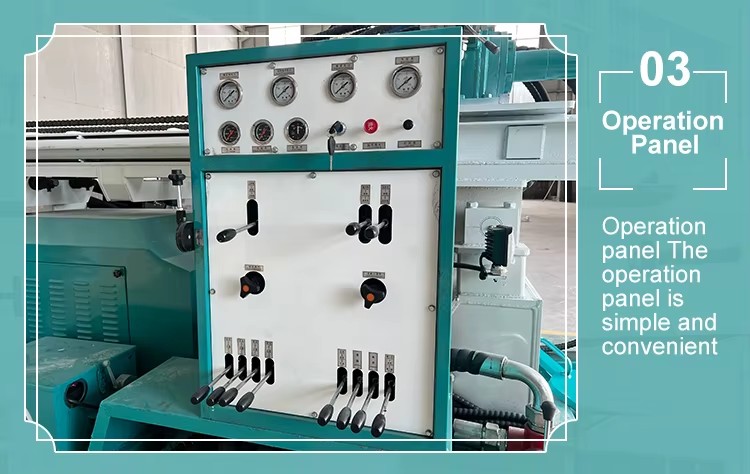

Description images

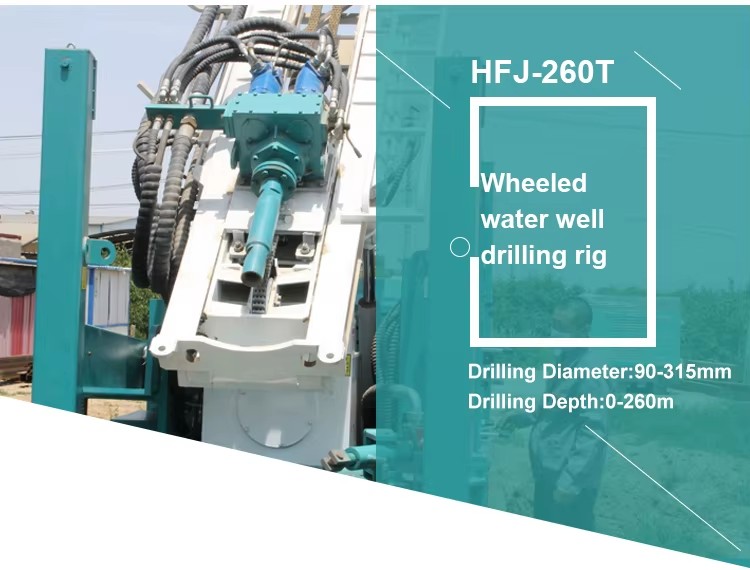

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Water Well
Type
water well drilling rig
Drilling Depth
70-350m(229.66-1148.29ft)
Drilling Diameter
90-140mm(3.54-5.51in)
Power Type
Diesel
Voltage
220V/380V
Core components
Motor, Gear, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Henan
Weight
4700 kg(10361.73lb)
Dimension (L*W*H)
3600*1700*2150mm(141.73*66.93*84.65in)
Mobility
Movable
After-sales Service Provided
Service Machinery Overseas
Engine
Cummins
Working Air Pressure
1.05-2.46Mpa
Air consumption
16-30m3/min
Drilling rod length
3m
Drilling rod diameter
76/89mm
Max. rotation torque
4200-5600Nm
ROTATION SPEED
48-70r/min
Walking speed
2.5km/h
Selling Units
Single item
Single package size
380X190X235 cm
Single gross weight
4750.0 kg
Power (W) (Product option)
55-153Kw(73.76-205.18hp)
Model number
HFJ220T, HFJ260T, HFJ360T, HFJ460T, HFJ560T
Lead time
7 days
Minimum order
1 Units
