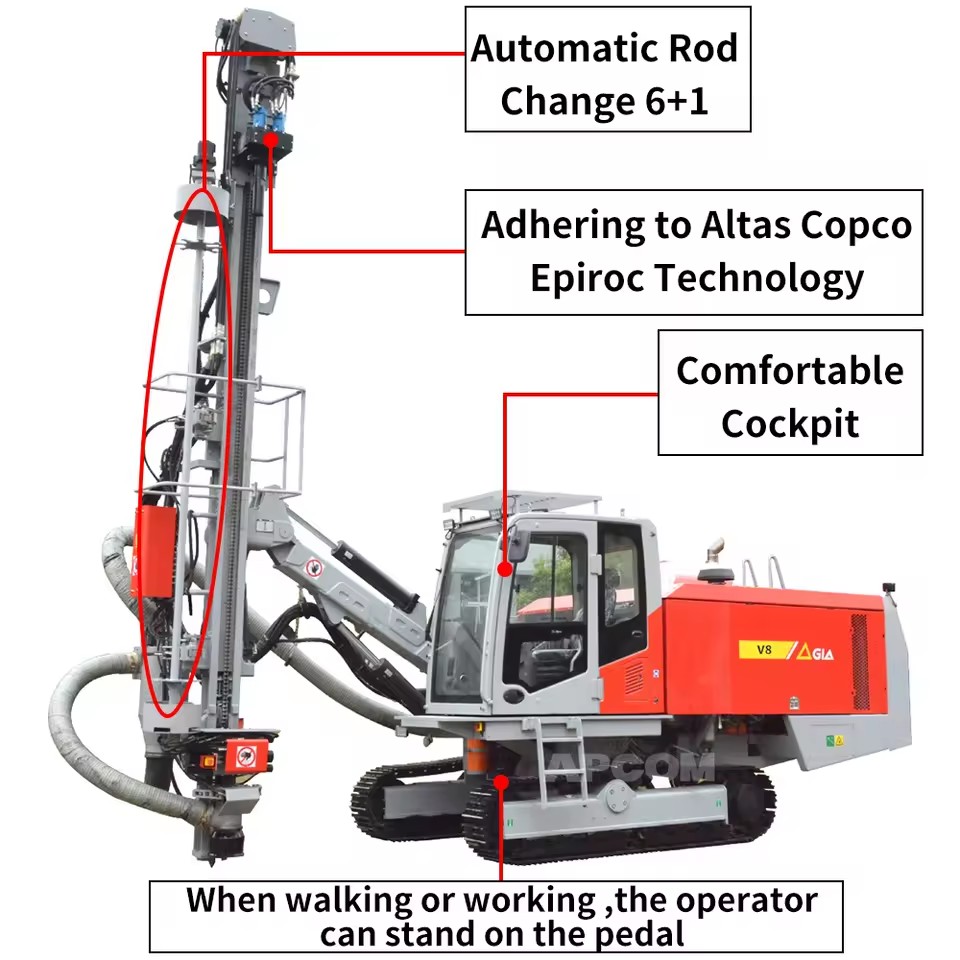

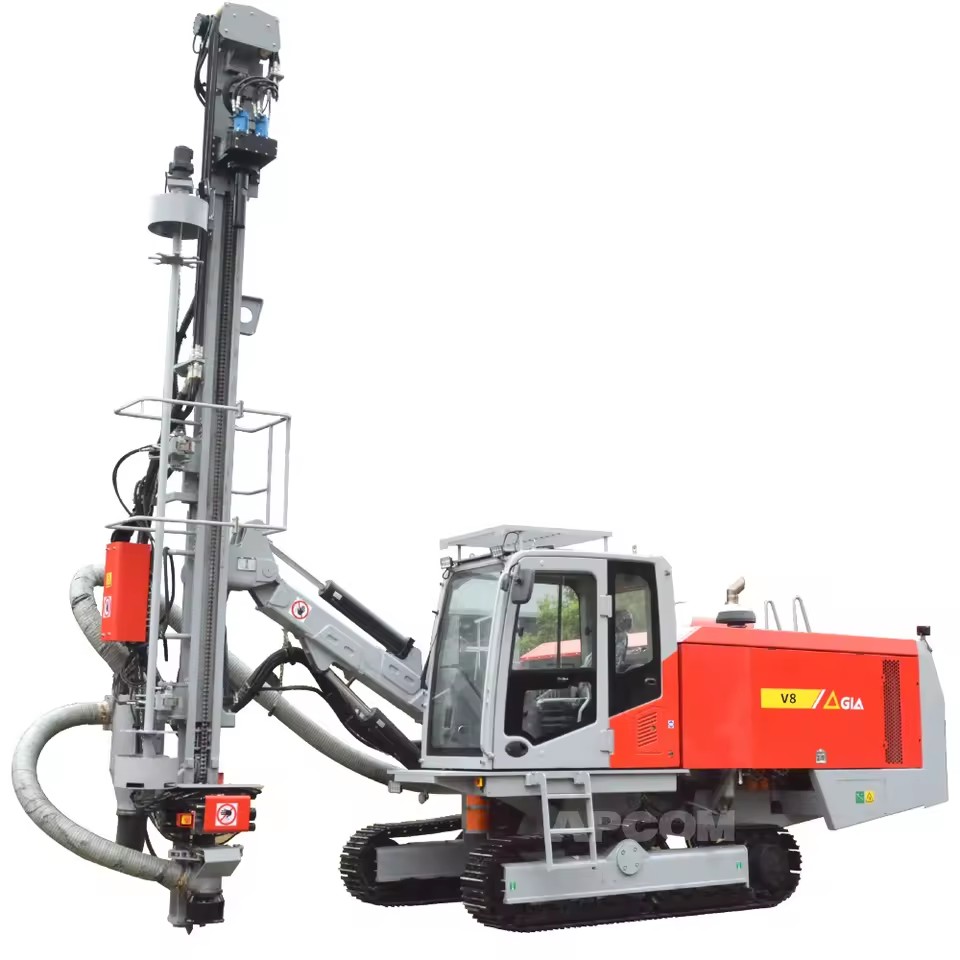

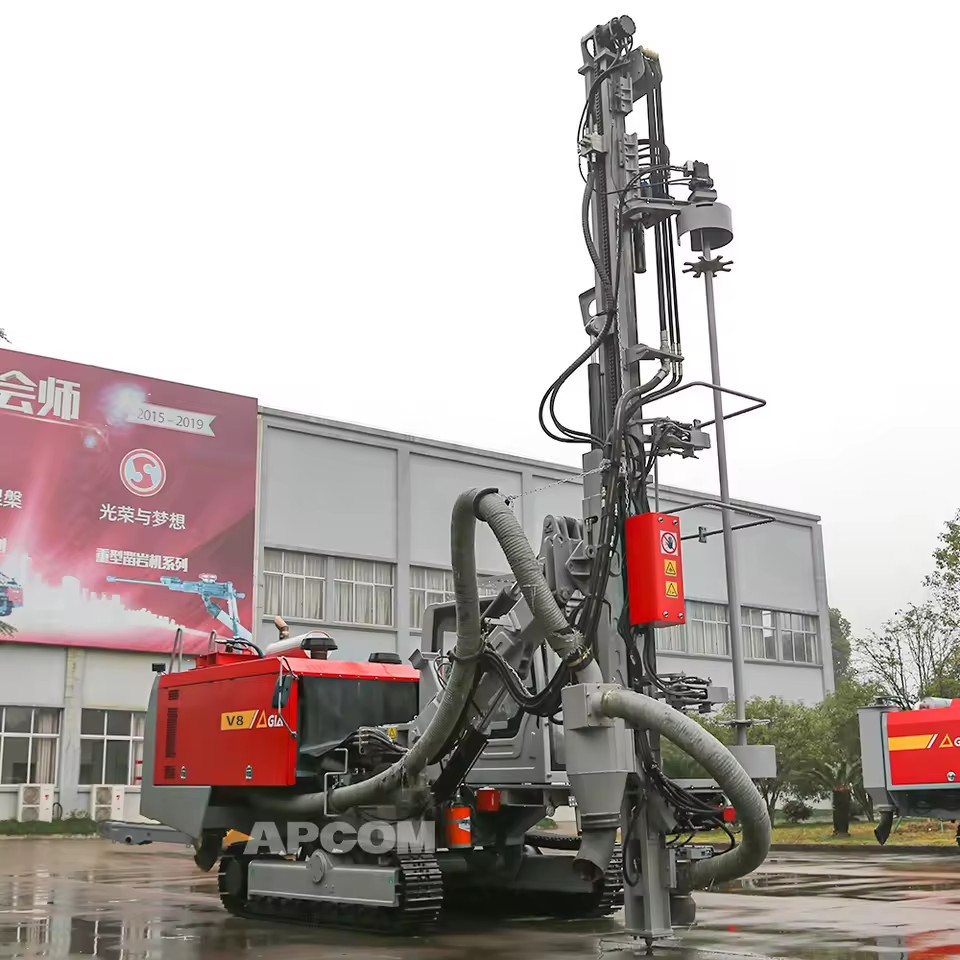

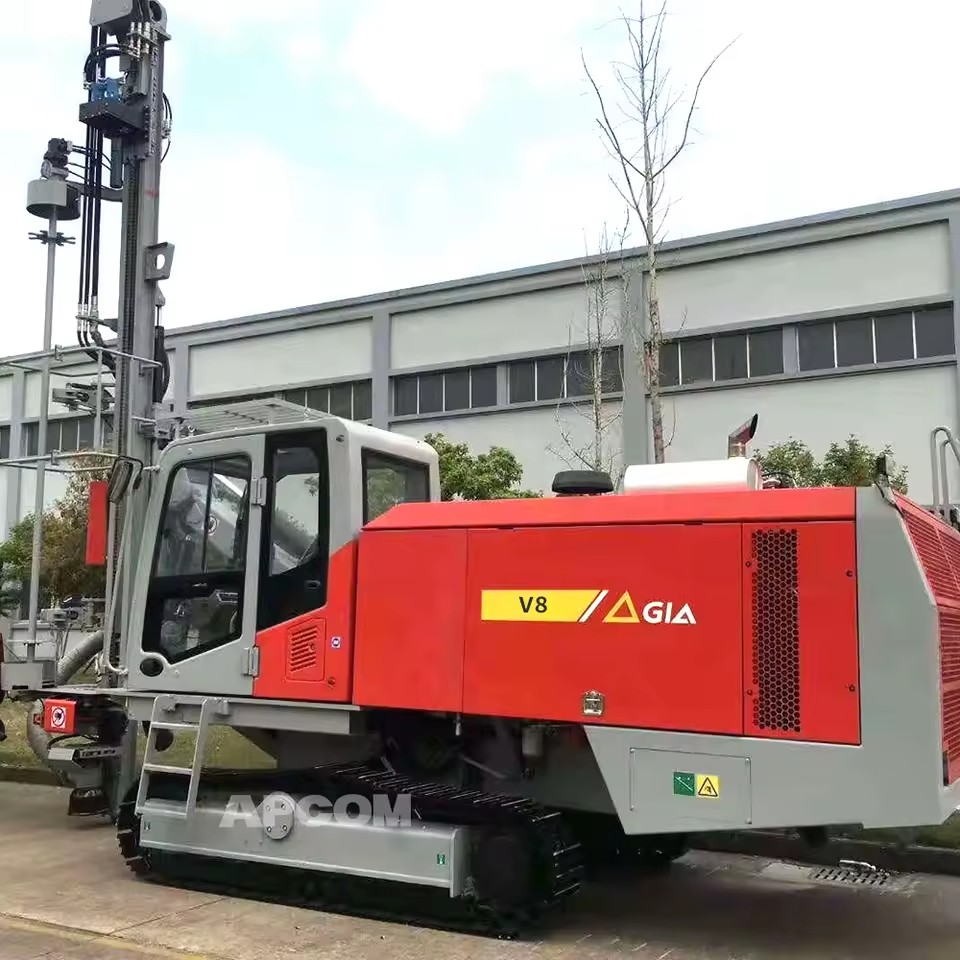

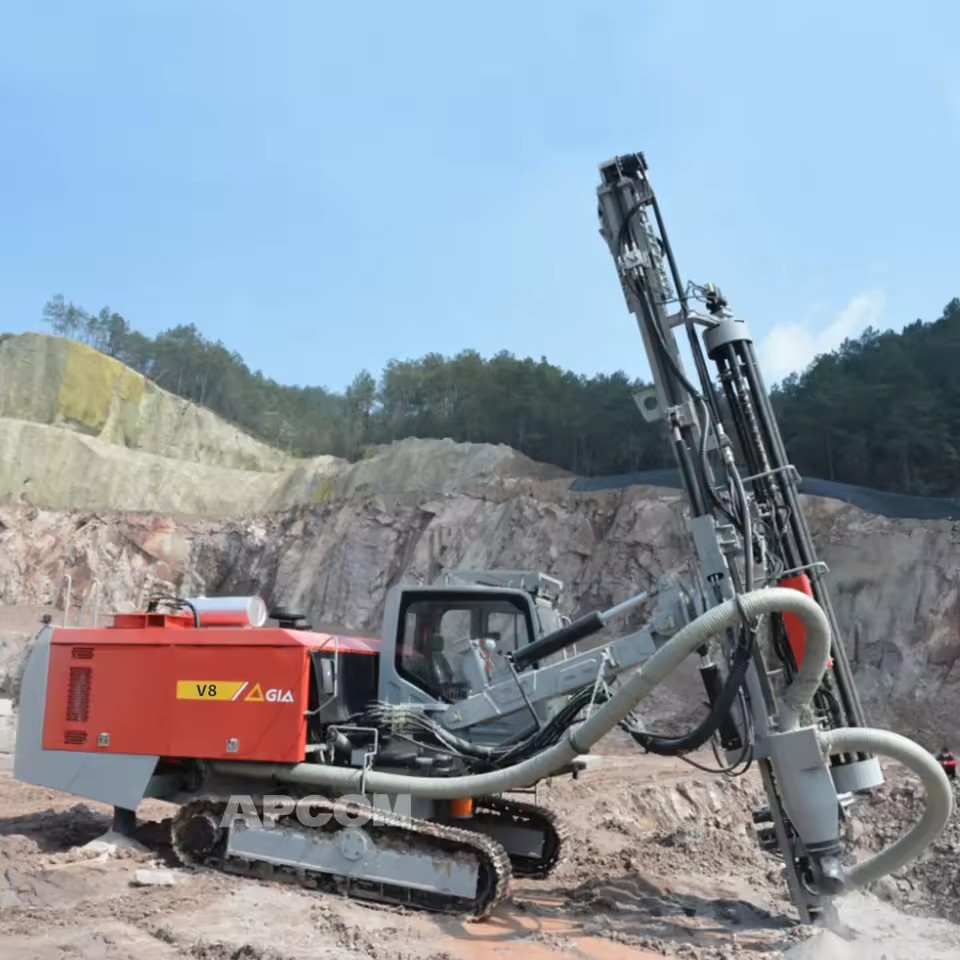

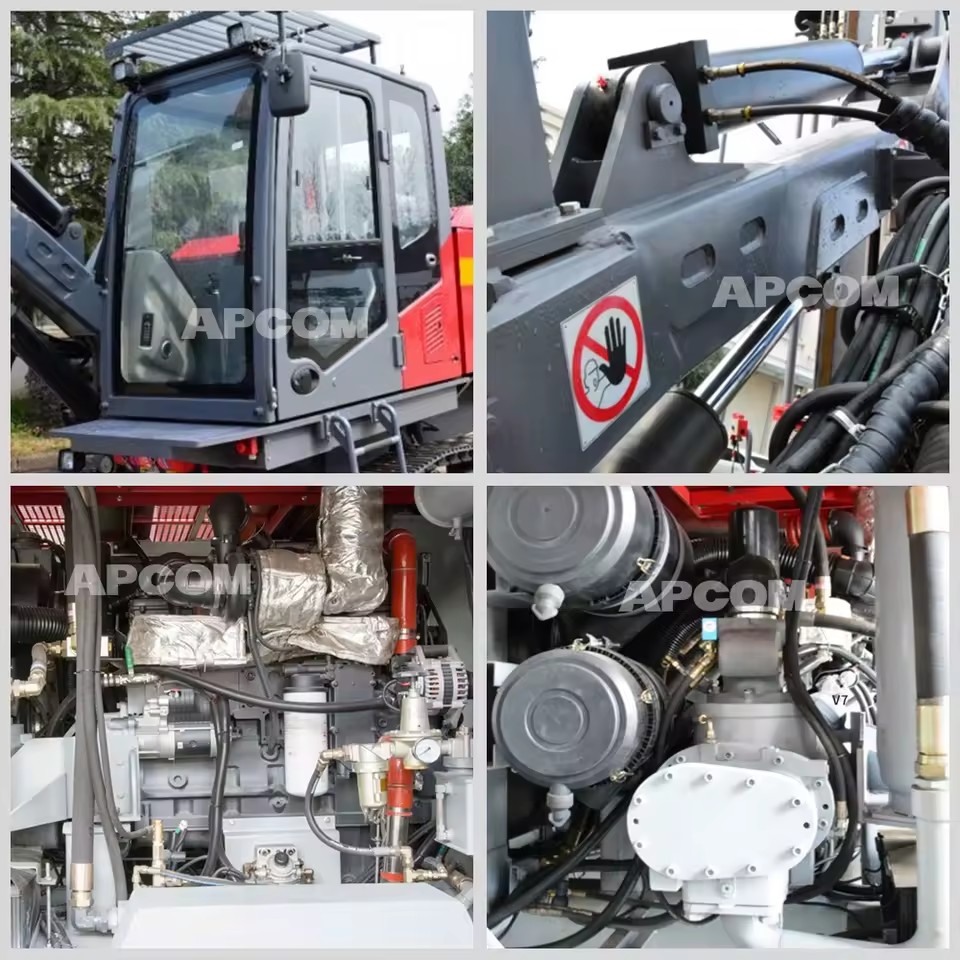

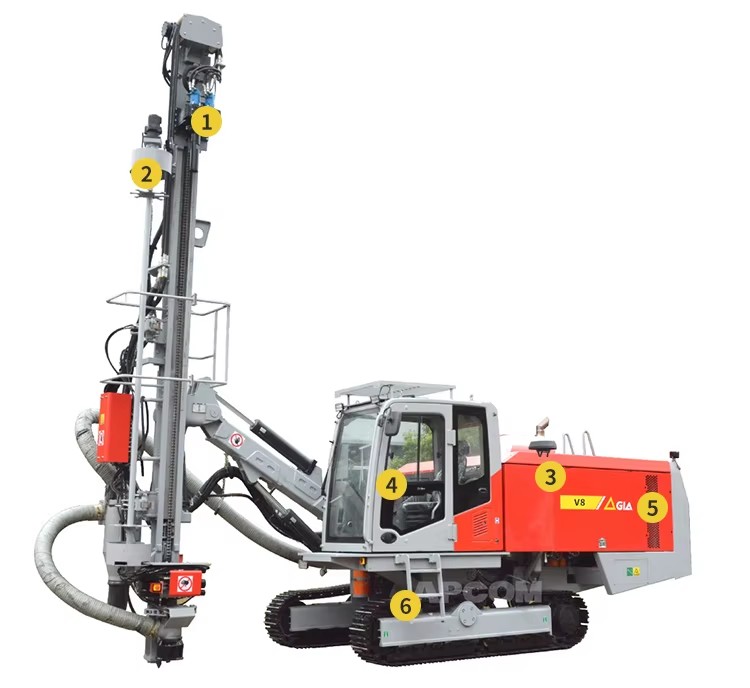

Name: Blasted Mining Drilling Rig Mine V8 Hole Drill Equipment DTH Drilling Rig for Sale
SKU: B2B-38862
Price: 30.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Estimated delivery: Sep 30–Oct 23 (28–51 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Drilling range	Walking system
Borehole diameter	115-152mm	Walking speed	1.8-3.6km/h
Drilling depth	32m	Traction	100kN
Drill pipe specification	89x4m	Climbing capacity	20°
Drill pipe capacity	7+1	Chassis swing angle	±10°
Impactor	3 or 4 inches	Ground clearance	380mm
Diesel Engine	Propulsion beam
Diesel Engine Brand	Cummins	Propulsion stroke	4330mm
Diesel Engine Model	QSL8.9-C360	Compensation length	1100mm
Rated power	264kw@2200r/min	Max drawing force:18kN	Max propulsion:12kN
Screw Air Compressor	Swivel head
Air Flow	20 m 3 /min	Maximum torque	2000Nm
Working Pressure	20bar	Maximum speed	120rpm
Drill arm	Dimension and weight
Boom pitch angle	28 ° down / 33 ° up	Weight	15700kg
Left and right swing angle of drill arm	25 ° left / 25 ° right	Overall dimension	9200×2500X3200mm
Left and right swing angle of carriage	23 ° left / 92 ° right	Dust collection system
Height of drillable horizontal hole	800-3700mm	Filtration area 19m 2	Number of filter elements 18

24 Hours For You

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Economy · Estimated delivery: Sep 30–Oct 23 (28–51 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Usage

Ore

Type

Rotary Drilling Rig

Drilling Depth

Max.32m

Drilling Diameter

140mm(5.51in), 89mm(3.50in), 90mm(3.54in), 115mm(4.53in), 110MM(4.33in), 152MM(5.98in), 125mm(4.92in), 148mm(5.83in)

Power Type

Diesel

Voltage

none

Core components

PLC, Engine, Pump, Diesel Engine, Hydraulic motor, Air Compressor Air-end

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Shanghai

Weight

15700 KG(34612.58lb)

Dimension (L*W*H)

9200X2500X3200 mm

Mobility

Crawler

New design

Rotary Drilling

New features

Sample Available

New technology

Video

New products

Crawler Mounted

New manufacturing

High Efficiency

New process

For Hard Rock

Air-end warranty

1.5 years

Diesel Engine warranty

1 year
