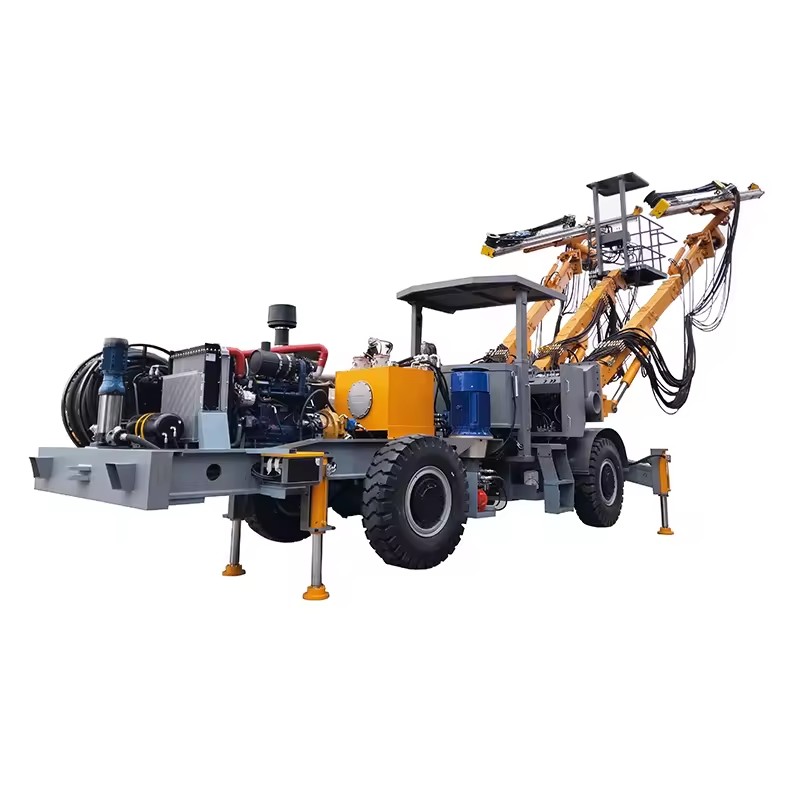

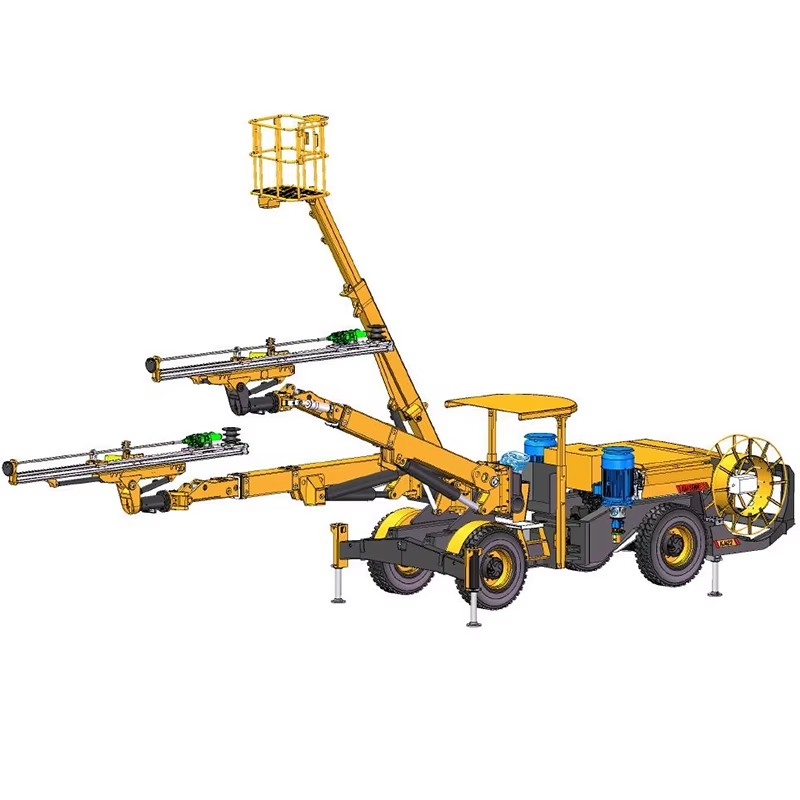

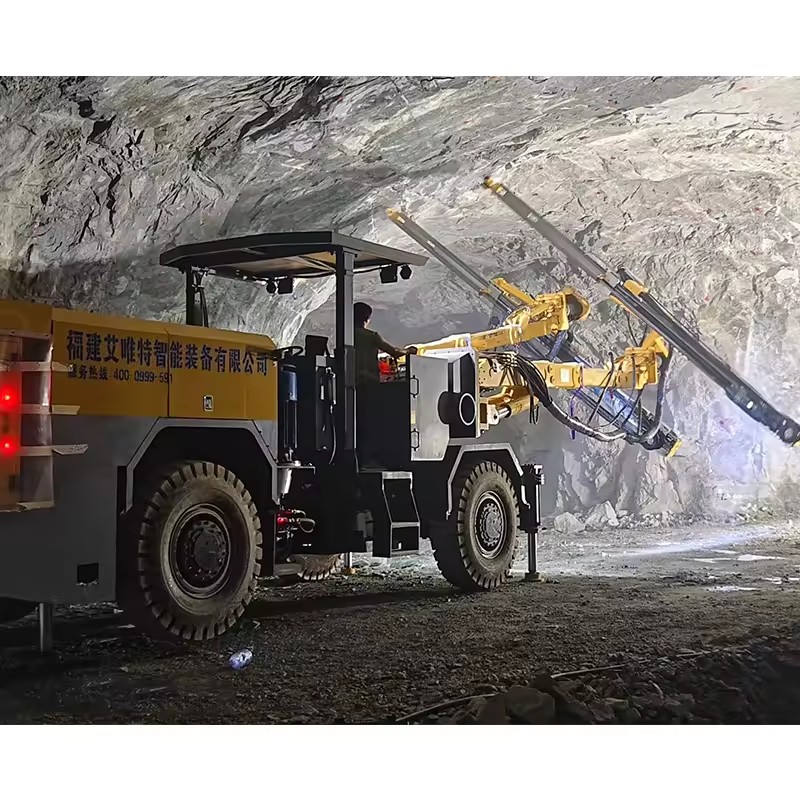

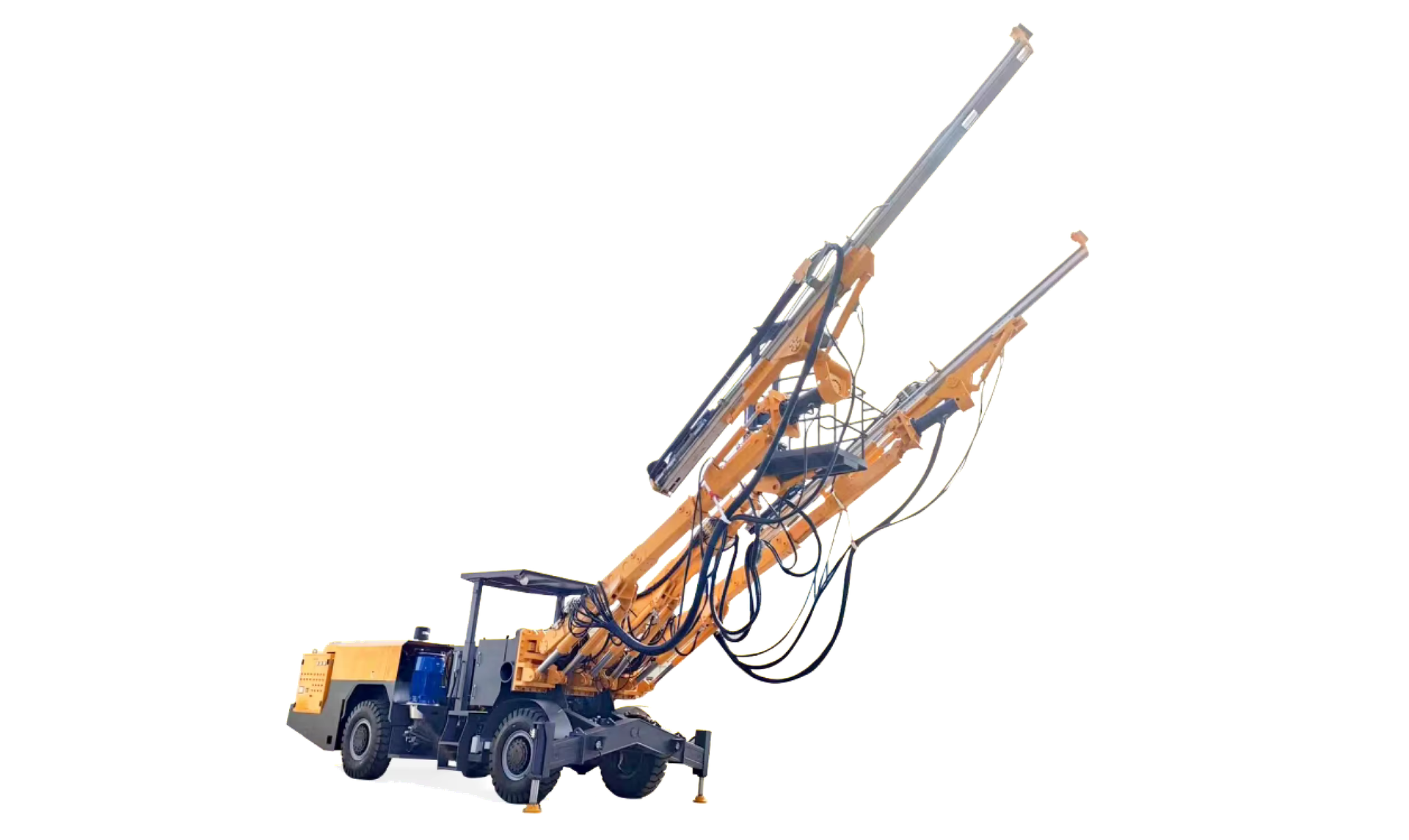

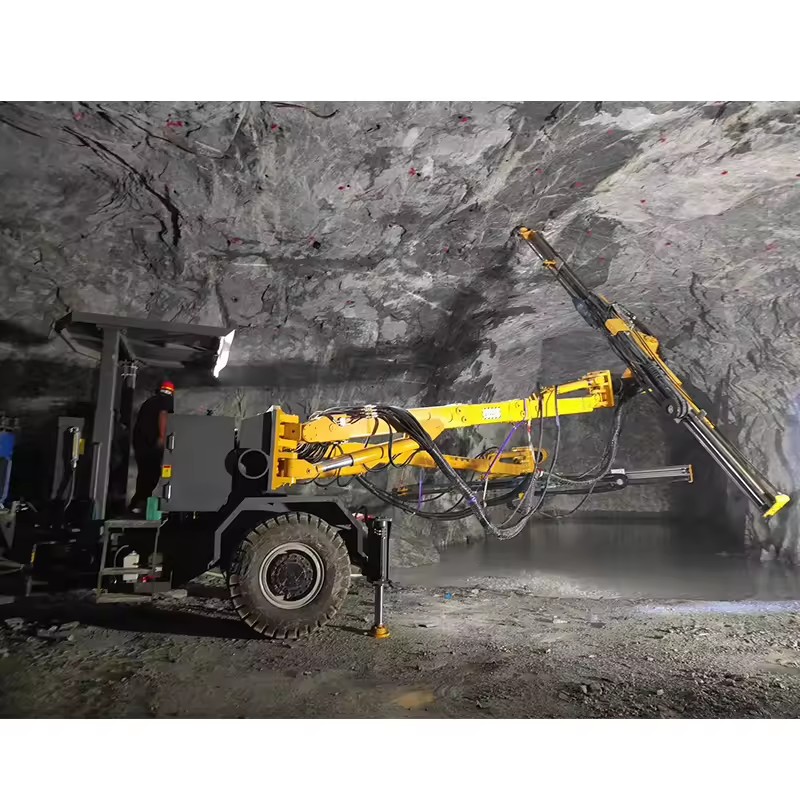

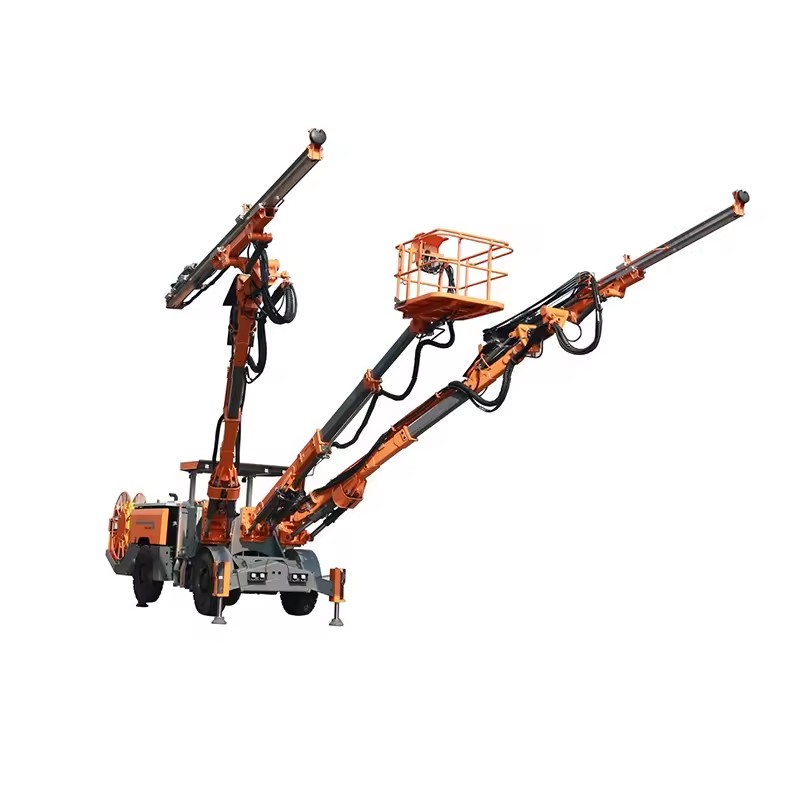

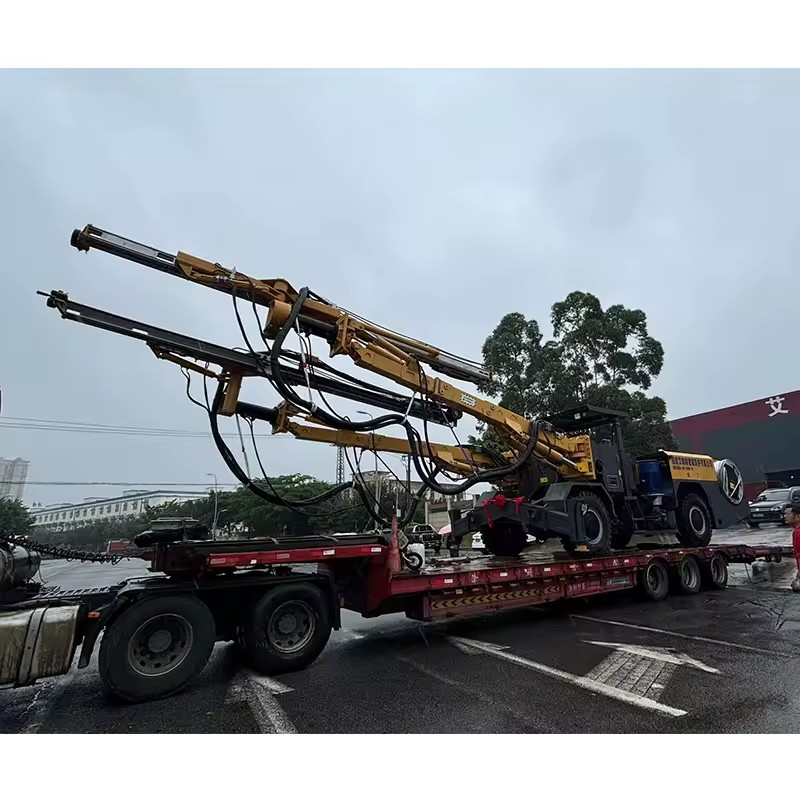

New Product Mine Double-Boom Hydraulic Drilling Rig Rock Rotary Jumbo Drill Machine for Sale
Price
$
500510.00
Product information
Attributes
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m, 5300mm
Drilling Diameter
102mm(4.02in), 43mm(1.69in)
Power Type
Diesel
Voltage
220v

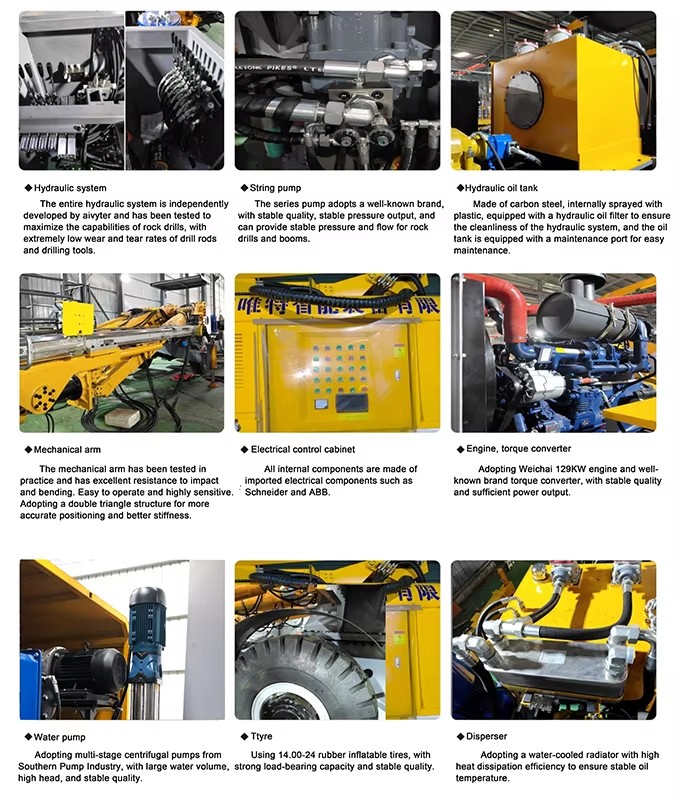

Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Fujian
Weight
3300 KG(7275.25lb)

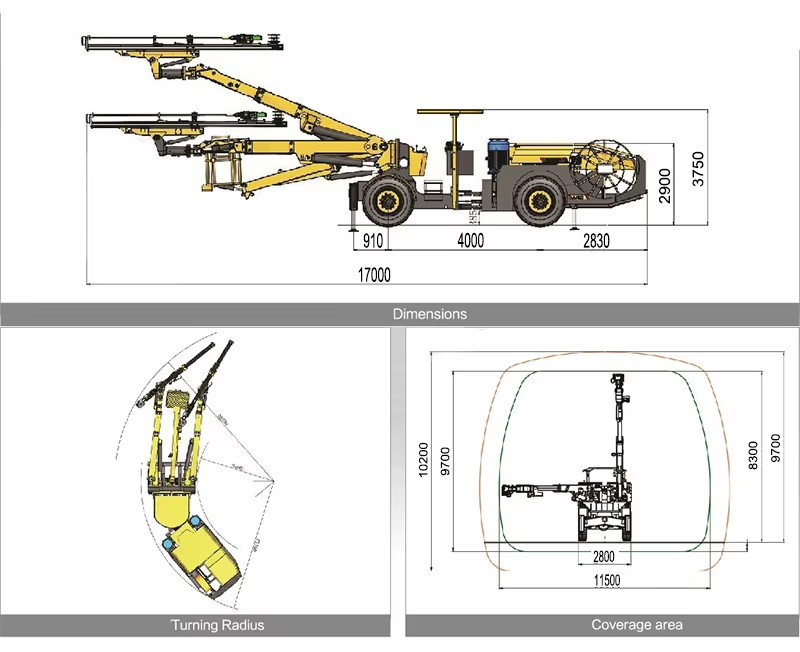

Dimension (L*W*H)
17000*2800*2900mm(669.29*110.24*114.17in)
Mobility
15km/h
Excavation height
9700mm
Drill pipe length
5525mm
Drilling speed
0.8-2m/min
Rotation
Positive 135 ° Reverse 225 °
Swing arm
45 ° left and right
Travel compensation
1800mm
Main arm stroke
1600mm
Sliding rail swing angle
2 ° elevation and 90 ° elevation
Selling Units
Single item
Single package size
1700X280X290 cm
Single gross weight
33000.0 kg
Model number
AZT2-9700
Power (W) (Product option)
55*2 KW(73.76*2.68hp)
Fulfilment
Delivery
Lead time
30 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
