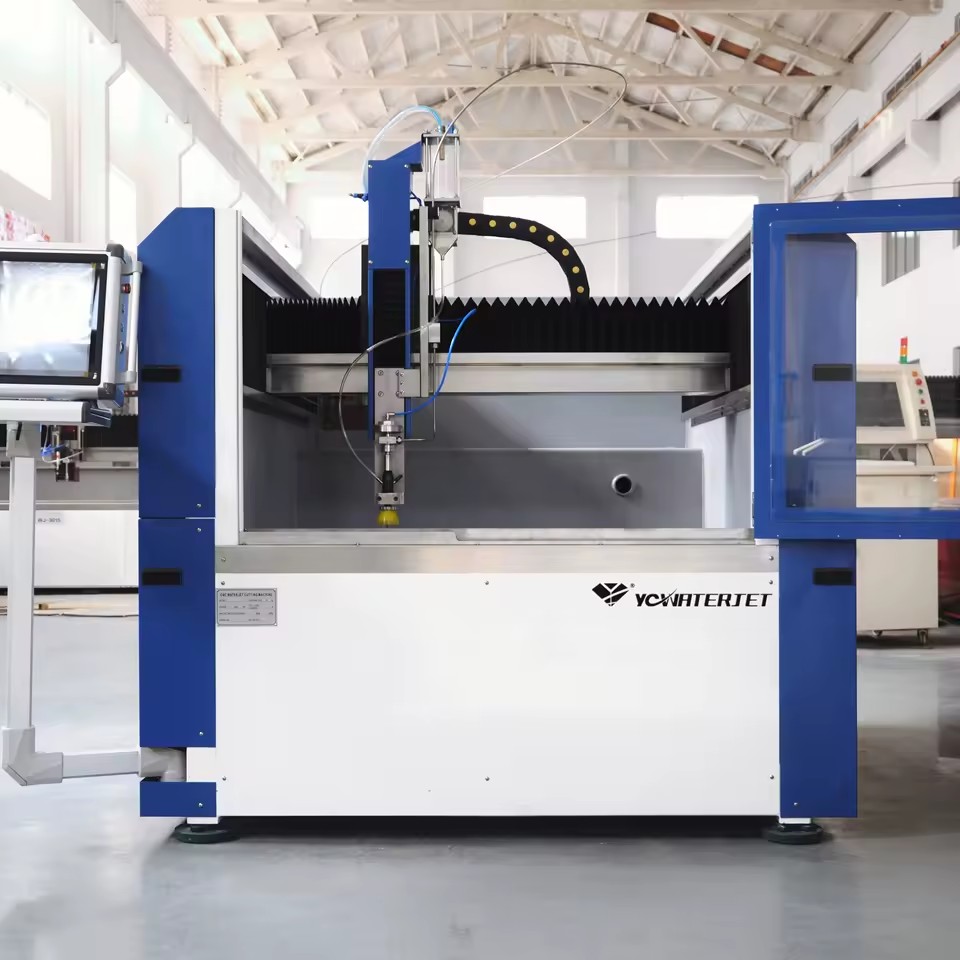

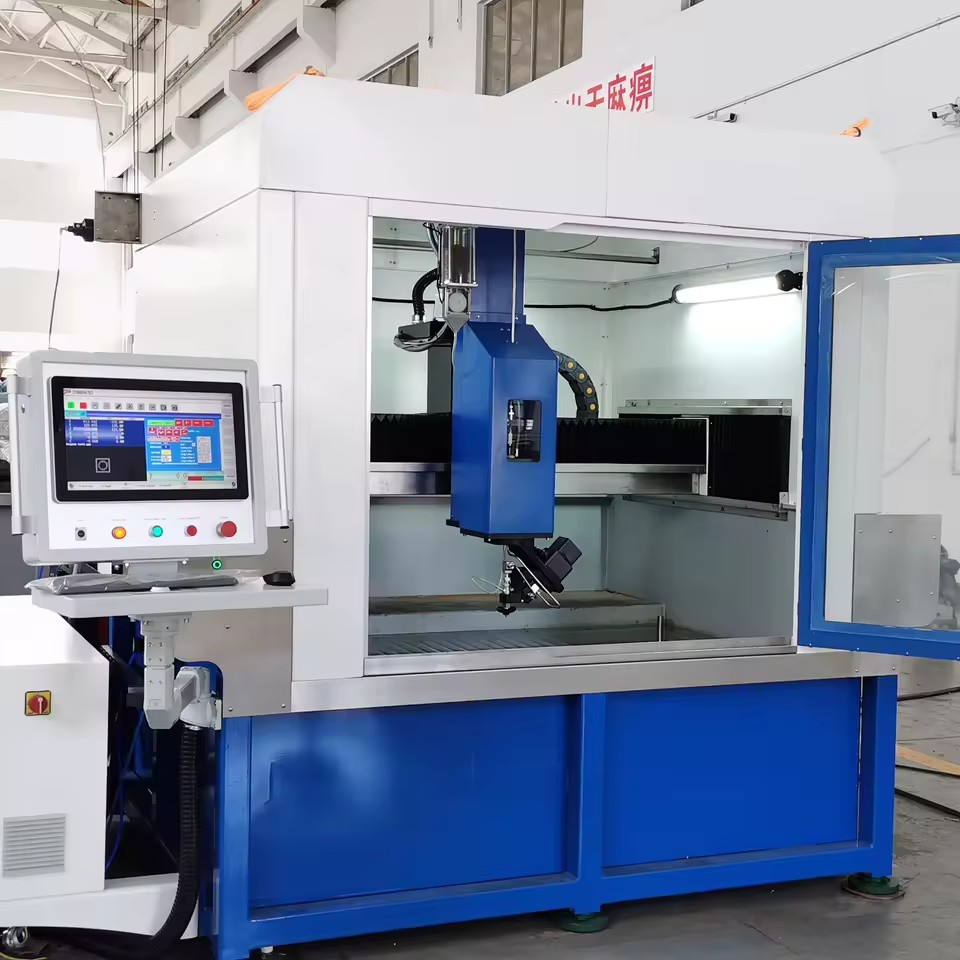

Waterjet Cutting Machine 3 Axis 1212 Small CNC Water Jet Cutter for Academic Lab Research Metal Cut with CE

Details

Model

Unit

YCWJ-S0808

YCWJ-S1010

YCWJ-S1212

Effective cutting area (x*y)

mm

800*800

1000*1000

1200*1200

X,Y Dry-run Speed

0-15 (if need 30m/min speed,we can do as request )

Cutting accuracy

as to detail material and thickness

S SERIES Waterjet cutting table

1.Wide scope of application

The cutting stroke of the platform is exquisite, which is suitable for the processing of exquisite small samples.I it suitable for cutting any type of materials in a diverse range of industries.

3.No need for mold,Easy Operating

It is easy to obtain the processing graphics by drawing software (Auto CAD). After the graphics or program is imported into the computer through USB-disk or internet, the pre-set program can be selected on the touch screen to obtain various processing shapes without any molds and tools. The operation is simple and the efficiency is high.

2.Safety & Clean Cutting

In the process of water cutting, it will not make heat. Hygiene is unmatched in the cutting process. The door of this water jet cutting machine has a visual window for easy observation, it can effectively prevent water from splashing when cutting. It adopts a fully enclosed design, conforms to CE standards, improves safety, reduces noise pollution, and is environmentally friendly.

4.Easy to carry and transfer

The shell adopts all-in-one full protection mode, small size, light weight, easy to carry and transfer.

Structure：

It is hygienic and reliable. Totally enclosed glass cutting space, clean and dust-free. we can clearly watch the cutting process

It will be shut down if open the window, it's safe and smart.

The SS collecting tank can concentrate the residue and the waste water after cutting.

Movable cleaning window is simple and convenient to operate.

Transmission：

With AC servo system, the accuracy is higher.

Linear guide and ball screw module is durable.

Effective cutting size：1000mm*1000mm*200mm

Maximum cutting speed：15m/min

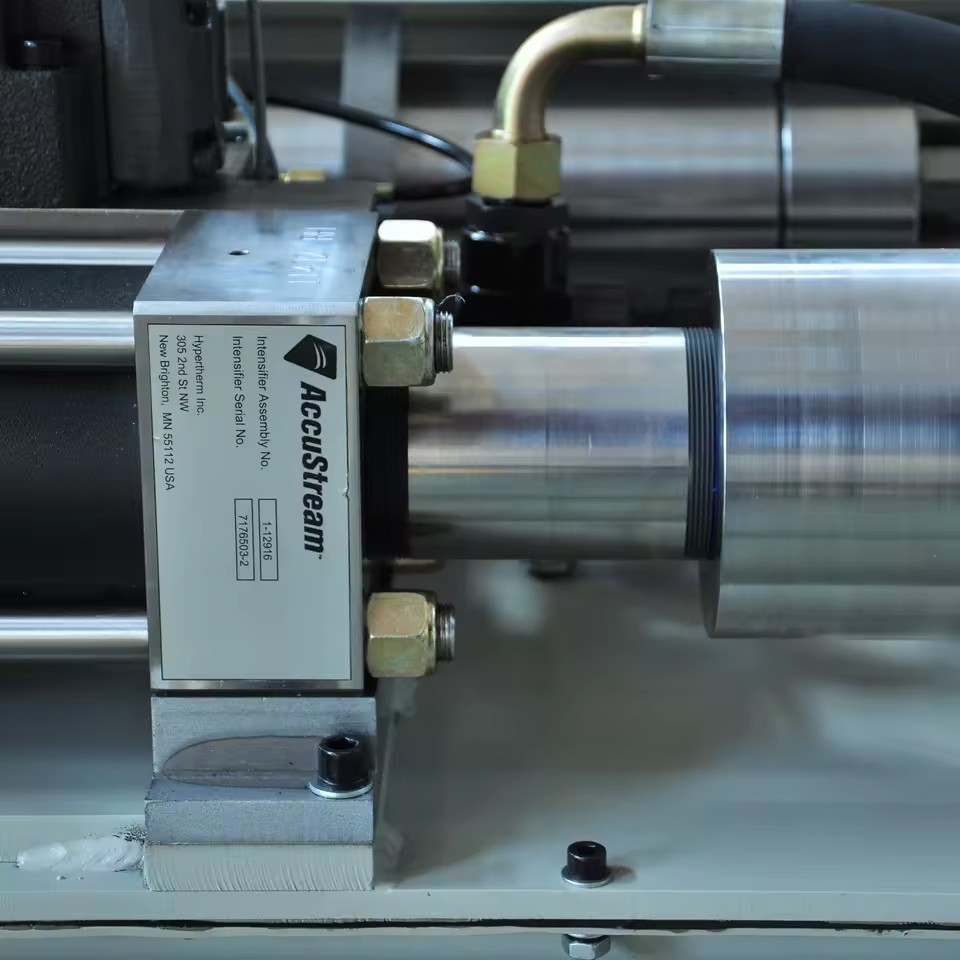

Core compoenent options

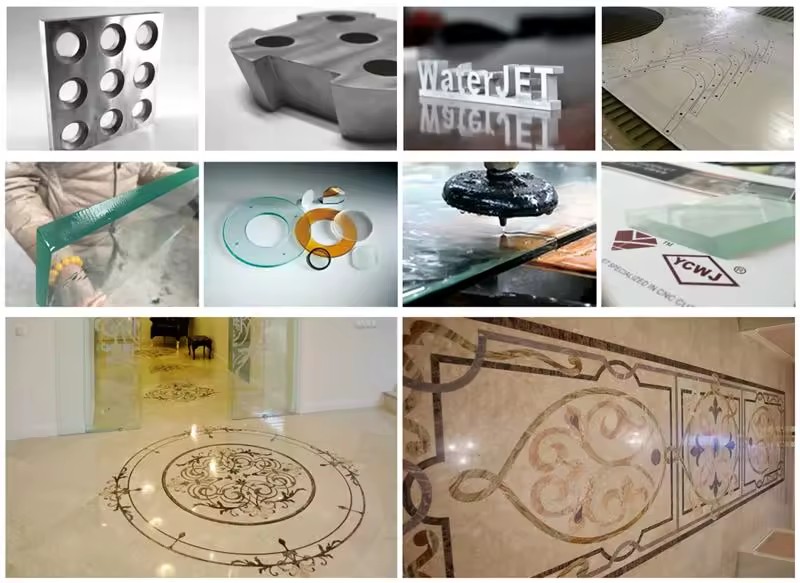

Cutting sample

Packing&Delivery

Company Profile

Customer reviews

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat deformation; Strong cutting ability, it can cut almost any material; pure water jet can cut soft materials, abrasive waterjet can cut hard materials, evenit can cut flammable and explosive objects; cutting accuracy is high, edge is neat. Waterjet also has the title of universal cutting machine.

Q: How to choose a standard cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision bevel problem by 3 axis water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle

compensation in the software.

Q:Is the equipment easy to operate?

A:Based on the good waterjet software, opertaor can learn it easily. and if customer order new machine, our technician will

provide training for the machine’s running and maintenance.
