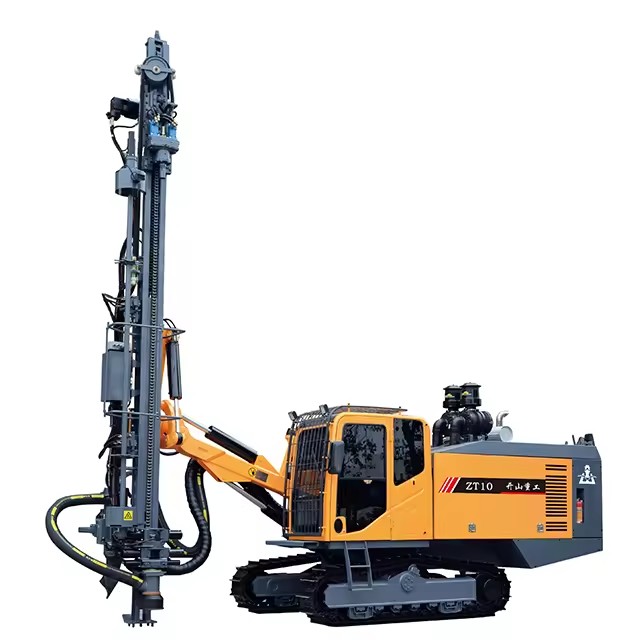

Mine Drilling Rig Blasting Crawler Blast Hole Mine Integrated Dth Drill Rig Surface Drilling Rig for Mining

Available for enquiry 0.0 · 0 reviews
USD

$ 158,030.00 158030.0 USD $ 158,030.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
air compressor, Rotary Drilling Rig, with cab
Drilling Depth
Max.100m
Drilling Diameter
105-130mm(4.13-5.12in)
Power Type
Diesel
Voltage
24v
Product description
ModelZT10
Transport dimensions (L×W×H)9230*2360*3260 mm
Weight15000Kg
Rock hardnessf=6-20
Drilling diameter105-130mm
Ground clearance430mm
Leveling angle of track10°up, 10°down
Travelling speed0-3Km/h
Climbing capacity25°
Traction120KN
Torque2800Nm
Rotation speed0-120rpm
Lifting angle of drill boomUp 47°, down 20°
Swing angle of drill boomRight 50°, left 20°
Swing angle of carriageRight 95°, left 35°
Tilt angle of beam114°
Compensation stroke1353mm
Feed stroke4490mm
Maximum propelling force25KN
Method of propulsionMotoer+Roller chain
Depth of economical drilling32m
Number of rods7+1
Specifications of drilling rodΦ76*4000 mm
DTH hammerK40
EngineYC6L310-H300
Output power228KW/2200rpm
Ratedrevolvingspeed2200rmin
Screw air compressorZhejiang
Air capacity18m3/min
Air pressure17Bar
Traveling control systemHydraulic pilot
Drilling control systemHydraulic pilot
Anti-JammingAutomatic electro-hydraulic anti-jamming
Voltage24V, DC
Safe cabMeet the requirements of ROPS & FOPS
Indoor noiseBelow 85dB (A)
SeatAdjustable
Air-conditioningStandard temperature
EntertainmentRadio
Certifications & compliance
CE
Complies with EU standards
Description images

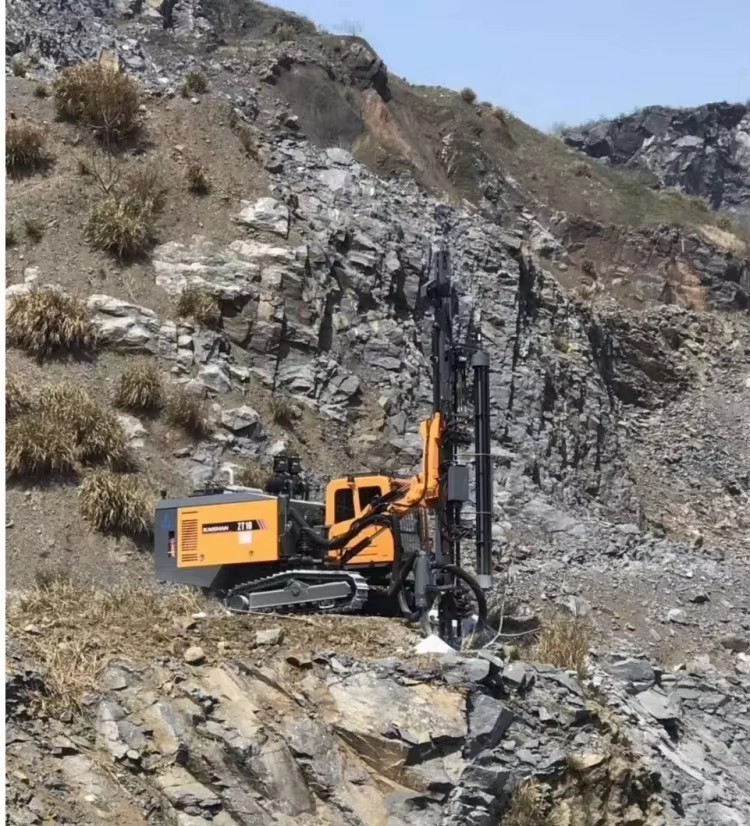

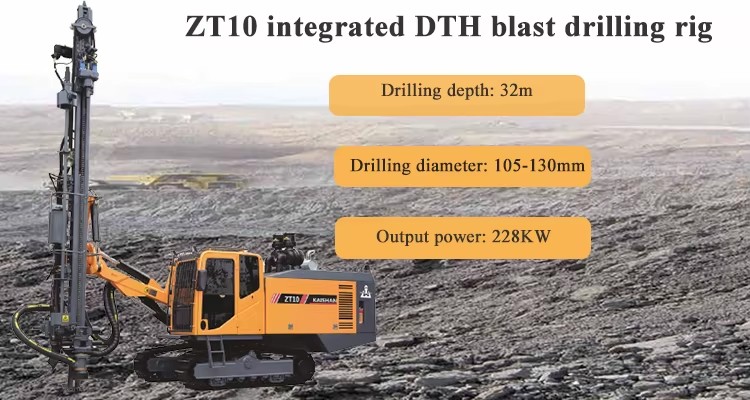

Product detail

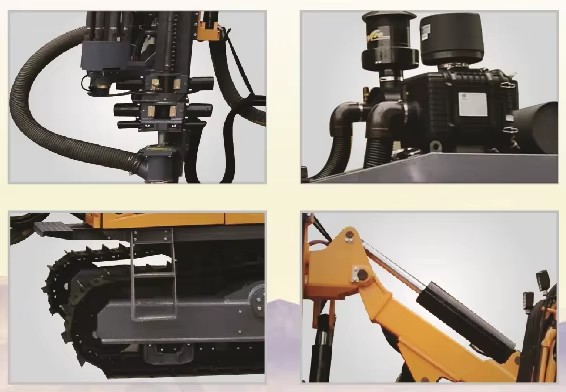

Product detail

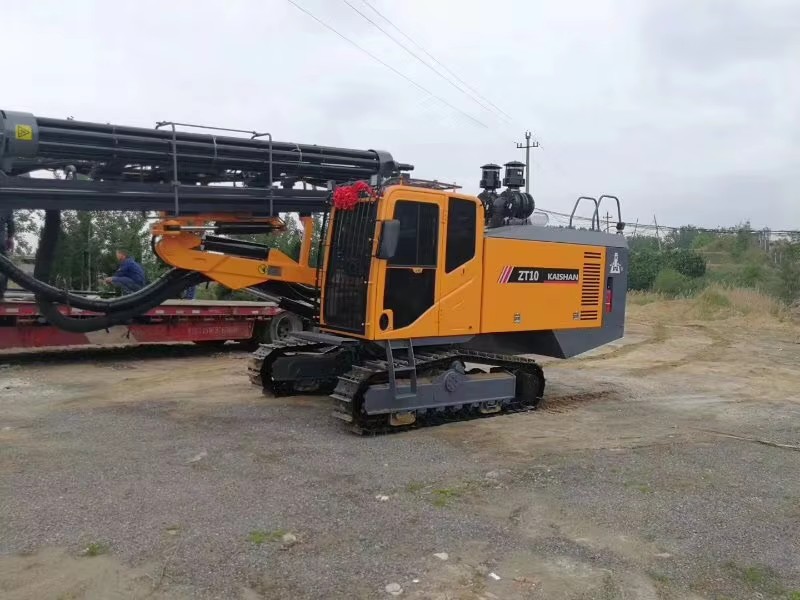

Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    70 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
Ore
Type
air compressor, Rotary Drilling Rig, with cab
Drilling Depth
Max.100m
Drilling Diameter
105-130mm(4.13-5.12in)
Power Type
Diesel
Voltage
24v
Core components
Motor
Warranty
3years except parts
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
Zhejiang, China
Weight
15000 KG(33069.34lb)
Dimension (L*W*H)
9000*2360*3000mm(354.33*92.91*118.11in)
Diesel engine model
YC6L310-H300
Diesel power
310hp/228kw
Automatically connect rod
32m
Screw compressor air delivery
18m3/min
Air compressor
17bar
Using
Drill Rig for Mining Probing
Dust extractor
dry dust extractor
Drill rod
76*4000MM
Selling Units
Single item
Single package size
8890X7850X6500 cm
Single gross weight
14500.0 kg
Model number
ZT10
Power (W) (Product option)
228KW(305.75hp)
Certifications & Compliance
CE
Lead time
70 days
Minimum order
1 Units
