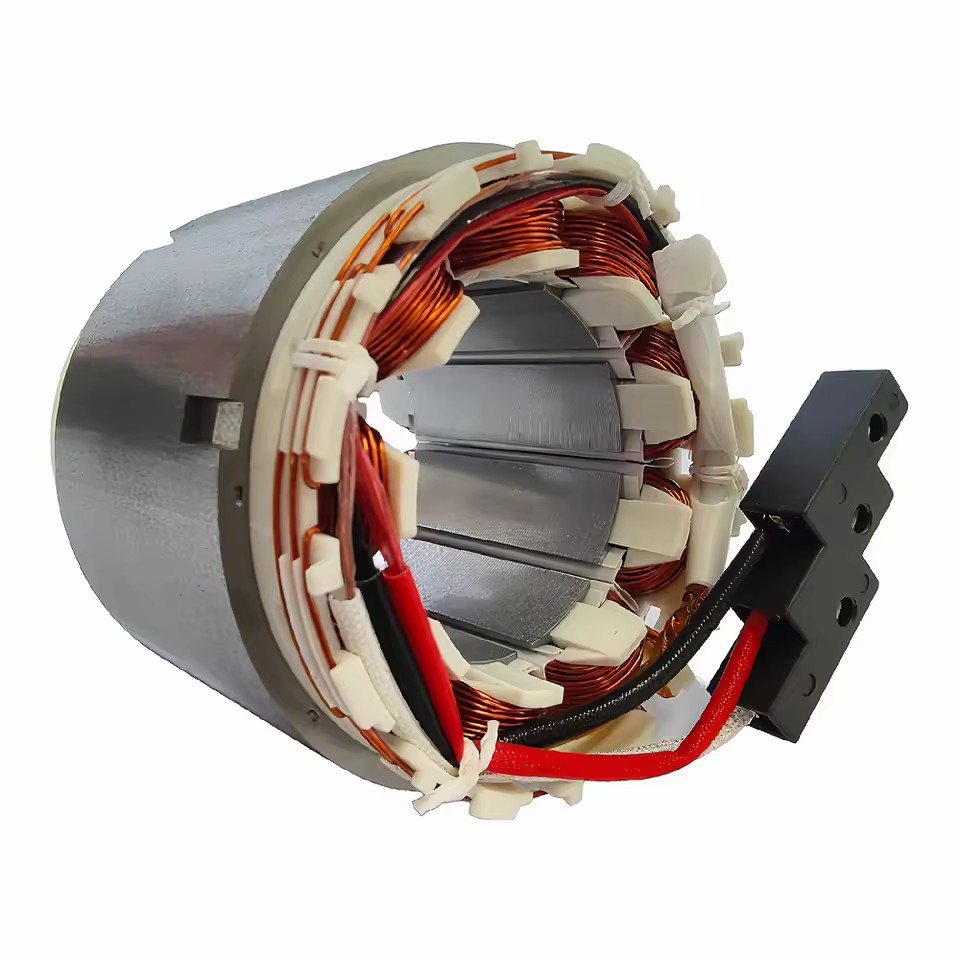

48V-72V Motor Stator and Rotor EC85-60 for PMSM Motor or Pump Motor 1.24kW 90% Efficiency Brand

Available for enquiry 0.0 · 0 reviews
USD

$ 30.00 30.0 USD $ 30.00

Not Available For Sale

Minimum order quantity: 100 Units

Key attributes

View all
For Shaft Size
customizable
Overall Length
customizable
Material
customizable
Warranty
2 Years
Model number (Specification)
EC85-60
Place of origin
China
Product description
ModelEC85-510EC85-320EC85-144EC85-120EC85-108EC85-60EC85-24
Rated Voltage510V320V144V120V96～144V48～72V24V
Rated Speed6000rpm6000rpm4000rpm3200rpm4000rpm3500rpm3800rpm
Rated Current6A7A10A13.5A13.5A26A32A
Stator Outer Diameter85mm85mm85mm85mm85mm85mm85mm
Rated Torque3.5Nm3.4Nm3.1Nm3.6Nm3.1Nm3.4Nm2Nm
Efficiency91%91%90%90%90%90%88%
Stator Stack Height60mm60mm50mm60mm50mm50mm50mm
Rated Power2.2kw2.1kw1.3kw1.2kw1.3kw1.24kw0.8kw
Insulation ClassEEEEEEE
ModelEC100-600EC100-540EC100-320EC100-300EC100-288EC100-144
Rated Voltage600V540V320V300V288V144V
Rated Speed6000rpm4000rpm6000rpm7000rpm6000rpm6000rpm
Rated Current9A7A14A13.5A14.5A31A
Stator Outer Diameter100mm100mm100mm100mm100mm100mm
Rated Torque7.5Nm4.5Nm7.5Nm5.5Nm5.9Nm7.5Nm
Efficiency91%90%90%90%90%90%
Stator Stack Height50mm38mm50mm38mm50mm50mm
Rated Power4.7kw1.9kw4.7kw4.0kw3.7kw4.7kw
Insulation ClassEEEEEE
ModelEC112-110EC112-450
Rated Voltage110V450V
Rated Speed5000rpm4000rpm
Rated Current16.5A9.3A
Stator Outer Diameter112mm112mm
Rated Torque3.5Nm4.3Nm
Efficiency91%91%
Stator Stack Height25mm38mm
Rated Power1.8kw1.8Kw
Insulation ClassEE
ModelEC125-580EC125-510EC125-380EC125-110
Rated Voltage580V510V380V110V
Rated Speed4500rpm3600rpm5000rpm3600rpm
Rated Current27A11A22A26A
Stator Outer Diameter125mm125mm125mm125mm
Rated Torque21Nm8.5Nm17Nm8Nm
Efficiency92%92%92%91%
Stator Stack Height100mm75mm85mm75mm
Rated Power4.7kw1.9kw4.7kw4.0kw
Insulation ClassEEEE
Description images

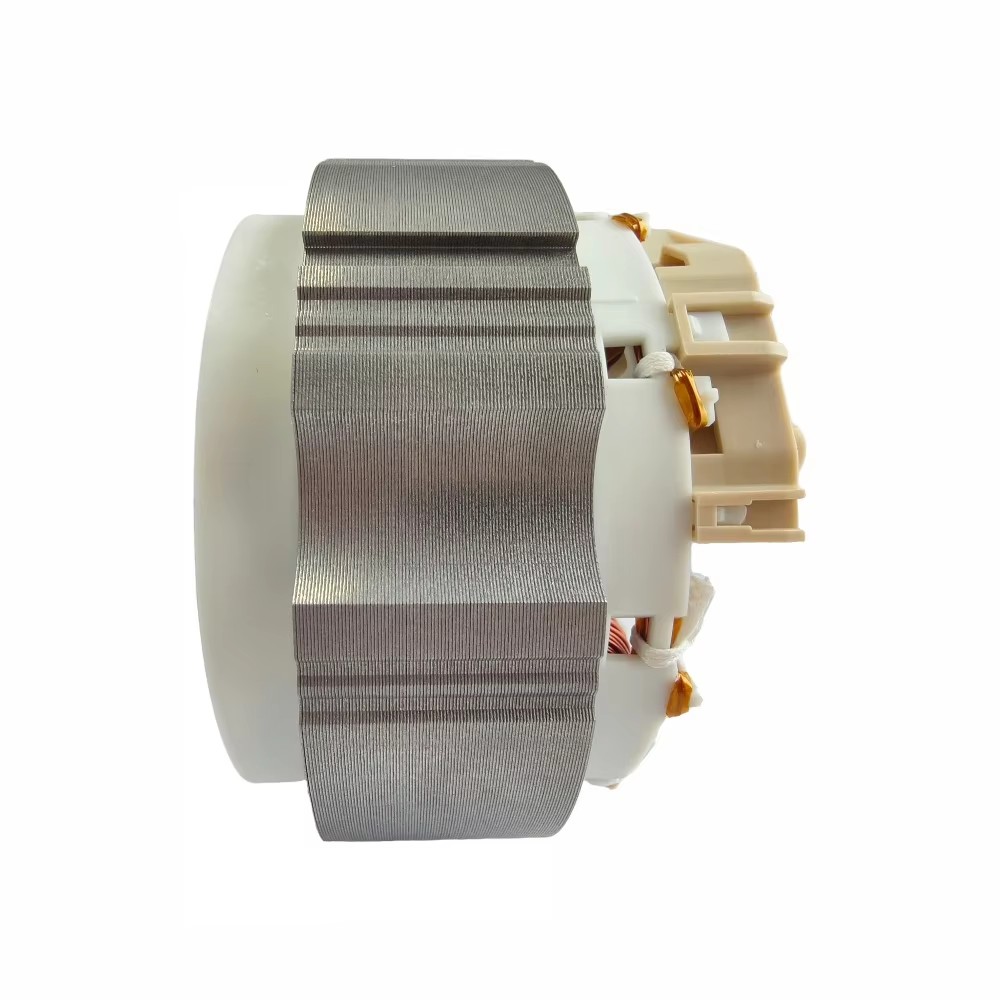

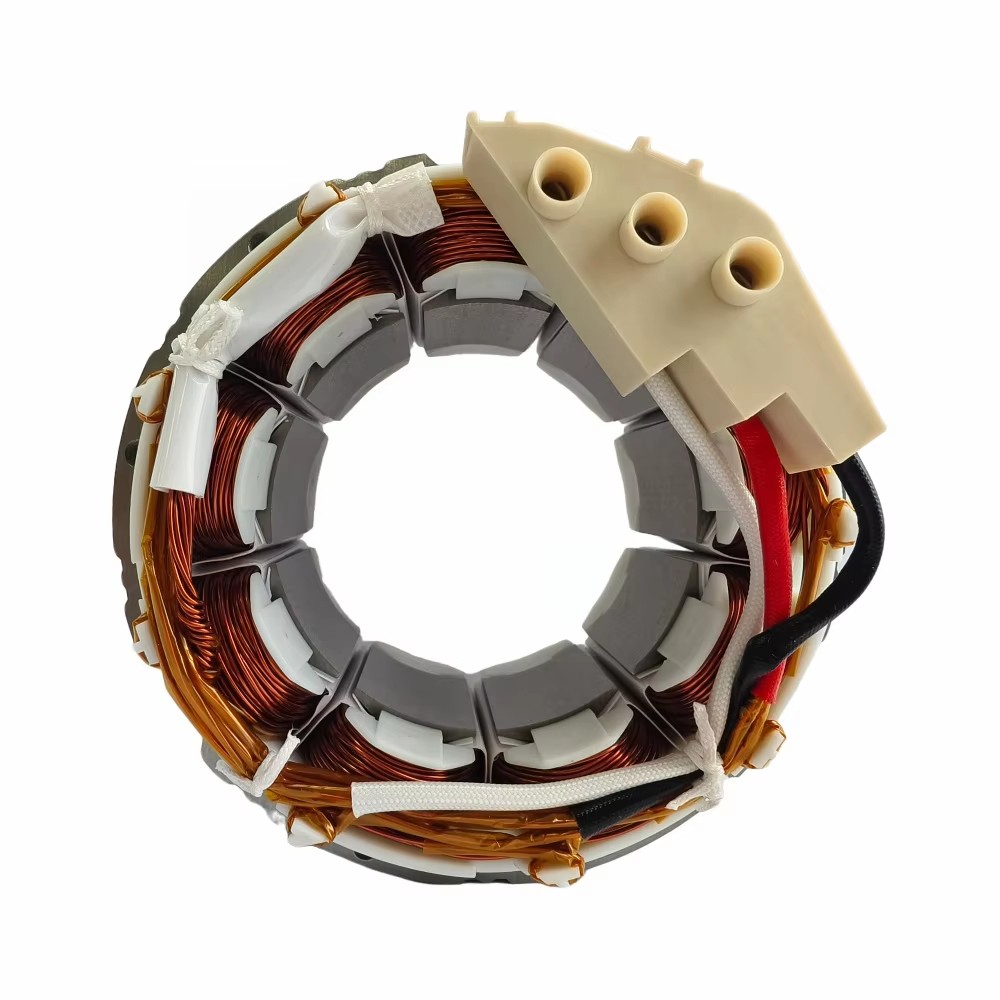

Product detail

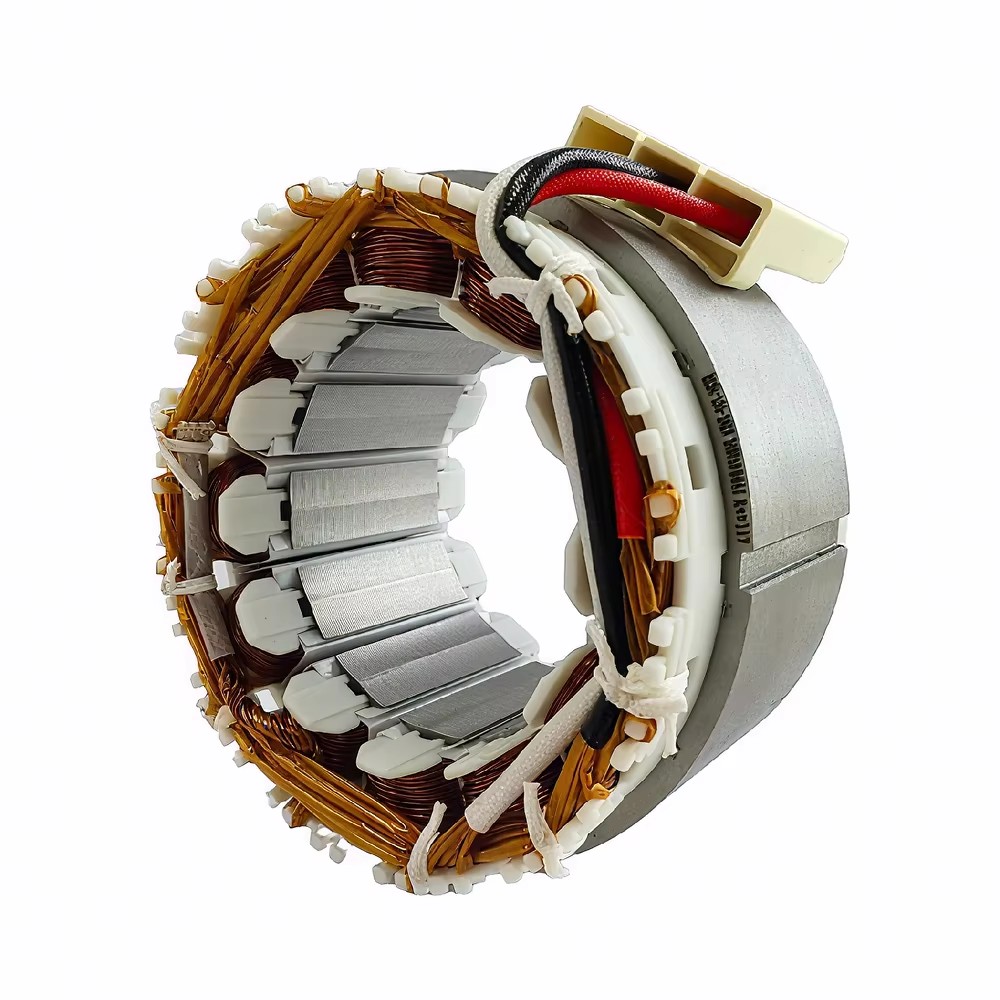

Product detail

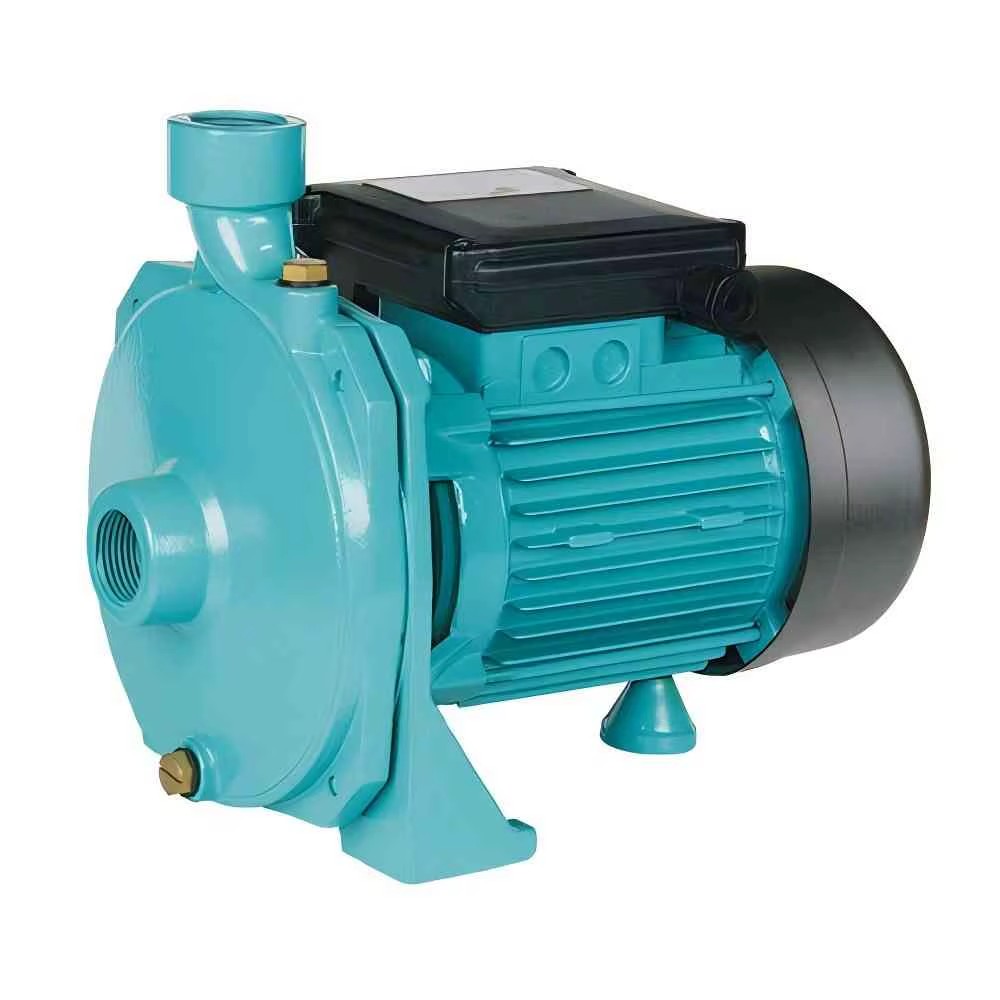

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 100 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
For Shaft Size
customizable
Overall Length
customizable
Material
customizable
Warranty
2 Years
Model number (Specification)
EC85-60
Place of origin
China
Specification (Specification)
EC85-60
Rated voltage
48~72V
Rated Rotational Speed
3500rpm
Rated current
26A
Stator Outer Diameter
85mm
Rated Torque
3.4Nm
Efficiency
90%
Stator Stack Height
50mm
Rated power
1.24kw
Insulation Class
E
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Type (Product option)
Stator
Lead time
30 days
Minimum order
100 Units
