Product video
Certifications CE

Blasting Hole Drilling Rig Mine Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 20,950.00 20950.0 USD $ 20,950.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.40m, 30 m
Drilling Diameter
100 mm(3.94in), 90-130 mm
Power Type
Diesel
Voltage
12V
Product description

rock drilling machine quarry drilling rig

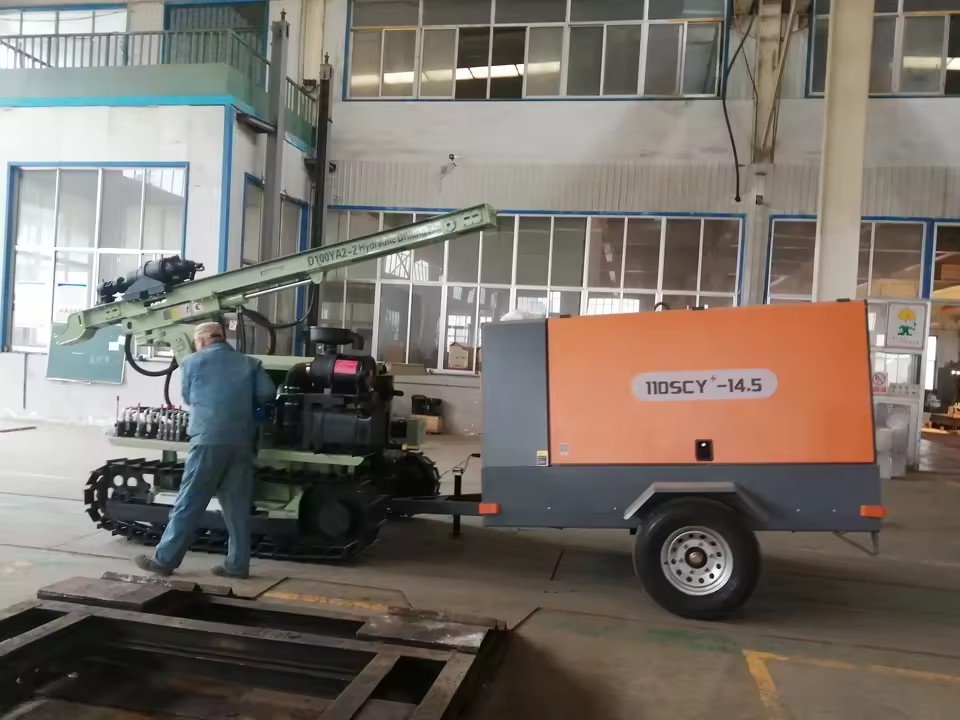

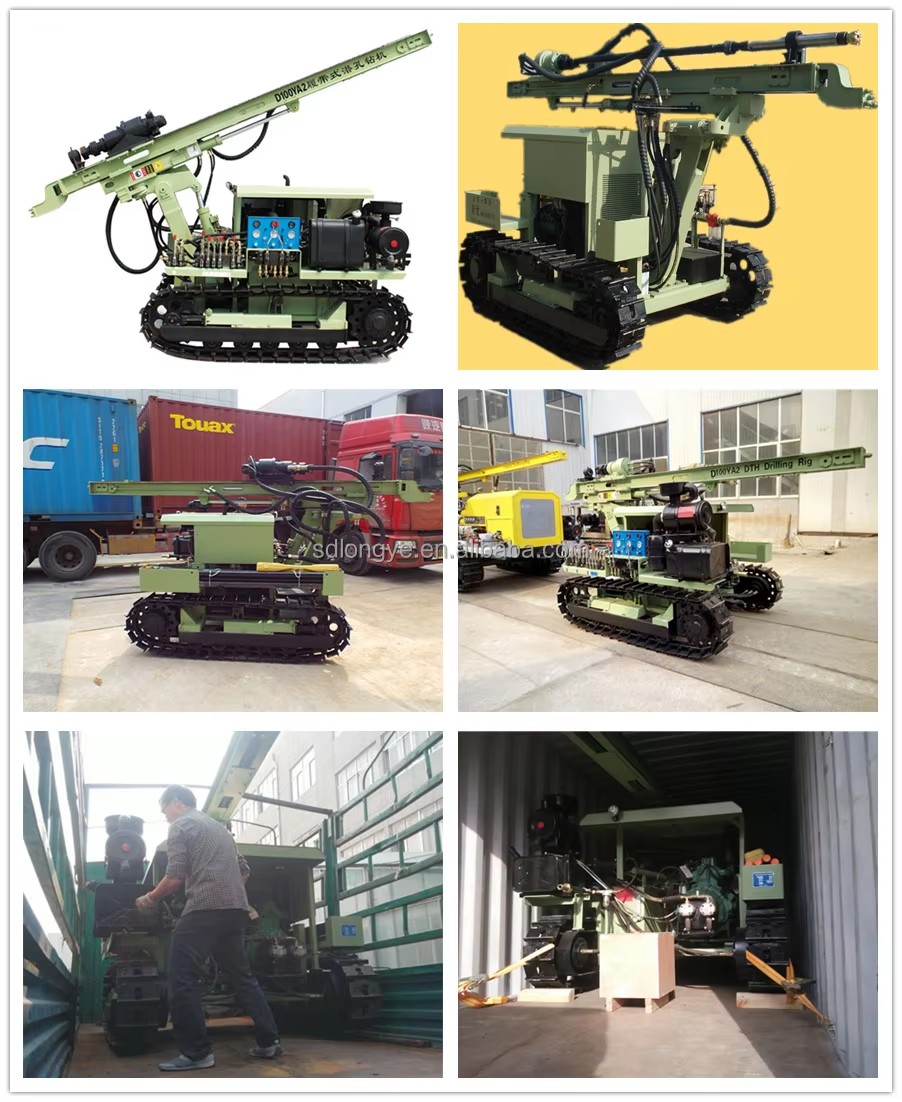

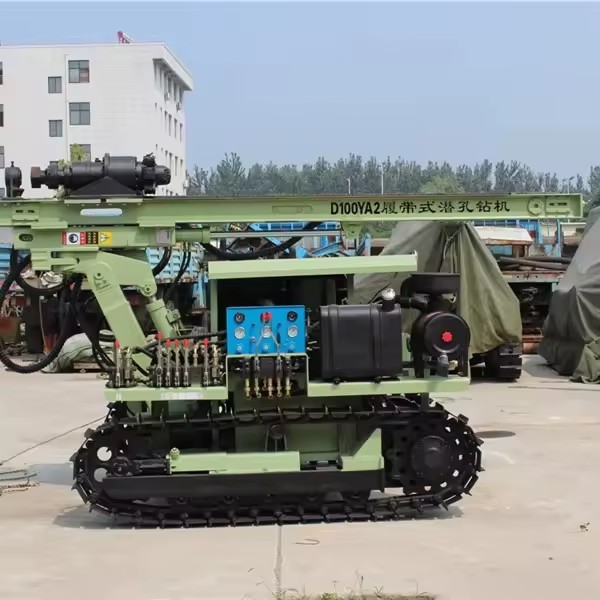

D100YA2-2 crawler hydraulic drilling rig, adopt new hydraulic rotary motor,increase the rotation gearbox with high speed, torque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient, use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function.when drilling the skid support on the ground, and hole have good stability.

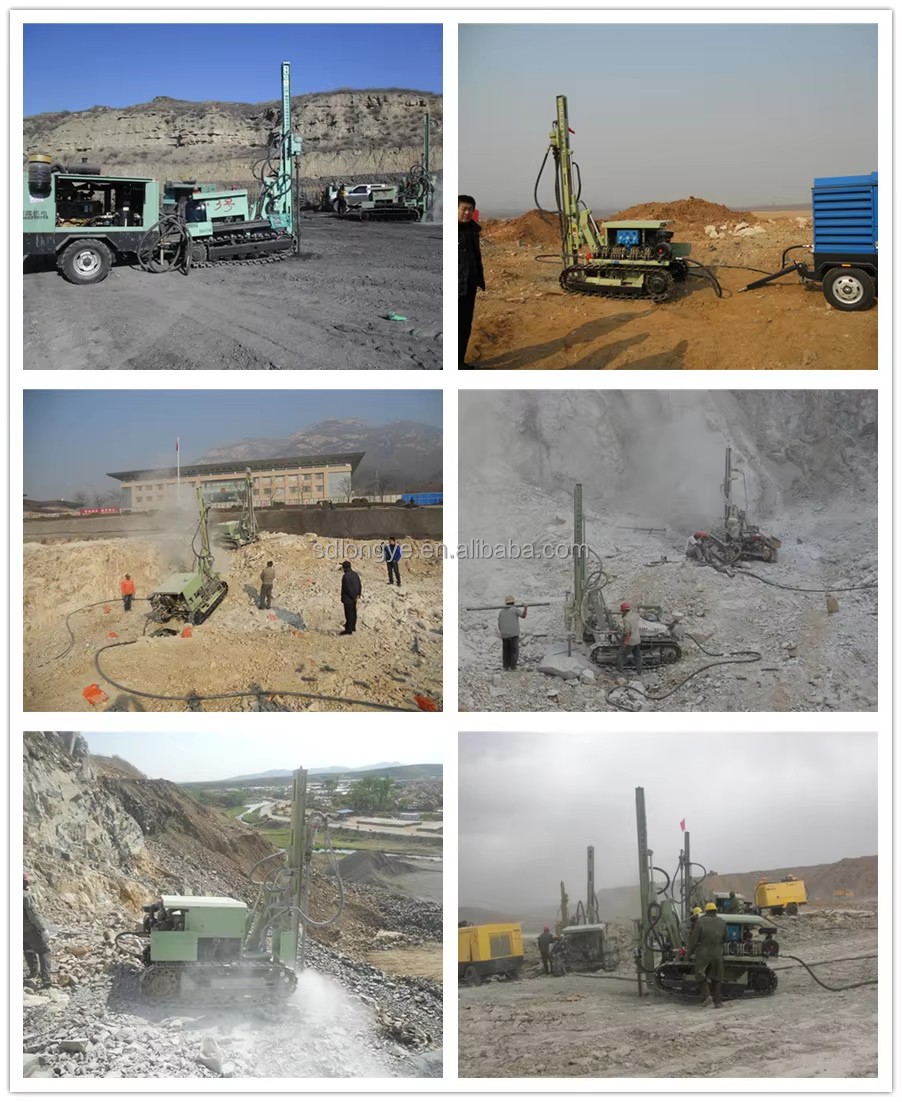

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.

Total Weight(T)2.9
Drilling diameter(mm)90 · 130
Dimension (L * W * H)mm4100x2030x2020
Drilling depth(m)30
Travelling speed(km/h)2
Once promotion distance(m)2
Grade ability(°)30
Working pressure(MPa )0.7-1.4
Chassis ground clearance(mm)260
Air consumption(m3/min)7-15
Skid pitch(. )up and down 100
Host Power(kw)33kw
Sliding tilt swing(. )L35,R10
For rockF=6-20
Skid compensation(mm)900

Warmly welcome to

Certifications & compliance
CE
Complies with EU standards
Description images
Blasting Hole Drilling Rig Mine Drilling Rig
Blasting Hole Drilling Rig Mine Drilling Rig
Blasting Hole Drilling Rig Mine Drilling Rig
Blasting Hole Drilling Rig Mine Drilling Rig
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

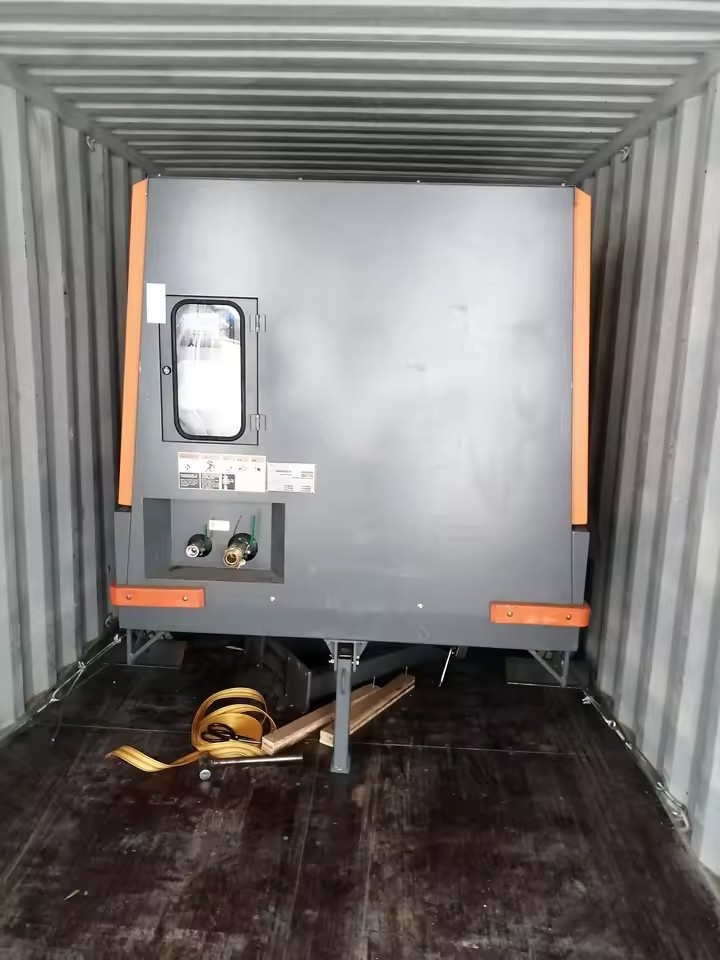

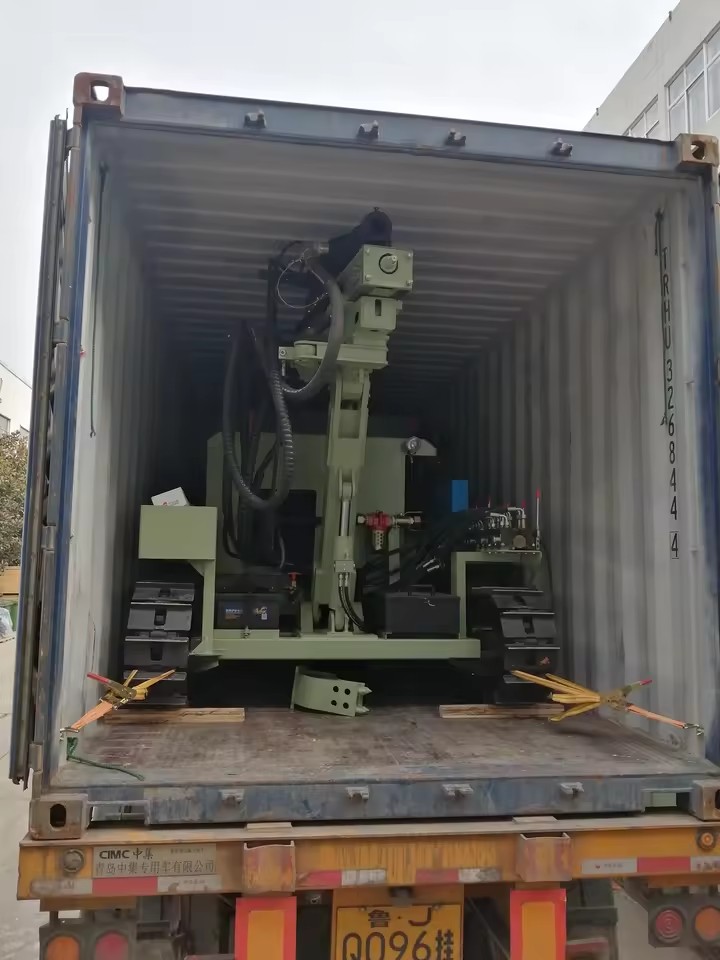

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.40m, 30 m
Drilling Diameter
100 mm(3.94in), 90-130 mm
Power Type
Diesel
Voltage
12V
Core components
Bearing, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Low Maintenance Cost
Place of origin
China, Shandong
Weight
2900 KG(6393.41lb)
Dimension (L*W*H)
4300*2130*2160 mm(169.29*83.86*85.04in)
Skid compensation (mm)
900
Once promotion distance( mm )
2000
For air pressure (Mpa)
0.7--1.4
Chassis ground clearance (mm)
260
Skid pitch (°)
up and down total 100
Skid swing (°)
left 35, right 10
Weight(t)
2.9
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
D100YA2-2
Power (W) (Product option)
45kw(60.35hp)
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
