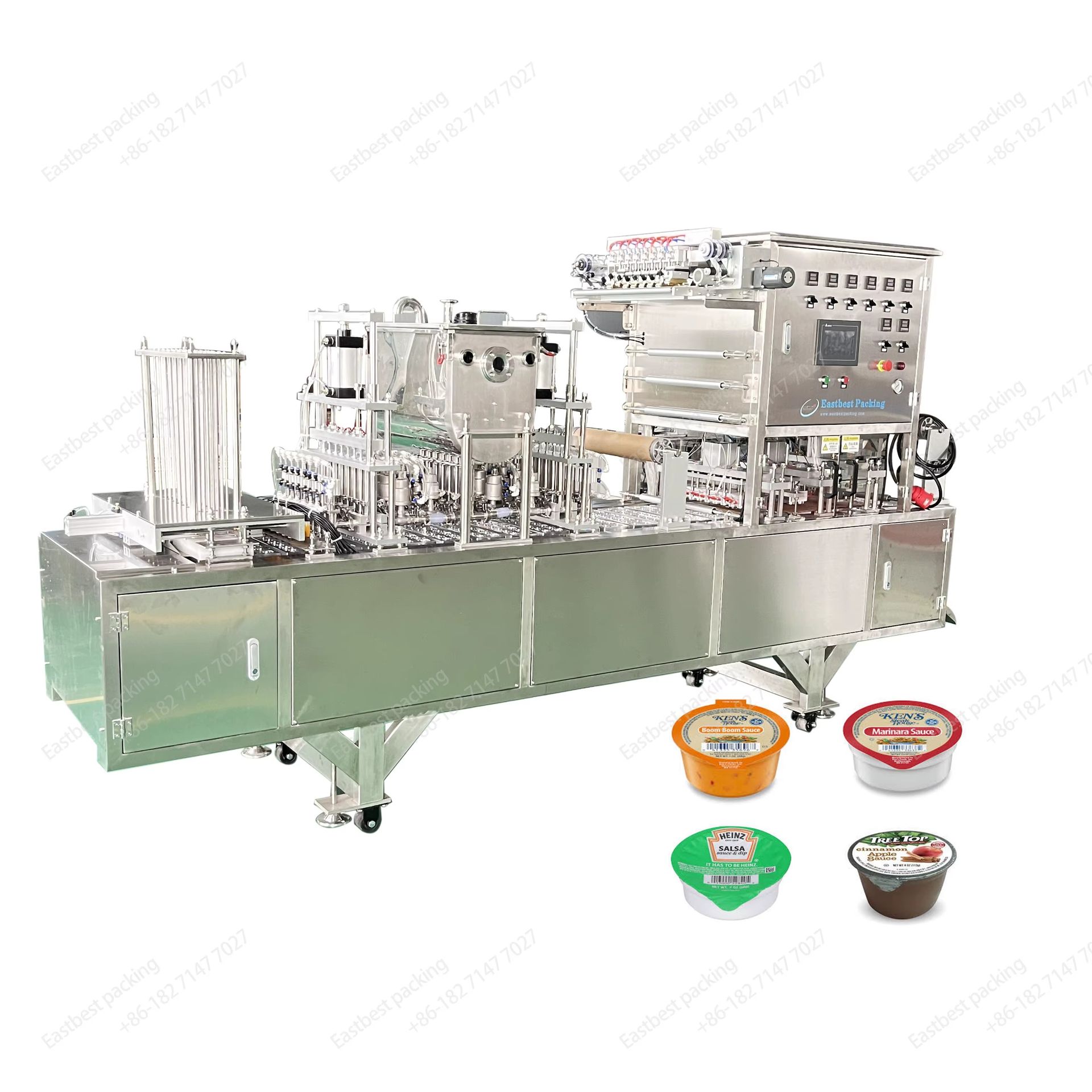

Automatic Stainless Steel Sauce Cup Filling Sealing Machine Multi Lane Cup Feeder Film Sealing for Plastic Dip Cups

Available for enquiry 0.0 · 0 reviews 3 sold
USD

13,170.00 13170.0 USD 13,170.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Filling material
  • Packaging type
  • Filling Volume
  • Filling nozzle
  • Automatic grade
  • Voltage
  • Driven Type
  • Application
  • Packaging material
  • Core components
  • Machinery test report
  • Video outgoing-inspection
  • Warranty
  • After-sales Service Provided
  • Key selling points
  • Filling accuracy
  • Place of origin
  • Weight (kg)
  • Dimension(L*W*H)
  • Machine type
  • Filling System
  • Cup Format
  • Sealing Technology
  • Production Process
  • Material Structure
  • Control Mode
  • Packaging Feature
  • Automation Level
  • Selling Units
  • Single package size
  • Single gross weight
  • Power (Product option)
  • Model number
  • Machinery capacity (Product option)

This combination is unavailable.

Key attributes

View all
Filling material
Water, Beer, Milk, Oil, Juice, Other
Packaging type
Other, cups
Filling Volume
0-500ml (adjustable)
Filling nozzle
adjustable
Automatic grade
Automatic
Voltage
380V
Product description

$8,800 / set

ModelPowerAir pressureVoltagePacking speedSizeWeightSealing film
60B-021.2 KW04-0.6 Mpa380V1500 cups / Hr2800*600*1550450kgfilm roll, pre-cut lid
60B-041.5 KW04-0.6 Mpa380V3000 cups / Hr2800*750*1550550kgfilm roll, pre-cut lid
60B-062.0 KW04-0.6 Mpa380V4500 cups / Hr2900*900*1600650kgfilm roll, pre-cut lid
60B-082.5 KW04-0.6 Mpa380V6000 cups / Hr3000*1200*1650800kgfilm roll, pre-cut lid
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Economy · Approx. shipping fee: $ 328.37 for 1 set · Estimated delivery: Oct 18–Dec 11 (46–100 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 34 fields
Filling material
Water, Beer, Milk, Oil, Juice, Other
Packaging type
Other, cups
Filling Volume
0-500ml (adjustable)
Filling nozzle
adjustable
Automatic grade
Automatic
Voltage
380V
Driven Type
Pneumatic
Application
food, Beverage, Sauce and Condiment Cup Packaging
Packaging material
Paper, Plastic
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Video outgoing-inspection
Provided
Warranty
1 Year
After-sales Service Provided
Video Technical Support, Online Support, Field maintenance and repair service, Field installation, commissioning and training, Free spare parts
Key selling points
Easy To Operate
Filling accuracy
+-1%
Place of origin
China, Shandong
Weight (kg)
800
Dimension(L*W*H)
adjustable
Machine type
Automatic Cup Filling Sealing Line
Filling System
Multi-head Precision Filling
Cup Format
Single Serve Portion Cup Packaging
Sealing Technology
Heat Film Sealing System
Production Process
Filling Sealing and Coding
Material Structure
Food Grade Stainless Steel Frame
Control Mode
PLC Intelligent Touch Screen Control
Packaging Feature
Leak Proof Cup Sealing Design
Automation Level
Fully Automatic Continuous Operation
Selling Units
Single item
Single package size
32X100X180 cm
Single gross weight
80.0 kg
Power (Product option)
1.2-2.5KW
Model number
BG-32
Machinery capacity (Product option)
2000BPH, 4000BPH, 6000BPH
Lead time
30 days
Minimum order
1 Units
