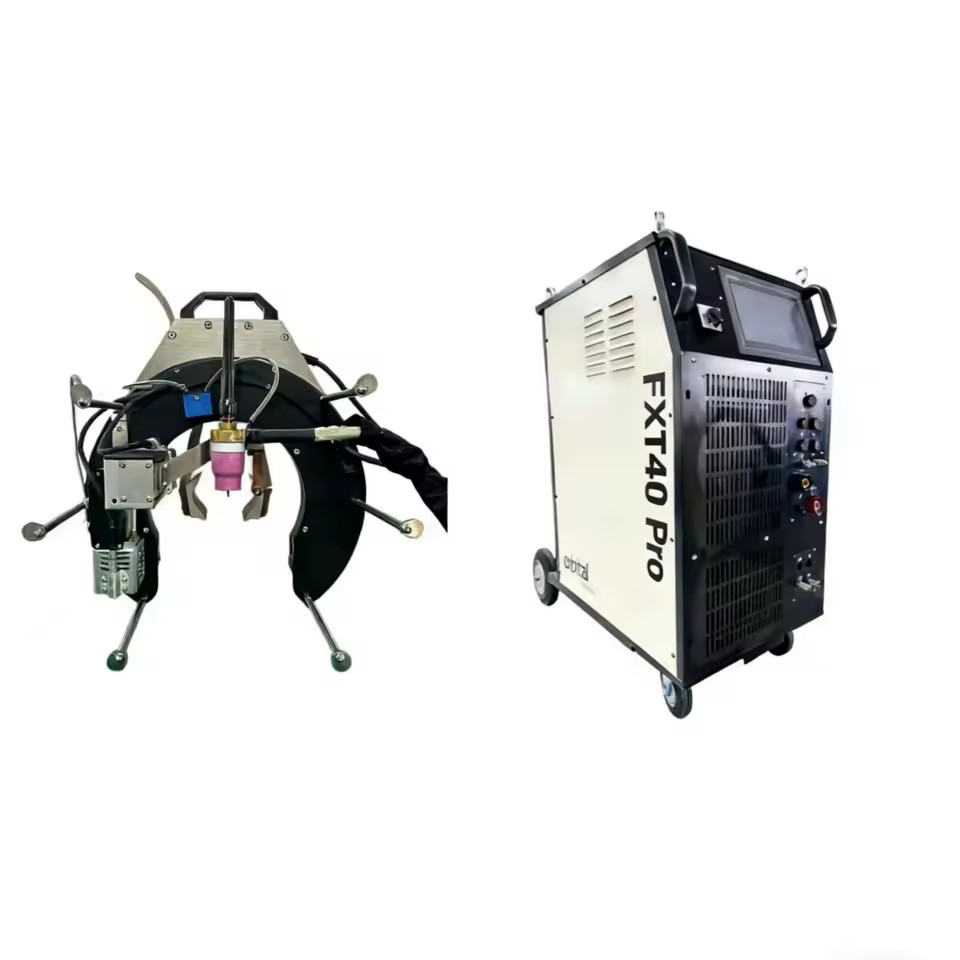

Name: Automatic Multifunctional Stainless Steel Pipe Welding Machine Integrated Power Supply New Condition DC TIG Output Polarity
SKU: B2B-15700
Price: 19380.0 USD
Availability: PreOrder

Product description

Product Details

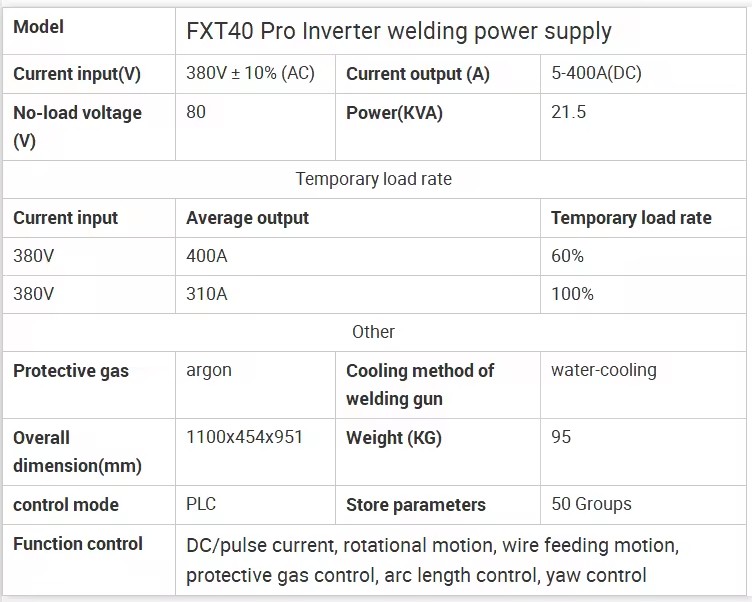

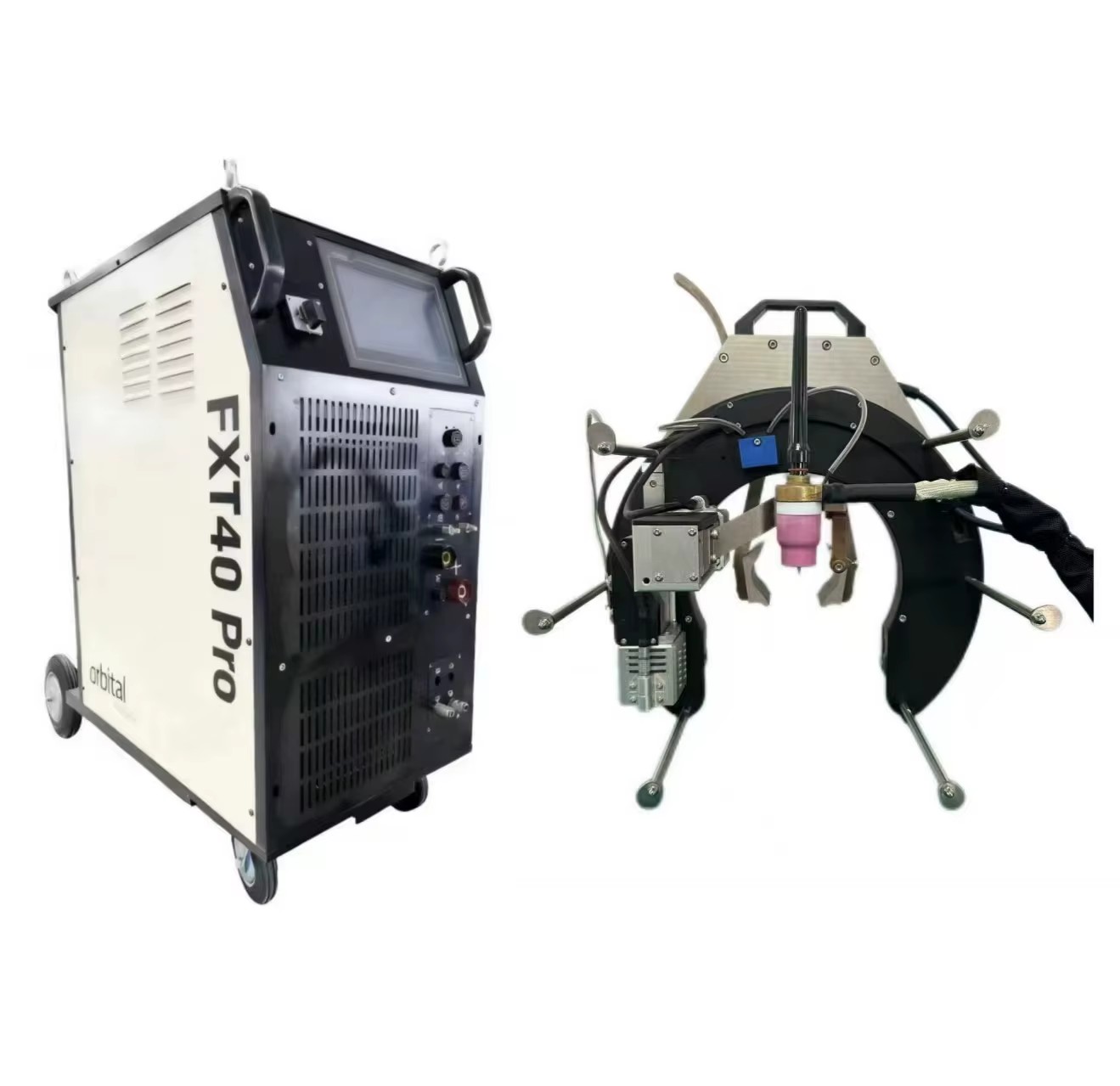

Model	FXT40 Pro Inverter welding power supply
Current input(V)	380V ± 10% (AC)	Current output (A)	5-400A(DC)
No-load voltage (V)	80	Power(KVA)	21.5
Temporary load rate
Current input	Average output	Temporary load rate
380V	400A	60%
380V	310A	100%
Other
Protective gas	Argon	Cooling method of welding torch	Water-cooling
Overall dimension(mm)	1100x454x951	Weight (KG)	95
control mode	PLC	Store parameters	50 Groups
Function control	DC/pulse current, rotational motion, wire feeding motion, protective gas control, arc length control, yaw control

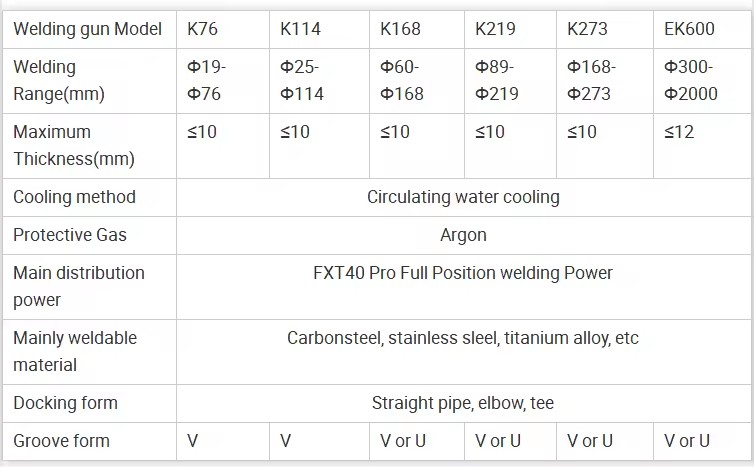

Performance characteristic

Welding gun Model	K76	K114	K168	K219	K273	EK600
Welding Range(mm)	Φ19-Φ76	Φ25-Φ114	Φ60-Φ168	Φ89-Φ219	Φ168-Φ273	Φ300-Φ2000
Maximum Thickness(mm)	≤10	≤10	≤10	≤10	≤10	≤12
Cooling method	Circulating water cooling
Protective Gas	Argon
Main distribution power	FXT40 Pro Full Position welding Power
Mainly weldable material	Carbonsteel, stainless sleel, titanium alloy, etc
Docking form	Straight pipe, elbow, tee
Groove form	V	V	V or U	V or U	V or U	V or U

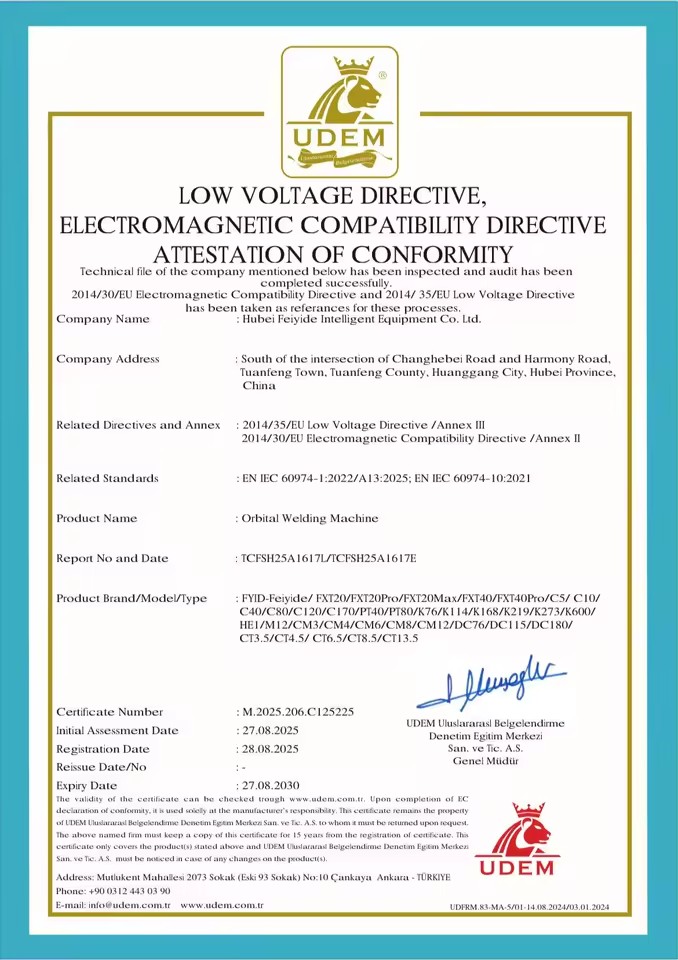

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 14390 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 619.36 for 1 set · Estimated delivery: Oct 8–Dec 8 (38–99 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Material / metal processed

Stainless Steel, Carbon Steel, Aluminium Alloy

Output polarity

DC Tig

Rated duty cycle @40°c (tig)

400A 60%/310A 100%

Welding Thickness

1-12mm

Max. load power capacity

21.5KVA

Feature

Multifunction

Condition

New

Rated input voltage

380V

Warranty

2 Years

Plug type

China plug

Welding Current/Voltage Range

5-400A

Rated output voltage

80V

Motor Type

DC Motor

Place of origin

China, Hubei

Dimensions

640*410*650mm

Pulse Frequency

50Hz/60Hz

Usage

welding

Weight

Selling Units

Single item

Single package size

110X46X95 cm

Single gross weight

95.0 kg

Rated output current (Product option)

5-400A

Model number

FXT40 Pro +K76, FXT40 Pro +K114

Certifications & Compliance

Minimum order

14390 Units
