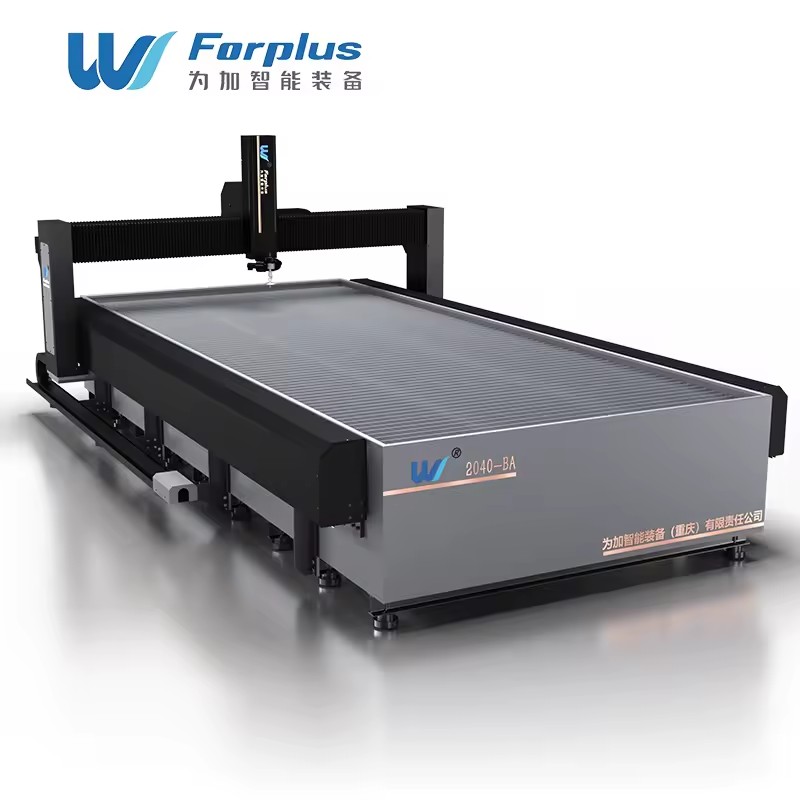

Forplus 5 Axis Waterjet Machine 1530 Cnc Water Jet Cutting Machine for Metal Marble Granite Glass Cutting Water Jet Cutter

Product advantages

1.Standard double gantry structure,heat treatment for eliminating stress,stable without deformation,longlife time. 2.Strong expansibility.Modular design of machine tool,unified interface.for each installed module，Various modules can be flexibly cluding but not to machine body,fully enveloped module,automatic lifting module,turning table,3-axis and 5-axis cutting head assembly,various auxiliary spindles,automatic abrasive supply module, quantitative abrasive removal module,and swirl abrasive removal module cluding but not to height detection,grating scale，angle detection, drilling,level regulating water tank etc. 3.Servo motor drive for the whole machine，Bus access absolute value encoder servo motor for the whole machine,with high quality ball screw transmission structure. 4.Standard ECS professional water jet cutting CNC control system. 5.Double-layer protection for transmission mechanism,isolating water and abrasive.

Details Images

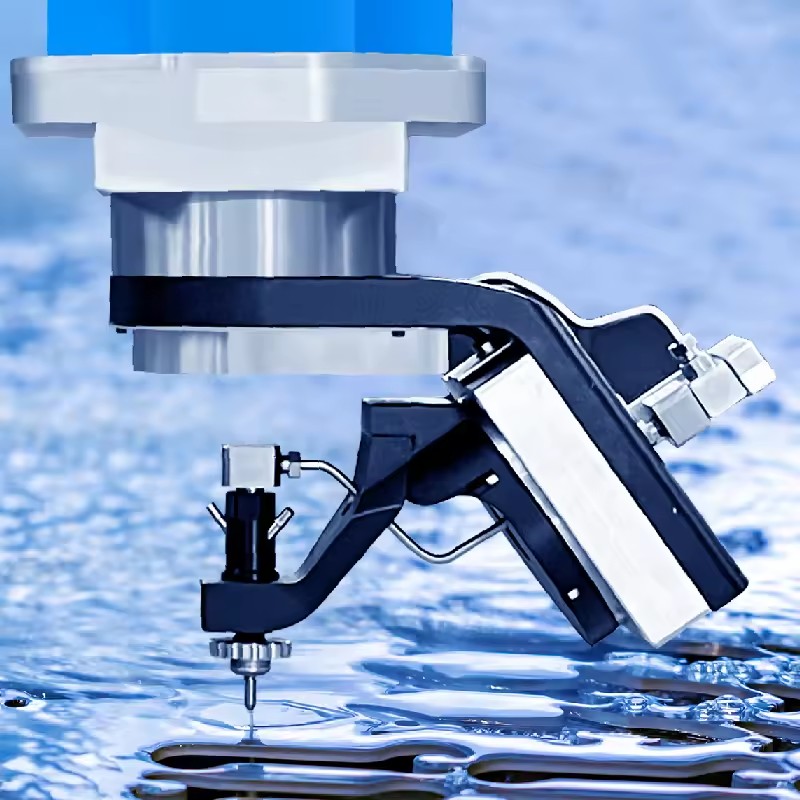

5 axis cutting head

The AC 5 axis has the characteristics of high efficiency, high precision, flexibility and stability, which can realize precise cutting at different angles and directions to adapt to more complex processing requirements. The AC 5 axis can be widely used in aerospace, automotive manufacturing, mold manufacturing, medical devices and other fields, especially suitable for processing complex hook faces and precision parts.

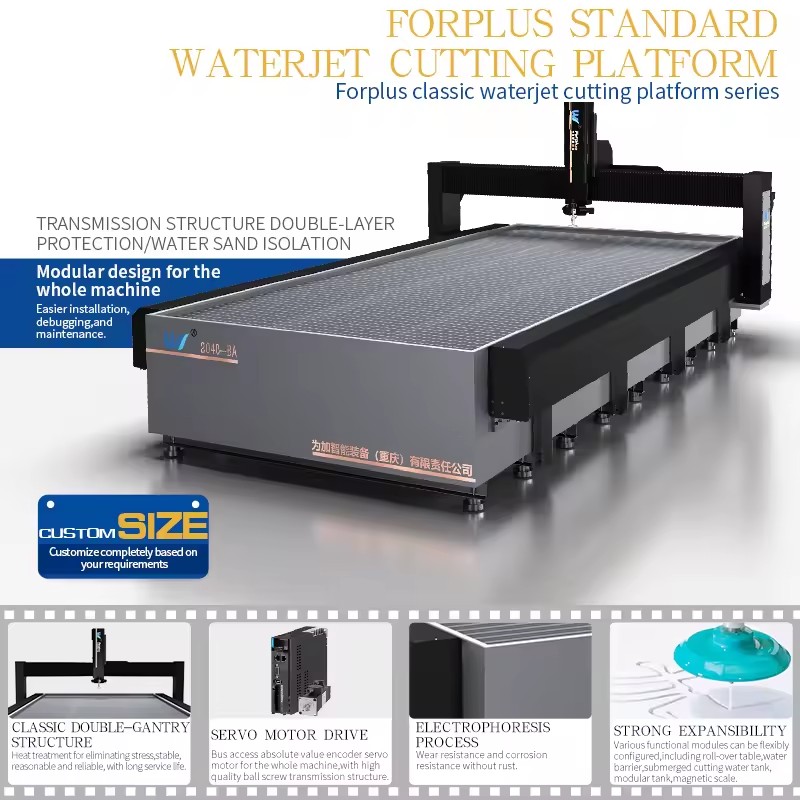

Standard double gantry structure

heat treatment for eliminating stress,stable without deformation,longlife time.

Transmission structure is double-layer protection

X, Y, Z axis is designed with double sealing, external steel shell and high quality dust folding cloth are adopted, which can provide effective hard protection and full sealing for the machine, and it is the current effective sealing form of waterjet cutting machine.

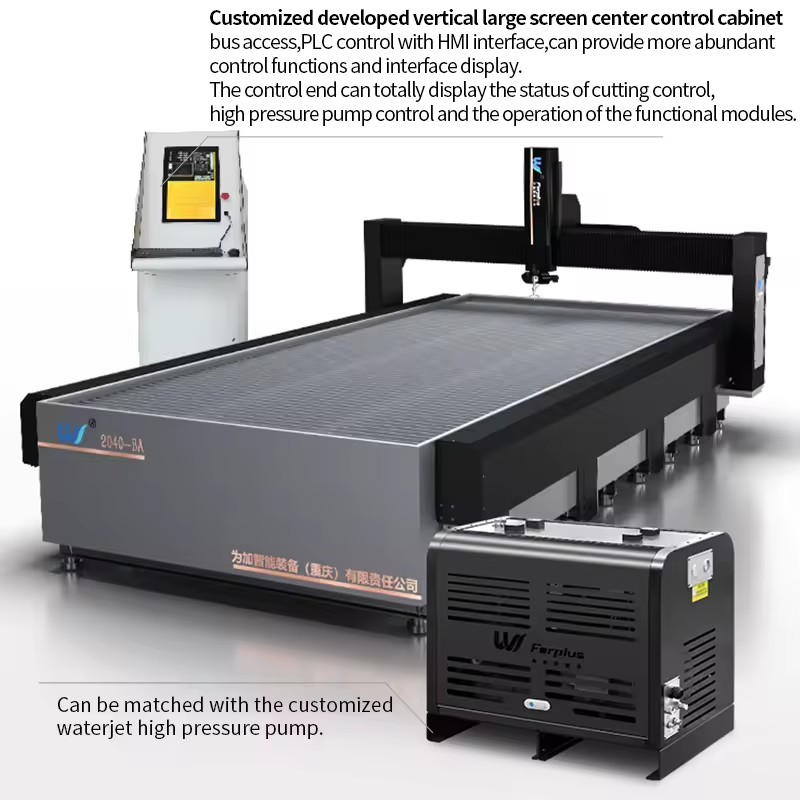

CNC control system

Standard Italian ECS Professional waterjet cuting CNC control system.Servo-motor drive for the whole machine,Absolute value encoder closed-loop control.High precision, reliable control, and simple connection.

Cutting display

Exhibition

Products Parameters
