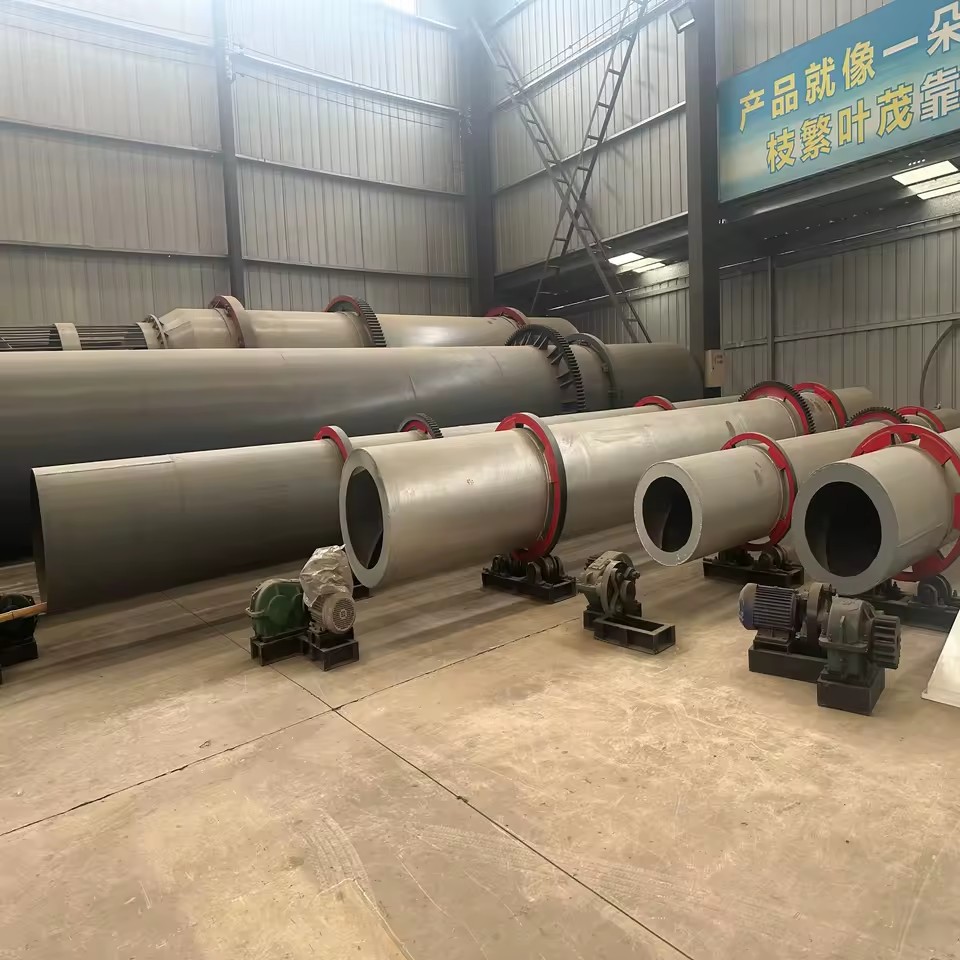

Name: Anti-Sticking Rotary Drum Dryer Line for High Viscosity Slurry Wet Mineral Mud Drying System
SKU: B2B-36029
Price: 5700.0 USD
Availability: PreOrder

Product description

Model	Cylinder Diameter (mm)	Cylinder Length (mm)	Cylinder Volume (m³)	Cylinder Rotary Speed (r/min)	Inclination (%)	Inlet Air Temperature (℃)	Capacity (t/h)	Power (kw)	Weight (t)
Φ1×10	1000	10000	7.9	1-8	3-5	≤700	1-3.5	5.5	6.8
Φ1.2×10	1200	10000	11	1-6	3-5	≤700	1.8-5	7.5	10.7
Φ1.2×11.8	1200	11800	13	1-6	3-5	≤700	2-6	7.5	12.3
Φ1.5×11.8	1500	11800	21	1-5	3-5	≤800	3.5-8	15	17.5
Φ1.5×15	1500	15000	26.5	1-5	3-5	≤800	4-9	15	19.2
Φ1.8×11.8	1800	11800	30	1-5	3-5	≤800	5-12	18.5	20.7
Φ1.8×18	1800	18000	45.8	1-5	3-5	≤800	5-13	22	31.2
Φ2×11.8	2000	11800	37	1-4	3-5	≤800	7-15	18.5	28.2
Φ2×20	2000	20000	62.8	1-4	3-5	≤800	7-16	22	44.9
Φ2.2×11.8	2200	11800	44.8	1-4	3-5	≤800	9-18	22	30.5
Φ2.2×18	2200	18000	68	1-4	3-5	≤800	10-18	30	43.3
Φ2.2×20	2200	20000	76	1-4	3-5	≤800	12-20	30	48.8
Φ2.4×20	2400	20000	91	1-4	3-5	≤800	15-25	37	60.5
Φ2.4×23.6	2400	23600	109	1-4	3-5	≤800	16-26	45	69.8
Φ2.8×20	2800	20000	123	1-3	3-5	≤800	18-28	55	65
Φ2.8×28	2800	28000	172	1-3	3-5	≤800	20-30	75	75
Φ3×28	3000	28000	198	1-3	3-5	≤800	22-32	90	91
Φ3.2×32	3200	32000	257	1-3	3-5	≤800	24-35	110	129
Φ3.6×36	3600	36000	366	1-3	3-5	≤800	30-43	132	185

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 16 fields

Type

Drum Drying Equipment

Voltage

380 V, 220 V, 110 V, 480V

Heating method

Gas Heating, Oil Heating, Steam Heating, Electric Heating, Heat Pump

Application

High viscosity slurry, wet mineral mud drying

Core components

Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox

Key selling points

Automatic, High Safety Level, Eco-Friendly, Energy Saving

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

5000

Dimension(L*W*H)

Depend on models

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

2*11.8m, 2*20m, 2.2*11.8m, 2.2*18m, 2.2*20m, 2.4*20m, 2.4*23.6m, 2.8*20m, 2.8*28m

Lead time

45 days

Minimum order

1 Units
