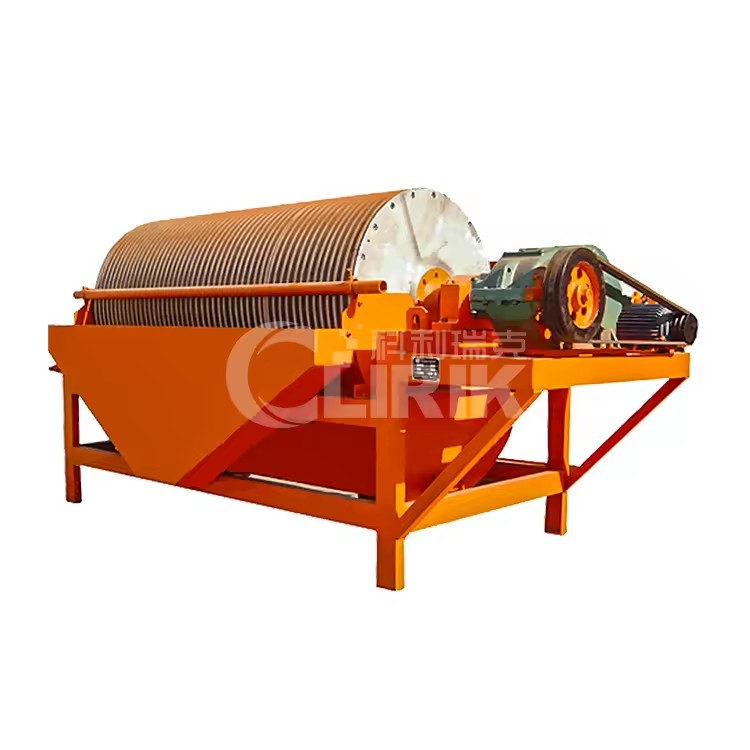

Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.

We are providing our esteemed clients with premium quality Magnetic Separator that is widely demanded in different industries for its hassle free performance. This separator is ideal to separate magnetic and non-magnetic particles from feed slurry. Manufactured by utilizing fine quality components with the aid of pioneering techniques under the surveillance of our professionals, the offered separator is also tested on various set parameters to assure optimum operations. Besides, this Magnetic Separator is available with us in different technical specifications at the best market prices.

Features of Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

Application of Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

1.Magnetic separator suit for particle size below 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials wet magnetic separation, but also suit for coal, non-metallic minerals, building materials and other materials in addition to iron work.

2.Wet magnetic separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.

Advantages and Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

1.Steady performance

2.Safe,reliable and low failure rate

3.Small size and excellent separation effect

4.Easy operation

Working principle of Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

After the slurry is fed into the tank by the ore tank, the ore particles enter the tank feeding area in a loose state under the action of the water flow to the mine spout. In the action of the magnetic field, the magnetic ore particles are magnetically aggregated to form a "magnet" or "magnetic flux". The "magnet" or "magnetic flux" is magnetically applied to the magnetic pole, moves toward the magnetic pole, and is adsorbed on the cylinder.. Since the polarities of the magnetic poles are alternately arranged in the direction of rotation of the cylinder, and are fixed during operation, the "magnet" or "magnetic flux" is magnetically agitated due to the alternating magnetic poles when being rotated with the cylinder, and is mixed. The non-magnetic minerals such as gangue in the "magnet" or "magnetic flux" fall off during the flipping, and the "magnet" or "magnetic lotus" that is finally attracted to the surface of the cylinder is the concentrate. The concentrate passes to the weakest point of the magnetic system at the edge of the magnetic system, and is discharged into the concentrate tank under the action of the flushing water jet discharged from the unloading water pipe. If it is a full magnetic magnetic roller, the unloading is performed by a brush roller. Non-magnetic or weakly magnetic minerals are left in the slurry with the slurry exiting the trough, which is the tailings.

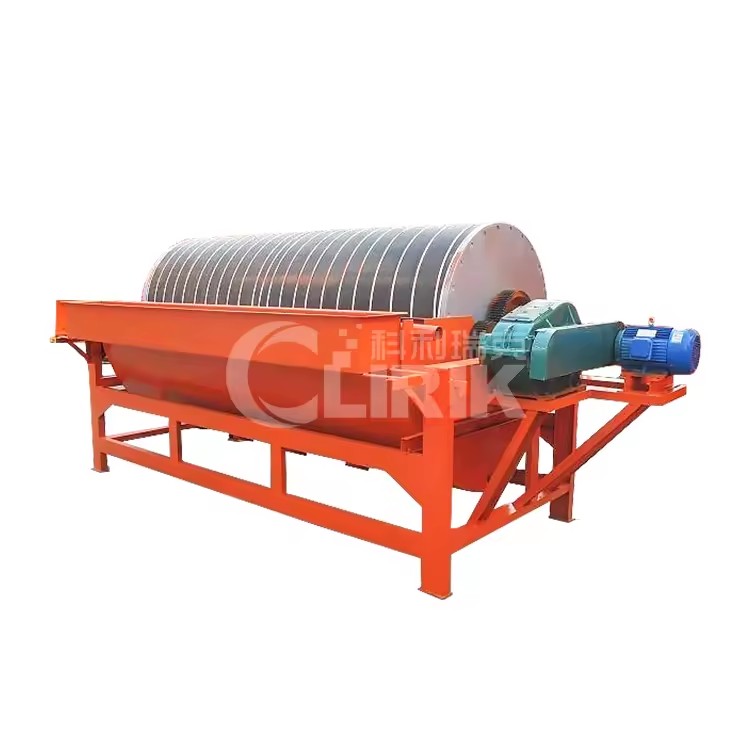

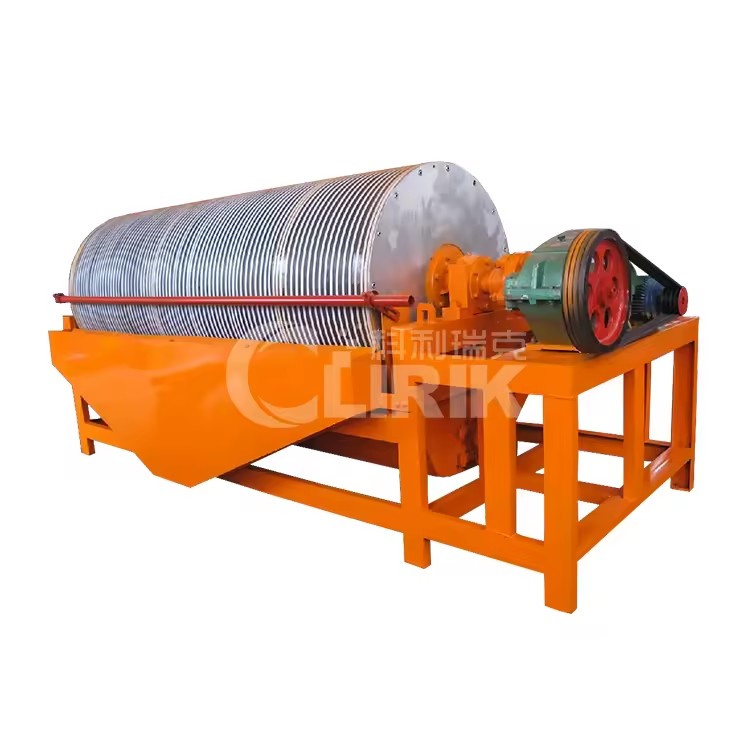

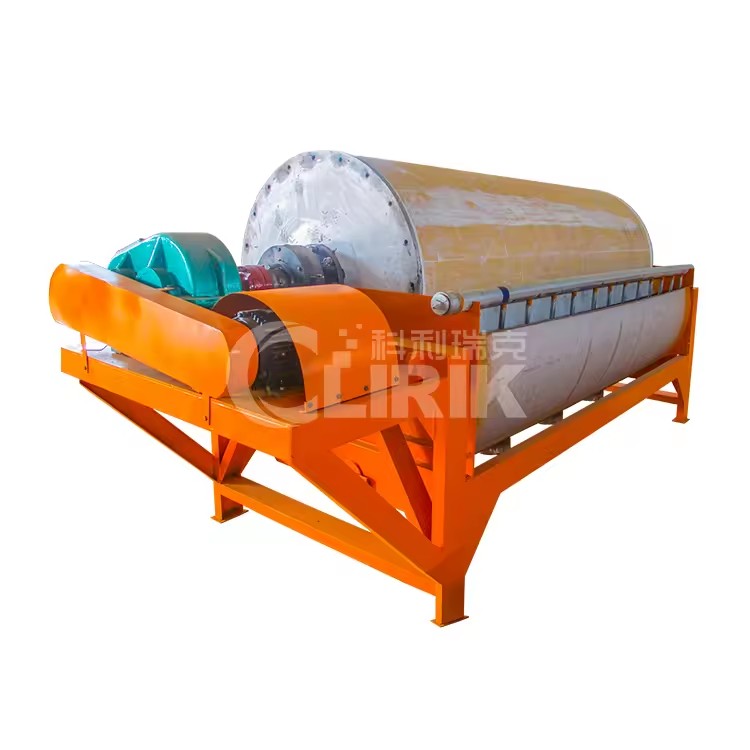

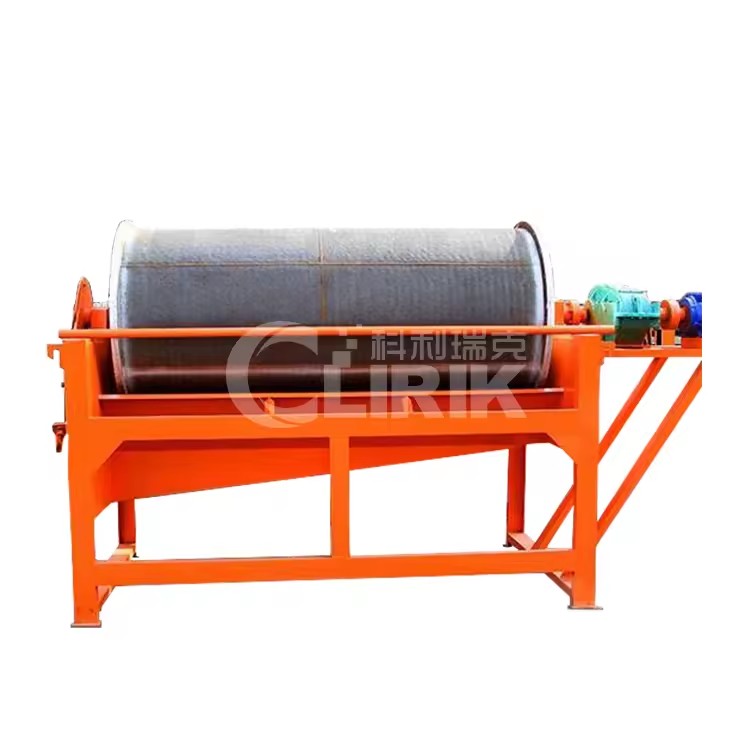

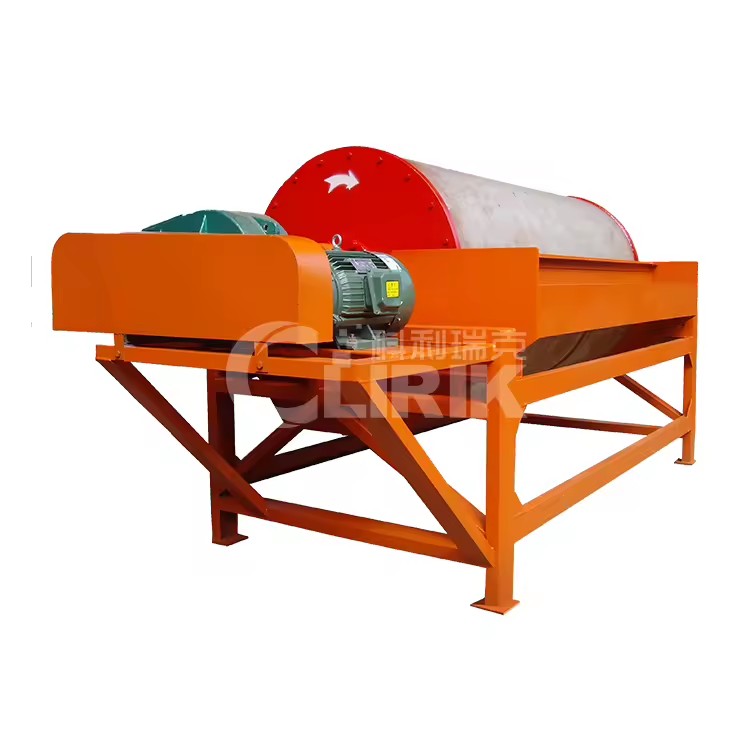

Images of Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

Technical Parameters of Dry Type Hematite Iron Ore Magnetic Separator in Magnetic Separation Process

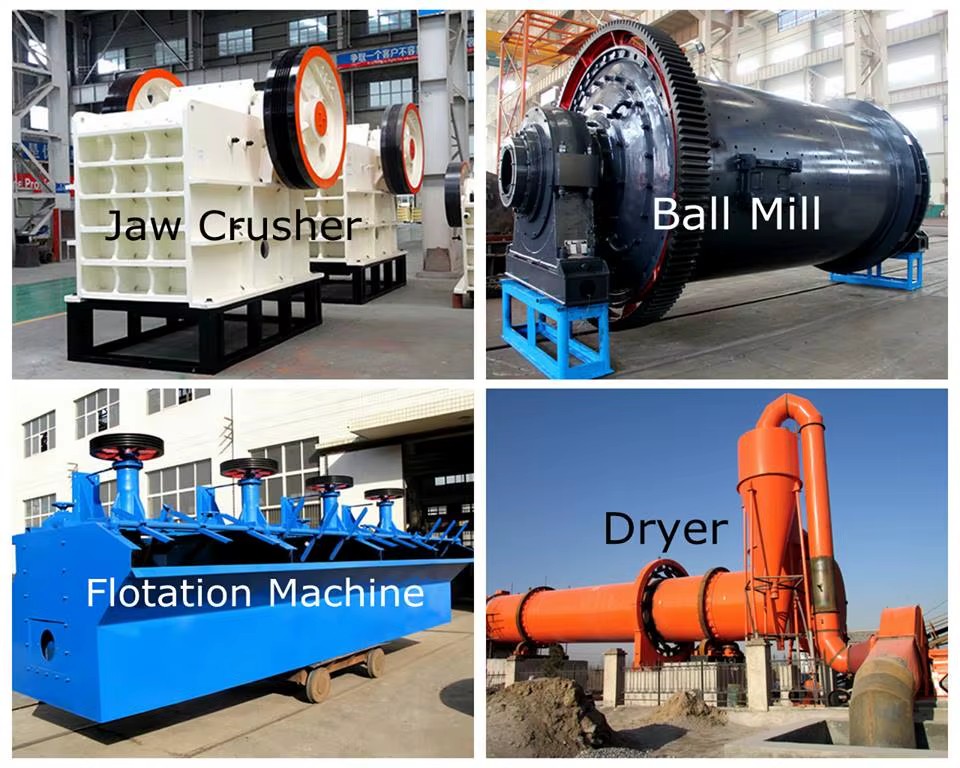

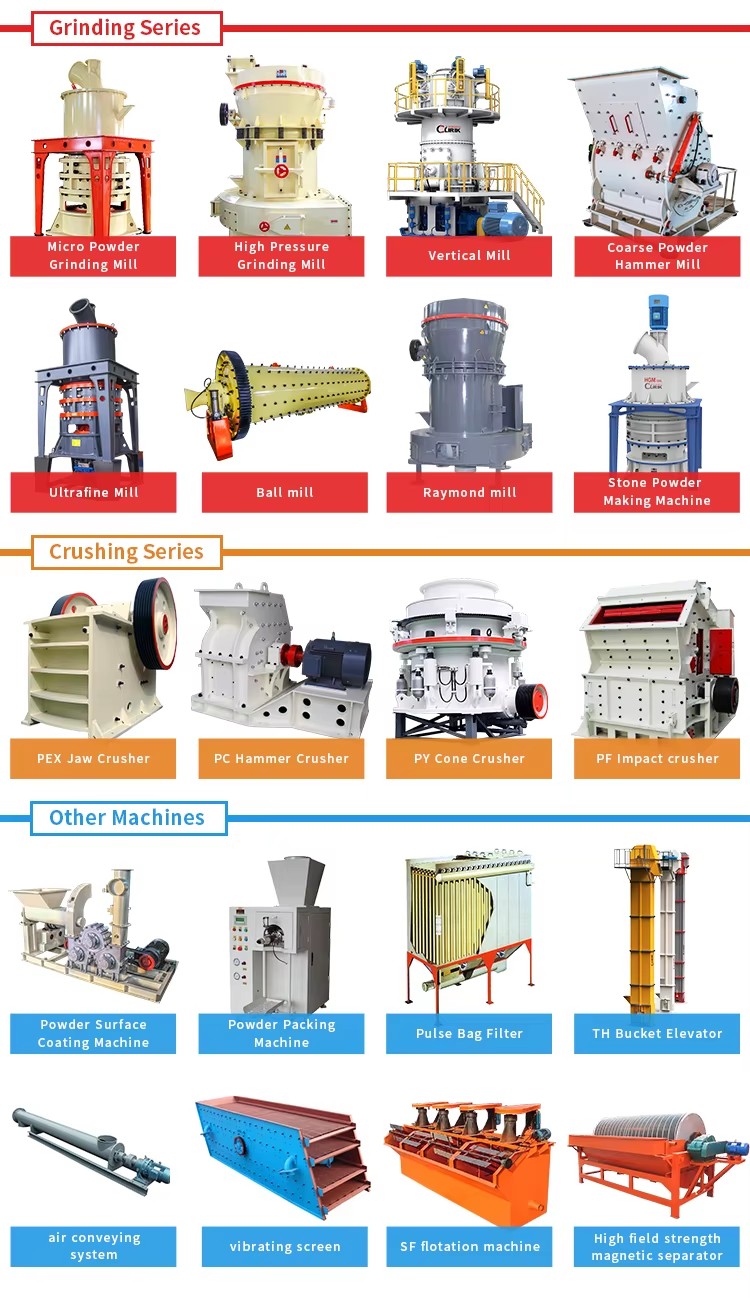

Other mineral processing equipment

Company Brief

As a leader enterprisewhich is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents that sell our products all over the world.Our products are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. We'll always follow your steps, pursue your value and achieve your profit.
