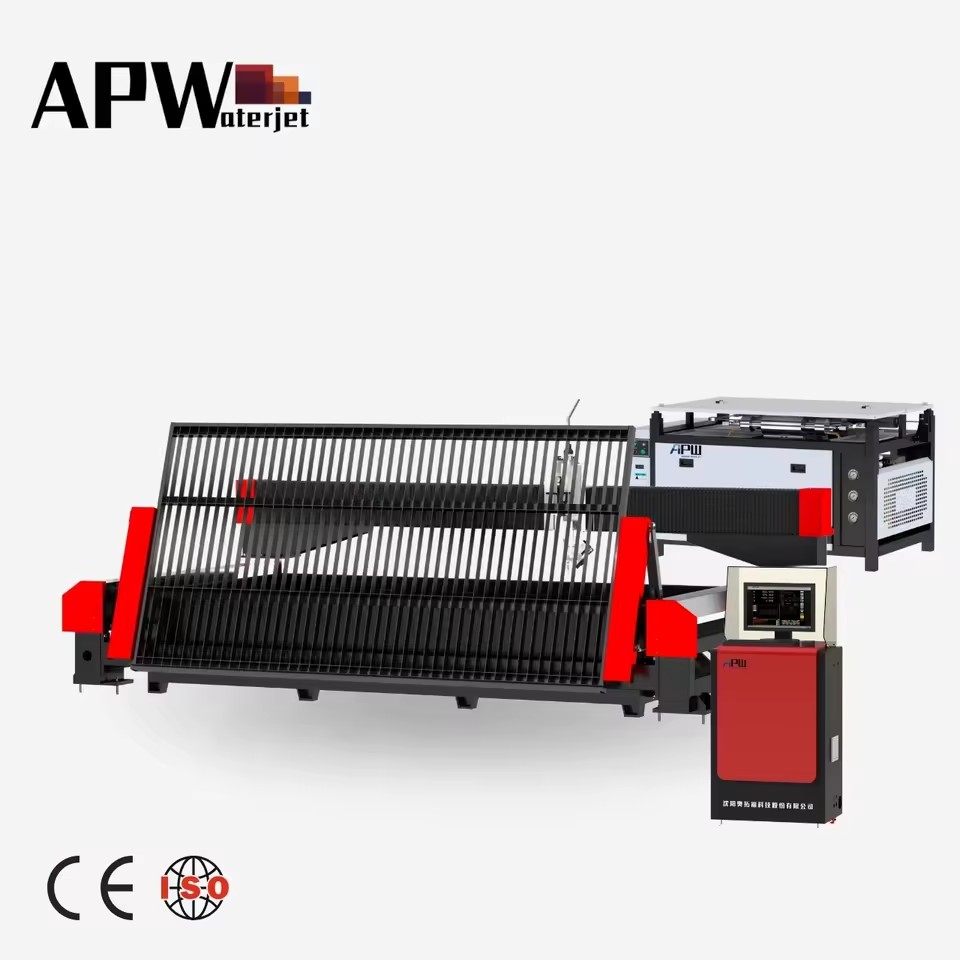

Industrial Automatic Water Jet Cutter Machine for Stone and Granite Cutting 37KW Power 220V Precise & Efficient

Available for enquiry 0.0 · 0 reviews
USD

55,790.00 55790.0 USD 55,790.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
ceramic tile cutting machine
Use
Granite
Voltage
220 V
Cutting thickness (max)
150 mm(5.91in)
Max Cutting Length
4000
Power(w)
37KW(49.62hp)
Product description

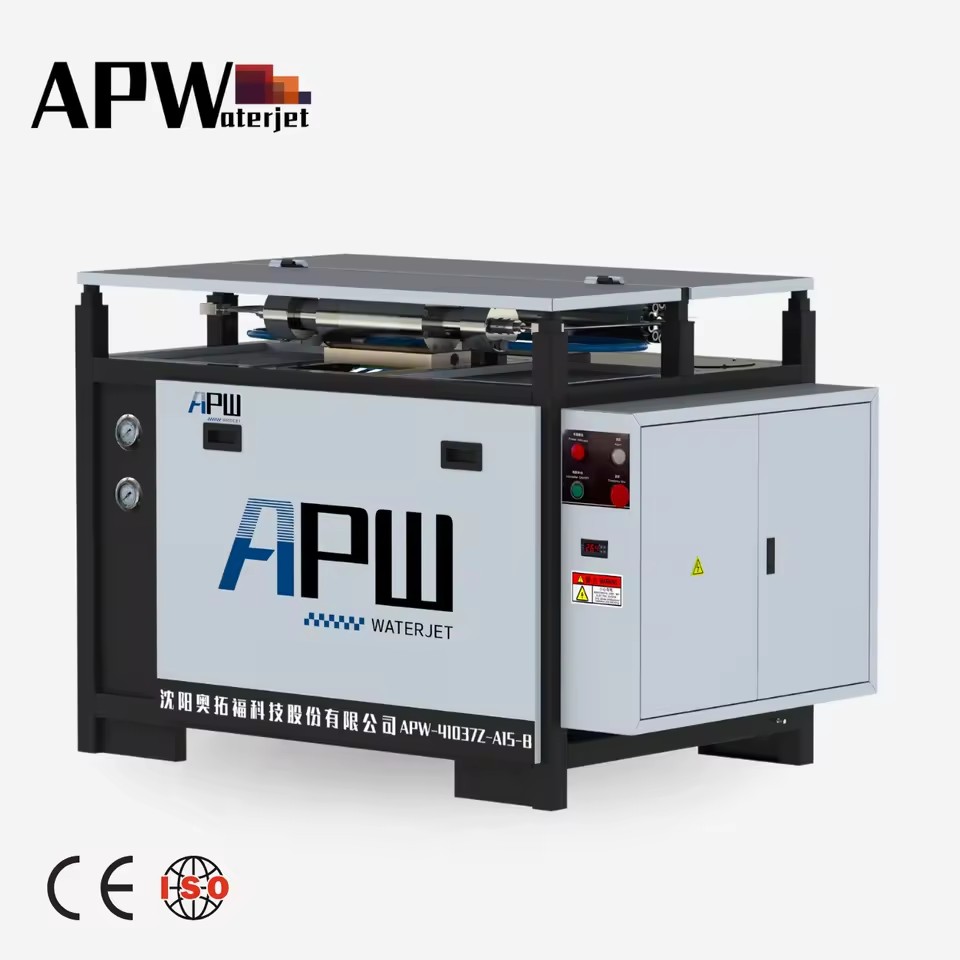

APW-A15+B pump

update

power rate

37KW

Max.Pressure

420MPa

intensifier

1 pic

dual-intensifier

HP Flow Rate

3.7L/MIN

Max. Orifice

0.33mm

electricity supply

AC380V 50HZ 3PH

ambient Temp.

5-40℃

accumulator

1.0L

1.2L

oil tank

114L

size

1710*1025*1191mm

Weight

980KG

color

white

customerizel

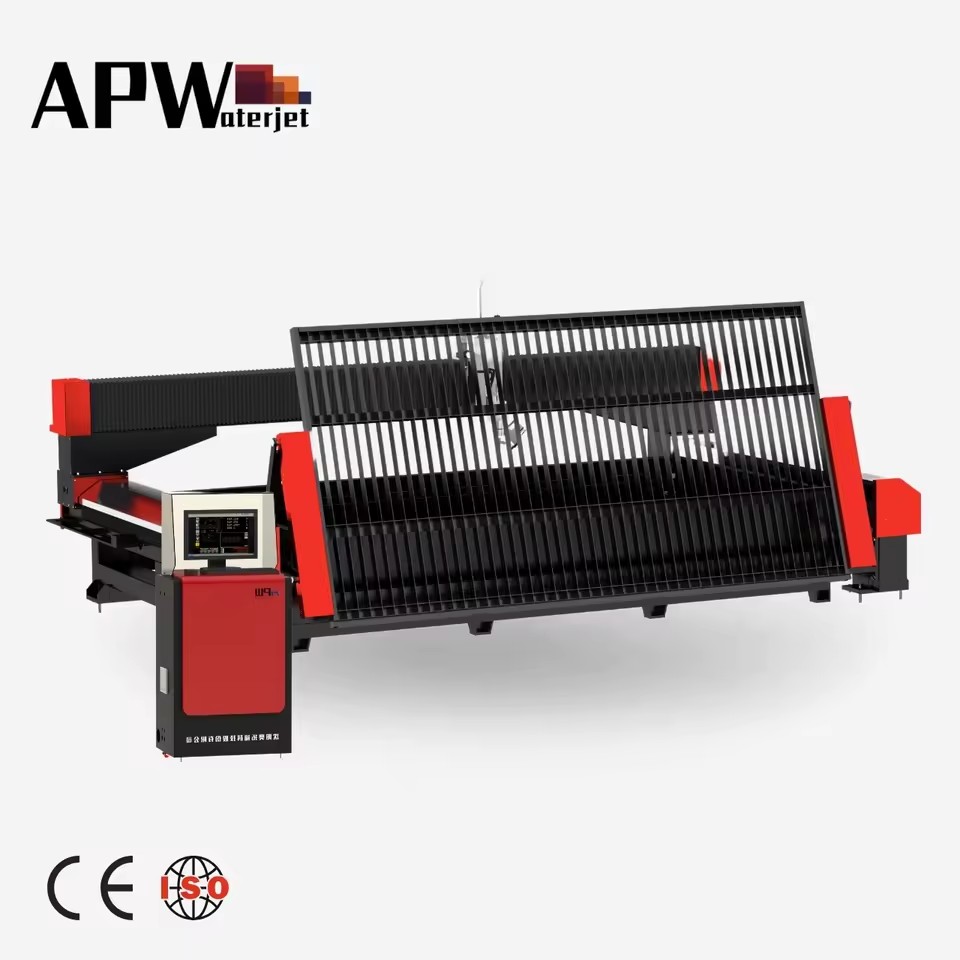

TABLE-S4020BA

table size(X-Y)

4000-2000mm

repeatability

0.03mm

cutting accuracy

0.1mm

traverse speed

10m/min

transform system

ball crew

gear rack with grating

load capacity

500KG/square meter

structure

bridge style

drive way

servo control

ball screw

TBI

linear guide

WON

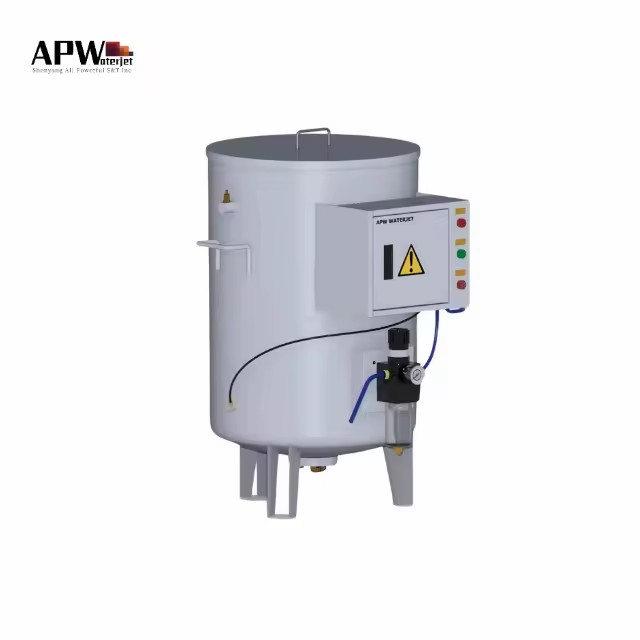

Sand supplier-DN500

120KG

300KG

supply style

negative pressure

Head-BP

axis

3

AC 5-axis

Control system

NC studio

CHiller

chill style

heat exchanger

oil cooler

APW IS PROFESSIONAL.

1.drafts chinese national standard of waterjet cutter (GB/T 26136)

2.offer 1200 combos of waterjet to 70+ countries,8000+ end users

3.23 years history since 2001

4.totally OBM factory

5.ONLY thing we do is waterjet

6.follow 9001 QC processing

7.customers’industry include glass/quartz stone/marble/concrete/ceramic tile metal rubber /nylon/carbon fiber/plastic/nylon/

foam.....

Products Details

Data

Customer

Company Profile

Certifications & compliance
CE
Complies with EU standards
Description images
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    24 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Type
ceramic tile cutting machine
Use
Granite
Voltage
220 V
Cutting thickness (max)
150 mm(5.91in)
Max Cutting Length
4000
Power(w)
37KW(49.62hp)
Core components
Motor, Pressure Vessel, Engine, Pump
Key selling points
Easy To Operate
Warranty
2 Years
Machinery test report
Provided
Video outgoing-inspection
Provided
Color
White, Black
Place of origin
China, Liaoning
Weight
3950 kg(8708.26lb)
Dimension(L*W*H)
4000x2000x150mm
Cutting area
4000x2000mm
Control system
Shanghai Weihong Control System
After Warranty Service
2 years warranty
After-sales Service Provided
Video Technical Support
Material
stone cutting machine
Max pressure
420Mpa
Certification
CE ISO9001 TUV
Application
metal stone glass cutting
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Production Capacity (Product option)
500
Model number
APW S4020-A15+B-DXACWZ
Working Area
4000*2000mm(157.48*78.74in)
Certifications & Compliance
CE
Lead time
24 days
Minimum order
1 Units
