YCWJ CNC L2015 Tile Ceramic Cutting Water Jet Near Me 5axis 10 Degrees Compensated Cutting Machine

1. Waterjet cutting platform

CNC Water Jet Cutting Machine P arameter (L=Gantry type)

Parameters

Unit

YCWJ-L1010

YCWJ-L2015

YCWJ-L3015

YCWJ-L3020

YCWJ-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.025

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

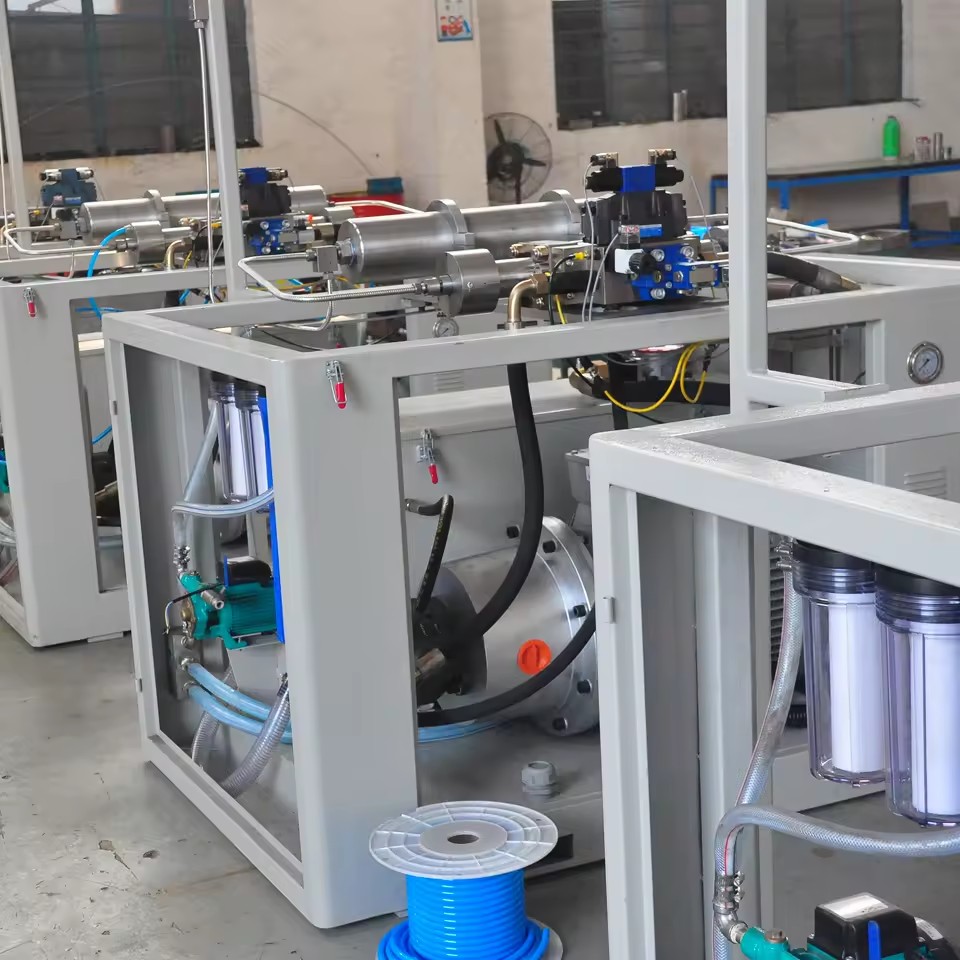

High Pressure Pump

Model

YCG-3038

YCG-3742S

YCG-7542S

Max Pressure

3800Bar/55,000Psi

4137Bar/60,000Psi

Max Water Flow

3.7L/min

7.4L/min

Max Orifice/Nozzle

0.011/0.03

0.013/0.04

0.016/0.05

Power

30KW/40HP

37KW/50HP

75KW/100HP

Product Details

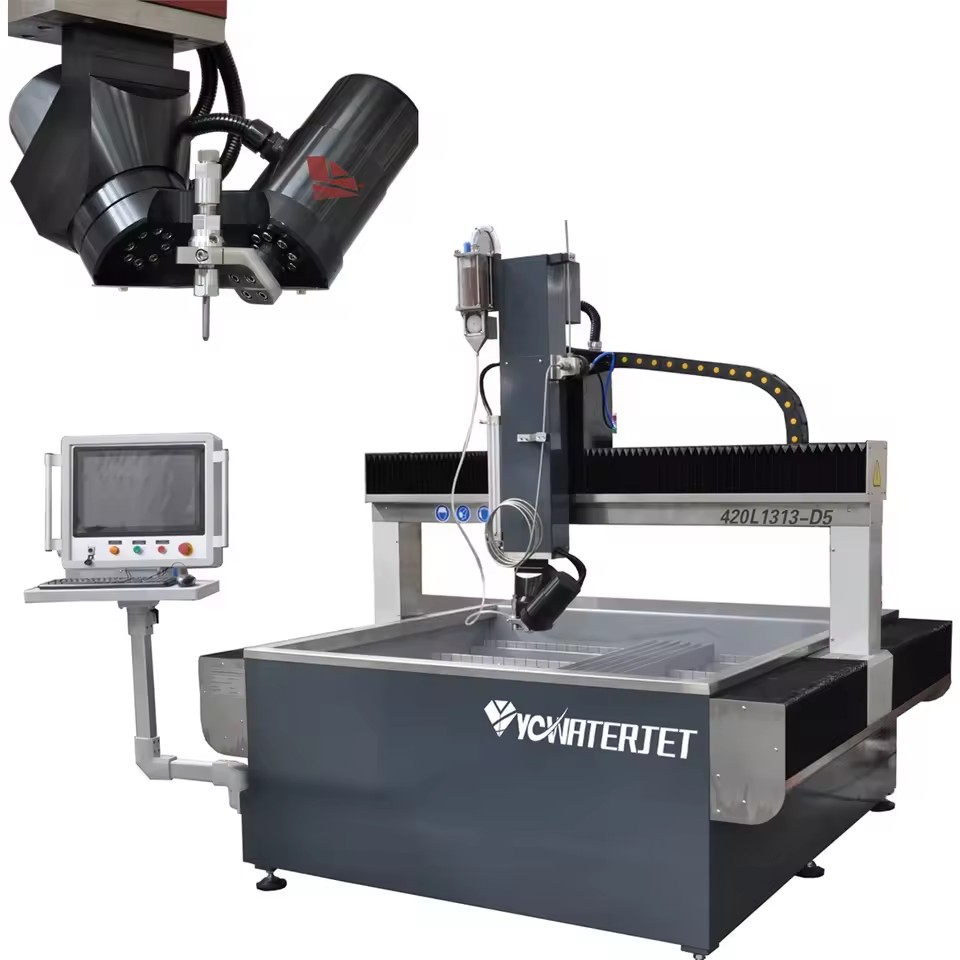

Dynamic 5axis waterjet cutting

This Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate ±10° cutting angle. It is one kind of bevel cutting machine.

Due to the water jet cutting is a flexible cutting, therefore,there will be a certain degree of inclination on the product cross section after cutting by the traditional 3 axis water jet order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.

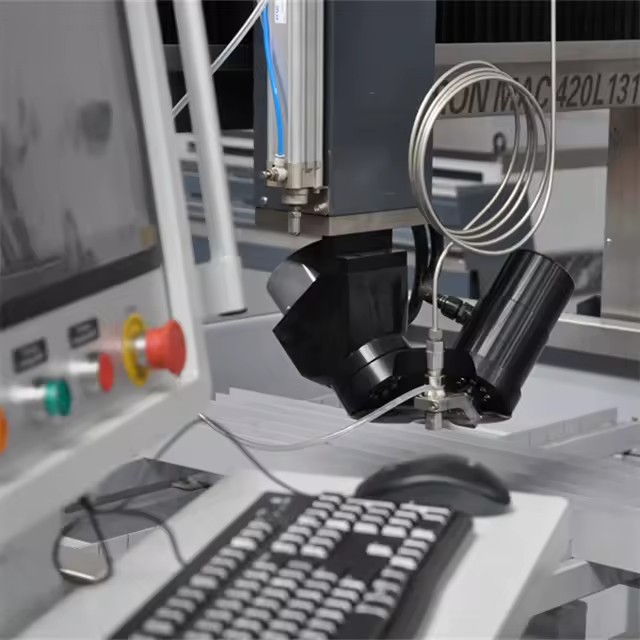

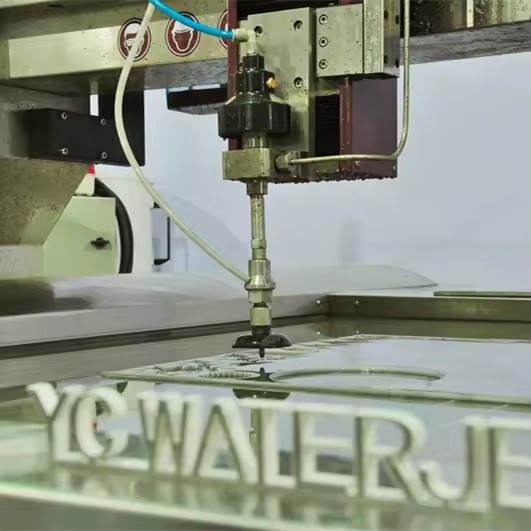

Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°

CNC Water Jet Cutting Machine P

arameter

(L=Gantry type)

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

Main Feature

Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

1. 17 LCD liquid crystal display.

2. DNC on-line working function.

3. Functions of returningarbitrary point,bending and circular are working auto deceleration.

4. Function of cutting figure imitation display.

5. 80GB memory hard disk.

6. 6. MITSUBISHI AC servo driver and motor.

7. 1GB memory card.

8. Multilingual function(Chinese English etc.).

9. Drive-by-wire and hand-hold controller.

10. NAIKY PCIMC-6A special software is special for YC.
