Name: AISI304/316 Stainless Steel Single Jack Chain / Weldless Chain
SKU: B2B-27016
Price: 20.0 USD
Availability: PreOrder

Product description

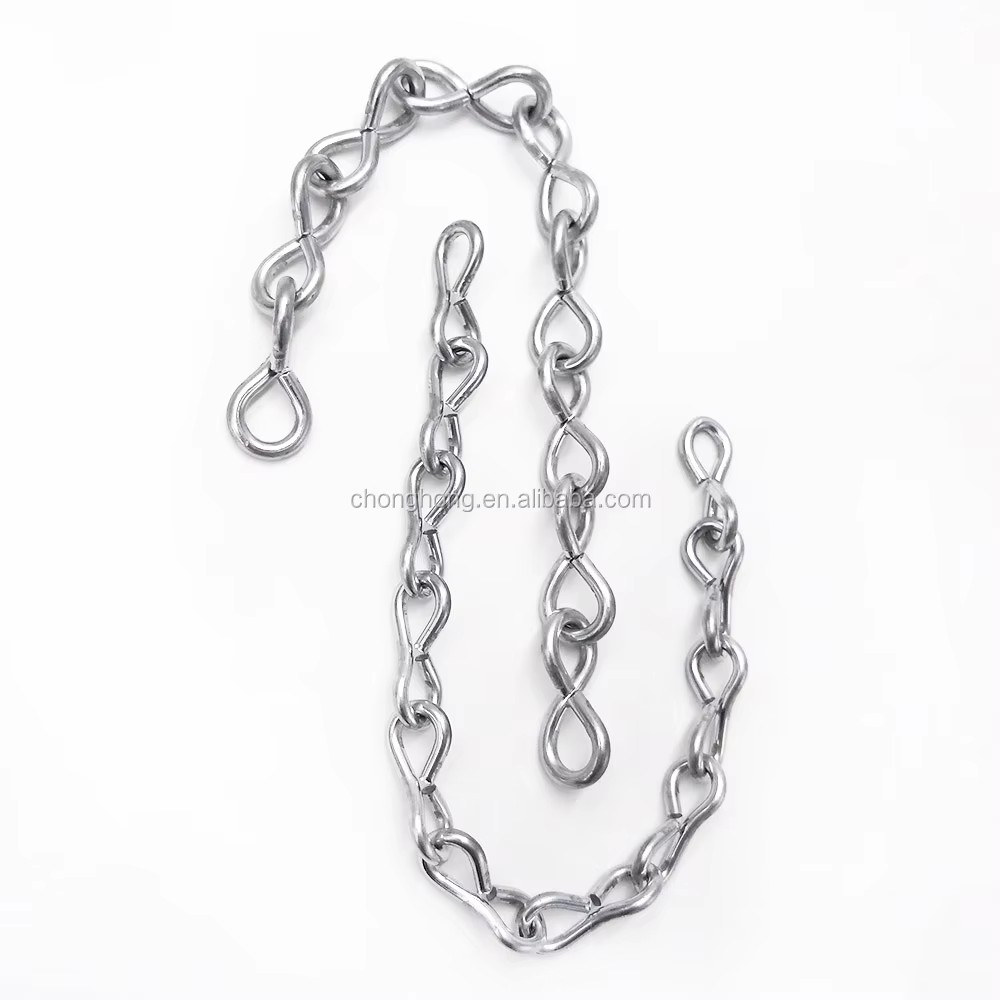

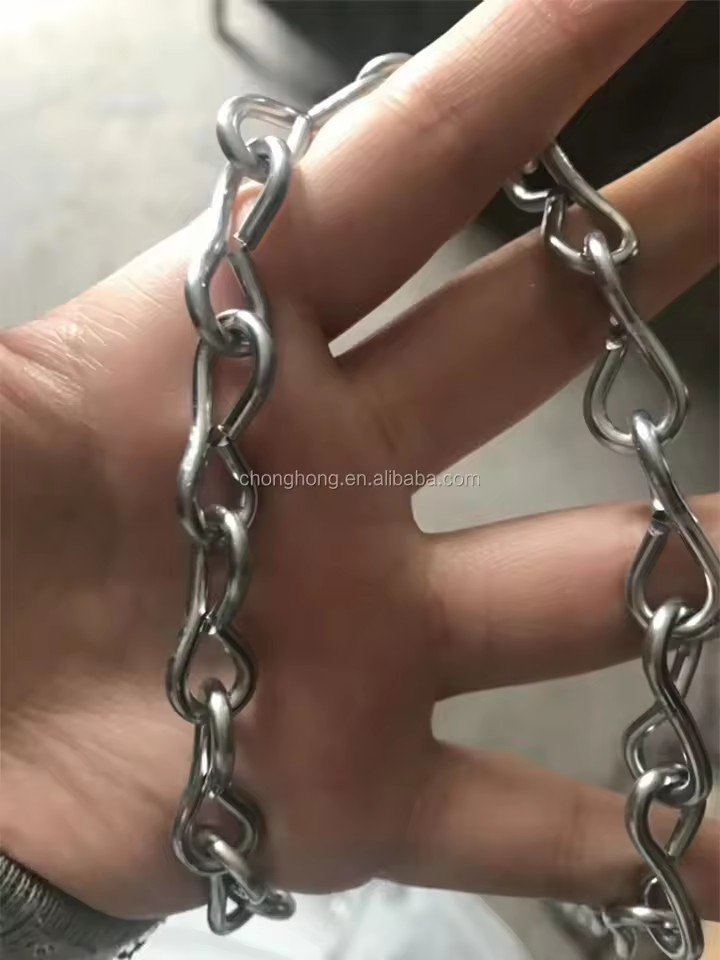

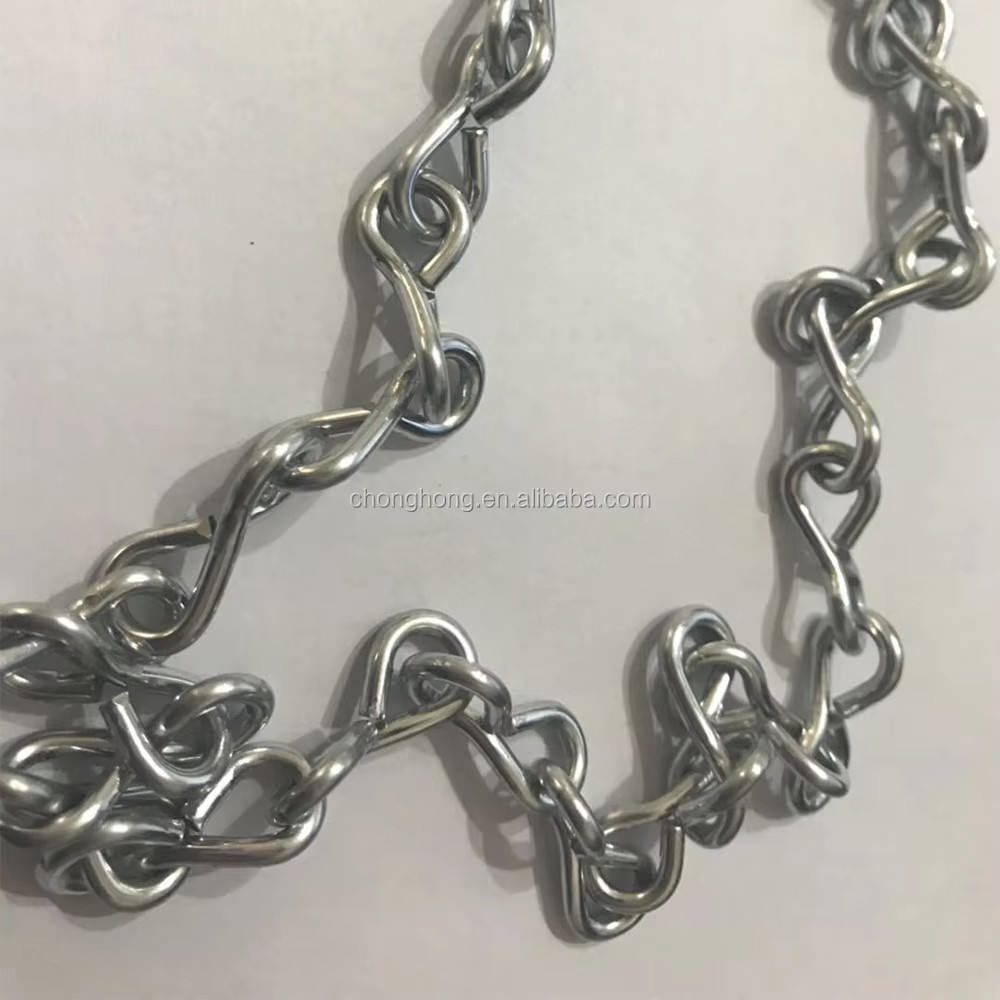

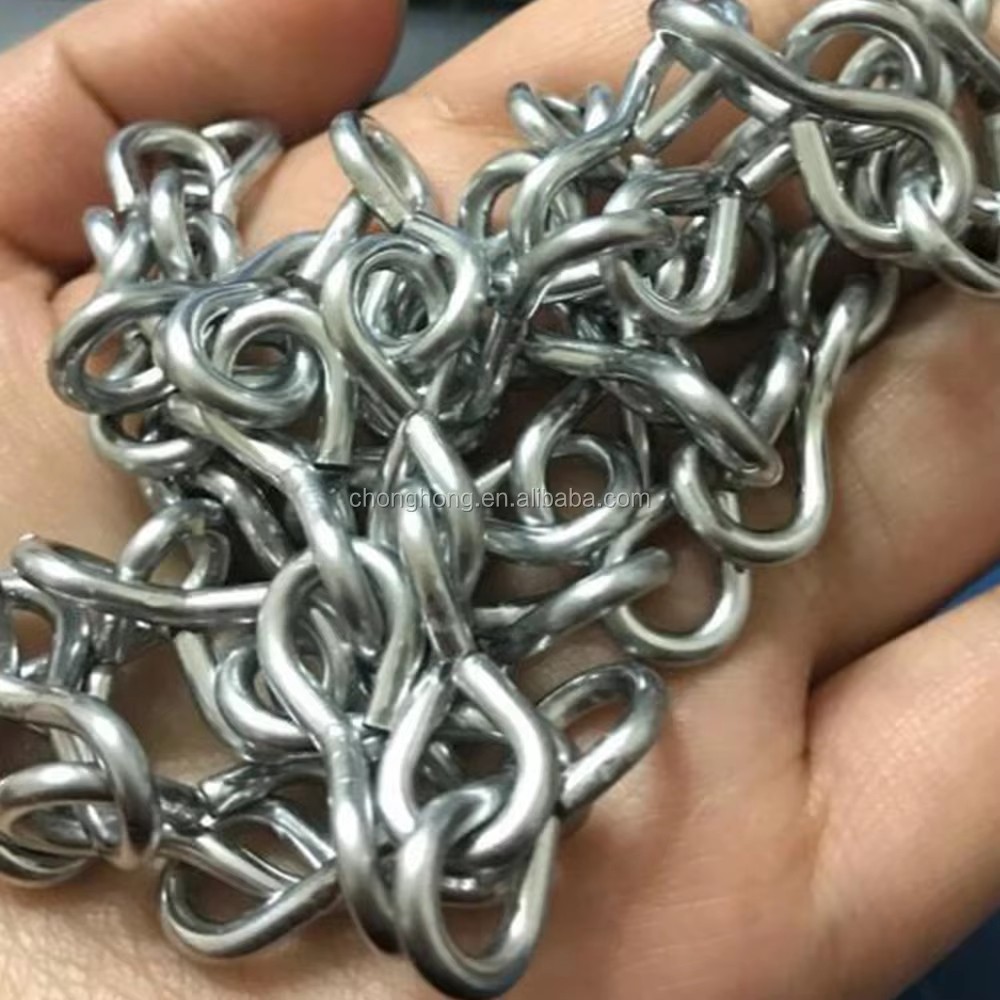

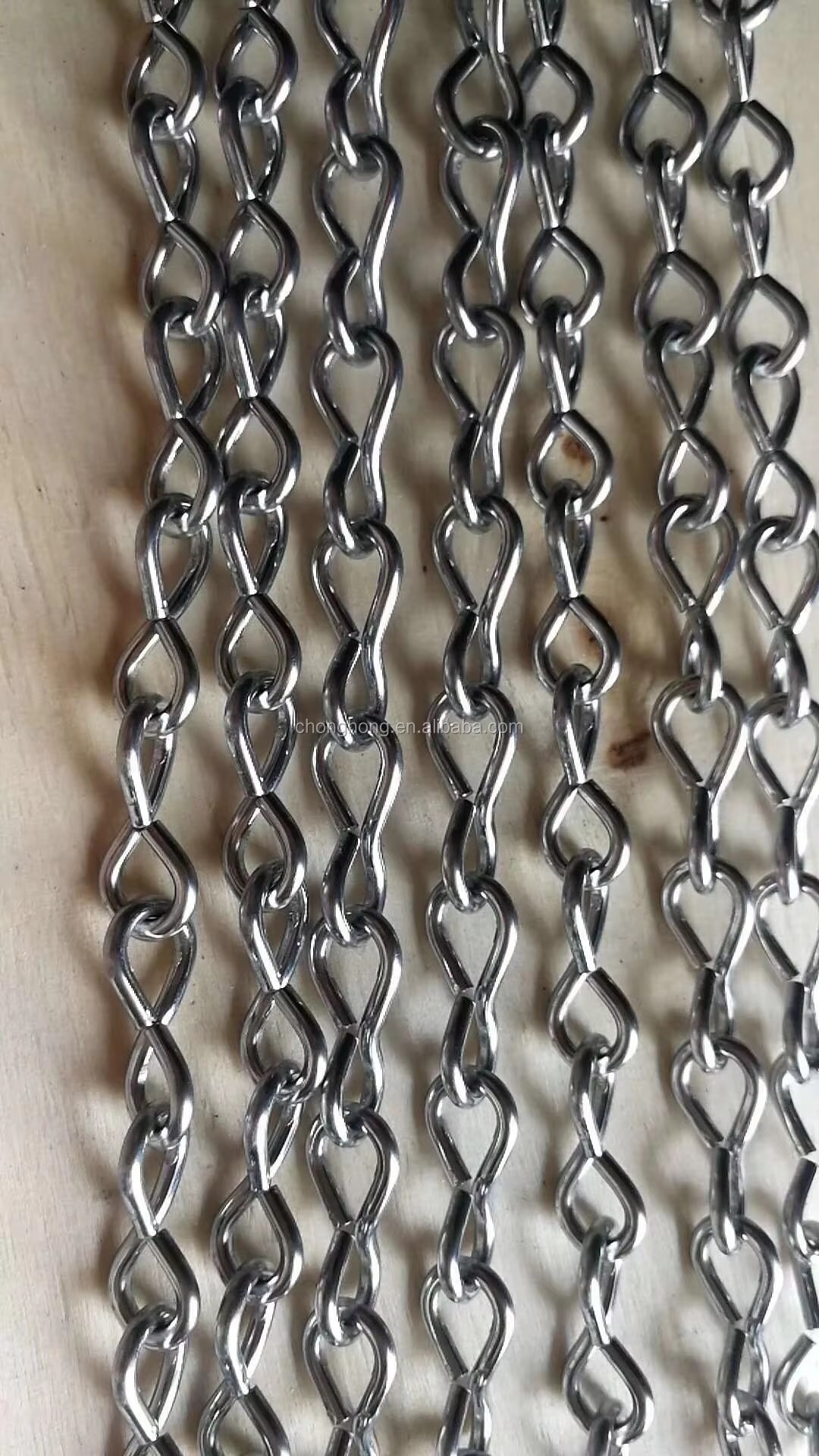

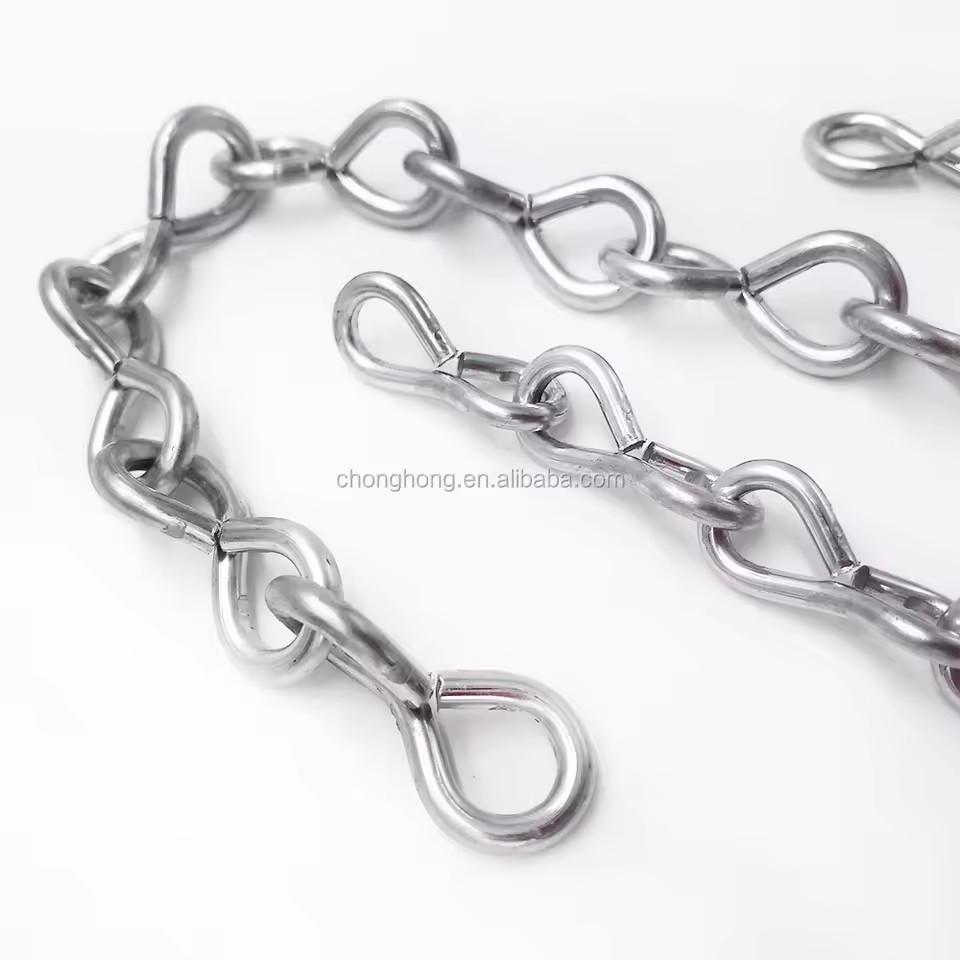

AISI304/316 Stainless Steel Single Jack Chain / Weldless Chain

Brand Name:CHONGHONG

Product name:Single Jack Chain

Material: Stainless Steel 304/316

Surface treatment:Electro-galvanized

Also Available in Carbon steel,Alloy steel,Galvanized,Self-color,Polished and Other

Color:Silver

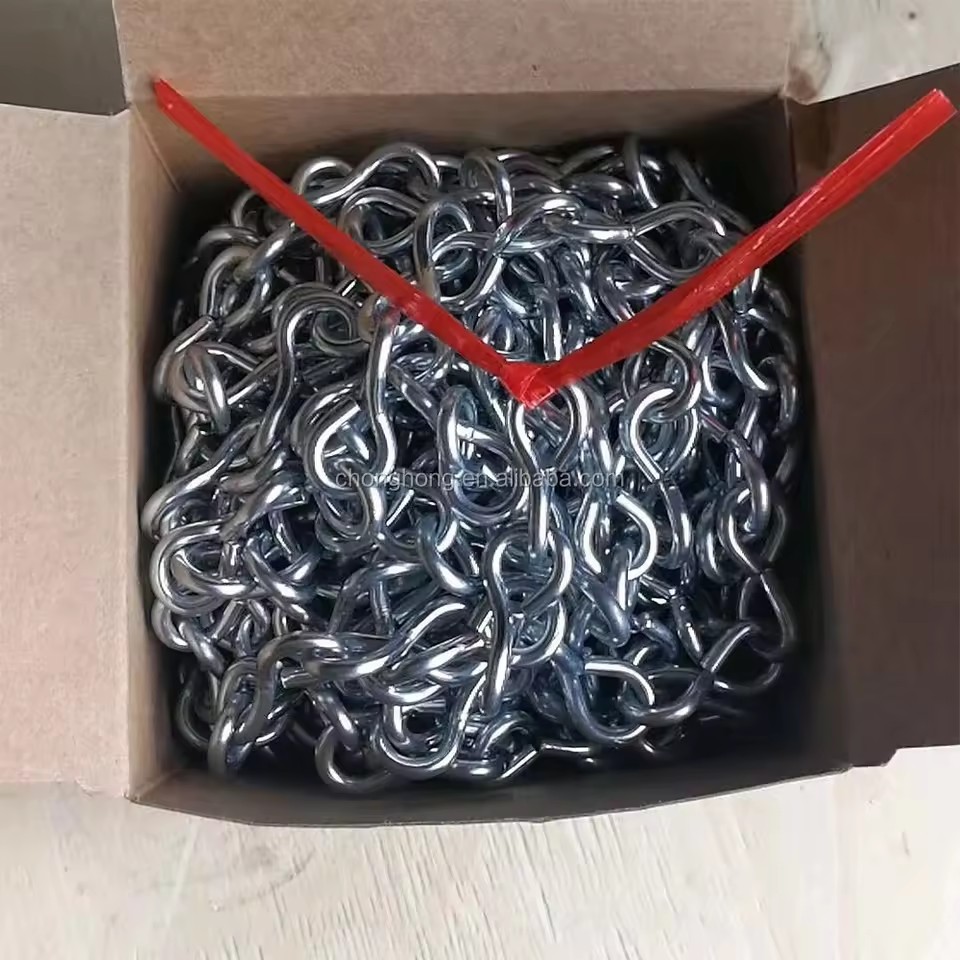

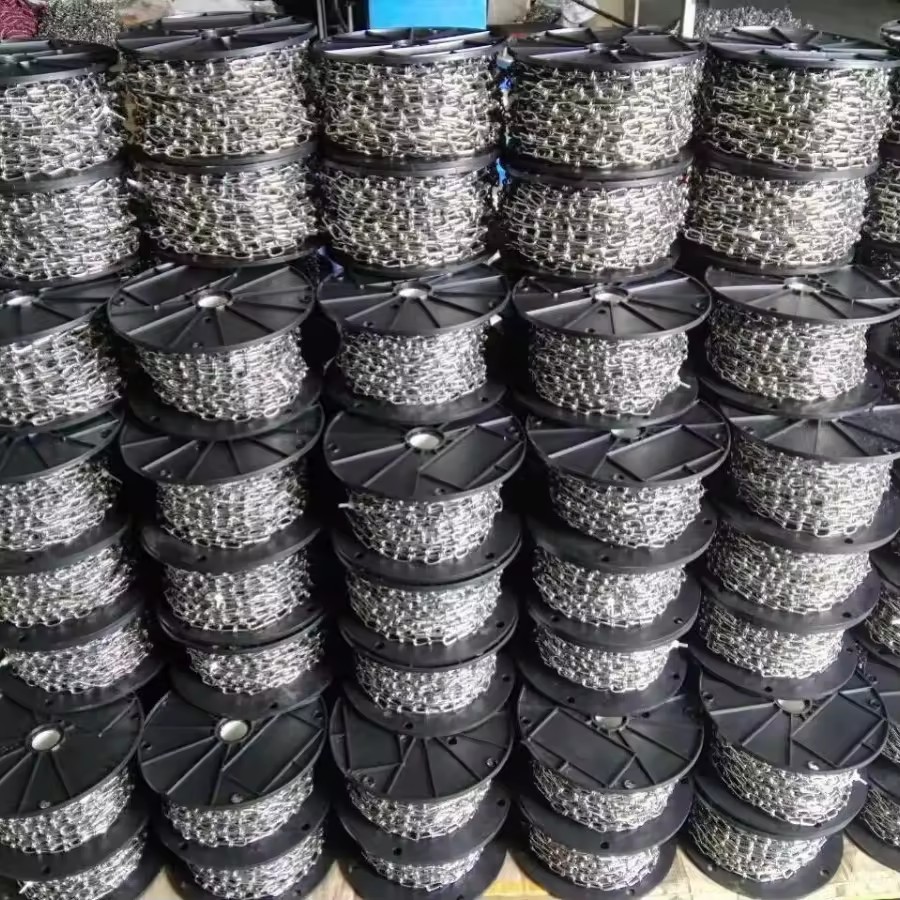

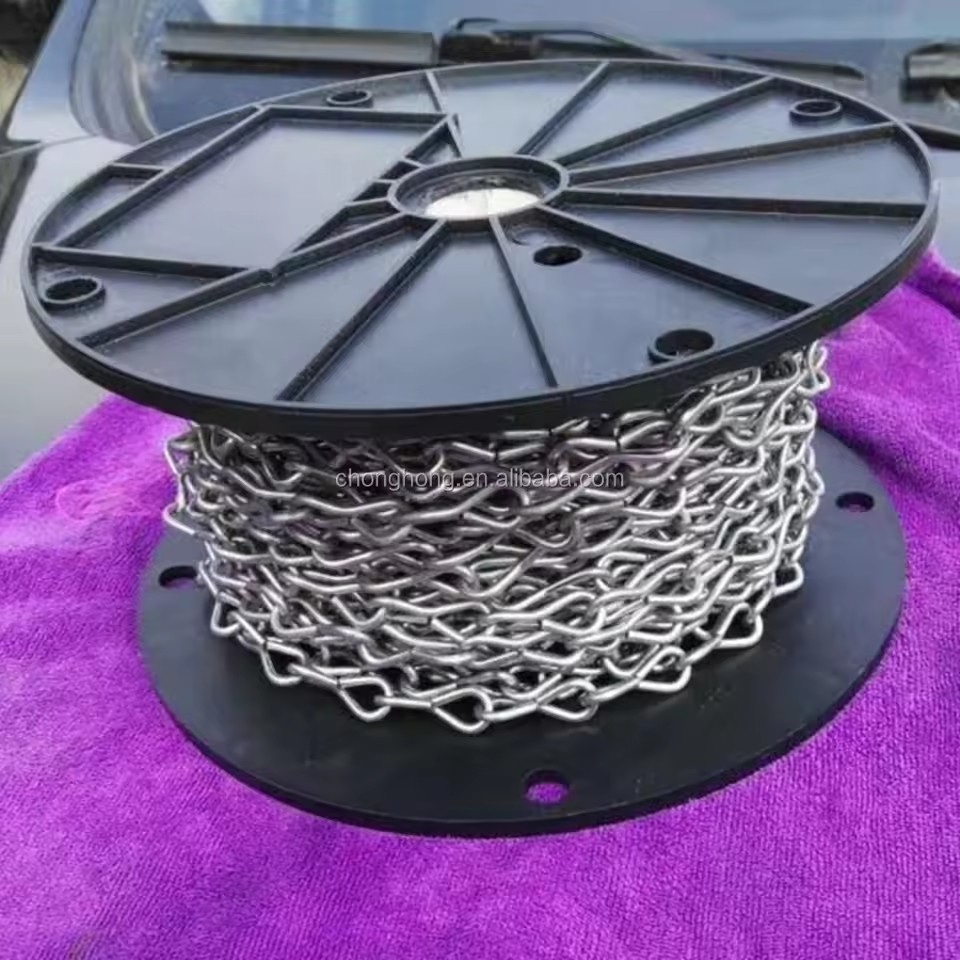

Packaging:Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box or as per customer's requirements

Provides free blank samples without print

Printed samples with design, sample charges needed, the exact charges depends on your final design and product

We will return sample charges to you once place an order

If you have other size not standard, you can tell us, we can according to your size make the goods, then send you the new size sample, when you confirm the sample, we produce the order, about the packing, we can pack according your requirements

TRADE SIZE	MATERIAL SIZE	NOMIAL INSIDE LENGTH(P)	APPOX.WGT. per 100ft.(30.5m)	WORKING LOAD LIMIT	MINIMUM BRAKING FORCE
Steel	Brass	Steel	Brass
in	mm	in	mm	lbs	kg	lbs	kg	lbs	kg	lbs	kN	lbs	kN
20	0.034	0.9	0.3	7.6	1	1	3	1	2	1	12	0.1	8	0.1
18	0.047	1.2	0.39	9.9	1.7	1	5	2	4	2	20	0.1	15	0.1
16	0.062	1.6	0.5	12.7	2.9	1	10	5	8	4	40	0.2	30	0.1
14	0.08	2	0.63	16	4.8	2	16	7	11	5	65	0.3	45	0.2
12	0.105	2.7	0.75	19.1	8.5	4	29	13	20	9	115	0.5	80	0.4
10	0.135	3.4	0.93	23.6	14	6	43	20	34	15	170	0.8	135	0.6
8	0.162	4.1	1.09	27.7	21	10	60	27	43	20	240	1.1	170	0.8
6	0.192	4.9	1.24	31.5	30	14	88	40	66	30	350	1.6	265	1.2

More Standard

Ordinary Mild Steel Link Chain

ASTM80 Standard Link Chain

NACM90 standard link chian

NACM96 standard link chain

NCM2003 standard link chain

Standard Chain with Hooks

Australian Standard Link Chain

Standard Link Chain

Japanese standard link chain

Norwegian Standard Link Chain

Korean Standard Link Chain

Weldless Chain

Staniless Steel Link Chain

Chain Accessaries

Animal Chain.

Lifting chian

Lashing chain

Cain for ship

Fishing chain

Chain with clevis/eye grab hoks on both end

High Tensile Chain

G100 Lifting Chain

G80 Lifting Chain

Lifting Chain-General

Debarking Chain

Mining Chain

Three-link chain for Coal Transfer

Transport Chain-general

Chains for Ash Handler

Tuna Chain

Chain for Ship

Stud Chains for Ship

Studless Chains for Ship.

Notes: Special specifications and marks can be made according to customers requirements

M.O.Q	100PCS
Delivery time	10-20days after order confirmation
Notes	Special specifications and marks can be made according to customers requirements
Other	Eye bolts,Turnbuckles,Wire Rope Clips,Shackles,Chain accessories,Load binders,Hooks,Thimbles,Connecting Links,Master Links,Anchors,Lashing fittings,Swivels and many other rigging hardwares.

Chonghong supply a huge range of stainless steel wire rope,lifting, marine, rigging hardware and fittings. Under ISO 9001 standard and over 20 years of manufacturing, we are very sure that our best quality control, prompt delivery and after service will be fully satisfied with you.

Chonghong is specialized in producing, supplying, developing Anchors, Anchor Connectors, Marine Hardware Cleats, Hinges, Hold Down Clamps, Rigging Hardware like Snap Hooks, Quick Links, Spring Snaps, Spring Hooks, Turnbuckles, Shackles, Snap Shackles, Wire Rope Thimbles, Wire Rope Clips, Wire Ropes, Swivels, Pulleys, Tri-glides, Belt Buckles, Swage Sleeves, Eye Bolts, Eye Nuts, Eye Plates, S Hooks, O Rings, D Rings, Triangle Rings, Brass Hardware, Chains,Gas Spring, Gas Spring accessories and so on.

Chonghong also has ability to make the customized products for you. You are welcome to send us your drawings or samples for tooling with us. We are very, very happy to deal with everybody with the same level of good old fashioned service.

Please feel free to

Certifications & compliance

RoHS

RoHS compliant

Description images

AISI304/316 Stainless Steel Single Jack Chain / Weldless Chain

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Function

Drag Chain

Structure

Weldless Chain

Standard or Nonstandard

Standard

Finish (Specification)

Electro-galvanized

Model number (Specification)

CHYXSJ1102

Place of origin

China

Surface Treatment

Electro-galvanized

Color

Silver

Packing

Carton

OEM

Packaging Details

Plastic reel, paper carton, gunny bag and pail or as per customer's requirements

Port of dispatch

Any port in China

Selling Units

Single item

Single package size

20X10X5 cm

Single gross weight

1.0 kg

Supply Ability

50 metric tons per Month

Grade (Product option)

Customization

Material (Product option)

Stainless Steel, Customization

Size (Product option)

customization, #10, #12, #14, #16, #18, #8

Certifications & Compliance

RoHS

Lead time

20 days

Minimum order

100 Units
