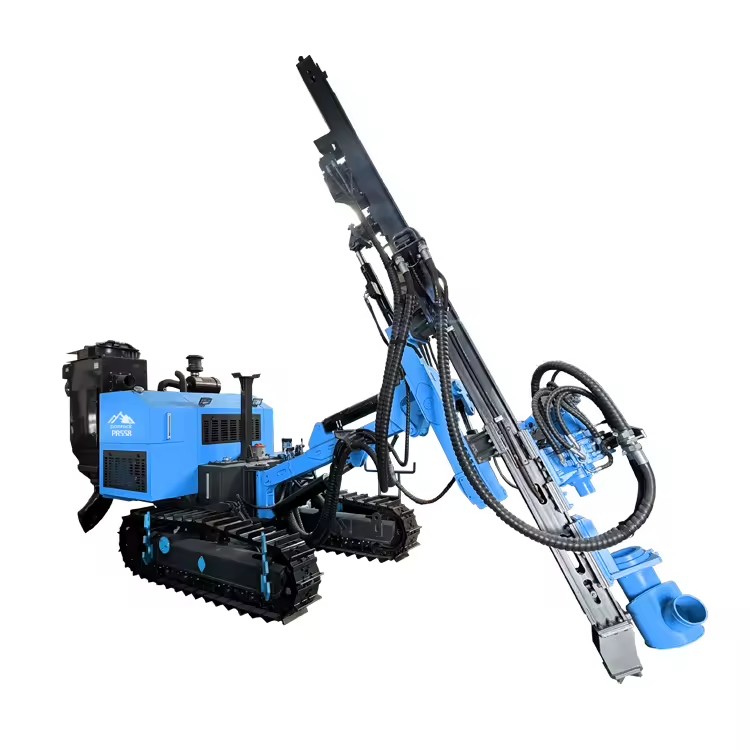

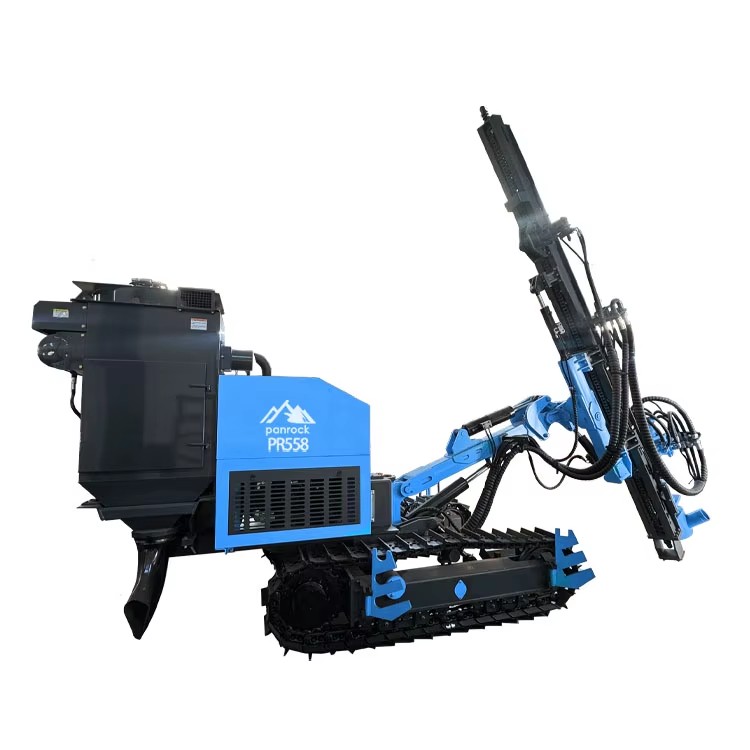

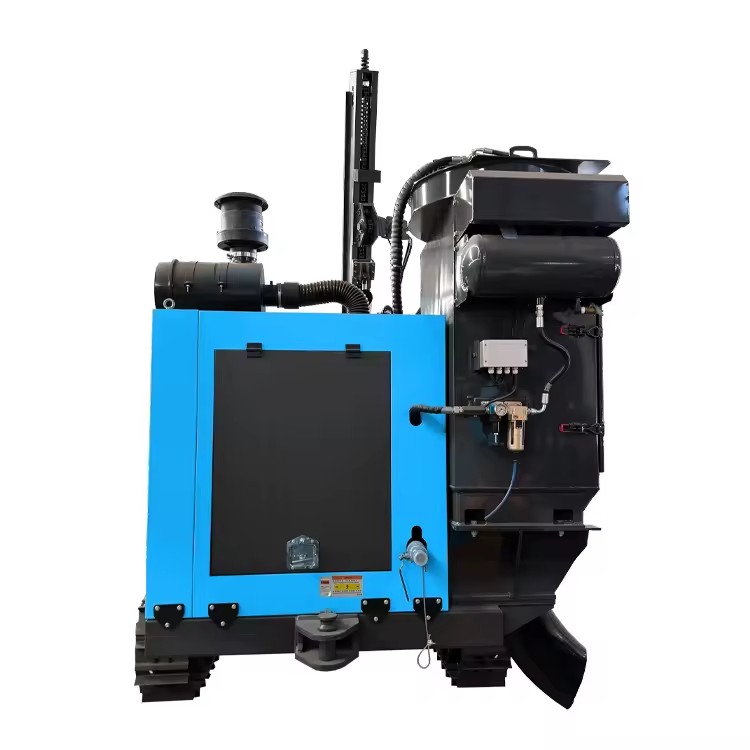

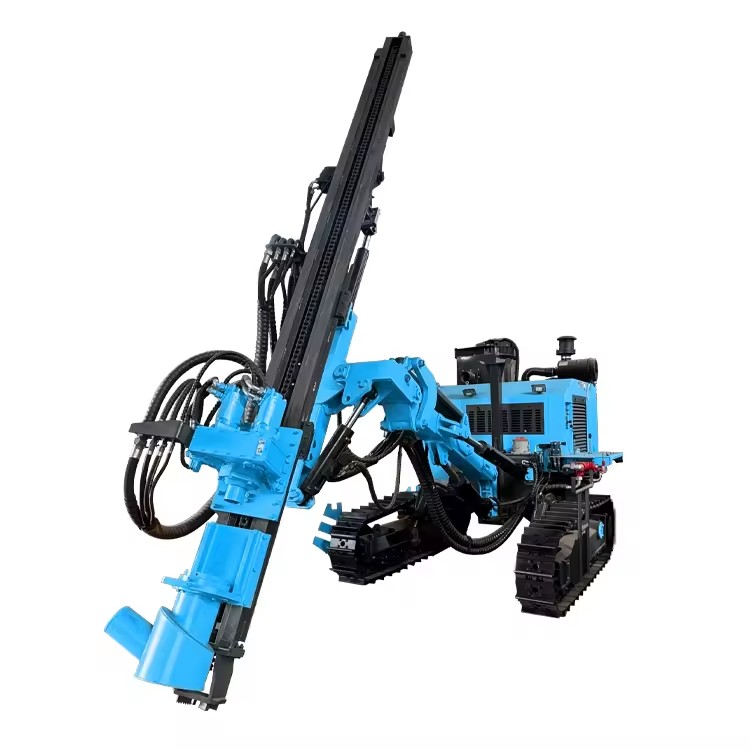

PR558 Cost-Effective Diesel Powered Mine Integrated DTH Drilling Rig with Easy Maintenance for Open-Pit Mining
Price
$
49470.00
Product information
Attributes
Type
Drilling Rig
Drilling Depth
30m
Drilling Diameter
115-200mm
Core components
Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
Zhejiang, China
Weight
7500 kg
Dimension (L*W*H)
6810*2280*2650mm
Drilling rig model
PR558 Down-the-Hole Drill Rig
Rock hardness
F=6-20
Drill pipe specifications
76mm *89mm
Working pressure
1.0-2.5Mpa
Exhaust volume
20-24cm3/min
Maximum slewing torque
Standard configuration: 5600 N m (optional: 8000 N m)
ROTATION SPEED
0-130r/min
Advance the itinerary
3900mm
Walking speed
0-3KM/H

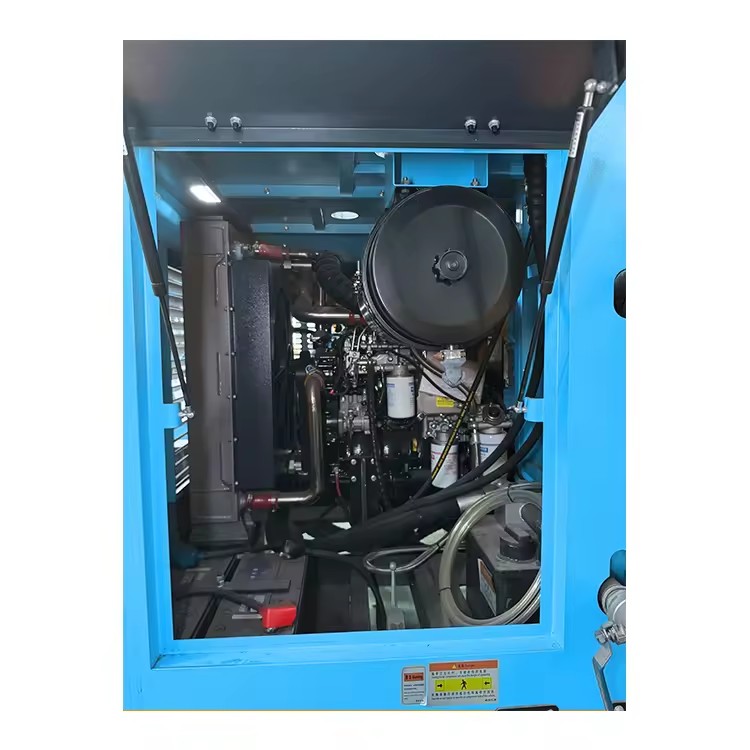

Engine
Yuchai YC4DK100-T304 (73.5kW/2200rpm)
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
PR558
Power (W) (Product option)
73.5KW
Fulfilment
Delivery
Lead time
15 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
