Product video
Certifications CE · CE

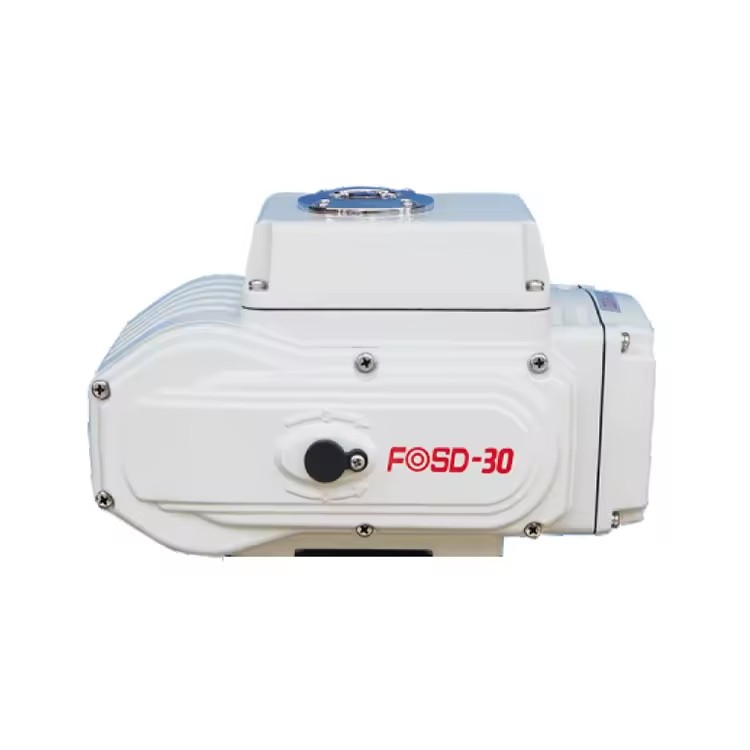

IP65 Waterproof CE Certified Electric Actuator 50-4000 Nm 220V/380V Rotary Control Valve Actuator for Water Valves

Available for enquiry 0.0 · 0 reviews
USD

$ 130.00 130.0 USD $ 130.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Electric Actuator
Media
Water
Port Size
Standard
Temperature of media
Medium Temperature
Application
General
Power
electric, AC12, AC24V, AC110V, AC220V, AC380V, DC12V DC24V
Product description
Torque30Nm 50Nm 100Nm 160Nm 300Nm 600Nm 1250Nm 2500Nm 4000Nm 6000Nm
rotation angle0-90 degree 360 degree
Power voltageAC100V AC220V AC380V DC24V DC12V AC24V
input signalDC 4-20ma,1-5VDC,0-10VDC
Output signalDC 4-20ma,0-10VDC
Intrinsic errort most±0.5%
Hysteresis plus dead bandless than 0.3%
dead band0.1%-1.6%
damping characteristicszero
repeatability error0%
Optional features1)over torque protector 2)damp heater 3) stainless steel bracket,shaft coupling

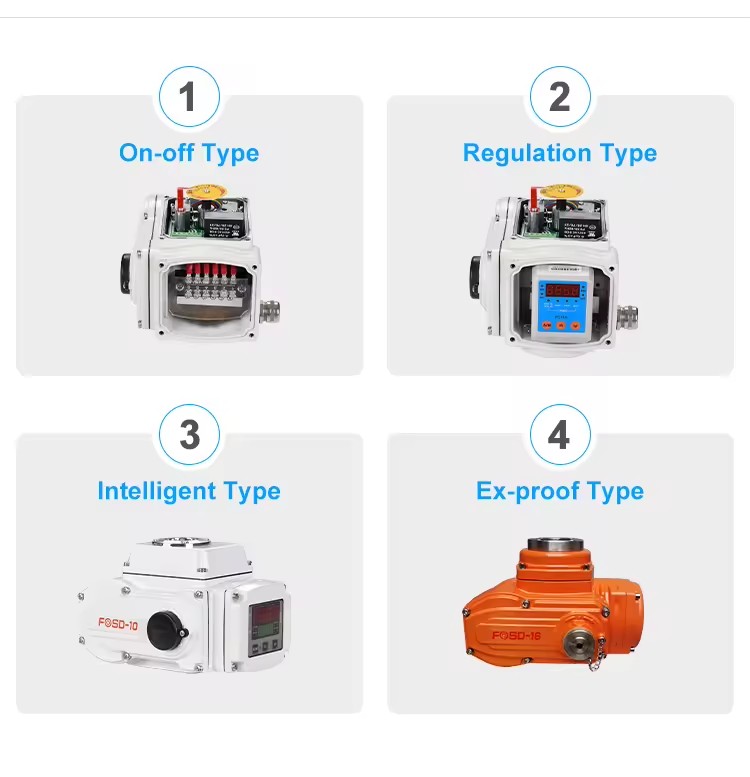

TypeControl typeFunction
Electric actuatorON-OFF typeFeedback: the active signal, passive contact signal, resistance, 4-20mA
Regulation typeInput and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
Filed operationThe field, remote control switch regulation and MODBUS, PROFIBUS field bus
Certifications & compliance
CE
Complies with EU standards
Description images

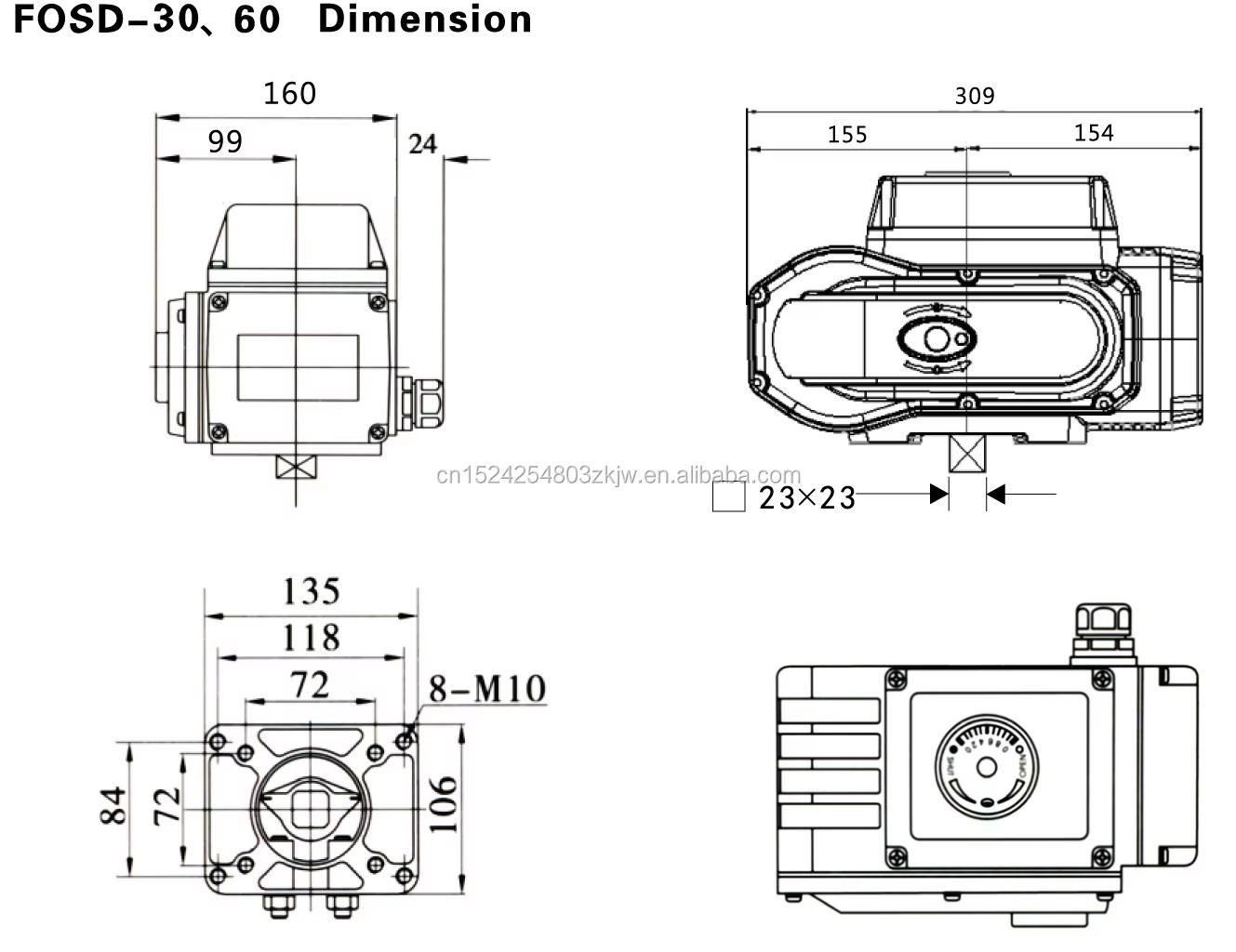

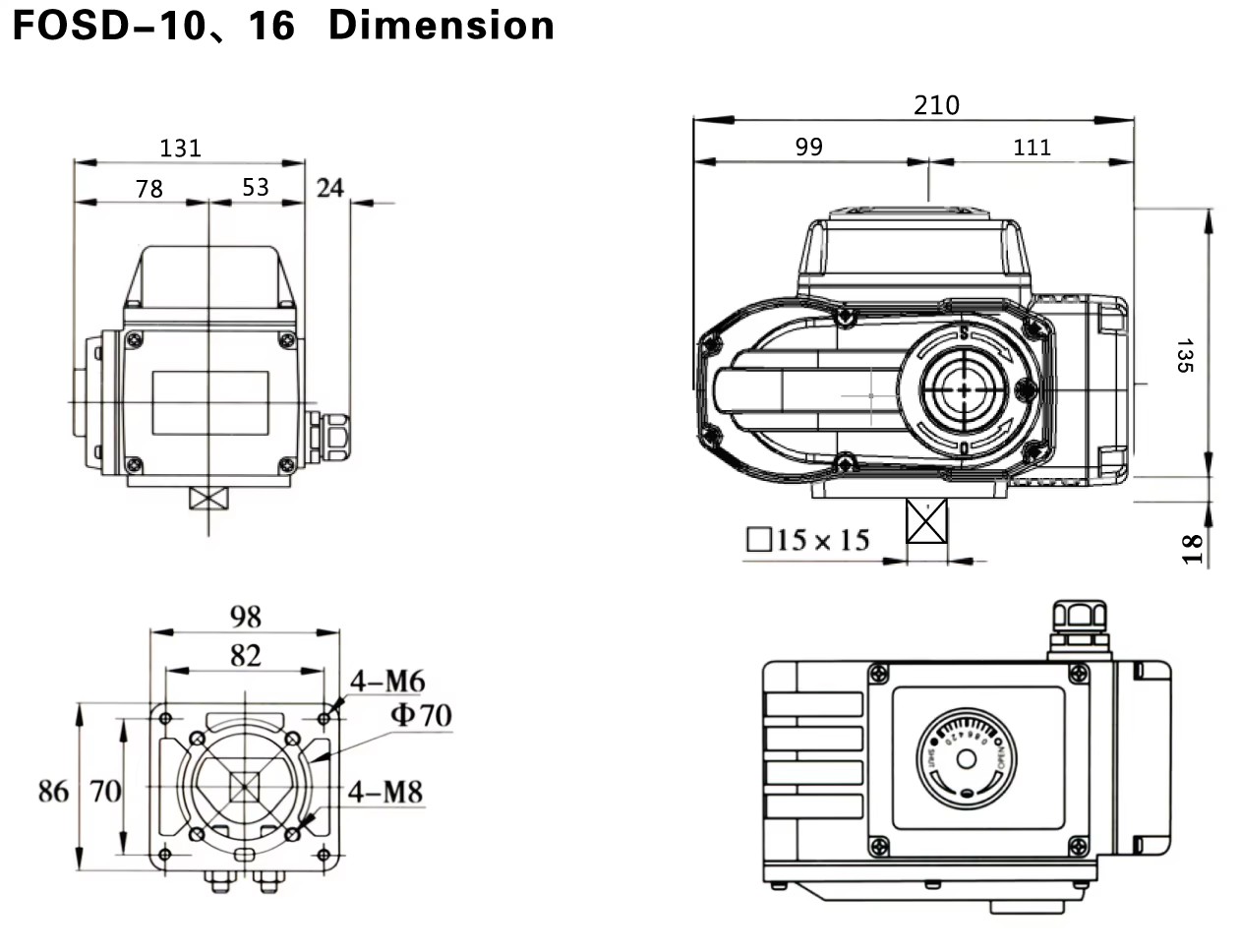

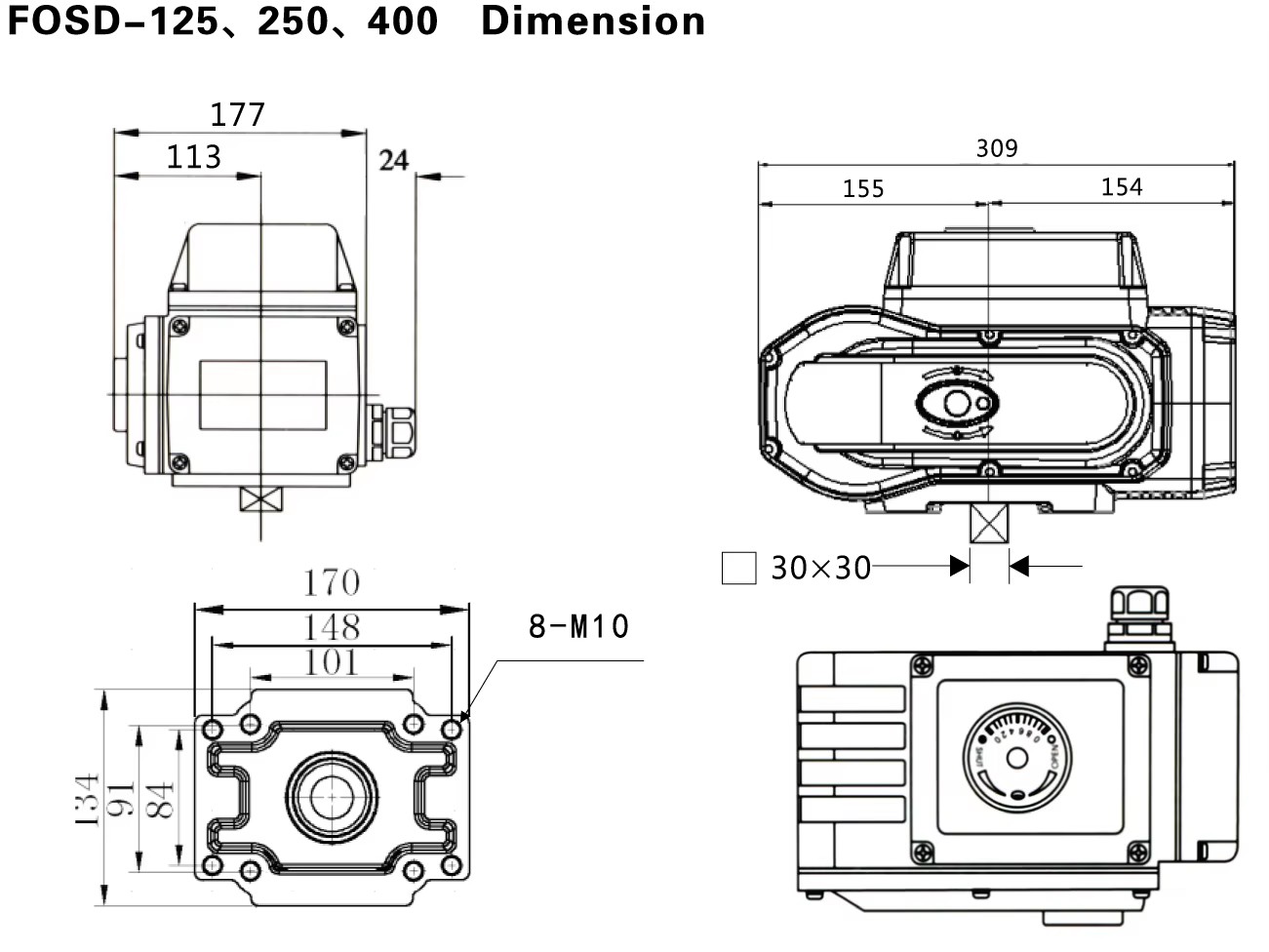

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    8 days

  • Step 3

    Packaging and dispatch

    Economy · Approx. shipping fee: $ 1.27 for 1 set · Estimated delivery: Sep 29–Nov 6 (28–66 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Type
Electric Actuator
Media
Water
Port Size
Standard
Temperature of media
Medium Temperature
Application
General
Power
electric, AC12, AC24V, AC110V, AC220V, AC380V, DC12V DC24V

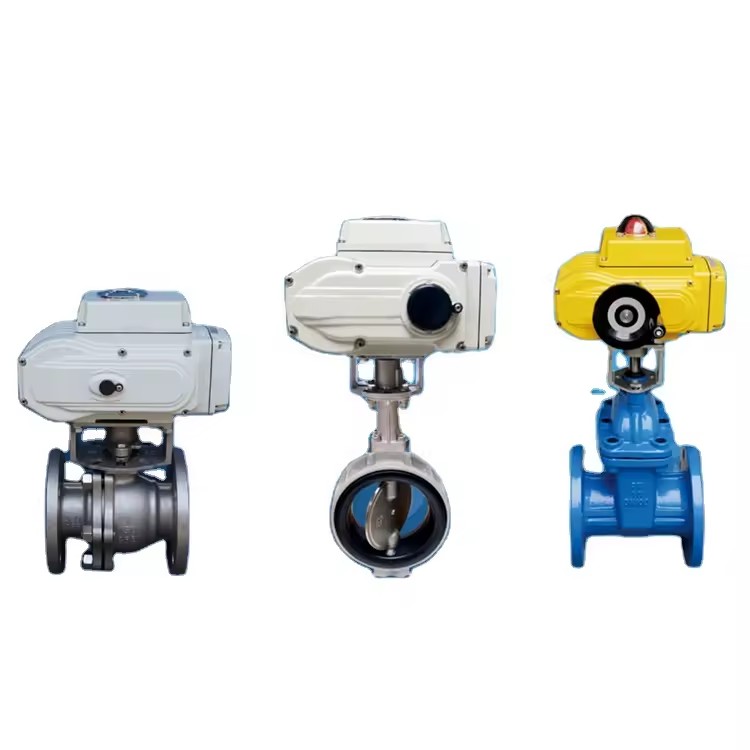

Structure
gate valve, Ball valve, butterfly valve
Customized support
OEM
Warranty
24 Months
Place of origin
China, Guangdong
Model number (Specification)
Electric Actuator Instruction
Standard or Nonstandard
Standard
Color
Orange, White, Blue, Green, red
Protection Class
IP65
Valve Body
Ball valve, gate valve, Depend on butterfly valve
Output Torque
50 Nm - 4000Nm
Operating time
0-90°
Surrounding Temperature
30°C - +60°C
Certification
CE
Selling Units
Single item
Single package size
10X10X8 cm
Single gross weight
5.0 kg
Material (Product option)
Alloy
Pressure (Product option)
Medium Pressure
Size (Product option)
50Nm
Certifications & Compliance
CE
Lead time
8 days
Minimum order
1 Units
