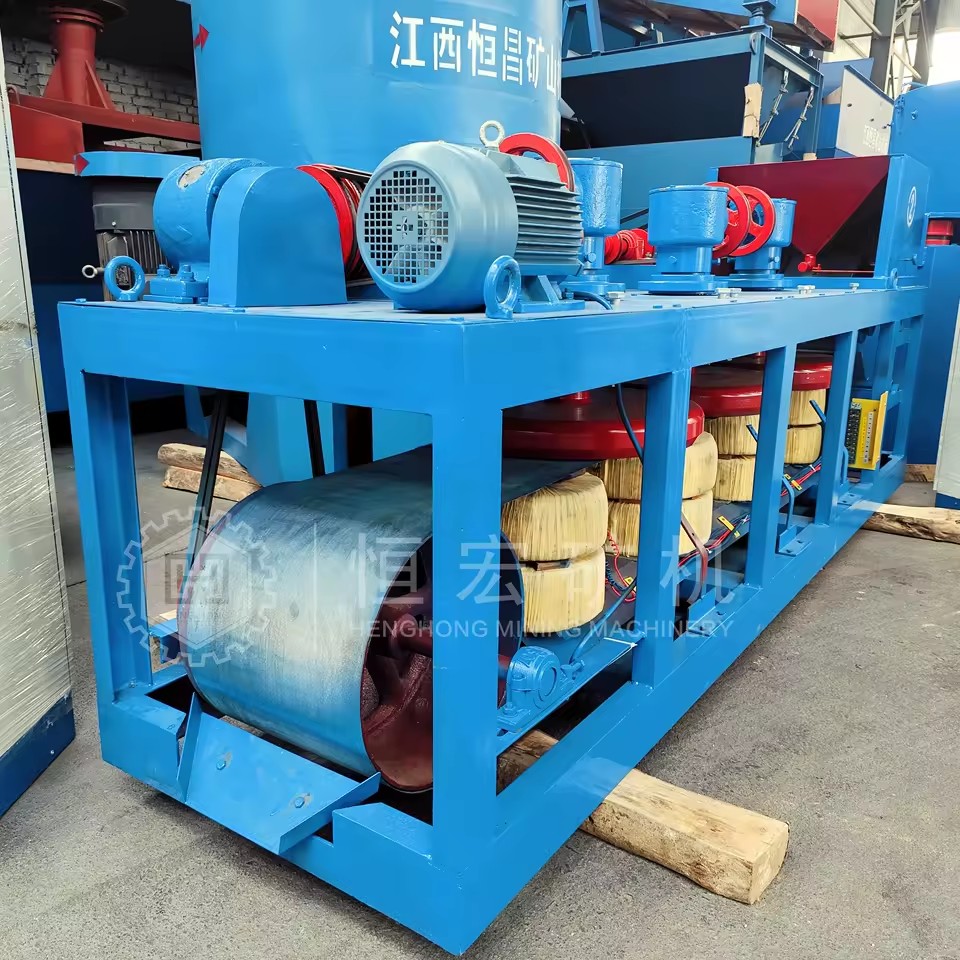

Exceptional Tri-Disc Magnetic Separator for Precise Gold Separation Reliable On-Site Mineral Separator for Sand Gravel

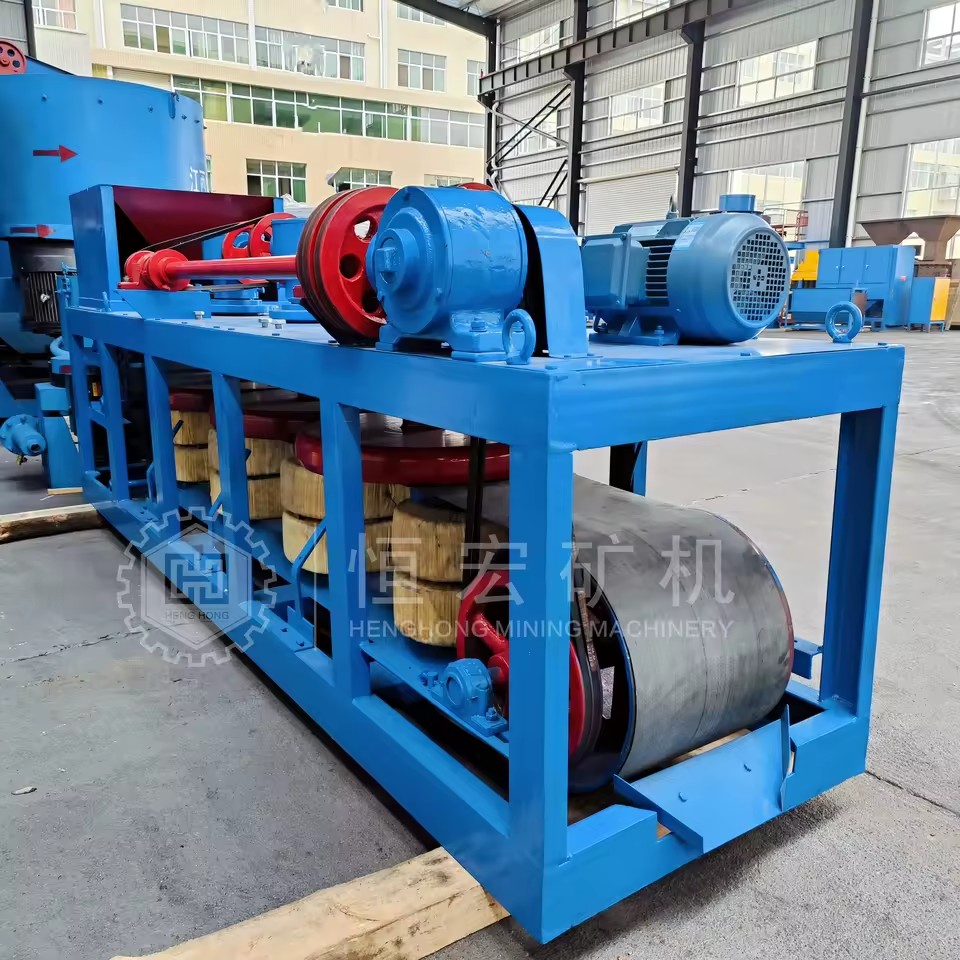

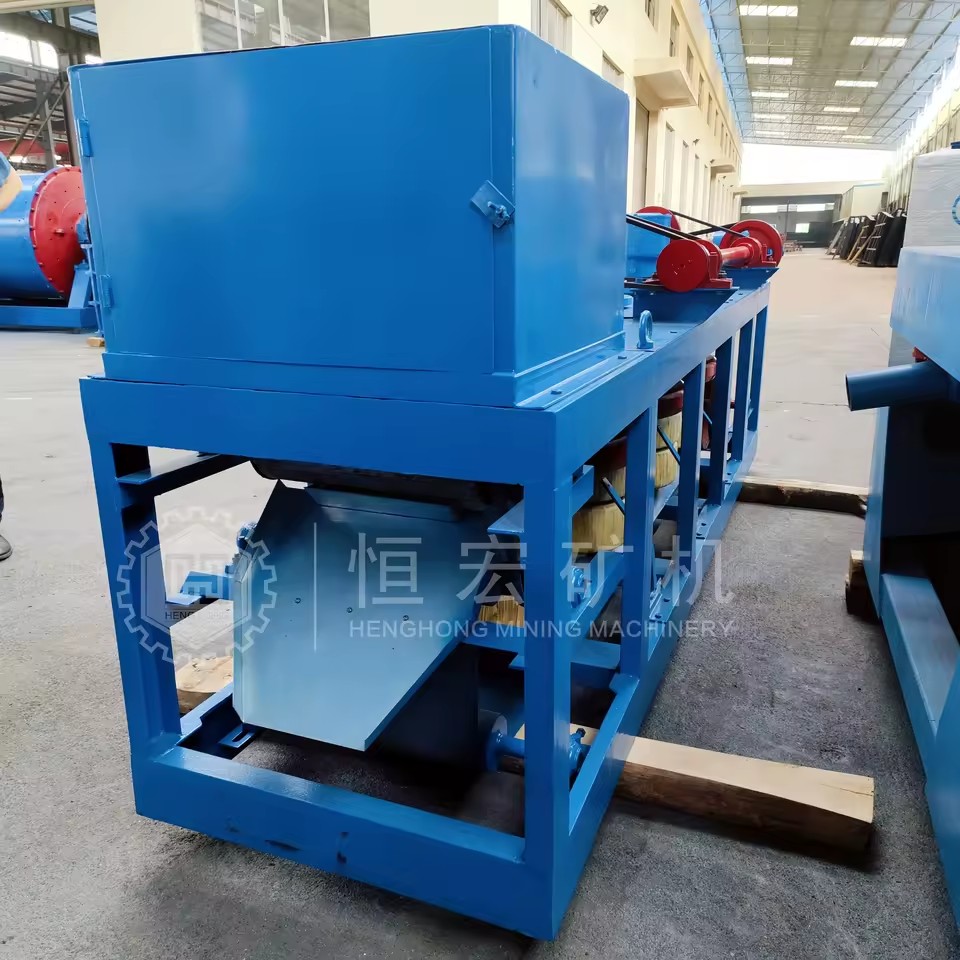

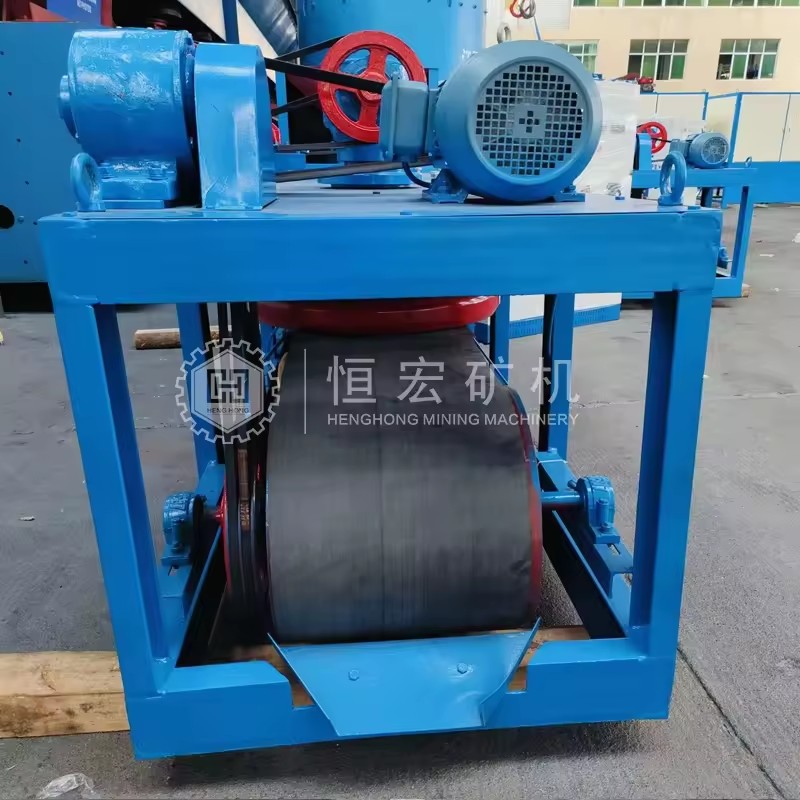

Product Importer Gallery 01 · f9d4846c1f

Product Importer Gallery 02 · c51a912cf8

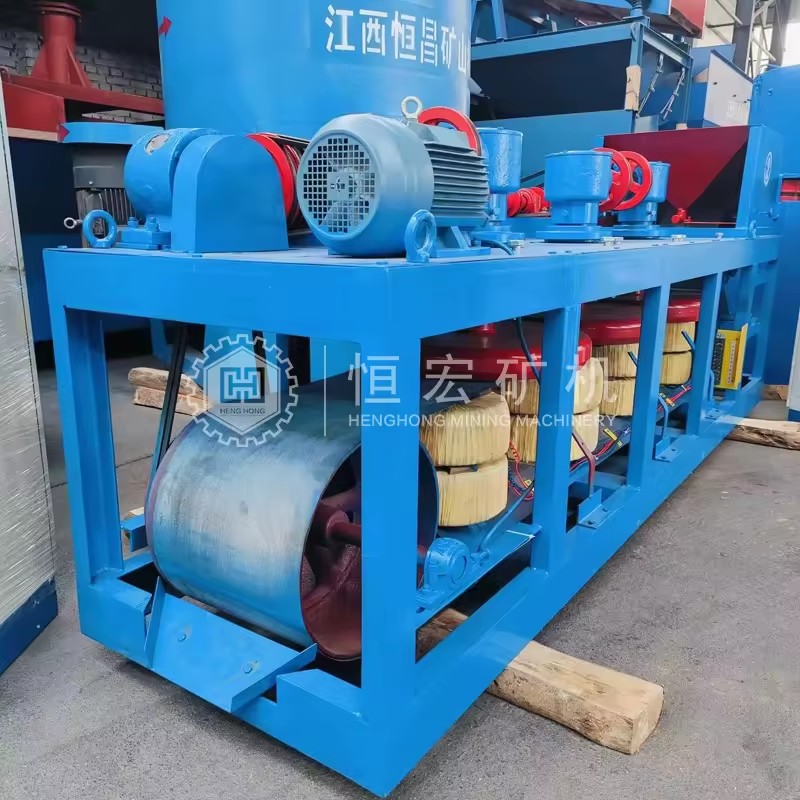

Product Importer Gallery 03 · ad237798bd

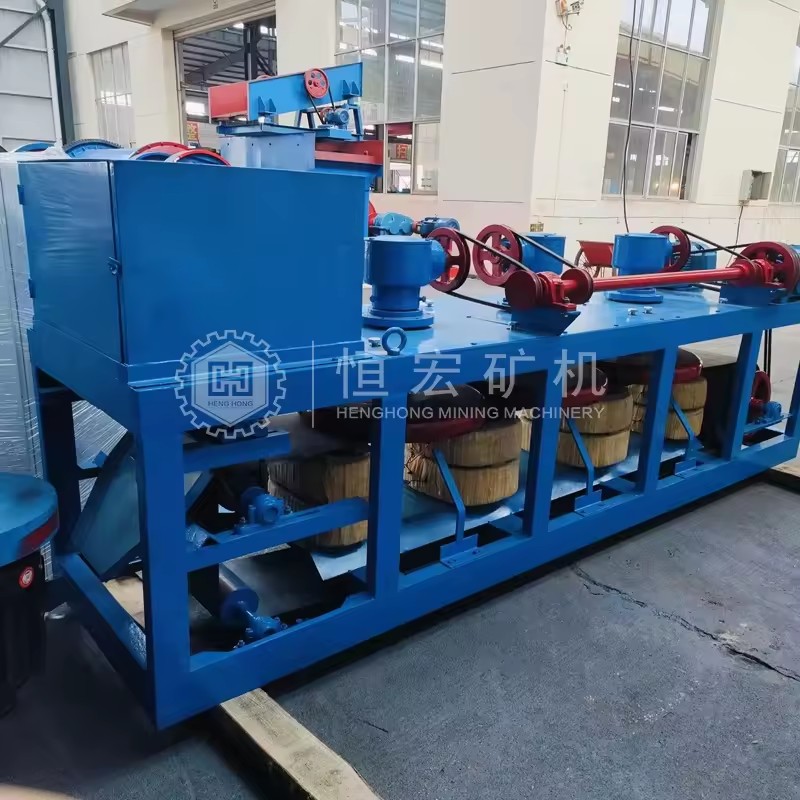

Product Importer Gallery 04 · 39dbf1880e

Product Importer Gallery 05 · ebaec74f02

Exceptional Tri-Disc Magnetic Separator for Precise Gold Separation Reliable On-Site Mineral Separator for Sand Gravel

Name: Exceptional Tri-Disc Magnetic Separator for Precise Gold Separation Reliable On-Site Mineral Separator for Sand Gravel
SKU: ADSD-EGAK-NQES
Price: 6410.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 6,410.00 6410.0 USD $ 6,410.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Magnetic Separator

Voltage

380V/220V Or Customized

Core components

Motor

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Three Disc Magnetic Separator Breif Introduction

Robust & Low Maintenance

Model	Unit	3PC-500	3PC-600	3PCX-600
Magnetic intensity	Hauteur	Distance to belt surface 2mm Disk teeth 1700	Distance to belt surface 2mm Disk teeth 1800	Distance to belt surface 2mm Disk teeth 2000
Number of magnetic disk	Piece	3	3	3
Diameter of magnetic disk	mm	500	600	600
Revolution of magnetic disk	r/min	25-40	22-38	22-32
Power supply	V	380	380	380
Exciting coil	Unit	4	4	4
Motor Power	kw	1.1	1.5	1.5
Exciting Power	kw	1.5	1.5	1.5
Coil temperature rise	ºC	65	65	65
Rated current of coil	A	1.1-1.8	1.2-1.9	1.2-2.2
Duty rating	Continuous	Continuous	Continuous
Feed width	mm	210	300	300
Feed size	mm	≤2	≤2	≤2
Processing capacity	kg/h	100-500	120-800	80-800
Outside Dimension	mm	2800×800×1220	3150×900×1250	3150×900×1250
Weight	kg	1900	2200	2300

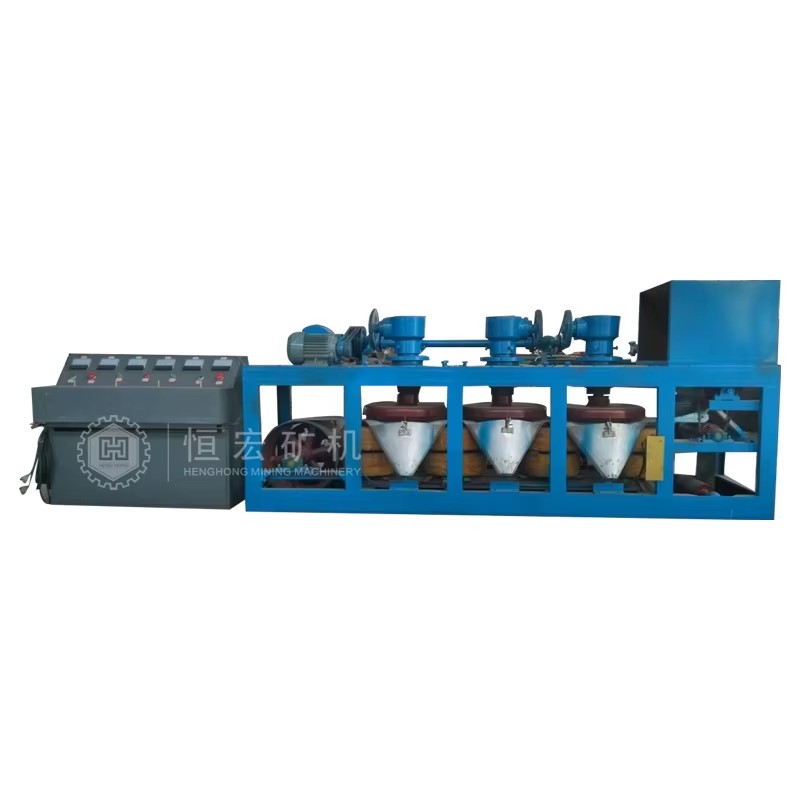

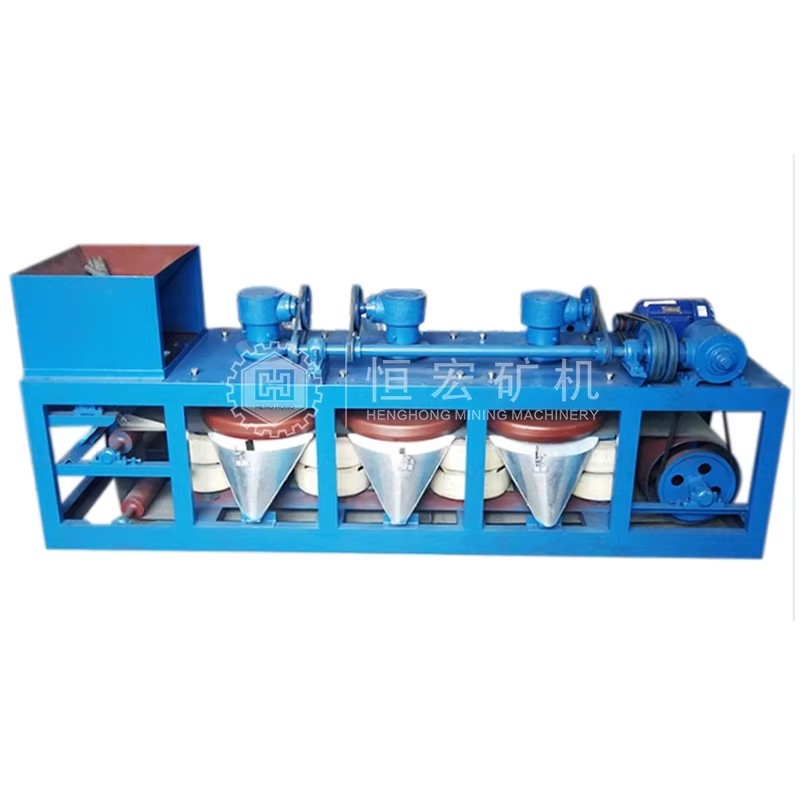

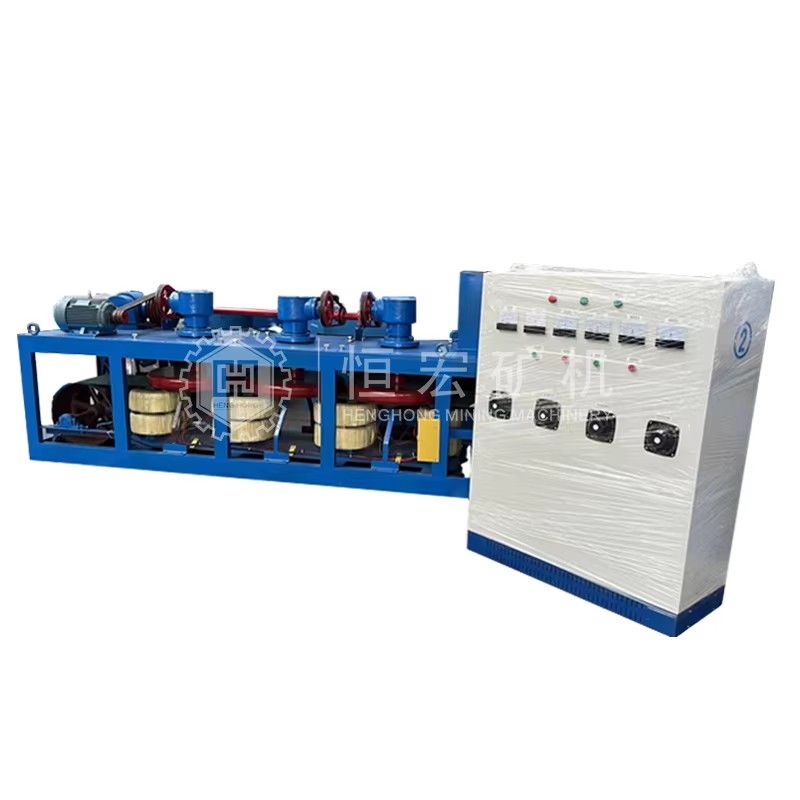

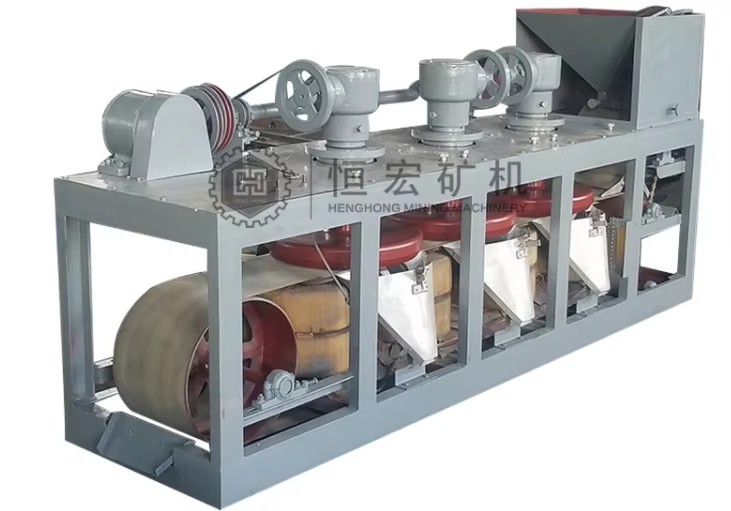

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Magnetic Separator

Voltage

380V/220V Or Customized

Core components

Motor

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

High Productivity

Production Capacity

98%

Place of origin

China, Jiangxi

Weight

1870 KG(4122.64lb)

Dimension (L*W*H)

2758*860*1670mm(108.58*33.86*65.75in)

Max feeding size

≤3mm

Capacity

150-550kg/h

Number of magnetic disk

3Pcs

MOQ

1 Set

Price

Negotiation before order

Color

as your request

Usage

Monazite, Use for separating Ilmenite, Tungsten, Tin, Iron ore

After-sales Service Provided

Video Technical Support

Popular Model

3PC 500 and 3 PC 600

Selling Units

Single item

Single package size

330X115X160 cm

Single gross weight

2150.0 kg

Model number

Three Disc Dry Magnetic Separator

Power (W) (Product option)

1.5KW+1.5KW

Lead time

31 days

Minimum order

1 Units
