KJ310 Mining Preparation Tunneling Drill Rig Vertical Inclined Horizontal Blast Hole Drilling Rig For Large Metal Mine

Name: KJ310 Mining Preparation Tunneling Drill Rig Vertical Inclined Horizontal Blast Hole Drilling Rig For Large Metal Mine
SKU: ACWT-MQJV-2SPB
Price: 221670.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 221,670.00 221670.0 USD $ 221,670.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

MINING TUNNEL JUMBO DRILL

Type

top hammer tunnel jumbo drill

Drilling Depth

Drilling Diameter

32-76, 42-102

Power Type

Diesel

Voltage

380 V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

Built for 25 Degree Inclined Roadways.

Automatic Impact Pressure Adjustment.

Automatic Drilling Completion Stop.

Integrated Hole Bottom Cleaning.

Optimized Hard Rock Face Coverage.

Anti Jamming Drilling Control.

Suitable for 12 to 35m² Sections.

Frequently asked questions

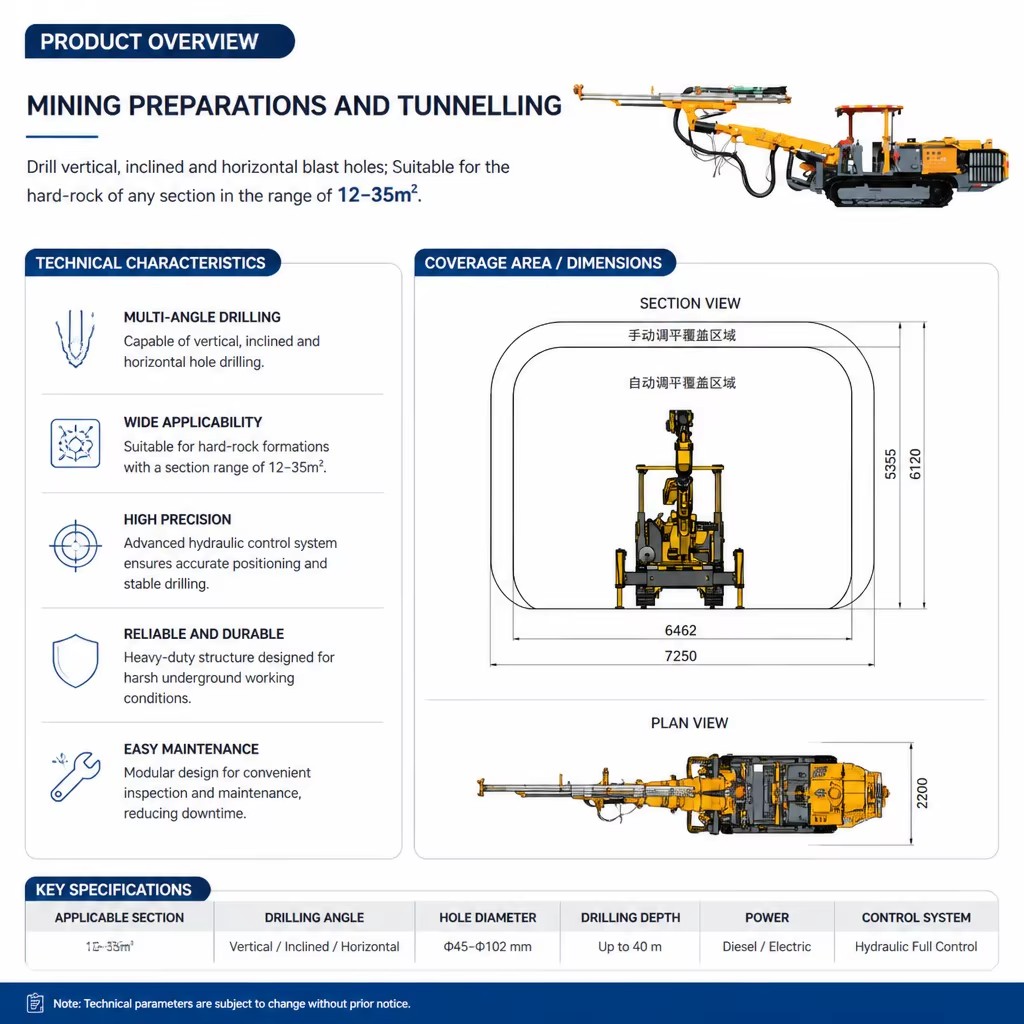

KJ310 heavy-duty tunneling rig is developed for medium and large hard rock mines, applicable roadway cross-section range from 12㎡ to 35㎡, suitable for main roadway excavation and full-section bolting operation.

KJ310 adopts heavy 13500kg body, 75kW high-power hydraulic station and triple high-power rock drifters; bigger coverage for wide tunnels, stronger climbing and drilling performance for hard rock, targeted at large metal mines.

Yes, K26F universal self-leveling boom supports wide-range positioning, it can complete deep blast hole drilling, side cross-cut excavation and full-face rock bolting with single machine.

Yes, complete air compressor, 4kW high-flow water pump and lubrication pump are integrated on machine body, no external air compressor trailer required, save underground transfer space.

It is equipped with FOPS & ROPS certified lifting safety canopy; dual-circuit hydraulic service brake + reducer multi-disc wet parking brake, plus full hydraulic anti-jamming and multi-fault auto alarm system.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

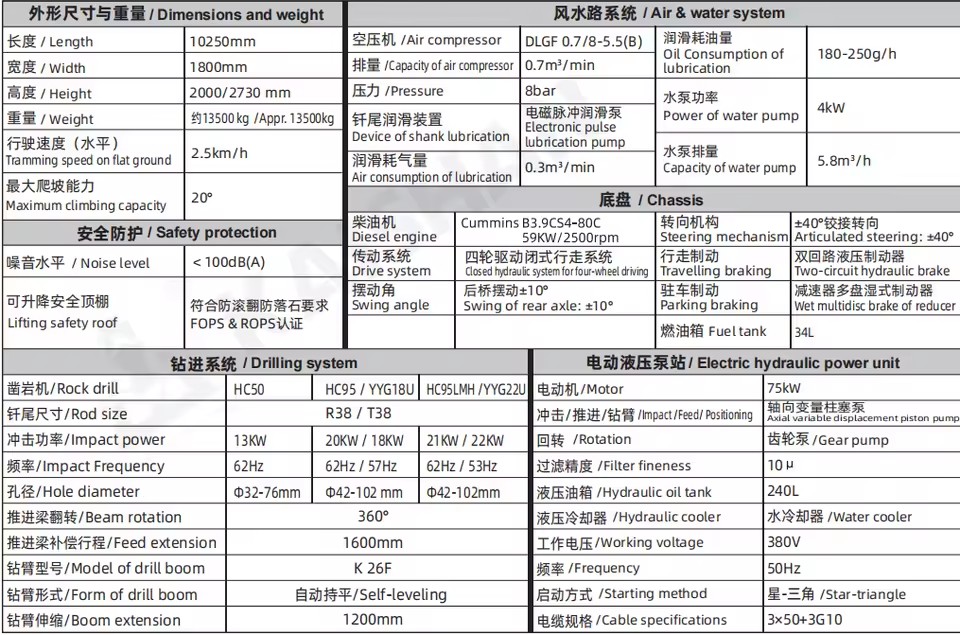

Technical specifications

Other details 23 fields

Usage

MINING TUNNEL JUMBO DRILL

Type

top hammer tunnel jumbo drill

Drilling Depth

Drilling Diameter

32-76, 42-102

Power Type

Diesel

Voltage

380 V

Core components

Motor, Engine

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

Zhejiang, China

Weight

13500 KG

Dimension (L*W*H)

10500*1800*2000/2730MM

Mobility

Crawler

Tramming speed

2.5km/h

Max climbing capacity

20°

Applicable roadway section

12m2 ~ 35m2

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

KJ310

Power (W) (Product option)

75kw

Lead time

30 days

Minimum order

1 Units
