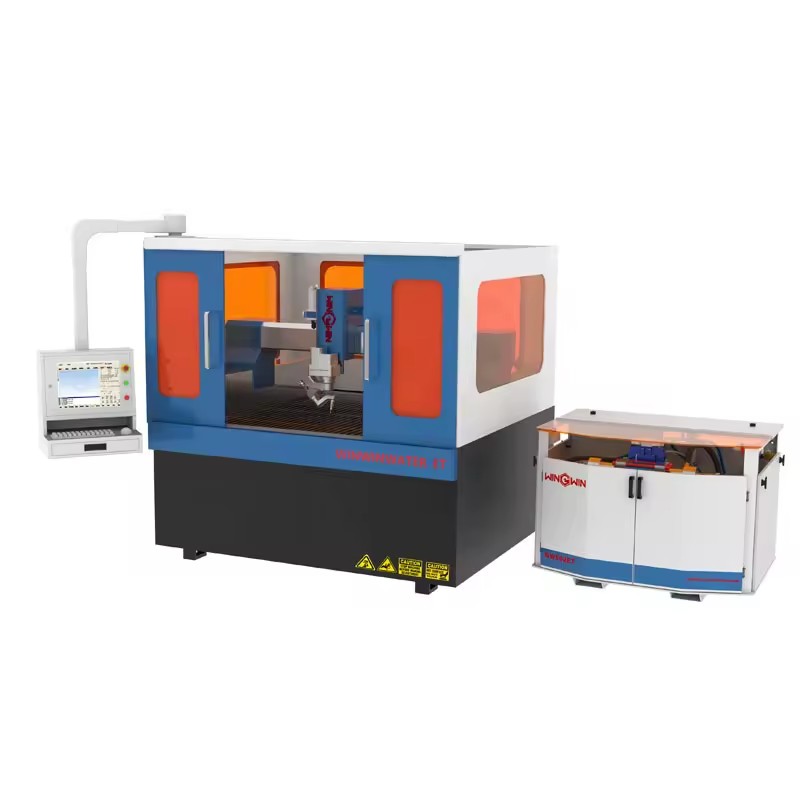

Good Quality 1010 AC 5axis Full closed Underwater Abrasive Waterjet Cutting Machine
Function
The function of an abrasive waterjet cutting platform with laser height measurement is to enhance the precision and efficiency of the cutting process. Here are the key functions and benefits
1. Precision Cutting: The laser height measurement system accurately measures the distance between the nozzle and the material surface, ensuring the optimal cutting distance is maintained. This leads to precise cuts with minimal material wastage.
2. Consistent Cutting Quality: By maintaining a consistent standoff distance, the laser system helps achieve uniform cutting quality across the entire workpiece, regardless of surface variations or irregularities.
3. Automation and Efficiency: The laser height measurement system automates the adjustment of the cutting head height, reducing the need for manual intervention. This increases operational efficiency and reduces the likelihood of human error.
4. Adaptability to Material Thickness: The system can dynamically adjust to changes in material thickness during the cutting process. This adaptability ensures that the cutting parameters are always optimal, even for materials with varying thicknesses.
5. Protection of Cutting Head and Nozzle: By preventing the nozzle from getting too close to the material surface, the laser height measurement system protects the cutting head and nozzle from potential damage caused by collision or excessive wear.
6. Improved Speed and Throughput: With precise and automated height adjustments, the cutting process can be performed at higher speeds without compromising on quality, leading to increased throughput and productivity.
7. Enhanced Safety: The automation of height adjustments reduces the need for manual setup and adjustments, which can enhance the overall safety of the operation by minimizing operator exposure to the high-pressure cutting environment.
Series
AC-3015 Water Jet
Type
Gantry Cutting Table
Cutting Angle
0-±68 Degrees
Control Accurcy
±0.01mm
Table Size
3800mmx2200mmx200mm
Travel Of Z Axis
200mm
Cutting Precision
±0.1mm
RE-Positioning Accuracy
±0.05mm/m
Cutting Speed
11000mm/min
Certificate
CE ISO
Motor
30kw / 40HP
After-sales Service
Installation Online Service
MAX.Cutting Range
3000mmx1500mmx200mm
Material
Stainless steel
Win-Win has been focusing on waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800square meters, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.
Q: What is the advantage of water jet cutting machine? A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine. Q: How to choose the cutting table? A:You need to offer the size of the materials you want to process or the size of the cutting table. Q:How to solve the incision problem of water cutting? A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. Q:Is the equipment easy to operate? A:WIN-WIN intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of CAD/G/DXF/ENG/PLT format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
Product Description
company supports color customization, this equipment is WW5060jet intensifier pump + 4020 AC 5 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation.
The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.
1.
Precision Cutting
The laser height measurement system accurately measures the distance between the nozzle and the material surface, ensuring the optimal cutting distance is maintained. This leads to precise cuts with minimal material wastage.
2.
Consistent Cutting Quality
By maintaining a consistent standoff distance, the laser system helps achieve uniform cutting quality across the entire workpiece, regardless of surface variations or irregularities.
3.
Automation and Efficiency
The laser height measurement system automates the adjustment of the cutting head height, reducing the need for manual intervention. This increases operational efficiency and reduces the likelihood of human error.
4.
Adaptability to Material Thickness
The system can dynamically adjust to changes in material thickness during the cutting process. This adaptability ensures that the cutting parameters are always optimal, even for materials with varying thicknesses.
5.
Protection of Cutting Head and Nozzle
By preventing the nozzle from getting too close to the material surface, the laser height measurement system protects the cutting head and nozzle from potential damage caused by collision or excessive wear.
6.
Improved Speed and Throughput
With precise and automated height adjustments, the cutting process can be performed at higher speeds without compromising on quality, leading to increased throughput and productivity.
7.
Enhanced Safety
The automation of height adjustments reduces the need for manual setup and adjustments, which can enhance the overall safety of the operation by minimizing operator exposure to the high-pressure cutting environment.
AC 5 axis cutting head
Swing angle ±68°, absolute encoder control system.
AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts
Choice a suitable intensifier pump
WW5060JET intensifier pump is highly versatile intensifier pump, American imported core components, Sandvik high pressure pipelines,Omron PLC electrical components. This pump is a basic, economic intensifier pump, widely used in the market, large wearing parts seller, simple to use, the pressure can be up to 330Mpa, often used in marble cutting, metal cutting, glass cutting, rubber cutting and other industries.
17-inch industrial display, placed in the CNC control shield, good protection, wireless keyboard, mouse and wireless remote control handle, speed can be adjusted under any circumstances, large memory capacity, no delay, smooth operation
