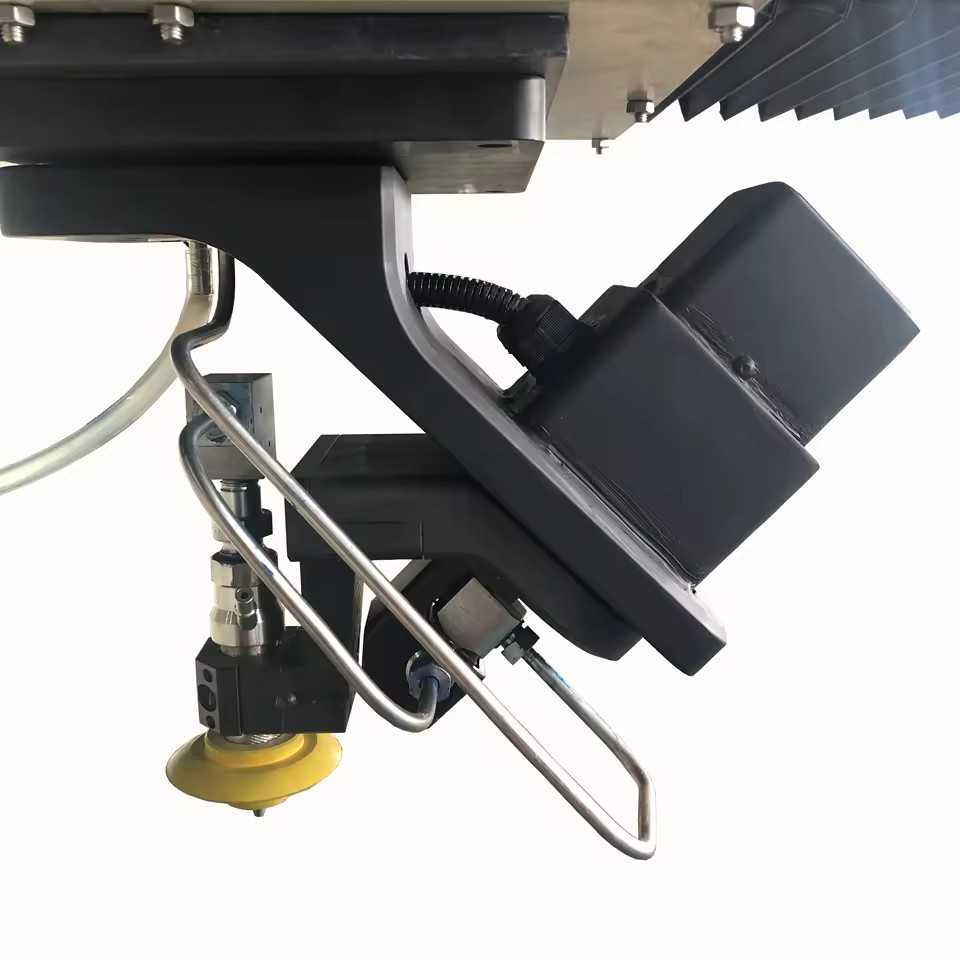

Name: AC 5 Axis Waterjet Water Jet Cutting Head 45 Degree Dynamic 3D Cutter Head
SKU: B2B-2529
Price: 40670.0 USD
Availability: PreOrder

Product description

Big five axis dynamic cutting head

Effect of cutting data (the big 5 axis).

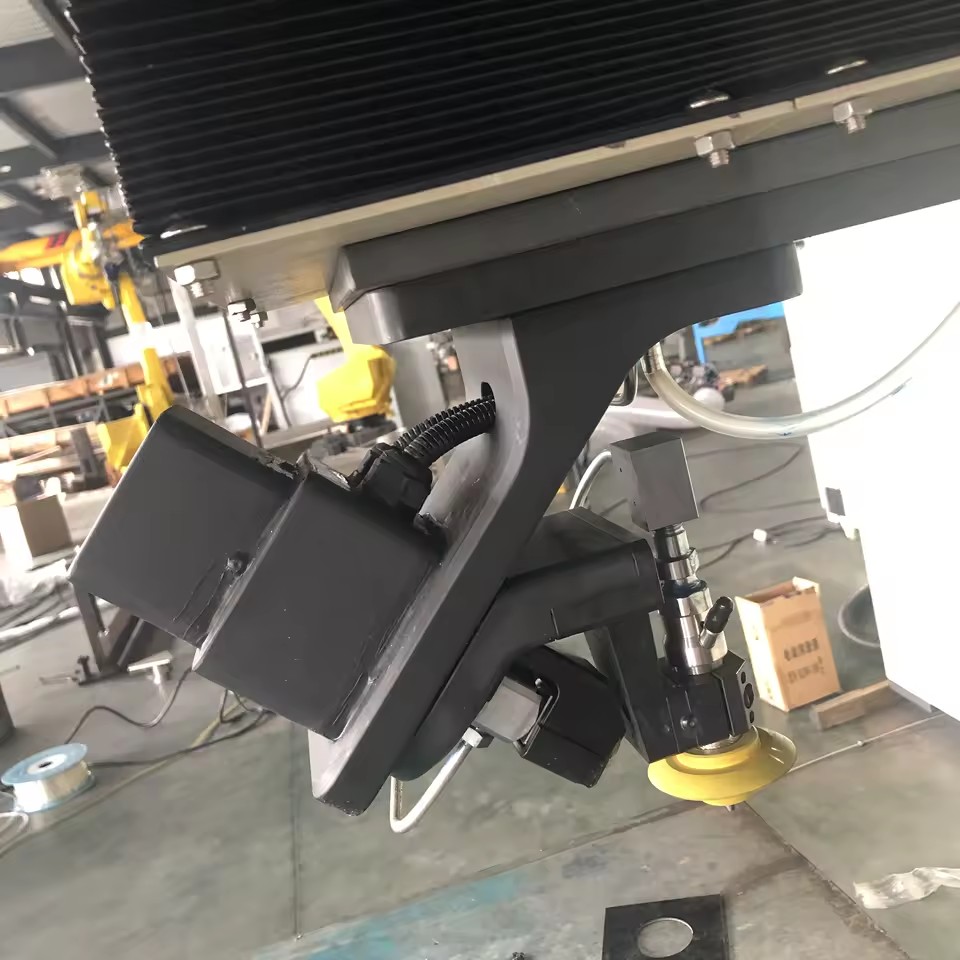

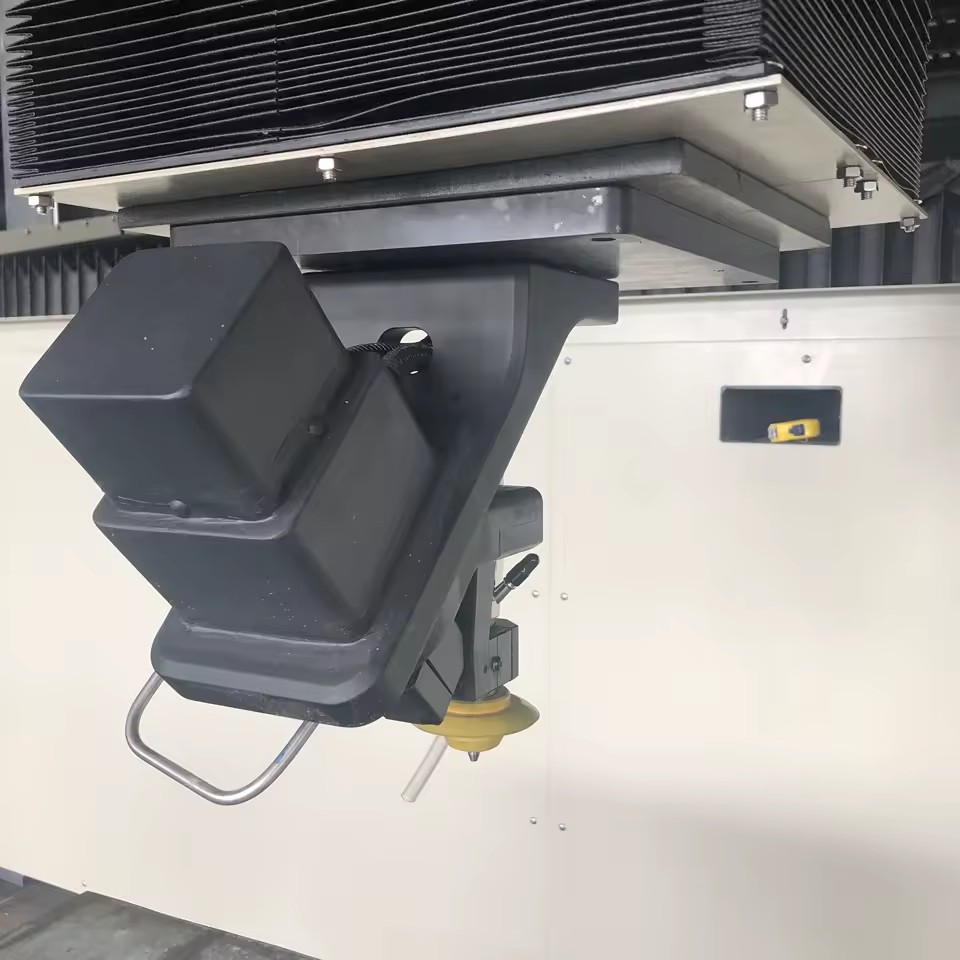

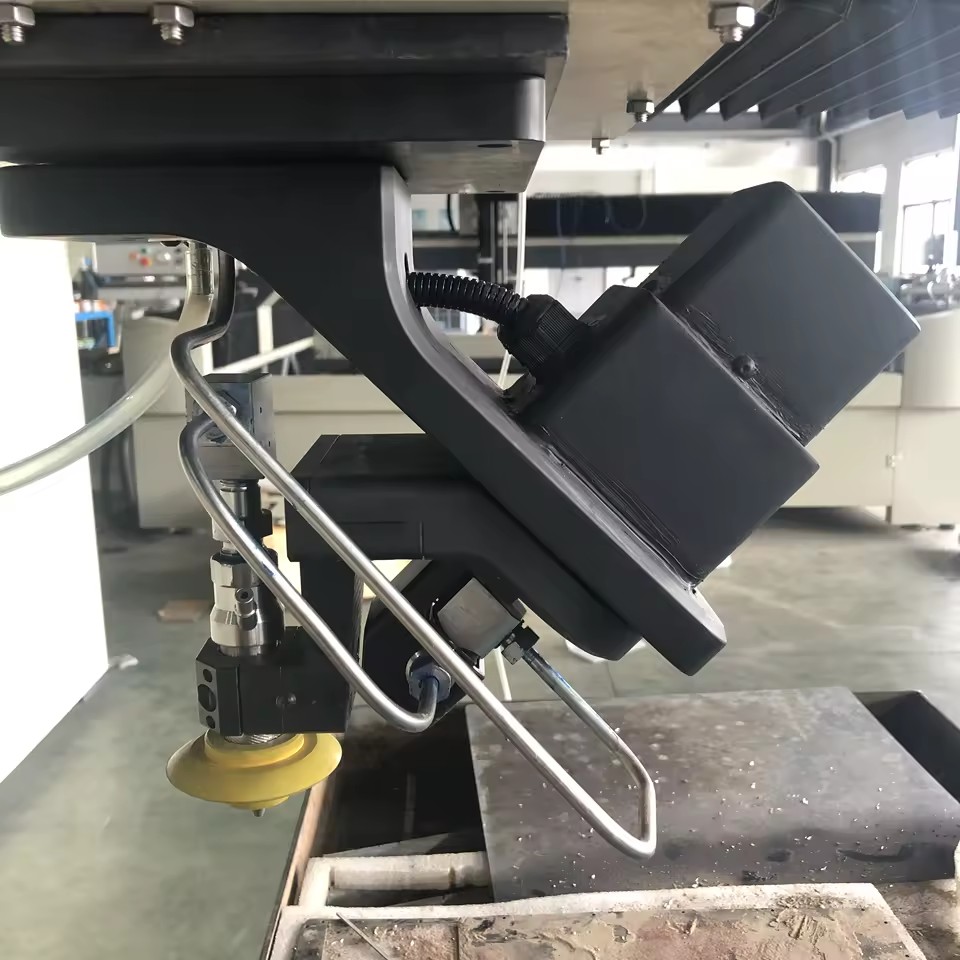

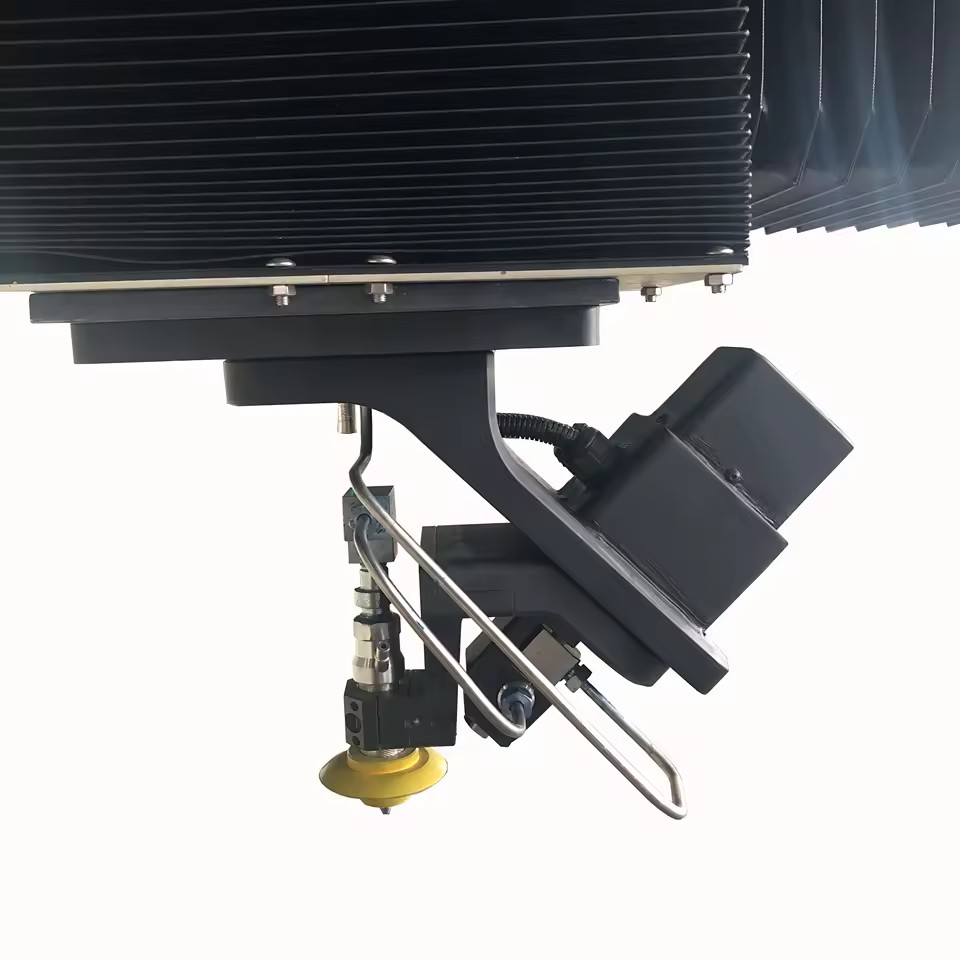

Five-axis dynamic cutting head

C/B Accuracy

C-axis

B-axis

Rotary Axis Travel

±270°

±90°

±0.2°

Rotary Positioning Repeatability

Maximum Rapid Traverse Speed

90°/sec

Maximum Control Speed

Accuracy Tests at 10° Increments Tram ±0.005 in.Taken on 39.4 in. diaCircle with 4 readings every 90° apart

B-Axis Program range is ±180°, Effective tilt is ±90°

Products Description

1. Advantages

Operation simple and cost savings. YH's system operate simple and convenient, Can be cut any design and creative graphics.

2. Safety

Does not produce dust and poisonous gas, We provide comprehensive security measures.

3. Help manufacturers to develop new markets

a) five-axis dynamic water cut is very suitable for the current flat cutting customers or other previously thought traditional

abrasive water jet cutting technology is not accurate too slow or too expensive use. For the existing water jet users to develop new markets.

b) five-axis dynamic water jet can under the high speed, Produce higher quality of the work piece. And traditional water jet can produce high quality of the work piece under low speed. Five-axis dynamic water jet produces better than the traditional water jet cutting quality and work piece geometry.

4. Improve productivity

Five-axis cutting head to a maximum of 61 degree Angle of the cutting, cambered surface cut maximum to 81 degrees

Compared with the traditional plate cutting machine, Work piece cutting speed can increase 25% to 400%, And

25 MM thick steel plate up and down the difference between the single edge not greater than 0.06 MM.

a) Faster cutting speed to improve the cutting tolerance and geometric shapes, Reduce the work piece cost

The real work piece laminated ability, Remain consistent between layers of tolerance, without secondary processing.

b) Can cut all kinds of different materials: Such as metal, stone, glass and composite materials

c) Easy programming and operation, Do not need special training and knowledge requirements. Any use of cutting the patterns of the CAD files and documents.

Related Products

WaterJet Spare Parts.

Recommended by seller

€5.27

piece

€100.89-105.28

€74.57

€87,728.60

€10,966.08-11,404.72

€4,385.56

€263.19

€394.78

€39.48-40.36

Waterjet cutting machine

Certifications

Company Profile

The company's brand "YH water jet" CNC machine has several years of experience in product research and development, high-precision electronic equipment manufacturing, and machining. In view of the current uneven technology and process status of hydraulic cutter CNC machine tools, it has continuously studied, improved and successfully developed the hydraulic cutter CNC machine tools in Microelectronics industry, and applied the world's advanced visual automatic alignment platform technology in water cutting On the equipment, the accuracy, efficiency and cutting performance of "YH water jet" water cutting equipment are improved better.

and exploit the essence of all water knives, and provide the best solution for users according to the needs of customers, and provide perfect supporting services.

Payment and Delivery

Why Choose Us

1, Research and Development

The company has also set up an ultra-high pressure DR center, employing the technical personnel of the original well-known domestic and foreign water knife cutting companies as the research and development personnel, and hired the famous materials The doctoral work of the university provides technical support.

2, Production

We have our own factory, which is located in Jiaxing, Zhejiang. We directly produce orders for customers, control the cost, the price more competitive.

Service

take the concept of "customer first, quality first", and exploit the essence of all water knives, and provide the best solution for users according to the needs of customers, and provide perfect supporting services.

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 27 fields

Voltage

210-240/360-420V 50HZ

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Pump, Cutting head, 5 axis cutting head

Machinery test report

Not Available

Warranty

3 Months

Video outgoing-inspection

Not Available

Key selling points

Competitive Price

Rated power

22kw

Place of origin

China, Shanghai

Weight (kg)

20 KG

Cutting accuracy(mm)

0.01

Name

Waterjet 5 axis cutting head

Application

Industrial Metal Cutting

Control system

CNC Controller

MOQ

1 Piece

Feature

Ultra High Pressure

Type

waterjet cutting machine parts

Function

Big five axis

Certification

CE Certificate

Pump Type

Waterjet Pump

Waterjet Function

Cutting Parts

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

AC 5 axis

Effective cutting range (mm)

4000×2000, 6000×2000

Lead time

20 days

Minimum order

1 Units
