Name: AC 5-Axis 4m*2m 3.5m*2.5m CNC Waterjet Cutting Machine High Precision Waterjet Cutting Machine for Stone Marble Tile Cutting
SKU: B2B-1862
Price: 59360.0 USD
Availability: PreOrder

Product description

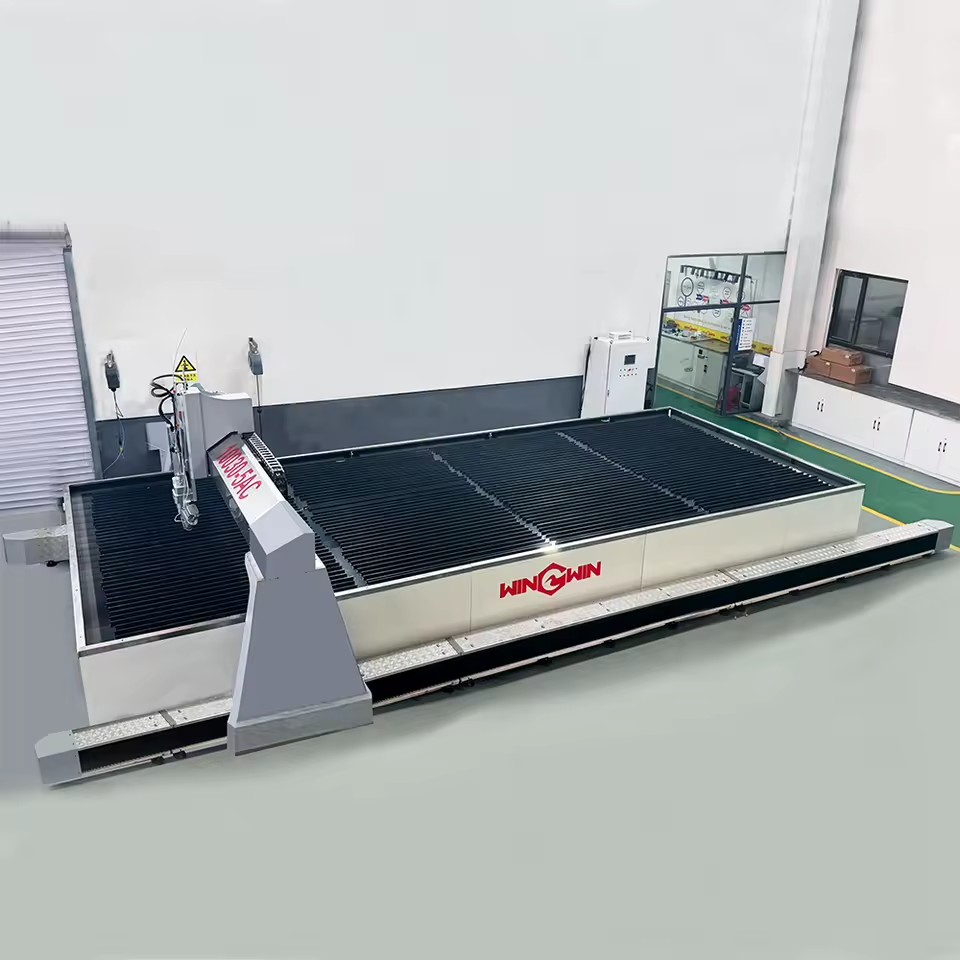

AC 5 Axis CNC Waterjet Cutting Machine

AC 5 Axis Waterjet Cutting Table

Type

Gantry

Effective Working Area

X-Axis 4000mm, Y-Aixs 2000mm, Z-Axis 200mm

Max. Swivel Angle

±68°

Swivel Angle Resolution

±0.01°

Cutting Accuracy

0.1mm

Control Accuracy

0.01mm

Repeatability of Positioning

0.025mm

Max. Travel Speed

10000mm/min

SL-VI 50HP Intensifier Pump

Voltage

380V / Customize

Rated Power

37KW /50HP

Max. Operating Pressure

420Mpa / 4137Bar / 60,000Psi

Max. Discharging Rate

3.8L/min

Orifice Diameter

0.33mm or others

Nozzle Diameter

1.02mm or others

Oil Tank Volume

210L

Product Description

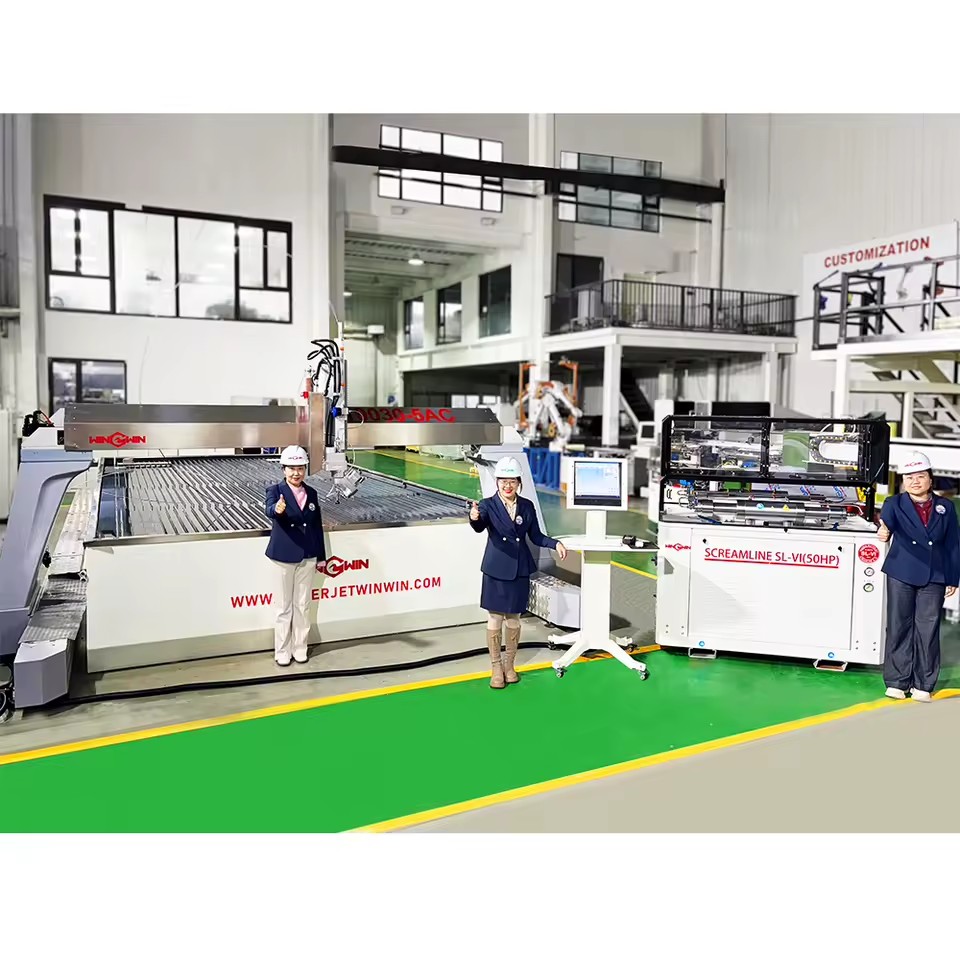

The whole set waterjet cutting machine equipped with AC 5 axis cutting head, 4000mm x 2000mm cutting table, the WW5060JET intensifier pump, WEIHONG CNC control system, 200KGS abrasive feeder, industrial chiller and also the water soften system.

A. High-Quality Cutting Head

Aluminum AC-5aixs waterjet cutting head, light weight but high hardness, lighten gantry running load, relatively fast walking speed, higher cutting efficiency.

Fully Oil-Immersed Linear Guide

WW4020-5A adopts thick linear guides and large screw balls. The X, Y axis adopts the self-made oil-immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.

C. Integrated Stainless Steel Bath

The table is made of fully stainless steel, anti-rust, anti-corrosion, bright as new for 10 years.

D. The cutting table size can be customize.

High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can purchase the corresponding parts in any waterjet machine market.

B. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked

and prolong the service life of the Intensifier Pump.

C. Double-Level Water-Filtration System

WW5060JET adopts double layers of water filtration in low pressure water transport to remove hard metal elements from industrial water. The waterjet is less likely to produce scale, protecting important high pressure components and extending the service life of the entire Waterjet Cutting Machine.

D. 1.4L Large Capacity Accumulator

1.4L capacity accumulator, eliminate the fluctuation of the cutting, integral forging, no rubber seals, maintenance-free.

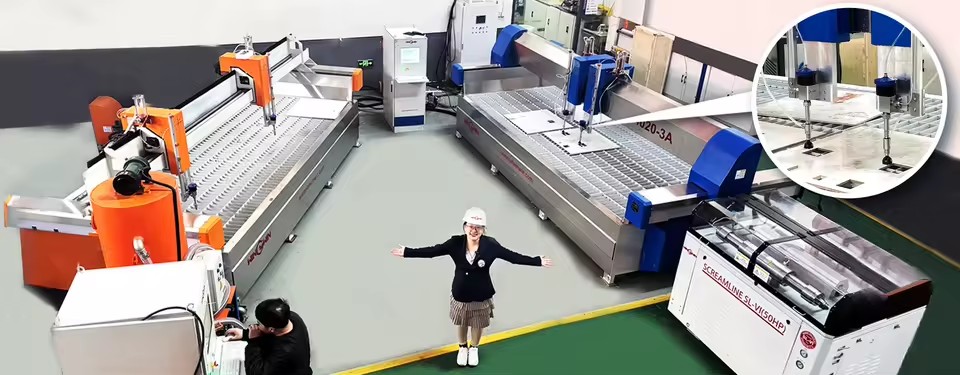

Dual-cutting head waterjet cutting machine

The industrial chiller adopts automatic temperature control, which can meet continuous operation 24 hours a day.

Adopts shell-and-tube two-device linkage technology, low vibration, low noise, high-efficiency heat exchange material, and high energy efficiency ratio.

Use a water filtration system to remove calcium and magnesium ions from water to prevent scaling.

Good water quality will not only increase the life of the seal but also prolong the reliability and life of the nozzle, orifice

high pressure seal etc. resulting in more efficient cutting.

Optional Devices

Abrasive Removal System

When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each

other.

The device can be installed within 10m of the waterjet cutting machine.

The flow rate can reach 162L/min.

The abrasive removal rate is more than 90%.

During the entire abrasive removal process, the filtered water continues to be discharged into the water sink, and the water sink

does not need to be replenished after abrasive removal.

Waterjet Parts Warehouse

Our Company

Win-Win waterjet is specialized in designing, researching, developing, manufacturing and selling of high-pressure waterjet cutting system, robot waterjet cutting machine, portable waterjet cutter and also waterjet spare parts. In the past 20 years, Win-Win have developed a huge sales and a strong technical team. Provide high-quality after-sales and technical services. manufacture robot waterjet cutting station, fully enclosed waterjet cutting machine, intensifier pump, portable waterjet cutting machine and waterjet accessories. We have more than 20 patented technologies. also have a high credit line in. With CE, ISO and SGS certification, Win-Win is the main platform for global customization of waterjet cutting business. Provide cutting solutions for 3000 customers around the world.

Exhibition & Customer Visit

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Voltage

380V or customized

Number of axes

5 Axis

Repeatability (x/y/z) (mm)

0.025mm

Core components

cutting table, CNC control system, Intensifier Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

5500mm x 2600mm x2250mm

Key selling points

Multifunctional

Rated power

37KW

Place of origin

China

Weight (kg)

5000

Table travel (x) (mm)

4000

Table travel (y) (mm)

2000

Table travel (z) (mm)

200

Cutting accuracy(mm)

0.1mm

Application

Material Cutting

Condition

New

Certification

CE ISO

Type

CNC Water Jet Cutter

Cutting mode

Cold Cutting Waterjet Cutting Machine

Max pressure

420Mpa

Intensifier

60,000/90,000psi

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

WW4020-5A

Effective cutting range (mm)

4000×2000, Customizable

Lead time

30 days

Minimum order

1 Units
