Cnc Water Jet Granite Stone Cutting Machine Water Jet Cutting Machines Prices Water Jet Cutter

Product description

waterjet：compact structure, no sparc and not produce thermal deformation or heat effect.

Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.

HEAD2040BA cover a wide range of cutting areas. The cutting systems are designed in a portal design with a gantry drive. Depending on requirements and application, Water-Jet systems can be offered with additional equipment options.

The main parts of water jet cutting machine

Separated body between cutting table and load-bearing platform prevents interfering cutting accuracy from long-term stress variation to load-bearing platform.

Motor and ball screw are directly connected by flexible coupling. It can absorb vibration energy reversible and with higher drive accuracy compared with other torsional rigid coupling

The machine body is with casting structure and concrete structure. The metal parts have been specially processed to eliminate traces of deformation and to maintain long-term mechanical precision.

X beam of cutting table applies the one-off extrusion forming aluminum alloy, the most advanced technology in water jet cutting machine,light weight,strong steel,not deformed.

Model

HEAD4020BA

Working area

4000*2000mm

Max running speed

15m/min

X/Y positioning accuracy

0.05mm/min

X/Y repeating positioning accuracy

±0.02mm/min

Max beveling degree (A-axis)

±45°

Max rotary degree(C-axis)

±720°

Angel accuracy

0.01°

Power

220/380/400/415/480V-50/60HZ-3PH

Applicable cutting material

Sincered stone, Marbel, Ceramic Mild steel, stainless steel, aluminium, brass, copper

Cooling model

Air cooling/Water/Oil cooling

Our Service

1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. * The seller will provide technical guide online via

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

5. We will take photos for you to confirm that all machine and accessories have been packed, and record the loading and unloading methods

Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

Product Description

Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut

rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.

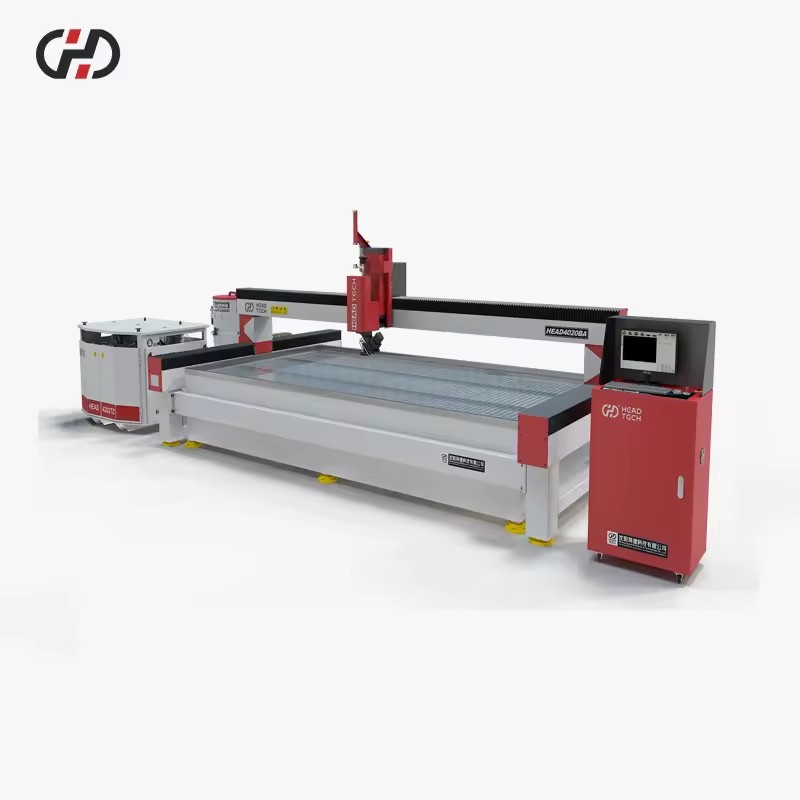

HEAD4020BA CNC ultra-high pressure water cutting machine is a high-performance gantry type large-stroke CNC ultra-high pressure water cutting machine, which has good stability and adaptability. Its unique gantry structure is especially suitable for cutting

marble/countertops/metal plates

. All parts of the equipment are designed and manufactured in line with international standards. Each equipment has undergone 130 quality inspections, and the product performance is stable. 130 quality inspections and 72-hour durability tests before leaving the factory ensure the stable performance of the cutting machine, and the service life of key components can reach 100,000 hours.

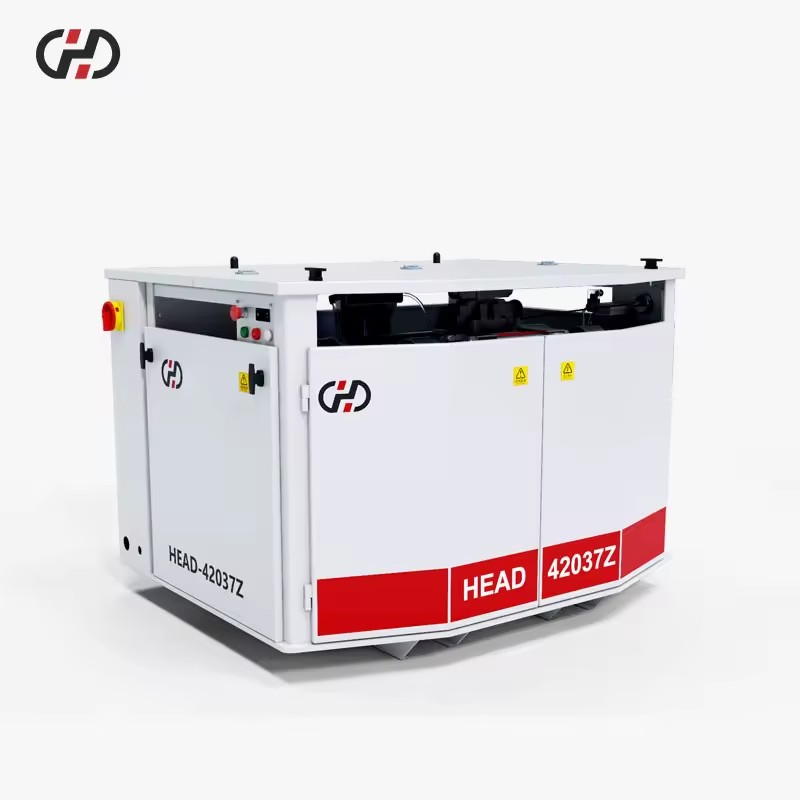

60000 psi high pressure pump

• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.

• Main heart of Supercharger, "Intensifier" is "".

• User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.

• All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.

• Use special water cutting machine software, a day to achieve a comprehensive grasp

•Non-standardized model design customization，Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db.

Specification

Sincered stone, Marbel, Ceramic

Mild steel, stainless steel, aluminium, brass, copper

Cutting Samples

Service & FAQ

1. Maintenance free of charge for

12 months.

2. We will provide the consumable parts at an agency price.

3.

24 hours online service

free technical support.

* The seller will provide technical guide online via

4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.

5. We have manual instruction and

Videos for software Installation

operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training

including working principle of machine, Auto CAD drawing, common problems and solution, etc

Company Profile

Packing & Delivery

1. Our

Wooden Case

is after fumigation treatment. Needn't timber inspection,saving shipping time.

2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3. The outmost is Wooden Case With Fixed Formwork.

4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

5.

We will take photos for you to confirm that all machine and accessories have been packed, and record the loading and unloading methods

Before delivery

we would do the test about

20-30

working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
