New Style 3-Axis Glass Water Jet Cutter Abrasive Waterjet Cutting Machine

Waterjet Rubber Cutting

Series

3Axis-3015 Water Jet

Type

Gantry Cutting Table

Cutting Angle

0 Degrees

Control Accurcy

±0.01mm

Table Size

3800mmx2200mmx200mm

Travel Of Z Axis

200mm

Cutting Precision

±0.1mm

RE-Positioning Accuracy

±0.05mm/m

Cutting Speed

11000mm/min

Certificate

CE ISO

Motor

30kw / 40HP

After-sales Service

Installation Online Service

MAX.Cutting Range

3000mmx1500mmx200mm

Material

Stainless steel

Q: What is the advantage of water jet cutting machine? A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine. Q: How to choose the cutting table? A:You need to offer the size of the materials you want to process or the size of the cutting table. Q:How to solve the incision problem of water cutting? A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. Q:Is the equipment easy to operate? A:WIN-WIN intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of CAD/G/DXF/ENG/PLT format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Win-Win has been focusing on waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800square meters, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.

Product Description

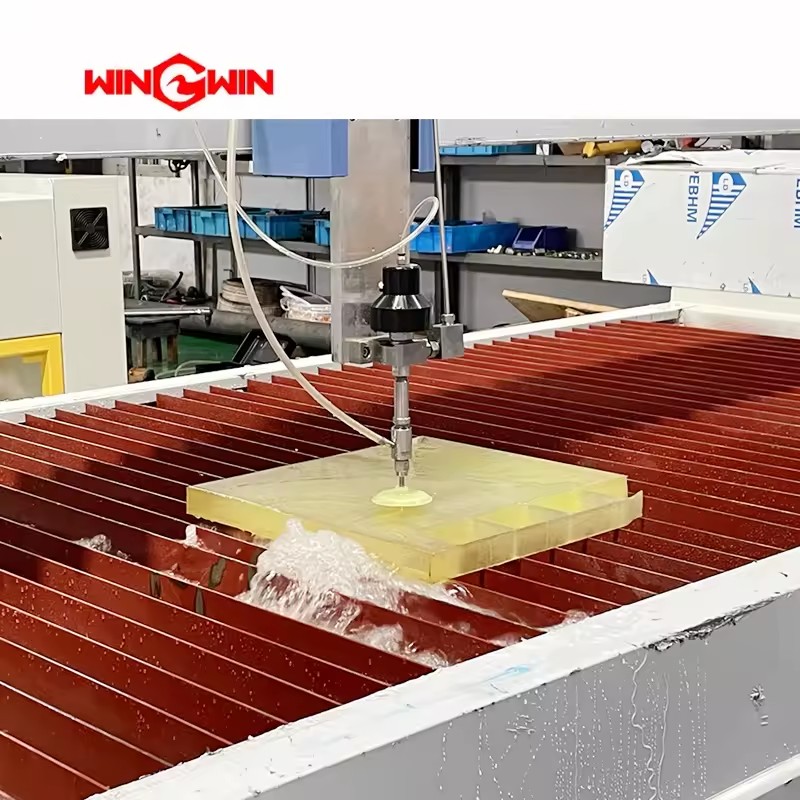

Cutting a piece of rubber is now easy with the water jet cutting process. The abrasive waterjet cutting has the potential to deal with rubber items of any thickness. Moreover, it also slices through the rubber-backed metals. Thus, cut your rubber sheets using the water jet and make your manufacturing process easier

Water jet cutting is the best method to deal with both white and colored marbles. It helps in giving any shape to the piece of marble.

Abrasive waterjets are ideally suited for tough and lucrative applications for any metal cutting. More than just common materials of mild steel and aluminum, abrasive waterjets easily cut titanium, Inconel, brass, and tool steel

3 Axis 3015 Waterjet Cutting Machine

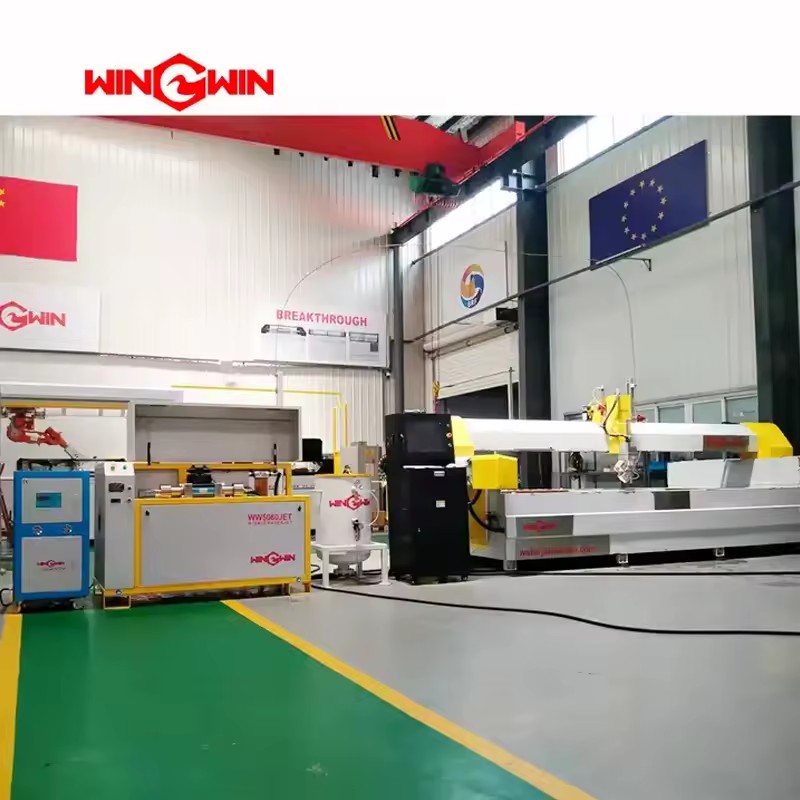

3 axis 3015 waterjet cutting equipment, is basic waterjet cutting machine,suitable for cutting metal, glass, rubber etc, equipped with WW5060JET intensifier pump,industrial chiller, water softening system and abrasive system.

3015 gantry cutting platform is oil-immersed structure, with all stainless steel protection, advanced technology, accuracy cutting and reliable. please

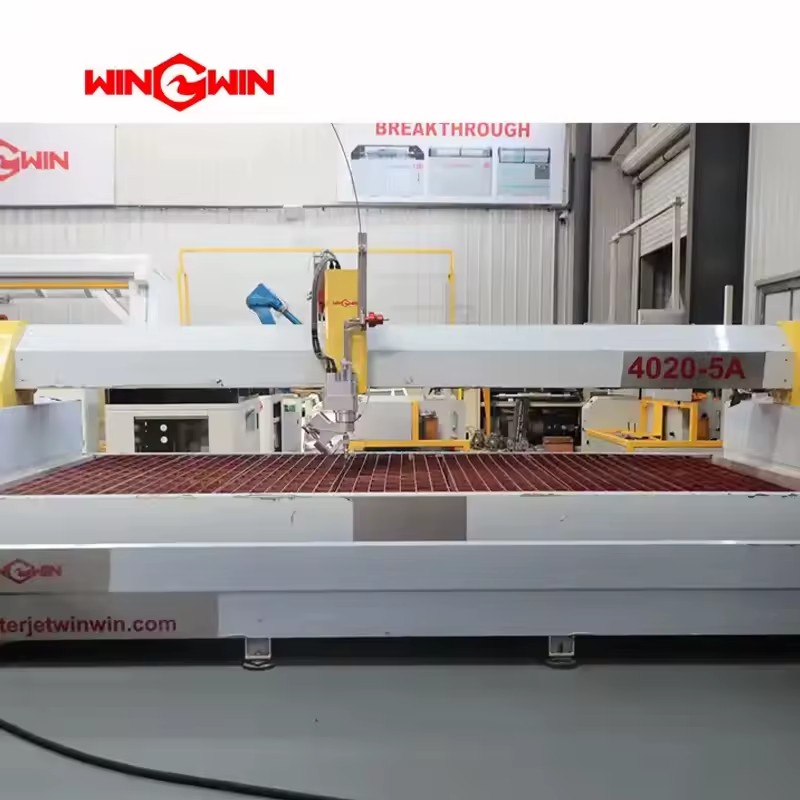

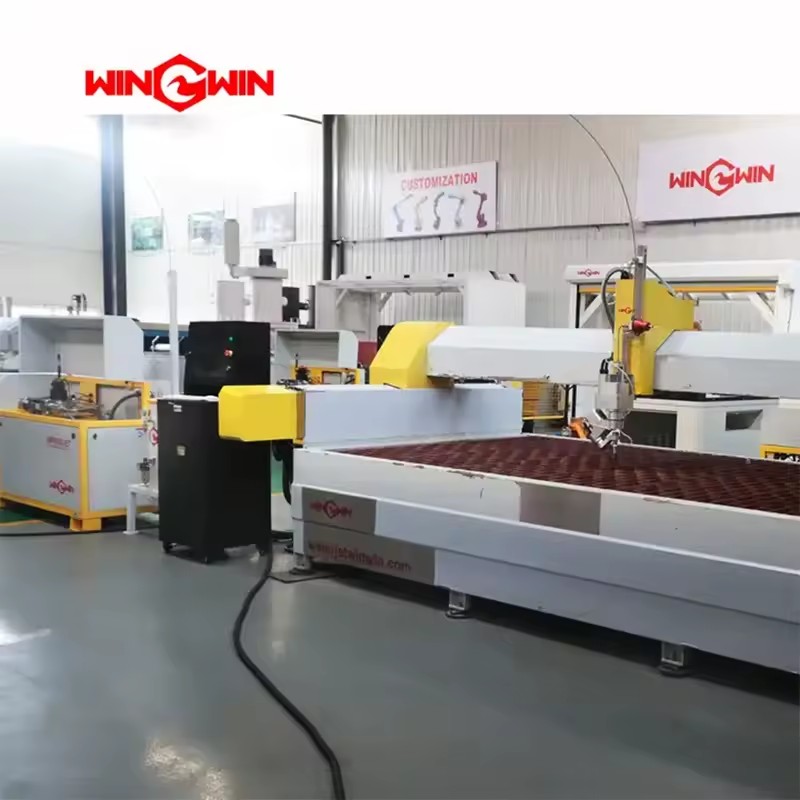

Gantry structure waterjet cutting table

The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

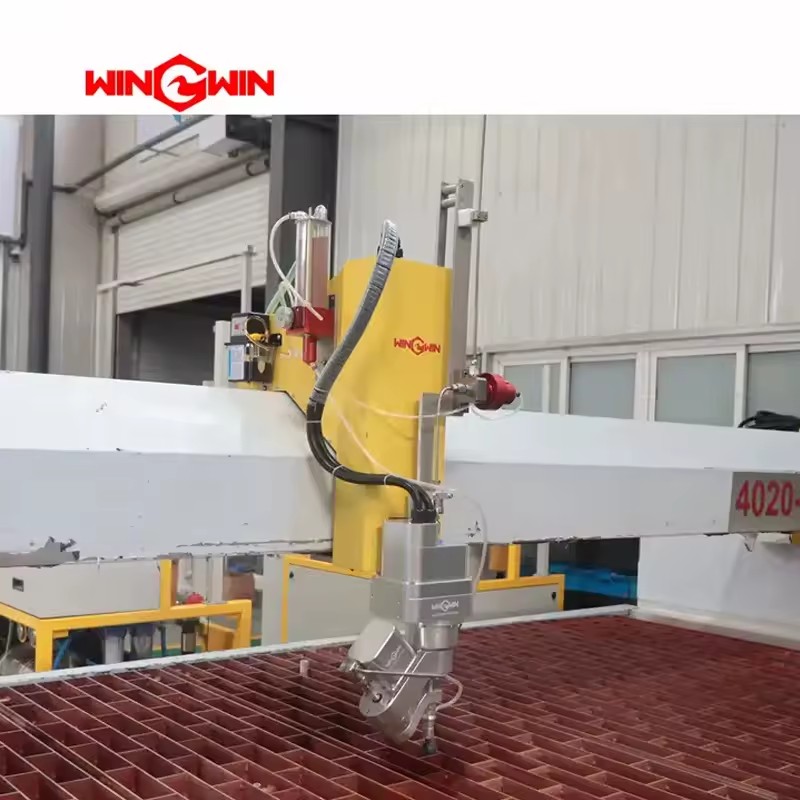

3 axis cutting head

3 axis waterjet cutting head has high efficiency, fast cutting speed, vertical cutting, the cutting head has no vulnerable parts such as rotating shaft, simple and practical, suitable for vertical cutting r pressure control water switch valve, effectively improving the service life of water switch valve needle.

Choice a suitable waterjet intensifier pump

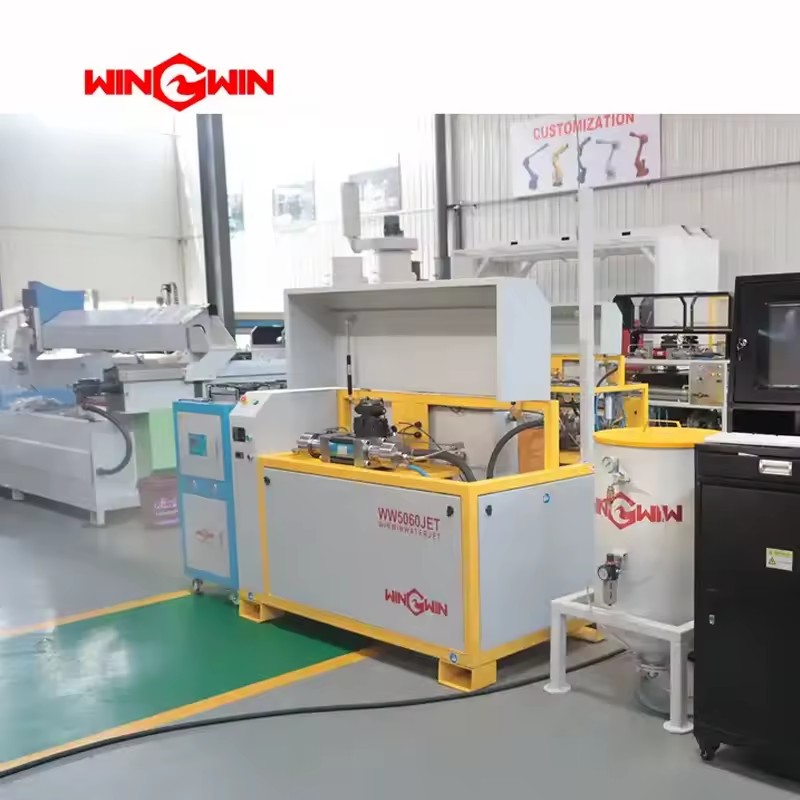

WW5060JET intensifier pump is highly versatile intensifier pump, American imported core components, Sandvik high pressure pipelines,Omron PLC electrical components. This pump is a basic, economic intensifier pump, widely used in the market, large wearing parts seller, simple to use, the pressure can be up to 330Mpa, often used in marble cutting, metal cutting, glass cutting, rubber cutting and other industries.

Weihong CNC control system

17-inch industrial display, placed in the CNC control shield, good protection, wireless keyboard, mouse and wireless remote control handle, speed can be adjusted under any circumstances, large memory capacity, no delay, smooth operation

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A:WIN-WIN intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of CAD/G/DXF/ENG/PLT format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
