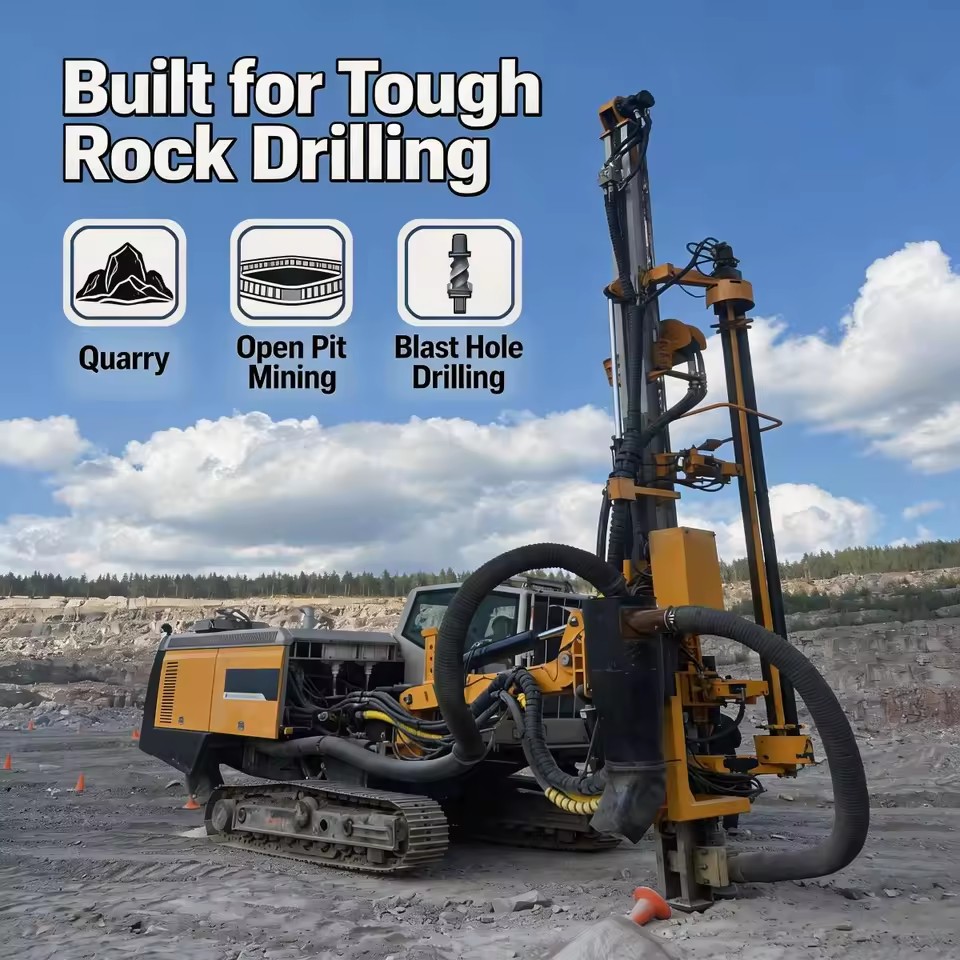

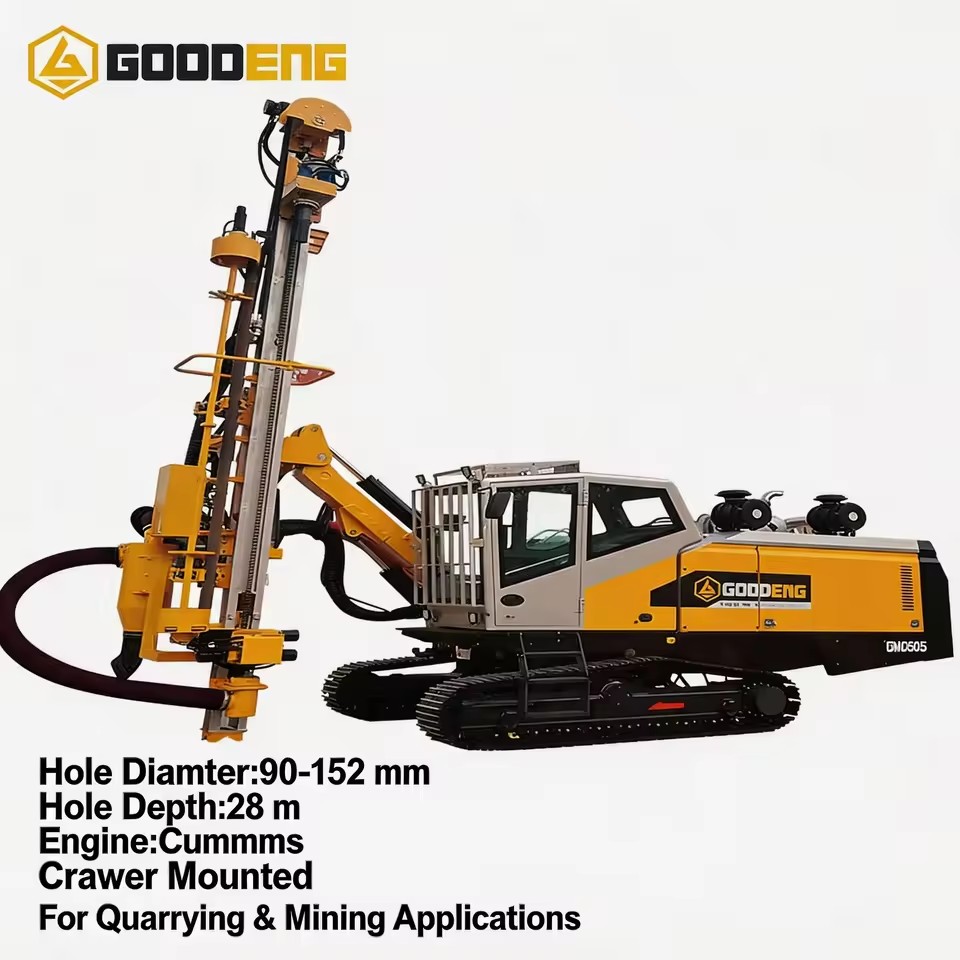

Machine GMD50S Durable Surface Rock Drilling Rig Down-the-hole DTH Drill Rig for Mining and Surface Drilling

Product Importer Gallery 01 · 0251d8517e

Product Importer Gallery 02 · 5252a80b2d

Product Importer Gallery 03 · 947223d420

Product Importer Gallery 04 · aa91032deb

Product Importer Gallery 05 · 82a8c46dc7

Product video

Machine GMD50S Durable Surface Rock Drilling Rig Down-the-hole DTH Drill Rig for Mining and Surface Drilling

Name: Machine GMD50S Durable Surface Rock Drilling Rig Down-the-hole DTH Drill Rig for Mining and Surface Drilling
SKU: A6TC-NJQS-3DTV
Price: 271720.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 271,720.00 271720.0 USD $ 271,720.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Ore

Type

dth drill rig

Drilling Depth

28m

Drilling Diameter

90-152mm

Power Type

Diesel

Voltage

24 V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$2,900-3,000 / set

Hole diameter	Φ90-152 mm
DTH hammer	3"/4"/5"
Rod changing system	Storage capacity	6+1
Drill rod diameter	89 mm
Drill rod length	4 m
Max. Hole depth	28 m
Hydraulic rotation head	Rotation speed	0-115 rpm
Drilling torque	2040 N·m
Max. Rotation torque	3500 N·m
Engine	Rated power	264kW/2200 rpm
Emission Standard	国四/ stage Ⅲ
Fuel tank	550 L
Two-stage air compressor	Max. Working pressure	21 bar
Max. Displacement	20 m³/min
Drill boom type	High strength single straight boom
Aluminum alloy feed beam Steel wire rope oil cylinder propulsion	Total length	7132 mm
Traval length	4500 mm
Feed extension	1400 mm
Max. Feed rate	0.93 m/s
Max. Feed force	30 kN
Max. Tractive pull	40 kN
Adjustable flat chassis	Traveling speed	1.5/3.0 km/h
Max. Traction force	120 kN
Gradeability	25°
Track oscillation	±10°
Ground clearance	420 mm
Transportation Conditions	Weight	16000 kg
Size（L×W×H）	9700×2400×3500 mm

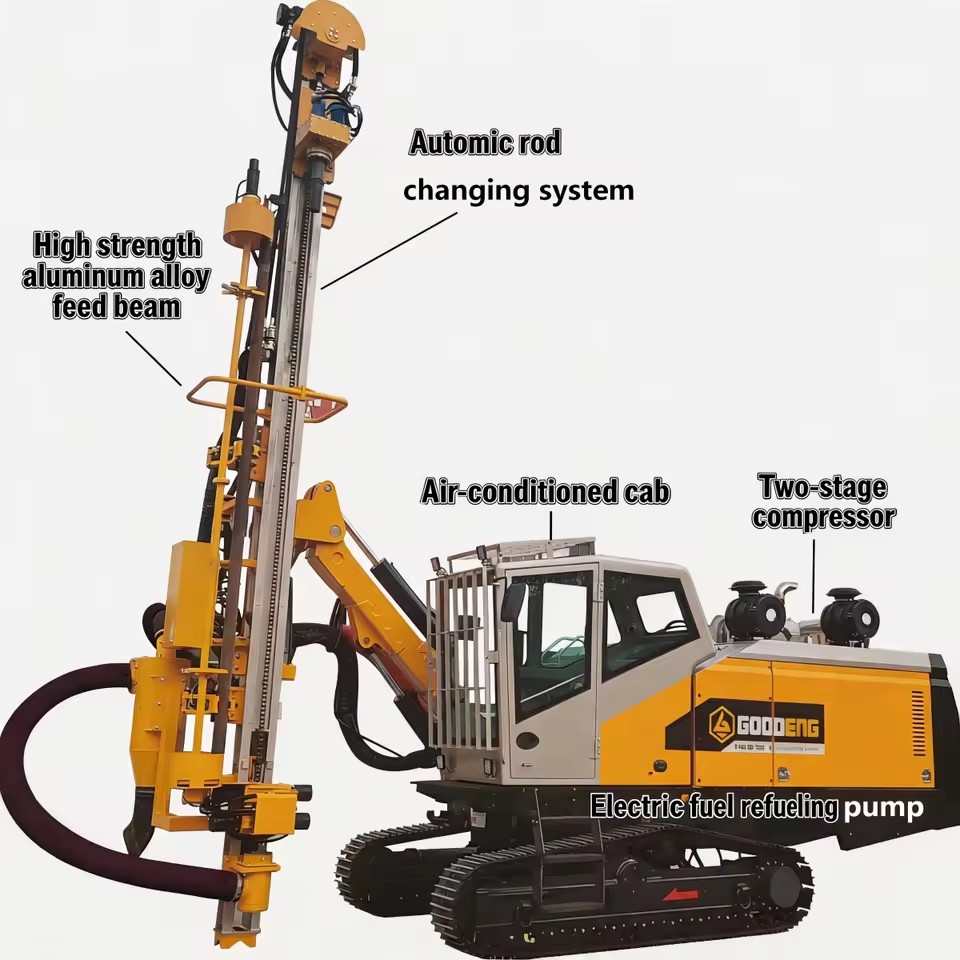

MAIN COMPONENTS
STANDARD CONFIGURATION	Cummins Engine Power 264 kW	High strength aluminum alloy feed beam
Two-stage air compressor 20m 3/min 21bar	Dual speed hydraulic traveling motor
Automatic rod changing system	Electric fuel refueling pump
Dry dust collector with automatic filter cleaning	Air-conditioned cab
OPTIONAL COMPONENTS	Remote management system	Wet dust collection system
Automatic depth measurement	Centralized lubrication system
Wireless remote control walking	Heavy duty intake filter
Automatic anti-jamming system	Automatic fire extinguishing system
Panoramic reverse system	Plateau package anti-freeze system

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Usage

Ore

Type

dth drill rig

Drilling Depth

28m

Drilling Diameter

90-152mm

Power Type

Diesel

Voltage

24 V

Core components

Motor, Engine, Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Multifunctional

Place of origin

China, Shanghai

Weight

16000 KG

Dimension (L*W*H)

9700*2400*3500mm

Mobility

1.5/3.0 km/h

Drill rod length

4 m

ROTATION SPEED

115 rpm

Max. rotation torque

3500 Nm

Rated power

264kW/1800rpm

Max. working pressure

21 bar

Max. Feed rate

0.93 m/s

Max. feed force

30 kN

Max. Tractive pull

40 kN

Drill boom type

High strength single straight boom

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

GMD50S

Power (W) (Product option)

264kW/1800 rpm

Lead time

10 days

Minimum order

1 Units
