Product video
Certifications CE

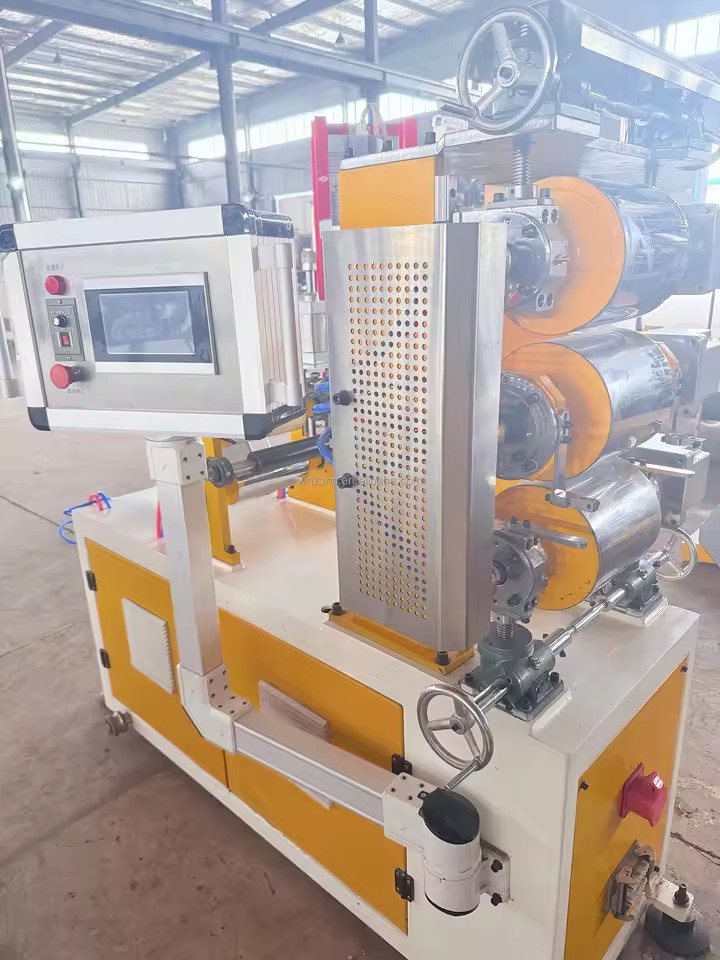

Small Co-rotating Parallel Single Screw Extruder Three Roller Calendering Unit Lab Digital Pelletizing High Automation for

Available for enquiry 0.0 · 0 reviews
USD

$ 44,870.00 44870.0 USD $ 44,870.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Application
Profile, Plates, Wire, Granules, Sheet, Pelletizing, XPS Foam
Plastic processed
PE, HDPE, LDPE, PVC, EVA, Polylactic Acid, TPU
Extruder type
single screw
Screw diameter (mm)
90
Voltage
Customized
Screw L/D Ratio
22:1
Product description

Highlights at a glance

  • A laboratory parallel twin-screw extrusion and calender line is a high-precision, small-scale system designed for R&D, material testing, and pilot production of plastic sheets, films, or ribbons. This integrated system combines the high-shear compounding capabilities of a parallel co-rotating twin-screw extruder with the precise shaping and finishing of a multi-roll calender stack.
  • 1. Technical Specifications & Components: The line is modular, allowing for specific configurations based on material requirements (e.g., standard polymers vs. high-temperature engineering plastics).
  • 1) Twin-Screw Extruder a. Design: Parallel co-rotating screws (diameters typically 12-25mm) with a modular "building block" barrel for customized shear profiles. b. Output: Lab-scale throughput from 1-15 kg/h.
  • 2) Calender Unit
  • a. Roll Stack: 3-roll or 2-roll vertical/horizontal polished chrome rollers for precise thickness control.
  • b. Temperature Control: Independent water or oil heating/cooling for each roller to manage polymer solidification and surface finish.
  • c. Gap Adjustment: High-precision manual or motorized nip adjustment for uniform sheet gauge.
  • 3) Downstream Equipment
  • a. Die: Wide flat-sheet "T-die" for uniform melt distribution.
  • b. Take-off & Winder: Constant-tension rollers and winding stations for collecting the final film or sheet onto a core.
  • 2. Working Principle
  • 1) Feeding & Compounding: Raw polymer and additives are fed into the parallel screws, where co-rotation provides high shear to effectively melt and disperse components.
  • 2) Extrusion: The homogenized melt is forced through a flat die, transforming the cylindrical flow into a wide, thin ribbon.
  • 3) Calendering: The hot ribbon enters the nip between calender rolls. These rolls simultaneously set the final thickness, provide a smooth surface finish, and cool the material to a solid state.
  • 4) Collection: The solidified sheet is pulled through a take-off unit and rolled up or cut into pieces for testing.
    • Certifications & compliance
    CE
    Complies with EU standards
    Frequently asked questions

    (1)We have complete system of designing of extrusion equipment, so customize is available. (2)We can provide perfect extrusion management solutions and extrusion equipment. (3)We could make you in a leading position in the industry.

    You should prepare raw material, workshop, water line, electric line, compress air(if you need I can help you buy air compressor). We would supply workshop layout drawing for you.

    First of all, we will test the machine before shipment. we will send our engineer to your factory to assemble and adjust the machine, and teach your operators to use the machine in the right way.

    Within one year after installation under normal condition operation.
    Description images
    Product detail
    Product detail
    Product detail
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 31 fields
    Application
    Profile, Plates, Wire, Granules, Sheet, Pelletizing, XPS Foam
    Plastic processed
    PE, HDPE, LDPE, PVC, EVA, Polylactic Acid, TPU
    Extruder type
    single screw
    Screw diameter (mm)
    90
    Voltage
    Customized
    Screw L/D Ratio
    22:1
    Screw Material
    38CrMoALA
    Key selling points
    Automatic, Easy To Operate, Competitive Price, Multifunctional, High-Accuracy, Long Service Life, High Productivity, High Safety Level, Eco-Friendly, Energy Saving, Low Noise Level, Flexible Manufacturing, Digital
    Video outgoing-inspection
    Provided
    Warranty
    1 Year
    Core components
    Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other, Screw
    Screw Design
    Double-screw
    Screw Speed (rpm)
    70
    Place of origin
    China
    Weight (kg)
    2000
    Dimension(L*W*H)
    Customized
    Name
    Lab Extruder & Calender
    Usage
    Experiment
    Raw material
    PVC TPO HDPE Powder
    Screw Type
    twin screw
    Automatic grade
    High Automation
    CONTROL
    Simens PLC+Touch Screen
    Processing Type
    Extruding Equipment
    After Warranty Service
    Online support Video technical support
    Cooling way
    air cooling
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Output (kg/h)
    0-10
    Model number
    lab
    Certifications & Compliance
    CE
    Lead time
    30 days
    Minimum order
    1 Units
