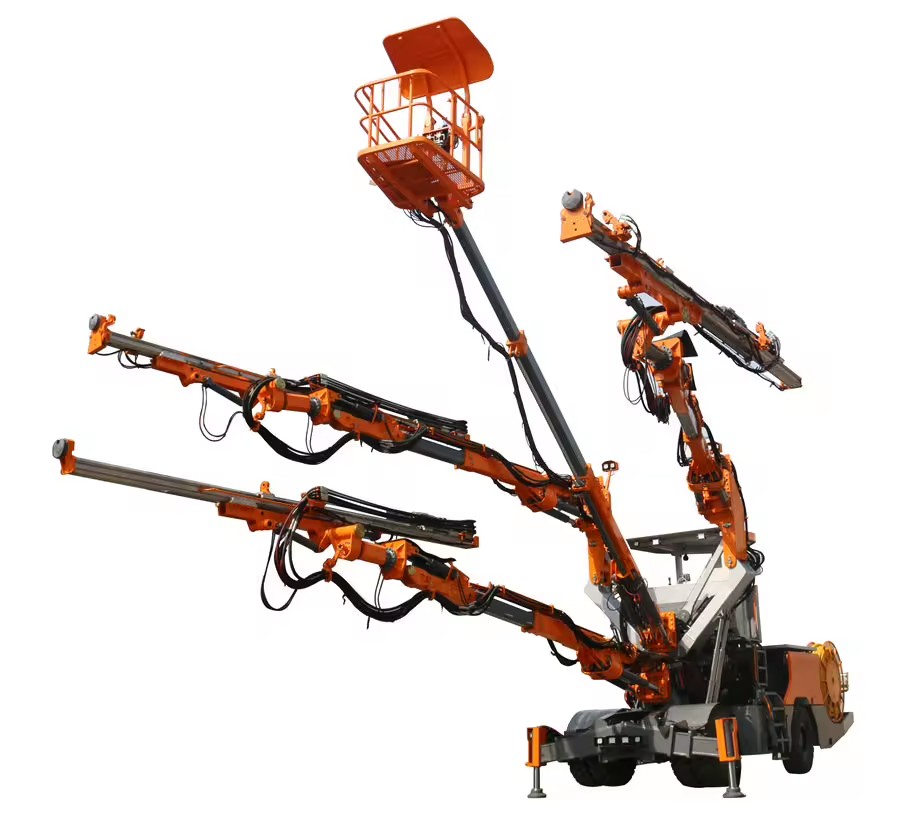

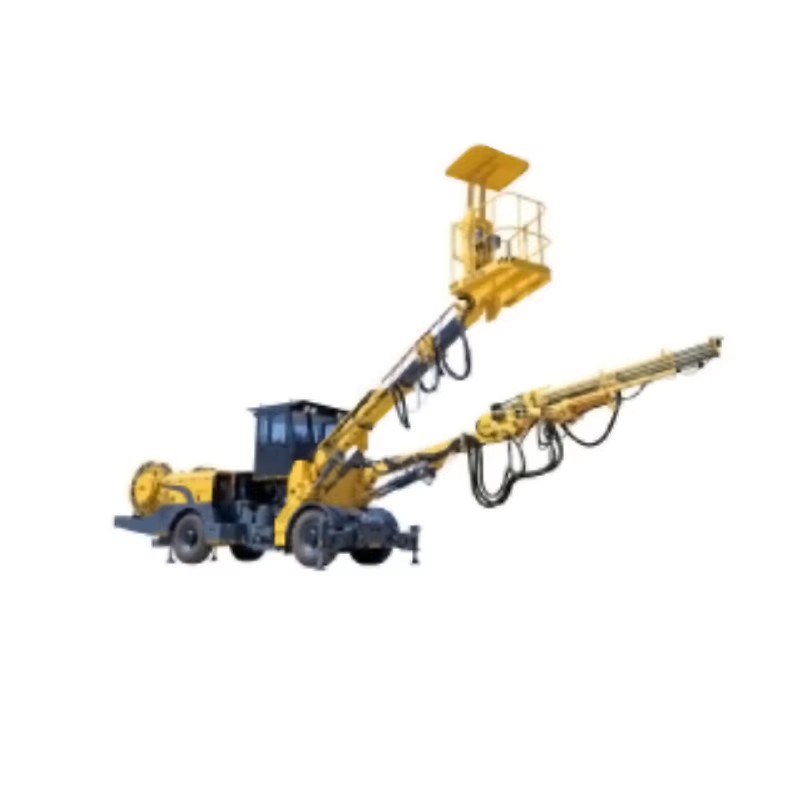

New Product Diesel-Powered Mine Rotary Drilling Rig with Engine & Gearbox 220V for Sale

Available for enquiry 0.0 · 0 reviews
USD

$ 71,520.00 71520.0 USD $ 71,520.00

Not Available For Sale

Minimum order quantity: 2 Units

Key attributes

View all
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m, 5300mm
Drilling Diameter
102mm(4.02in), 43mm(1.69in)
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Product description

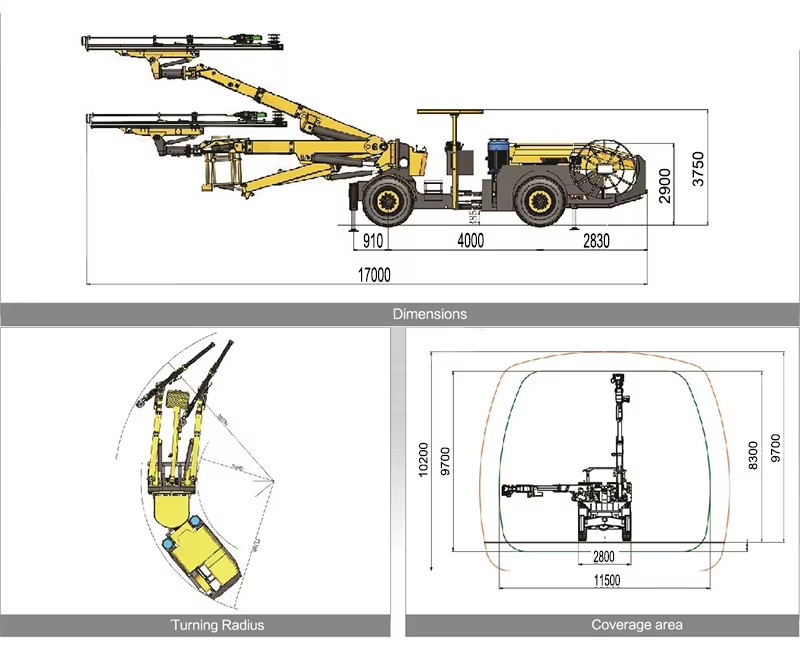

Basic parameters of double arm rock drilling rig - AZT2-9700
Main parameterParameter values
Size17000*2800*2900/3750mm
Excavation height9700mm
Drilling diameterφ38mm-φ45mm
Drill pipe length5525mm
Drilling depth5300mm
Drilling speed0.8-2m/min
Motor power55*2KW
Fuel tank capacity600L
Overall weight33000kg
Rock drilling power head model1838ME
RotationPositive 135 ° Reverse 225 °
Swing arm45 ° left and right
Travel compensation1800mm
Main arm stroke1600mm
Sliding rail swing angle2 ° elevation and 90 ° elevation
Diesel engine power129kw
Turn±40
Tires14.00-24
Climbing ability≤17°
Rear axle swing angle±10°
Approach angle/departure angle20°/17°
Walking speed15km/h
Ground clearance350mm
Fuel tank capacity120L
Air compressor flow rate1m³/min
Pressure0.3-0.6MPa
Air compressor motor power7.5KW
Water pump flow rate10m³/h
pressure0.2-0.8MPa
Pump motor power4.5kw
Main parameterParameter values
Battery rate2x12v
Driving lighting24v
Work lighting220v
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 2 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m, 5300mm
Drilling Diameter
102mm(4.02in), 43mm(1.69in)
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Fujian
Weight
3300 KG(7275.25lb)
Dimension (L*W*H)
17000*2800*2900mm(669.29*110.24*114.17in)
Mobility
15km/h
Excavation height
9700mm
Drill pipe length
5525mm
Drilling speed
0.8-2m/min
Rotation
Positive 135 ° Reverse 225 °
Swing arm
45 ° left and right
Travel compensation
1800mm
Main arm stroke
1600mm
Sliding rail swing angle
2 ° elevation and 90 ° elevation
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
AZT2-9700
Power (W) (Product option)
55*2 KW(73.76*2.68hp)
Lead time
30 days
Minimum order
2 Units
