SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

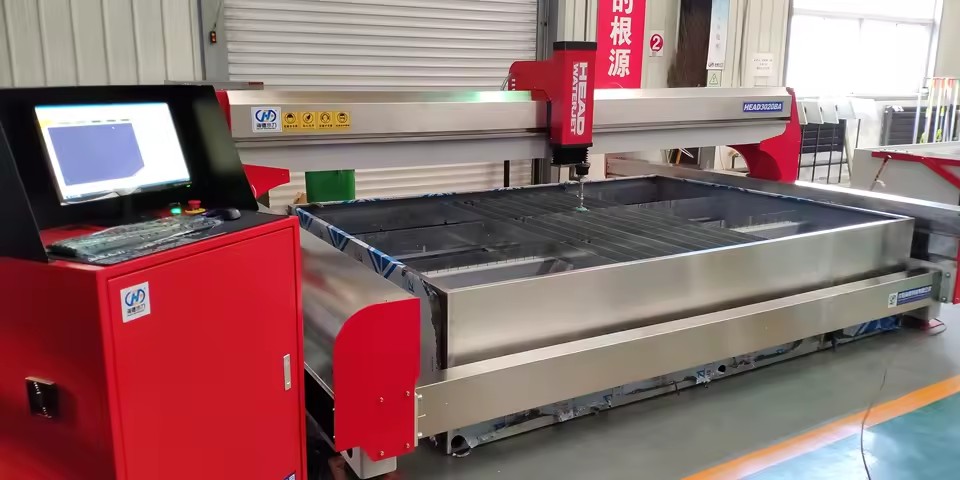

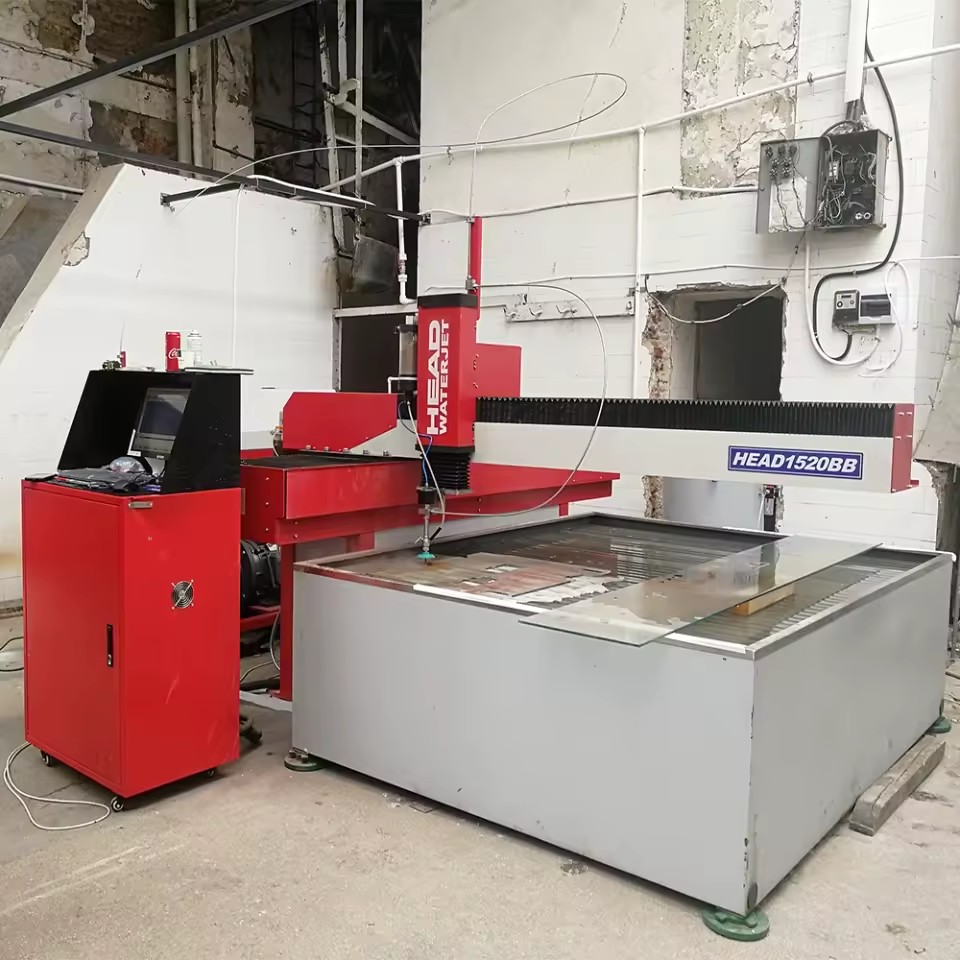

Complete set waterjet including 4 parts
1.
CNC Controller
2.
Cutting Table(Bridge or Cantilever)
3.

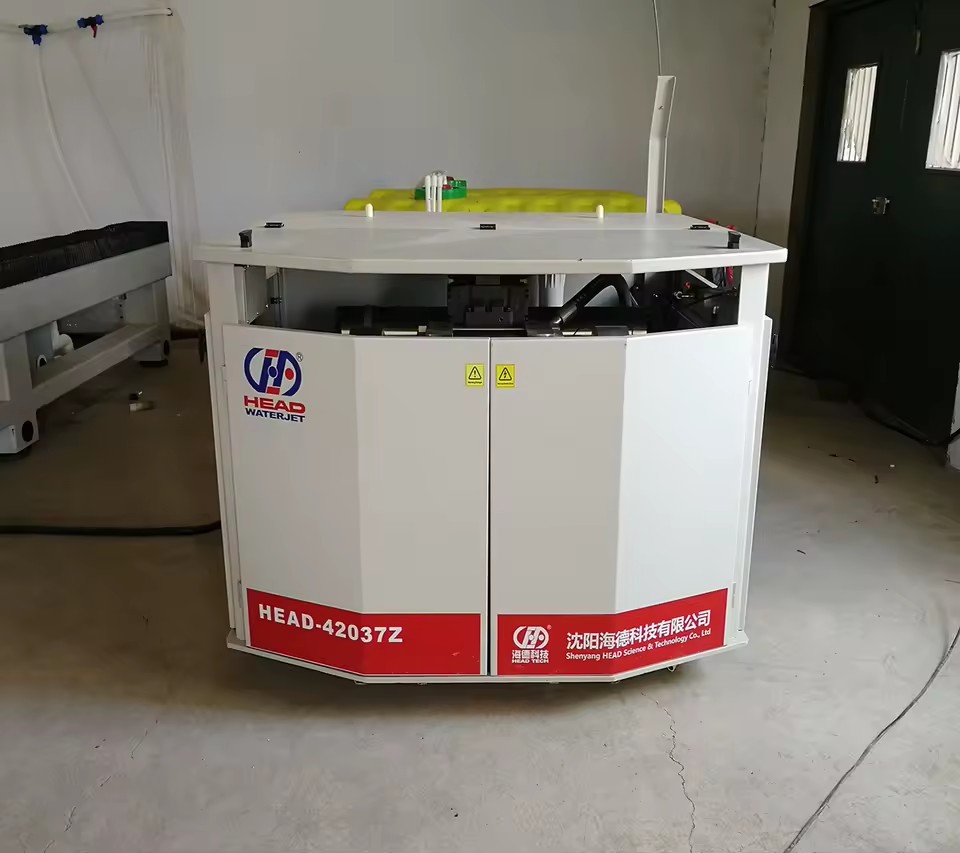

Intensifier Pump
4.
Auto Abrasive Delivery

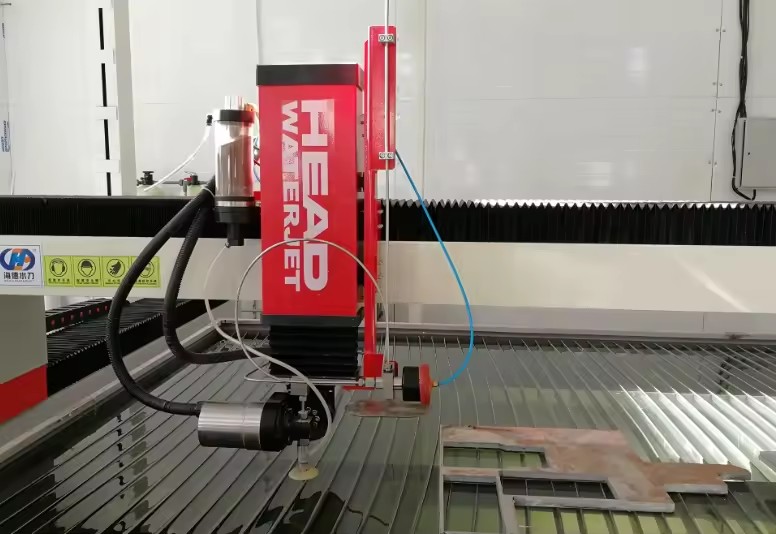

3D 5-AXIS CUTTING
The 3D cutter has five axes, 3 linear and 2 rotating. It has been designed for both pure 3D cut and 2D 1/2 cut (flat cut with bevel), without losing 2D (flat) cut functionality. Its design features offer great work possibilities.
Especially its infinite rotation in the C axis, which avoids the need to rewind with a consequent reduction in working times and a lower risk of reducing the cut quality. On the rotating frame of the C-axis, it is possible to connect the height adjustment and anti-collision control module., IP67 water/dust proof, present high accuracy and durable last longer performance.

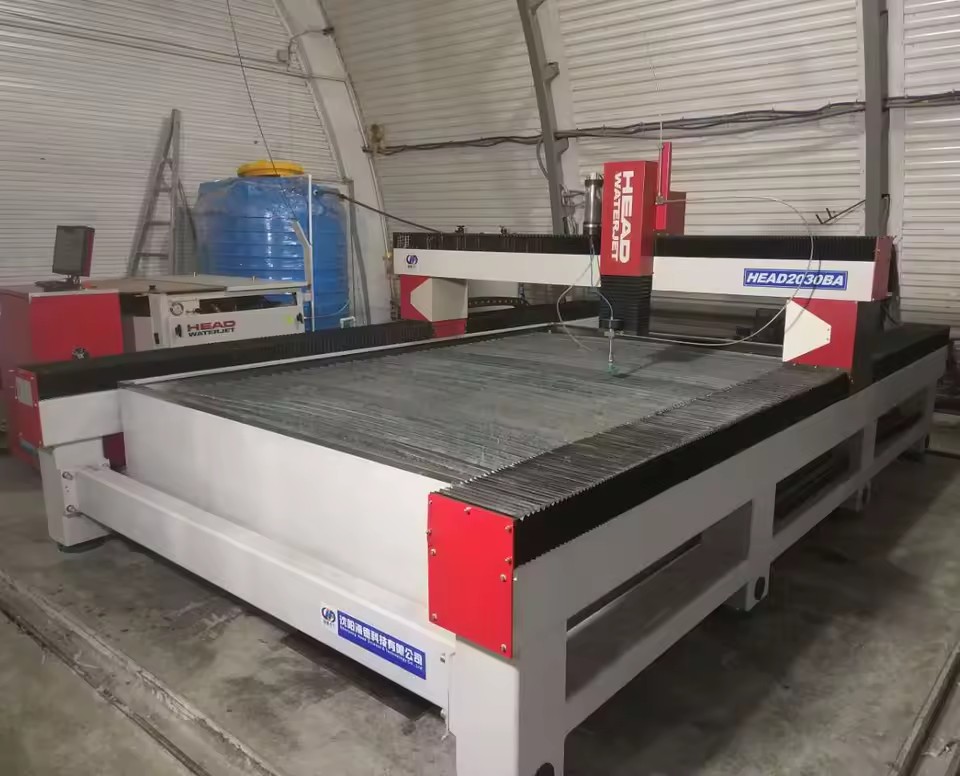

Double Cutting Gantry Waterjet Cutting Machine
1. Process multiple metal types/alloys and thicknesses in one pass, with a single tooltip.
2. AC 5 axis 60° allows for increased cutting speed while preserving edge quality and straightness.
3. Materials: Steel, Stainless, Aluminum, Titanium, Brass, Inconel, Copper.
Imported from American Accustream company with advanced & reasonable structure and high stability.
Integrated heat exchanger, high heat exchange ratio and good effect, control the temperature of the hydraulic oil within the limit
Two-stage water filter(5um,1um,0.45um)minimizes the damage of impurities to high pressure seals, nozzles and other parts.
Two step-up water supply to make sure the pressure, automatic alarm and protection function when water is inadequate avoid the damage.
5.
Multiple filter for outlet oil and return oil, pollution alarm, oil cooling and oil temperature alarming ensure the continuous operation.
6.
Flexible connection between the main motor and pump eliminates eccentricity and absorbs vibration to ensure its long-term reliable operation.
7.
Large capacity accumulator, assuring the system pressure much more stable, cutting efficiency much higher
1 Based on the national inspection and testing, the perfect inspection system is formulated 2 The inspection tools have passed the inspection of the National Metrology and Testing Institute 3
130 quality inspections
and
472h durability test
before leaving the factory. 5 Any inspection process can provide inspection reports 6. Ensure the stable performance of the cutting machine, and the service life of key parts can reach
100,000 hours
With high pressure of 55000psi,200mm thickness of material can be cut by waterjet machines, such as stainless steel, copper, aluminium...cut in layers by waterjet machines, the cutting effect will be increased a lot by this way. No need secondary processing are necessary. waterjet cutting is sort of cold cutting, the cutting surface is smooth, without toxic gas.
Waterjet cutting metal is flexible and low cost. No need to replace the tool, just the settings of operator in the software, you can cut the different materials, whether it is batch or small batch processing can be competent.
Waterjet cutting almost no fixture, usually, only heavy side pressure can be. The use of waterjet special programming software IGEMS, can also be used for material layout, optimize the use of materials, reduce costs and improve productivity.

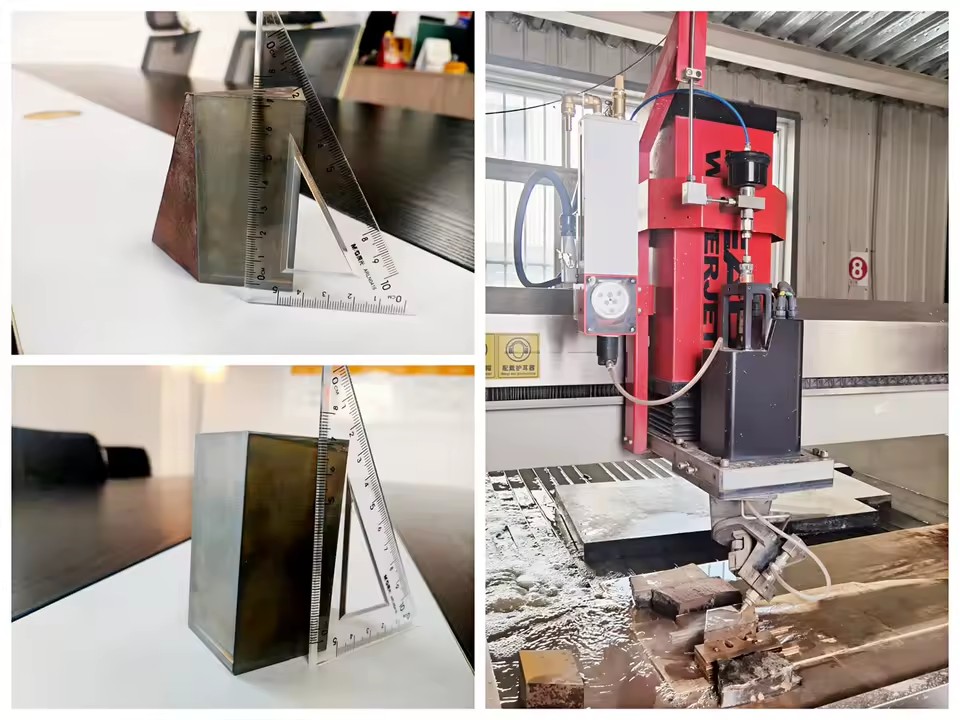

Cutting Samples
Service & FAQ
1. Maintenance free of charge for
12 months.
2. We will provide the consumable parts at an agency price.
24 hours online service
free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training
including working principle of machine, Auto CAD drawing, common problems and solution, etc
Company Profile
00:00
>>>Brief Introduction Of waterjet company
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research,manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet,metal shaped cutting,aerospace,and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team. water jet, so cutting is no longer a problem!
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
Packing & Delivery
1. Our
Wooden Case
is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery
we would do the test about
20-30
working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
