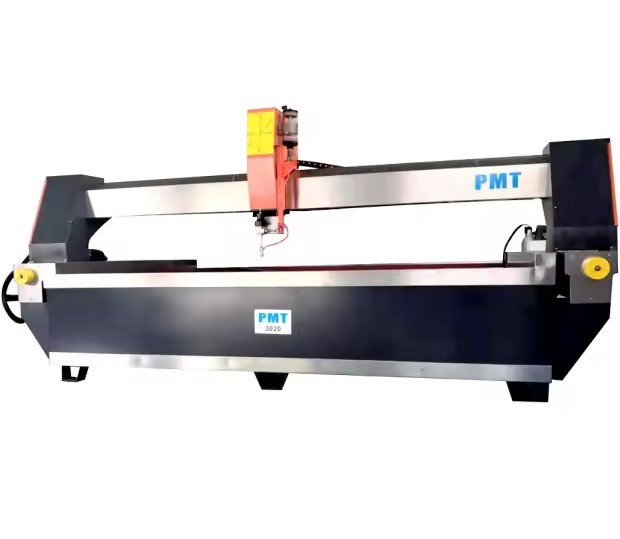

Cnc Waterjet Cutter Water Jet Cutting Machine

Product Application

waterjet cutting machine,Used waterjet cutting for steel,water jet machine.sellers send the technician to install machine and take training. The technician should be effectively be able to communicate in English with regard to installation and setting up the water jet cutting machine as a separate attachment. The buyer will handle the technician training charge, including round air tickets, accommodation, food and USD100.00 per day for technician salary.

Warrantee: 12 MONTHS, Under regular operations in accordance with the Operation Manual, the parts of the machine, excluding wear parts listed above(see attach), shall be guaranteed for replacement and repair during the guarantee period of twelve months.

Main Motor

50HP/37KW

Flow Rate

3.8L/Min

Hydraulic

A10VSO71DRG/31R

Max.Pressure

60KSI/4200Bar/420Mpa

Weight

1200kg

Dimension(L*W*H)

1800*1300*1400mm

Cooling System

Water Chiller

Power Source

AC220V 50/60Hz

Drawing system

Auto-CAD

Computer system

Windows 10

Function

Moving controller

screen

Apply 19 inch LCD

Water jet software

NC-Studio-V10,Support DXF file and NC code

Model

2515

3020

4020

6020

Dimension(mm)

3100*2150mm

4250*2300mm

5250*2300mm

7250*2300mm

Max. cutting range

2000*1500mm

3000*1850mm

4000*1850mm

6000*1850mm

Travel of Z axis

180mm

Driver System

Servo

ball-screw linear-rail

Brand

Re-positioning accuracy

±0.025mm/m

Cutting accuracy

±0.1mm

Max. running speed

15m/min

lubrication

Oil Immersion

Material

203stainless steel material tank,Cast steel beam, stainless steel cover

±0.02/1000mm

±0.15/1000mm

Max. prussure

420mpa

Orifice type

diamond

Nozzle type

7.14*1.02*76mm

running travel of Z axis

150mm

15000mm/min

1. Free warranty for the whole machine for one year or 2000 high-pressure/hour (except wearing parts and the replacement of wearing parts) 2. Training of two personnel for operation and maintenance of equipment and one computer operator for the user 3. On-Site installation and commissioning (the user is responsible for board and lodging) 4. Lifetime maintenance 5. To Guarantee long-term supply of spare parts

6. To enjoy upgrade of special prices when there are new products and technologies 7. Repair response time: during the quality assurance period, when the user’s equipment fails, respond within 24 hours after receipt of written notice. For a common failure, direct the user to resume production as soon as possible by way of

Q1: How to order? A: inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>

Q2: About MOQ

A: As customers’ options. Q3: About customization A: ODM/OEM business partner will be warmly welcome. Q4: About sample and freight A: No Sample, 05: About price A: Price is based on QTY, payment terms, time of delivery. Q6: How to request machine?

A: you just tell us: Which effect you need? Which size for work before work or finish work? Which material tiles? How about machine capacity?

Product Description

PMT-50HE WATERJET pump is intensifier pump spare parts,suitable 24 hours working everyday.

Intensifer and accumulator, Hydraulic pump from German Rexroth

CNC controller use NC-studio English system,Support dxf file.

Attributes

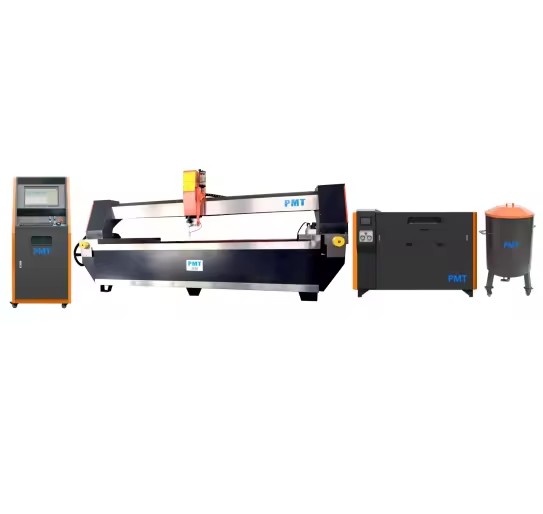

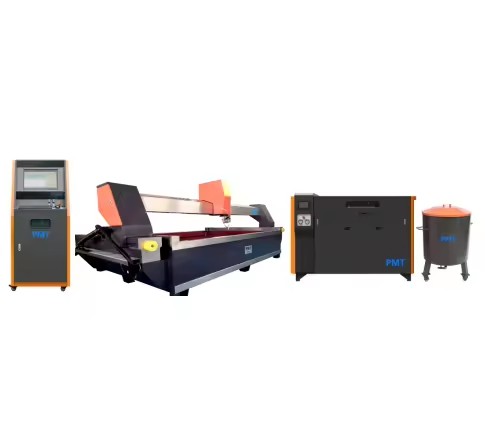

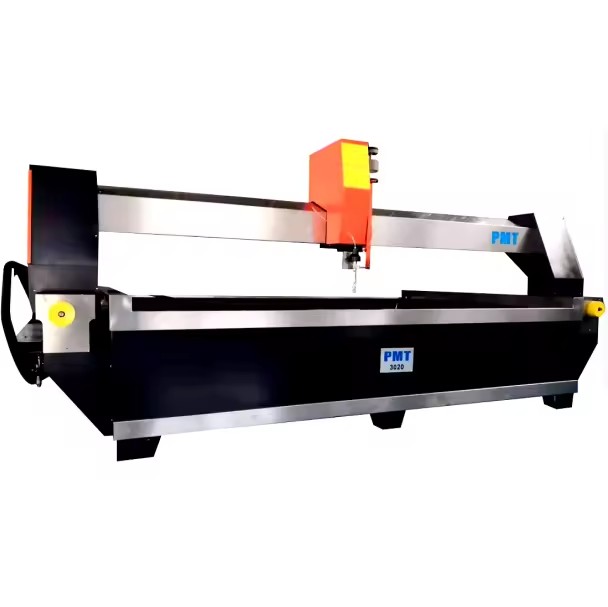

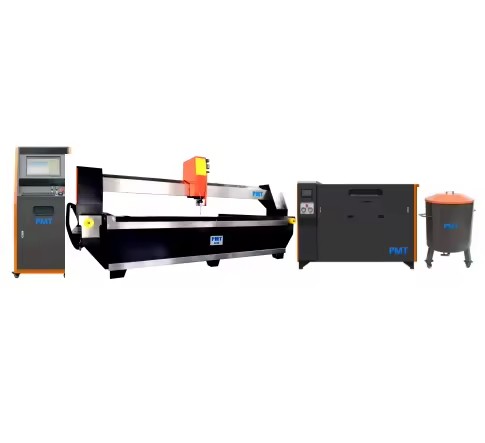

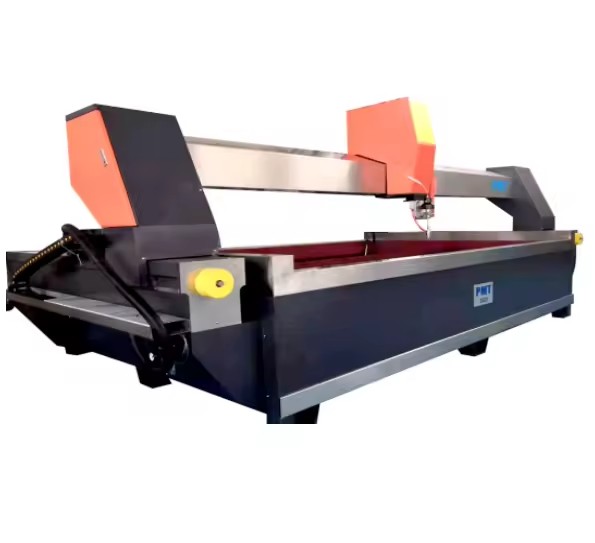

The cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis, suitable for processing a variety of complex big size parts.

diamond cutting head working life is 1000hours

Our Customer

Our Company

Our Service

1. Free warranty for the whole machine for one year or 2000 high-pressure/hour (except wearing parts and the replacement of wearing parts)

2. Training of two personnel for operation and maintenance of equipment and one computer operator for the user

3. On-Site installation and commissioning (the user is responsible for board and lodging)

4. Lifetime maintenance

5. To Guarantee long-term supply of spare parts

6. To enjoy upgrade of special prices when there are new products and technologies

7. Repair response time: during the quality assurance period, when the user’s equipment fails, respond within 24 hours after receipt of written notice. For a common failure, direct the user to resume production as soon as possible by way of

Certifications

Paking & Delivery

FAQ

Q1: How to order?

A: inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>

A: As customers’ options.

Q3: About customization

A: ODM/OEM business partner will be warmly welcome.

Q4: About sample and freight

A: No Sample

05: About price

A: Price is based on QTY, payment terms, time of delivery.

Q6: How to request machine?

A: you just tell us

Which effect you need?

Which size for work before work or finish work?

Which material tiles?

How about machine capacity?
