Winvall DW-T108 HVAC System Temperature Controller Central Air Conditioner Room Thermostat

[ Product Overview]

LCD digital thermostats,applying the most advanced and international standardized microcomputer control chip, measures the indoor temperature by the in-built NTC high- precision sensor. It can always compare with the setting temperature, and automatically regulate the heating/cooling air input or switch on/off the motorized valve, so as to keep room in a certain temperature.

[ Technical Data ]

Working voltage: AC220V ±10 %,50 / 60Hz Load current: < 1A

Power self-consumption: < 1. 5W Temperature Accuracy: ±1℃

Timing error: <1% Output rated power: < 200W

Temperature setup range: 5℃-35℃ Dimension: 86mm * 86mm*13mm

[ Standard configuration of Thermostat ] A, Large Interactive touch screen, clear display with backlight shows even in the dark. B, Fan coil unit and motorized valve control; C, Fan coil unit wind speed conversion ·. High, Medium, Low, Automatic; D, Locking function · When locked, the temperature can not be set, and only heat & cool transfer, power on & power off and Fan speed setting; E, Lock hidden function · This function can only operate when the thermostat in power offstatus; F, Shell pieces for the white colors

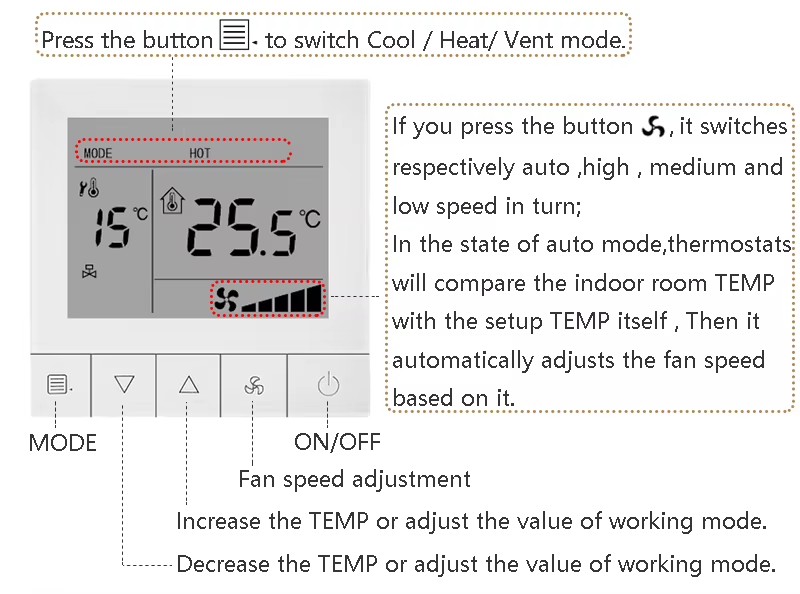

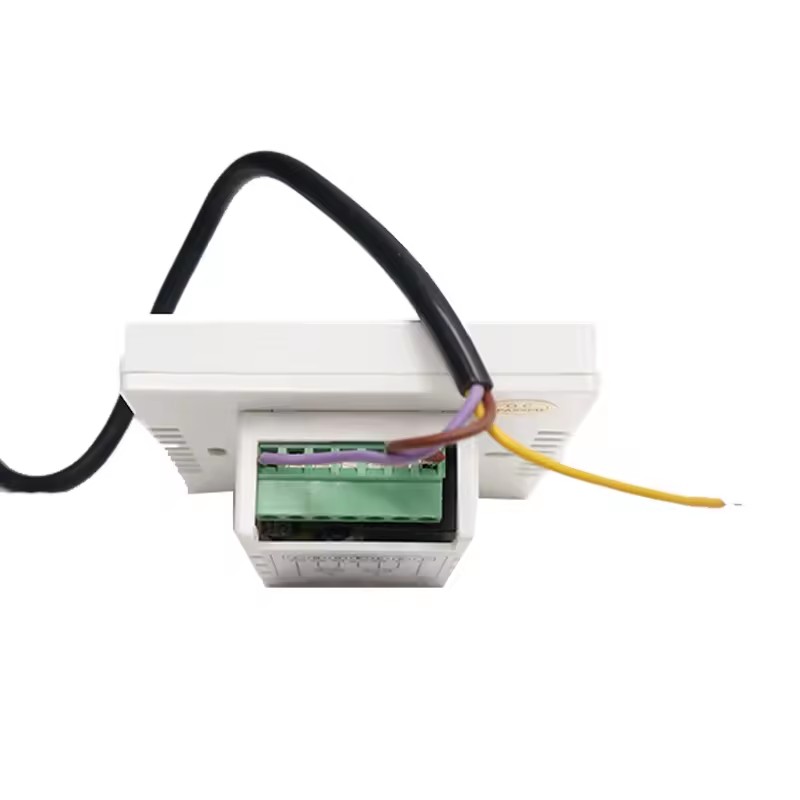

T hermostat D iagram

[ Caution ]

Please connect wires in strict compliance with the installation wiring diagram

Please install a thermostat correctly in strict compliance with the installation diagram

Do not pull the cable forcibly, or it may be damaged.

Do not squeeze the LCD or scratch the LCD surface during the installation; During the installation,do not knock those electronic components on the circuit board, and do not drop or deform the back cover.

If hard plastic lines are used during the installation, do bend it into a appropriate angle firstly

Do not drop it into construction mud

[ Warranty Service & Sale Support ]

The warranty service is 18 months from date of purchase. The products of

Q1: Only Bulk Orders?

No, Sample orders are aslo welcome.

Q2: How to place orders?

Q3: How many days for delivery?

Usually it takes about 3 working days if stock available.

Q4: How to make payment?

After confirming all details, our sales will provide a PI with payment method (TT/WESTERN UNION/PAYPAL/LC).

Q5: Quality Guarantee?

18months

Q6: After-Sales services?

We shall be grateful if pictures or videos can be provided once there is any problem when you use our product. Our sales will

give prompt response and solving method will be provided in the first time.
