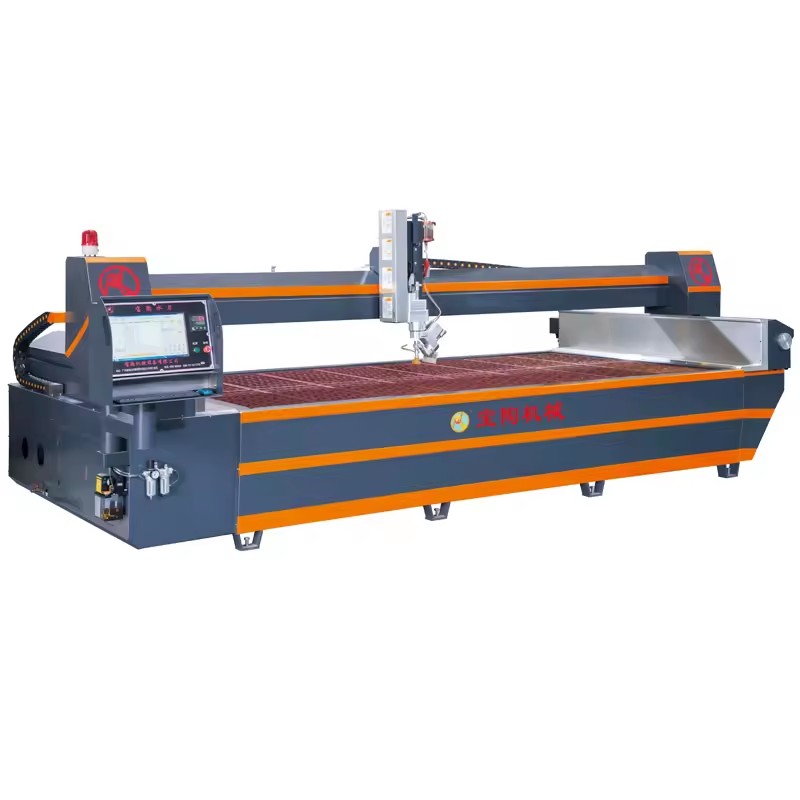

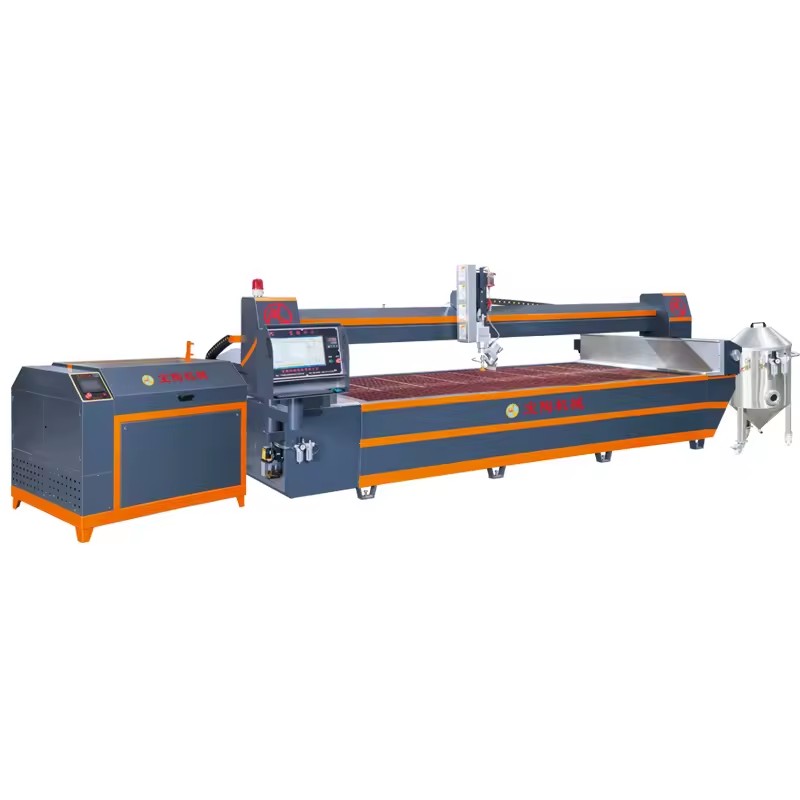

Baotao BT 4020 AC Waterjet Cutter CNC Granite Marble Stone Cutting Machine Price 5axis Water Jet Cutting Machine

BT4020 AC 5-AXIS Waterjet Machine

No

Item

Data

1

Max presssure

450Mpa

2

Cutting width

3600*1800mm

3

Cutting thickness

6-100mm

5

Accuracy

±0.1mm

6

Total power

40KW

7

Working speed

0.5-4m/min

8

Dimension(L*W*H)

5000x2500x1900mm

9

Weight

5000kg

Model

Booster

Maximum pressure

500mpa

Working pressure

320-450mpa

Maximum cutting thickness

0-120mm

Maximum cutting water flow rate

3.7L/min

Electrical machinery

37KW/50HP

Fuel tank capacity

120L

Oil pump displacement

100L/min

Oil pressure ratio

1:32

Oil pump pressure

31.5mpa

Product Overview

Baotao BT 4020 AC Waterjet Cutter CNC Granite Marble Stone Cutting Machine Price 5axis Water Jet Cutting Machine

The waterjet with CNC control technology,can complete the cutting of any complex shape at one time under program control,which can easily slove the requirement of 45degree cutting for sintered stone and marble.Modern Marble waterjet Medallion Pattren.

Purpose

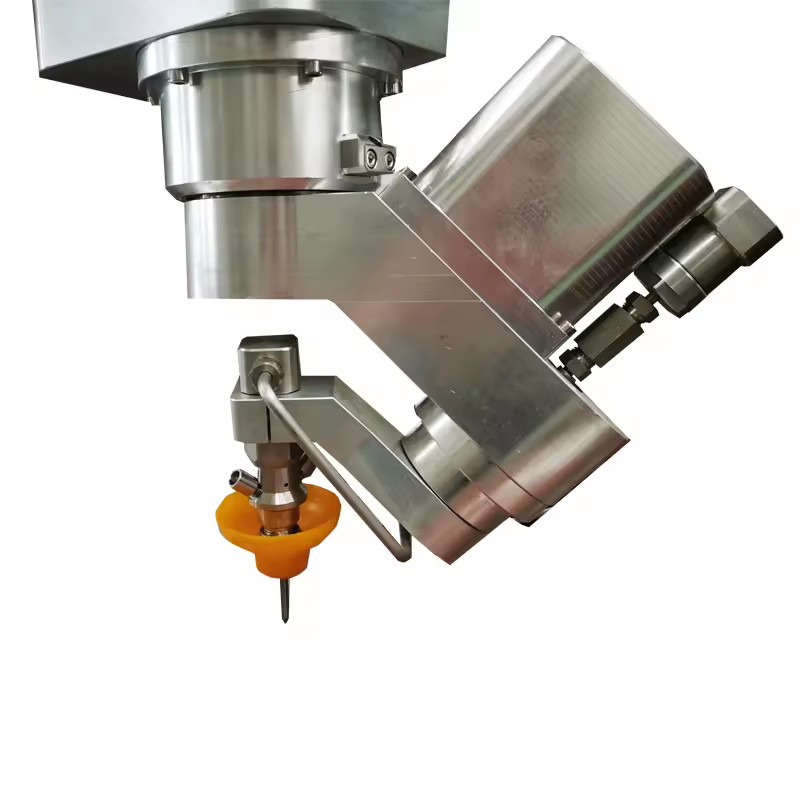

1. Unlimited rotation of the blade head; 2. The maximum angle for oblique cutting is ± 75 °; 4. 3D cutting blade, capable of achieving 3D dynamic cutting; 5. The blade is equipped with laser height measurement, with a measurement accuracy controlled at 0.05mm, solving the problem of cutting the surface of the board with precision and efficiency

Right elevation

Left elevation

Front elevation

00:00

PRODUCT SPECIFICATIONS

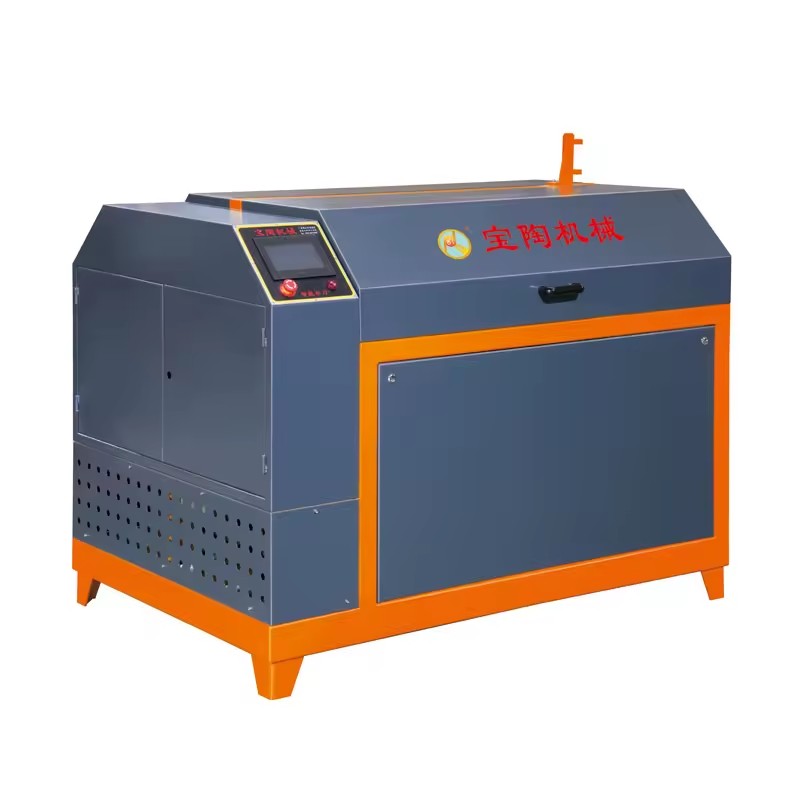

The pressure magnitude, pressure stability, continuous working time, and the lifespan and reliability of high-pressure components of the ultra-high pressure generator system directly affect cutting efficiency, cutting surface quality, cutting accuracy, and comprehensive operating costs.

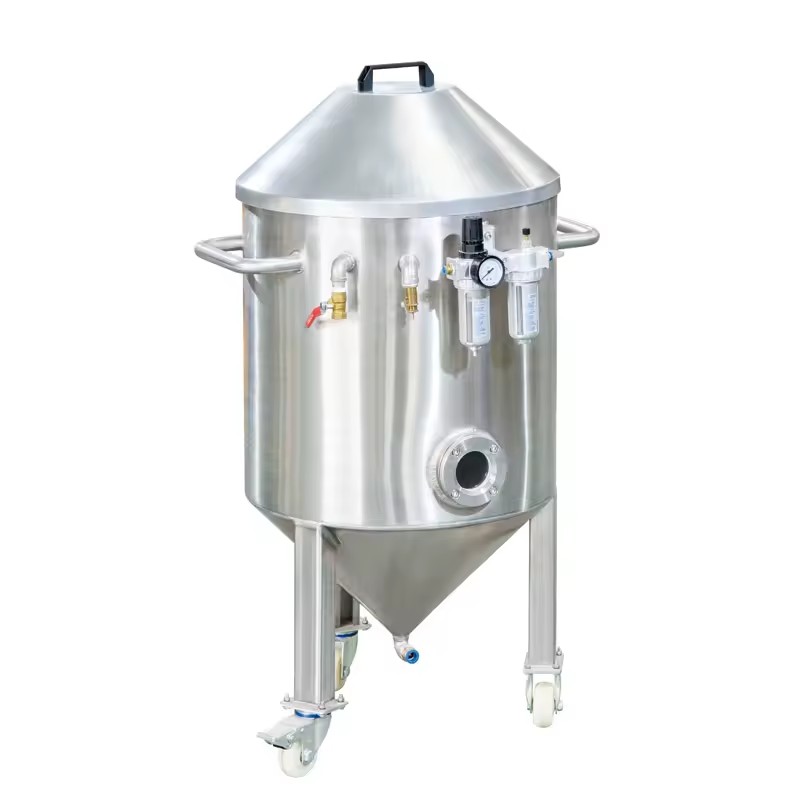

Reliable anti backflow design and accurate sand volume control panel avoid faults such as abrasive moisture, sand blockage, and sand breakage caused by cutting head backflow.

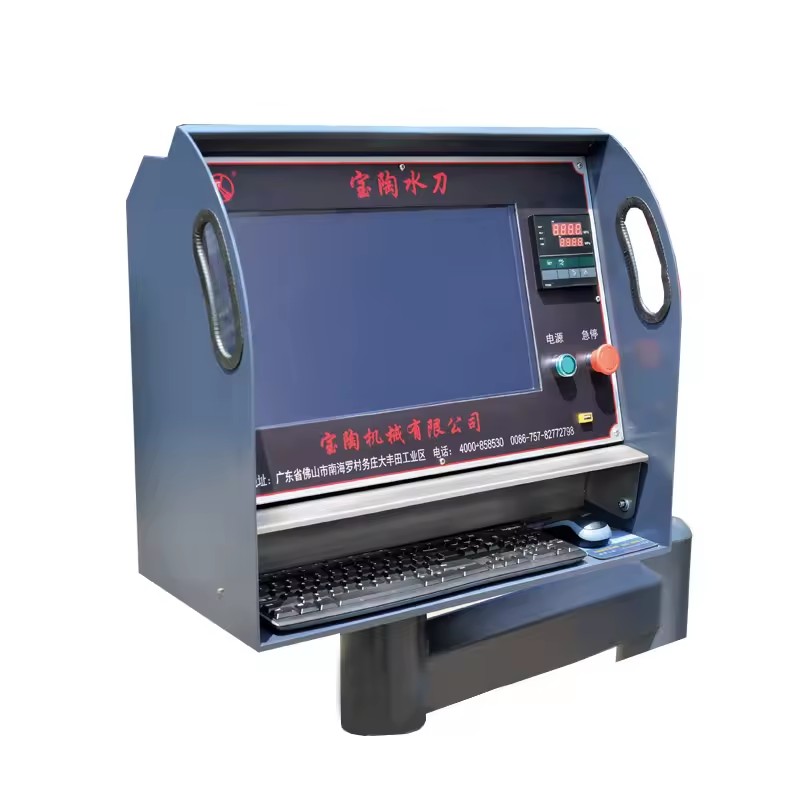

Using industrial control computers: with high reliability, convenient human-machine dialogue, and real-time control of the cutting process; At the same time, it can achieve networking functions, facilitating file transfer and sharing between operators and designers.

Here is the use of the machine grinding hardware, belongs to the consumption of tools, with the machine use, better play the performance of the machine.

garnet sand

Resin grinding wheel

Edge grinding wheel
