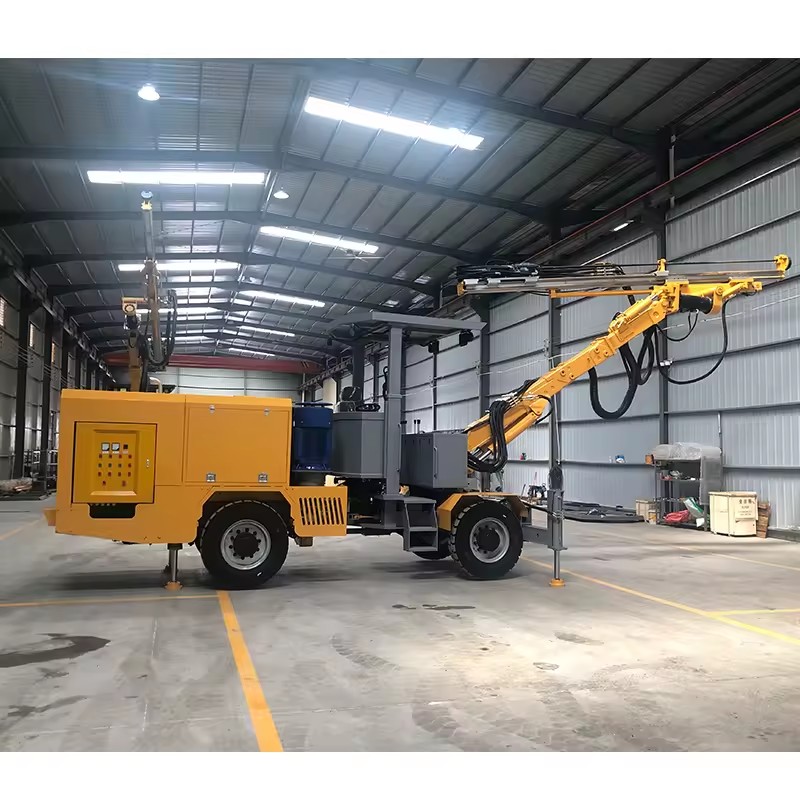

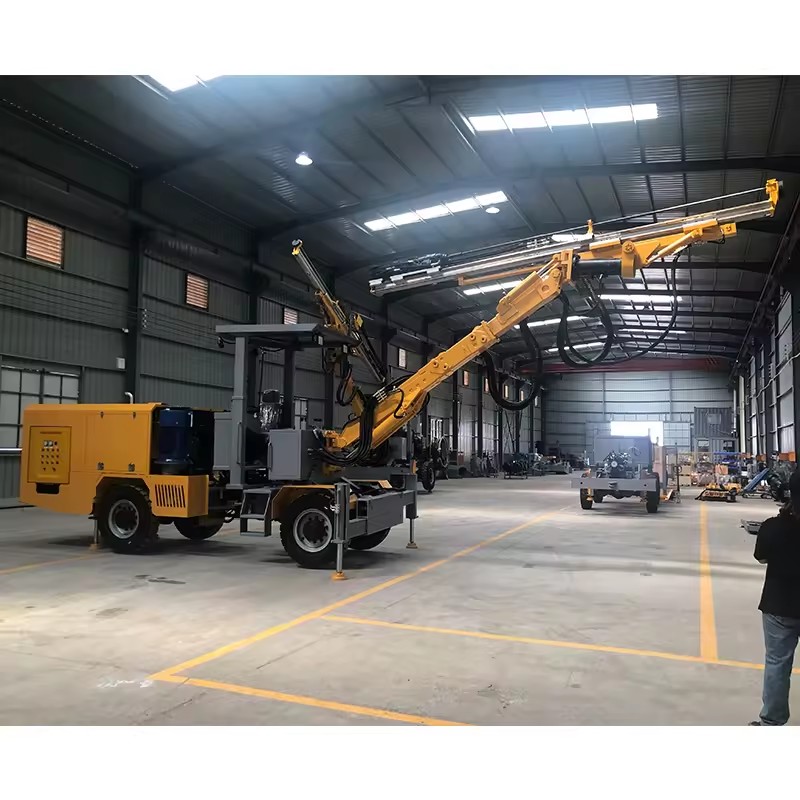

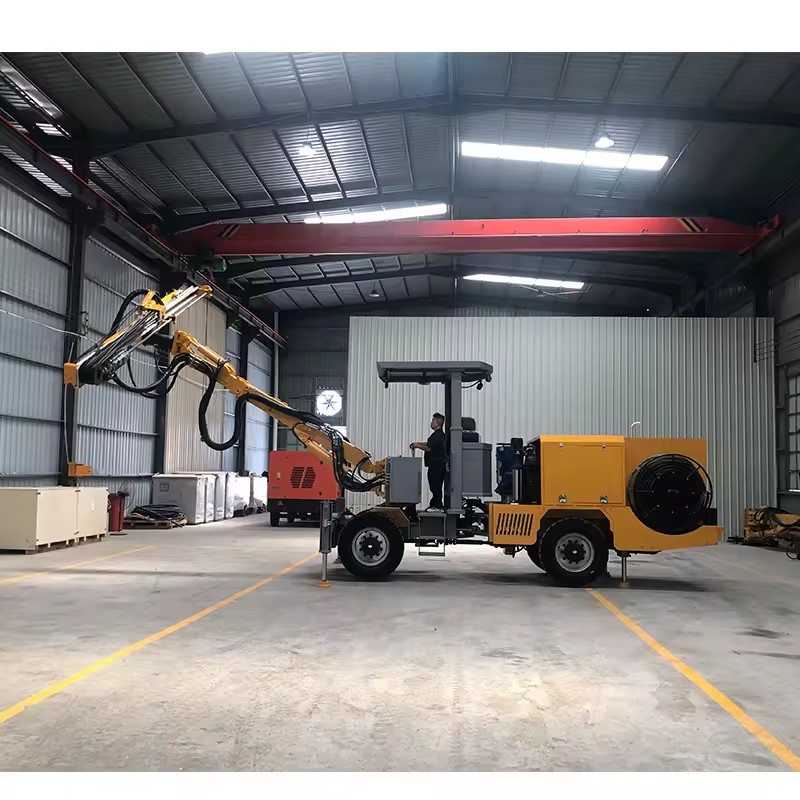

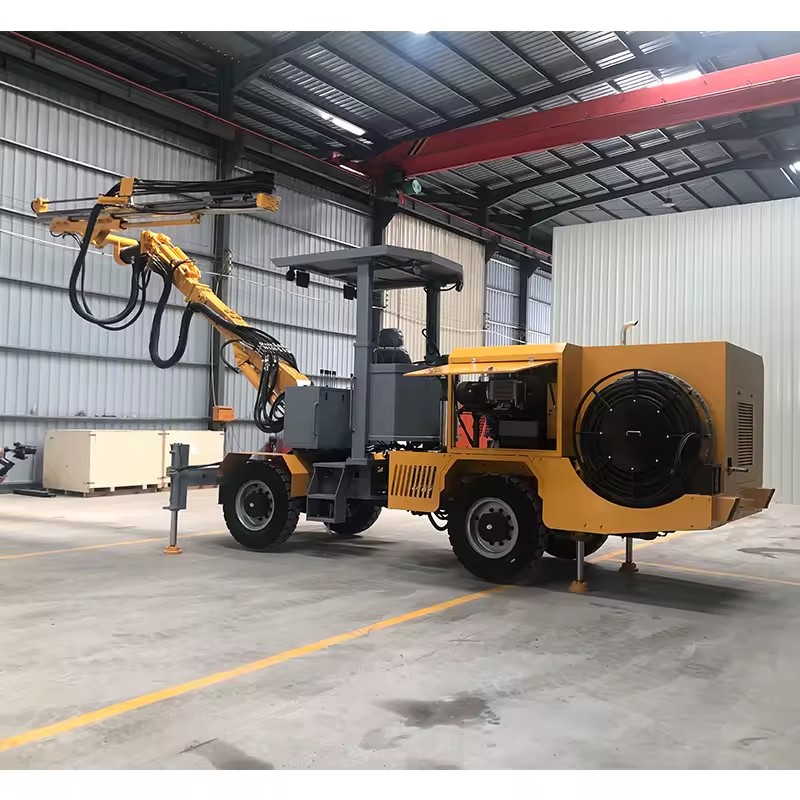

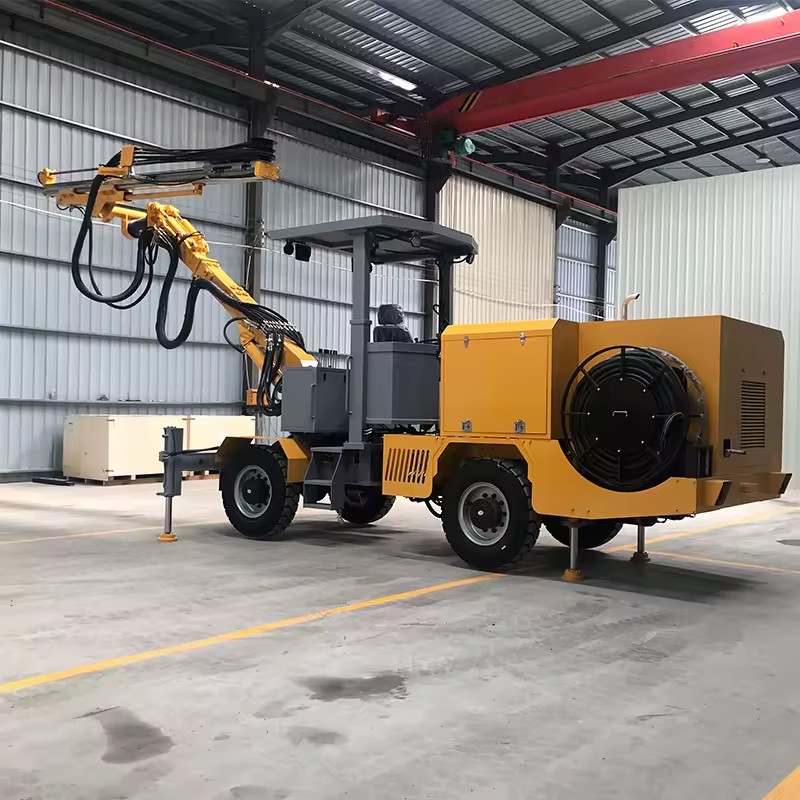

Used to Mining Drilling Rig Rock Core Boring Machine Drilling Jumbo for Granite Rock Mine

Available for enquiry 0.0 · 0 reviews
USD

$ 214,520.00 214520.0 USD $ 214,520.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m
Drilling Diameter
43mm, 102mm
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Product description
Parameters of drill jumbo

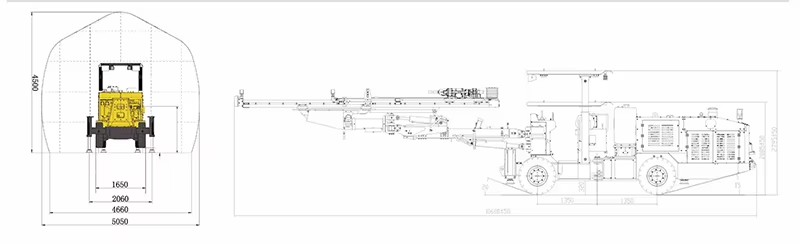

Applicable section3000x3000-5050x4500 mmMinimum turning radiusInside:3450/Outside: 5450mm
Dimensions L*W*H10600x1710x2085(2795)mmClimbing ability14°
Ground clearance320 mmRunning speed≤7.2 kM/h
Weight11500 KGSCable length70 m
Specifications of Rock drill
Rock drillRD19M
Impact power18 kw
Impact frequency57 Hz
Impact pressure130-200 bar
Rotary systemIndependent rotation
Rotation speed0-220 r/min
Rotation torque (max)1050 Nm
Thruster
Rock drillRD19M
Total length4820/5450 mm
Drill rod length3090/3700 mm
Depth of hole2770/3370 mm
Weight530/590 kg
Propulsion force13 KN
Drilling arm
Compensation itinerary1250 mmPitch angle+60°/-30°
Horizontal holeComplete coverageSwing angle±35°
Sliding frame rotation±180°Drilling arm weight1645 kg
Hydro-pneumatic system
Maximum displacement of water pump (12 bar)4 m³/h
Air flow1 m³/min
Motor drive
Electrical system
Total installed power65.5 kW
Main motor power55 kW
Voltage380V(Customizable)
Hydraulic system
Closed hydrostatic drive walking system
Hydraulic direct control operating system
Equipped with anti-stuck function
Chassis
EngineFamous brand
Rated output power (2200r/min)60 kW
Description images

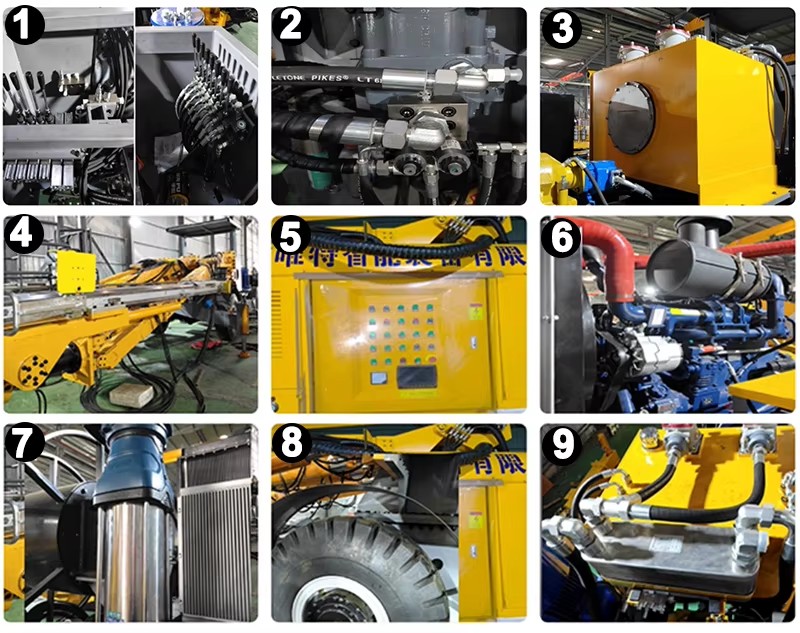

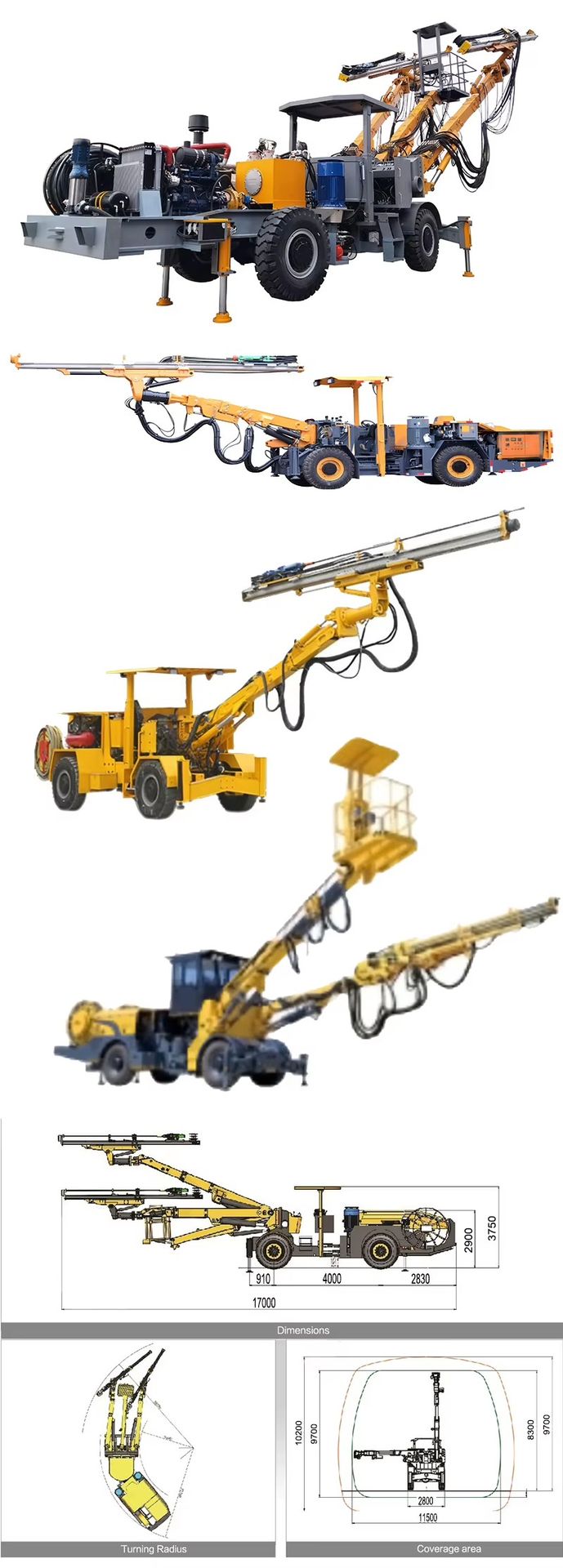

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m
Drilling Diameter
43mm, 102mm
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Fujian
Weight
3300 KG
Dimension (L*W*H)
17000*2800*2900mm
Mobility
15km/h
Rock drill
RD19M
Impact power
18 kw
Impact Frequency
57 Hz
Impact pressure
130-200 bar
Rotary system
Independent rotation
ROTATION SPEED
0-220 r/min
Rotation torque (max)
1050 Nm
Selling Units
Single item
Single package size
1100X205X280 cm
Single gross weight
12000.0 kg
Model number
CYTJ45
Power (W) (Product option)
55 kW
Lead time
30 days
Minimum order
1 Units
