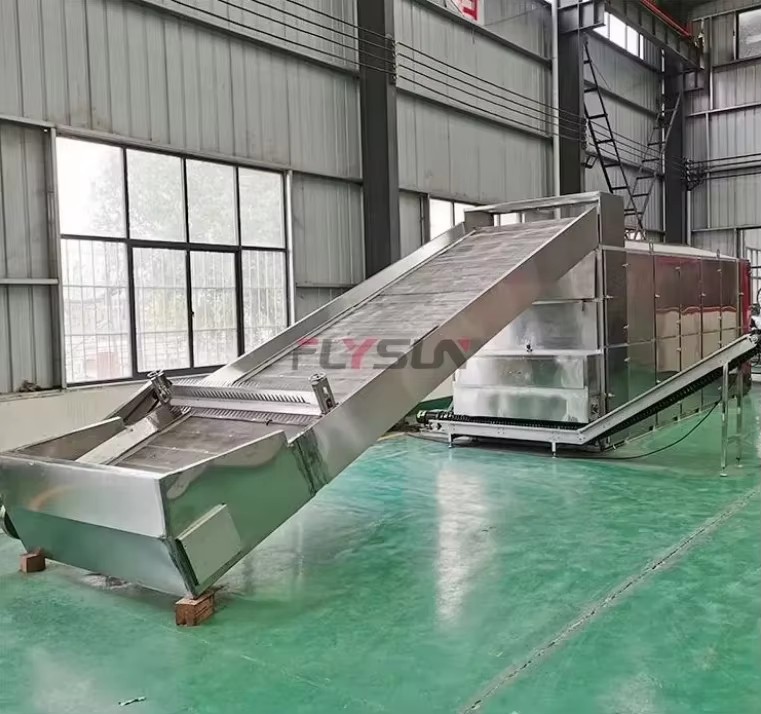

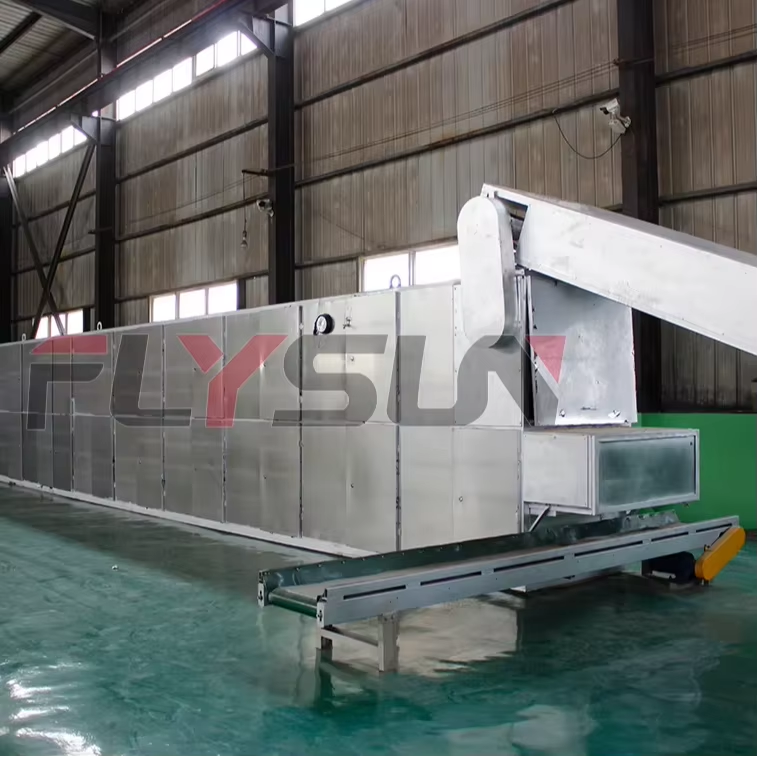

| High-capacity Multi-layer Mesh Belt Conveyor Dryer with Stable Operation Continuous Dehydration Machine for Agricultural Product |
| Model | FX-8 | FX-9 | FX-10 | FX-12 |
| Layer | 4 layers, 5 layers, 6layers | 200-300kg | 1000-1300 kg | 2000-2500kg |
| Material thickness | 10-70mm | 2015*1050*1470mm | 2390*1210*1560mm | 2390*1210*1560mm |
| Drying temperature | 40-120℃ | 7.5kw | 15.2kw | 30.4kw |
| Drying time | 0.5-5hours | |||
| Moisture reduce | 75% to 8% (Customized) | |||
| Main machine motor | 1.5kw | 1.5kw | 2.2kw | 3kw |
| Main machine motor | 15kw | 15kw | 22kw | 22kw |
| Main machine motor | B500(0.12kw) | B500(0.12kw) | B500(0.12kw) | B500(0.12kw) |
| The above parameters are for reference, we can according to customer required provide best solution. |
Minimum order: 1 Units
Payment terms, specifications, and order details are confirmed before preparation begins.
Lead time will be confirmed with your quotation.
Packaging details are available on request.
Final packing, freight, and delivery dates are confirmed before dispatch.
