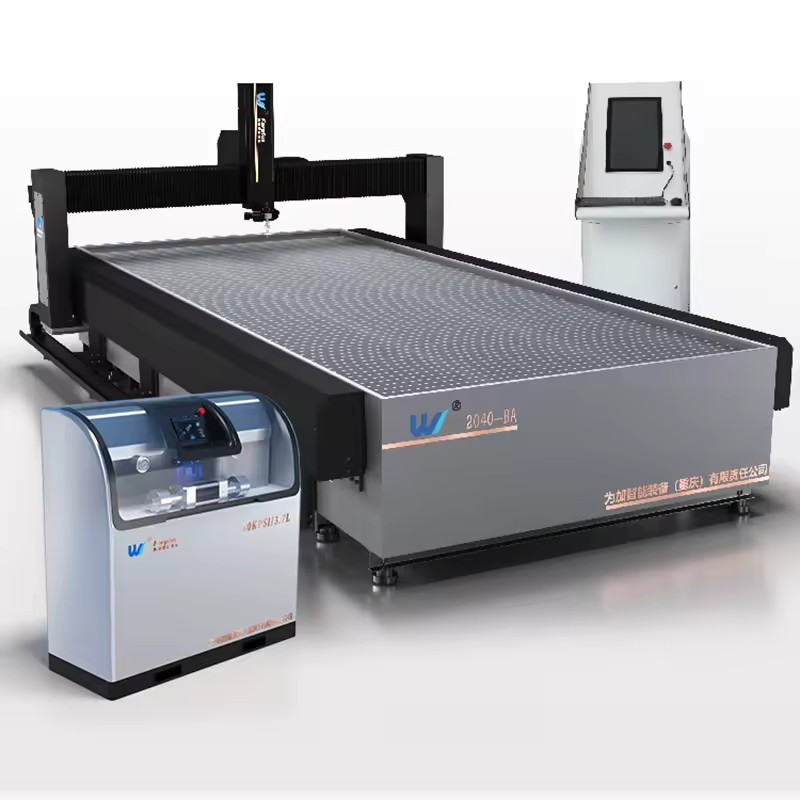

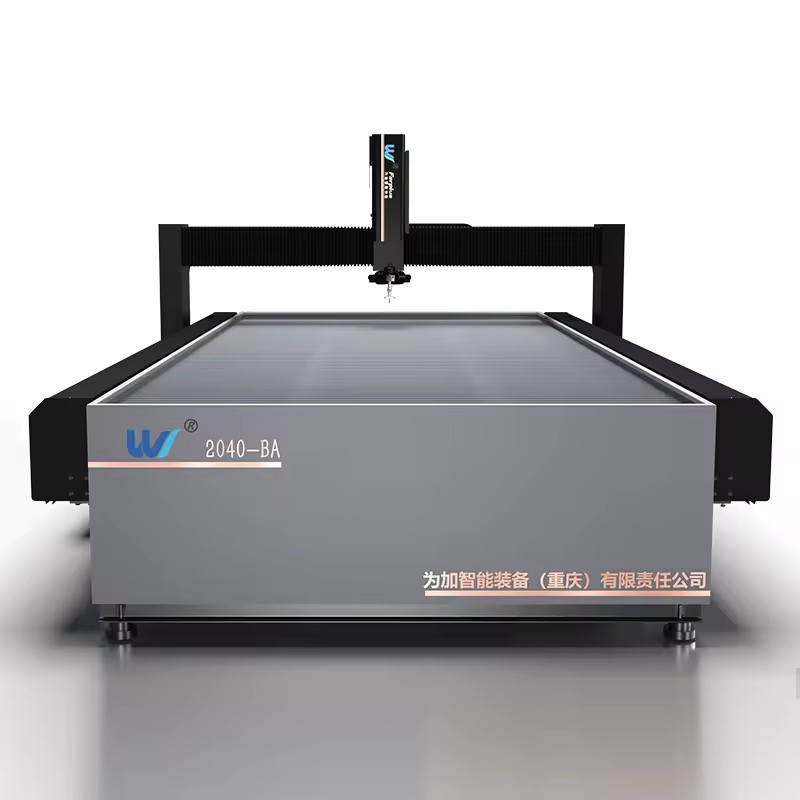

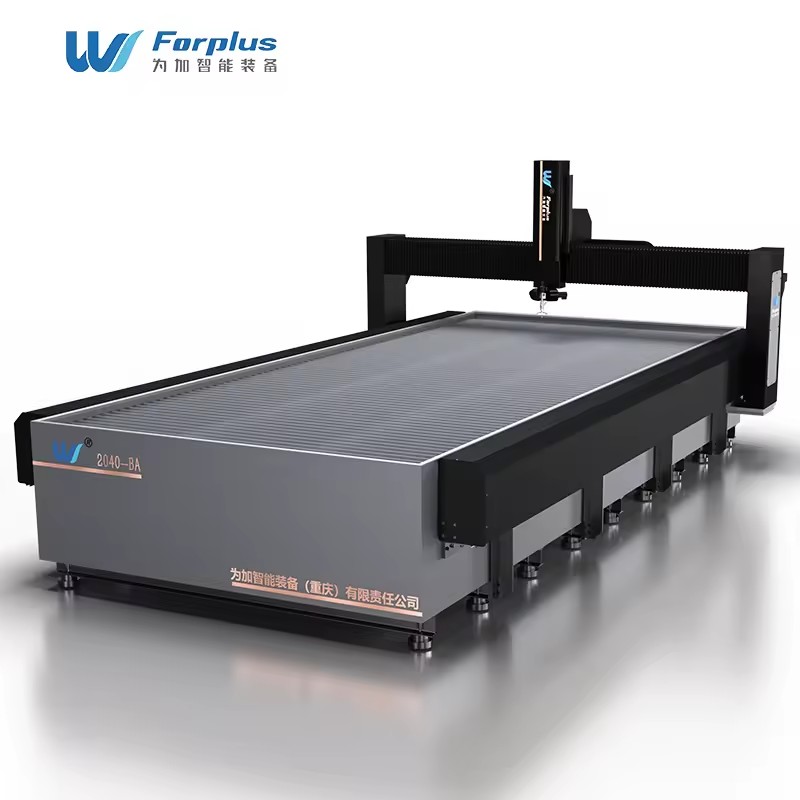

CNC Waterjet Cutting Machine 3 Axis Water Jet Cutter for Metal/Stone/Glass/Rubber/Foam

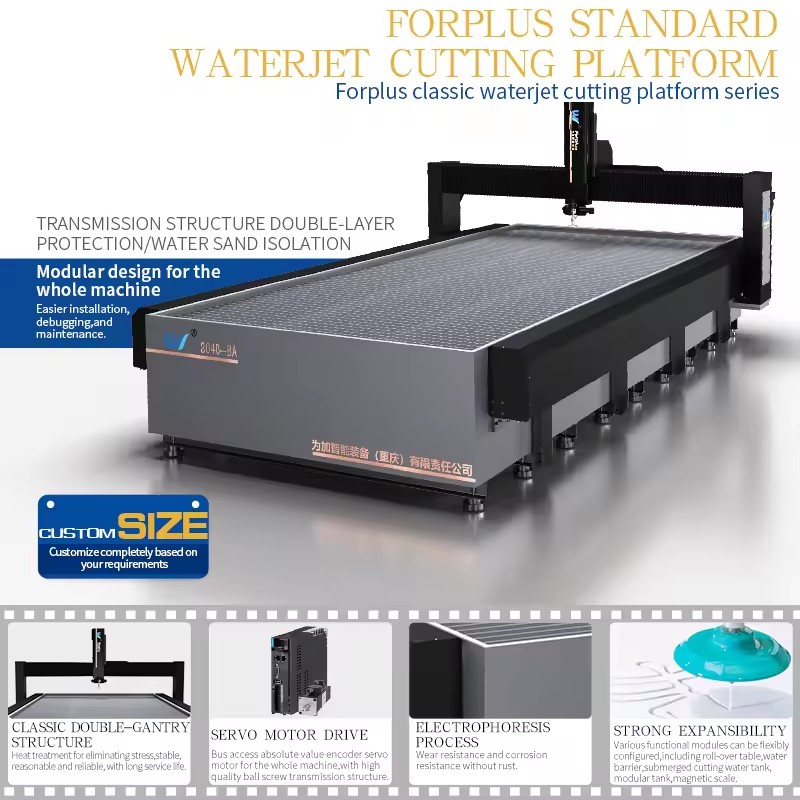

Forplus standard waterjet cutting platform

Model

Forplus-U1520-Z150

X、Y、Z travel

1500mm、2000mm、150mm

Machine structure

gantry structure

Transmission mode

ball screw,linear guide rail

Positioning accuracy

±0.05mm

Re-positioning accuracy

Max no-load speed

10M/min

Abrasive feeding system

continuous abrasive feeding module

Abrasive removal system

spiral-flow type auto abrasive removal system

Cutting head assembly

standard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)

Water tank platform

linear grid,corrugated grid,honeycomb (optional)

Height measurement

laser-measurement

Power requirement of electric cabinet

single phase 220V 50HZ

Compressed air pressure

≥5bar

Compressed air caliber

φ12mm

Products Parameters

Products Description

1.Standard Double Gantry W

ater Jet Cutting Machine

2.

This 3-axis, Single Carriage Waterjet Cutting Machine Excels At High-speed Waterjet Cutting And Abrasivejet Cutting. Its Heavy Duty Platform Can Be Sized To Your Cutting Needs With Options To Add More Capabilities.

3.Servo motor drive for the whole machine，Bus access absolute value encoder servo motor for the

Water Jet Cutter

with high quality ball screw transmission structure. 4.Standard ECS professional water jet cutting CNC control system. 5.Double-layer protection for transmission mechanism,isolating water and abrasive.

Forplus A

utomatic 3 Axis Water Jet Cutting Machine

Abrasive Waterjet With Forplus Black Panther High Pressure Pump

Transmission structure is double-layer protection

X, Y, Z axis is designed with double sealing, external steel shell and high quality dust folding cloth are adopted, which can provide effective hard protection and full sealing for the machine, and it is the current effective sealing form of waterjet cutting machine.

CNC control system

Standard Italian ECS Professional waterjet cuting CNC control system.Servo-motor drive for the whole machine,Absolute value encoder closed-loop control.High precision, reliable control, and simple connection.
