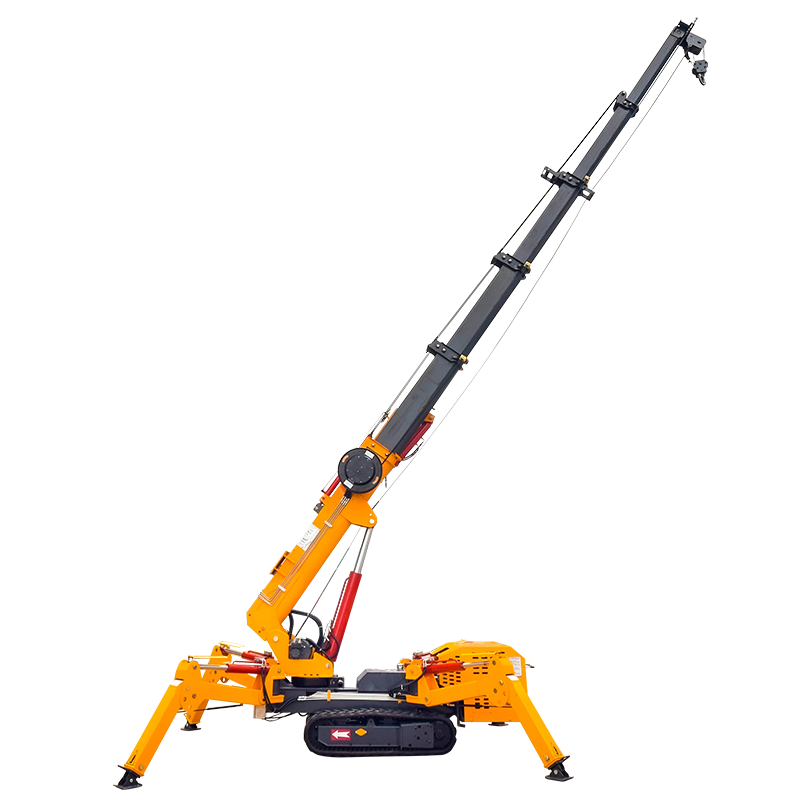

10m-24m 2T 3T 8T 12T AC Power +Diesel Engine Crawler Spider Crane with Telescopic Arm
Brand Crawler Spider Crane combines the space-saving qualities of a spider crane wi t h the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the alarm.
6. High security Guarantee: Equipped with emergency stop sytem and emegency descent system; 7. Easy to install and operate: Full set of installation videos and user manual available; 8. Easy to maintenance: High quality accessoires equipped and speical design for the structure; 9. Ecnomical and long service life; 10. Multiple control mode: Platform control panels; Stand Column controllers; Remote controllers.
| Model No. | SBL1.2C | SBL2.0C | SBL3.0C | SBL5.0C | SBL8.0C | SBL10.0C | SBL12.0C | SBL14.0C |
| Load capacity | 1.2tons | 2 tons | 3 tons | 5 tons | 8 tons | 10 tons | 12 ton | 14 tons |
| Max Ground Lifting Height | 6.5m | 7m | 10.5m | 17m | 18m | 22m | 23.5m | 23.5m |
| Max Working Radius | 5.8m×0.2t | 6.0m×0.25t | 10.0m×0.8t | 16.0m×0.3t | 17m×0.3t | 21m×0.8t | 22m×0.8t | 22m×1.2T |
| Walking mode | Hydraulic motor drive, two speed |
| Walking speed | 0-2.0km/h | 0-2.0km/h | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-3km/h | 0-3km/h | 0-3km/h |
| Grade Ability | 20°(36%) |
| Engine Start mode | Electric start |
| Engine Startup Tempt. | 5°C~40°C |
| Power | AC Electric + Diesel Dual Power |
| Battery capacity | 12v 45AH | 12v 45AH | 12v 45AH | 24v 45AH | 24v 45AH | 24v 45AH | 24v 45AH | 24v 45AH |
Shadong machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world. Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally. Dealers and Wholesalers are especially welcomed and we will give special discounts.
| Questions | Answers |
| 1. | Yes, we're factory with over 10 years exporting experience. |
| 2. What's the MOQ? | 1 UNIT |
| 3. Do you offer OEM&ODM service? | Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc. |
| 4. What's the quality warranty? | 24 months. Spare parts provided freely within quality warranty. |
| 5. How can I get the after-sales service? | We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service |
| 6. What's your QA&QC policy? | 100% Test before shipping. |
