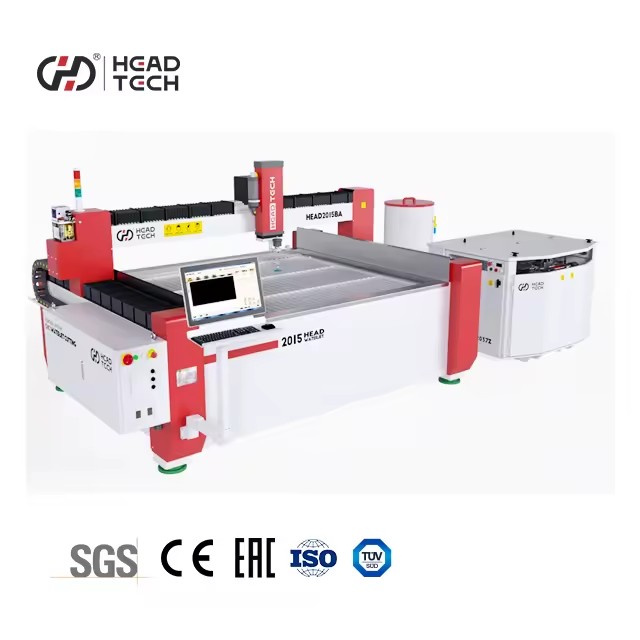

Small Easy Install Cnc Water Jet Cutter Abrasive Waterjet Cutting Machine

Our Service Technicians

Net Cutting Area

X = 2.000 mm (6.56') Y = 1.500 mm (4.92' ) Z = 150 mm (5.9")

Inner Table Working Area

2.000 mm x 1.500 mm (6.56' x 4.92')

Overall Dimensions

2.200 mm x 1.700 mm (7.22' x 5.58' )

Rapid Speed

0 - 9000mm / min (0-29.53' / min)

Weight

2.000 Kg (5.000 lb)

Positioning Accuracy

± 0,02 mm (± 0,0008")

Repeatability

± 0,01 mm (± 0,003")

SPECIFICATIONS FOR WATER JET CUTTING MACHINE

Max. pressure

420MPA/60000psi

Max. flow rate

3.7L / min

Electrical source voltage

3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP

Max. diameter of nozzle / orifice

1.02mm / 0.33mm

Max. delivery capacity of oil pump

106L / min

Max cutting

1-10 cutting (1 for standard machine)

Company honor

Our Package Advantage 1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

WATER JET MAKES CUTTING IS NO LONGER PROBLEM!

Product Description

X = 2.000 mm (6.56')

Y = 1.500 mm (4.92' )

Z = 150 mm (5.9")

2.000 mm x 1.500 mm

(6.56' x 4.92')

2.200 mm x 1.700 mm

(7.22' x 5.58' )

0 - 9000mm / min

(0-29.53' / min)

2.000 Kg

(5.000 lb)

± 0,02 mm

(± 0,0008")

± 0,01 mm

(± 0,003")

1. The whole processing, the water tank guide surface is formed in one time，and the geometric accuracy of the machine is fully

guaranteed， including parallel and ascending.

It Will meet the highest requirements，and the equipment will be more stable for long-term use.

2. Easy installation，saving assembly time and after-sales service.

3. Use absolute servo motor and LED warning light.

4. To ensure waterjet accuracy, cutting table frame is treated in overall heat treatment and stress relief treatment, it is never deformed.

5. Robust and accurate design for tight tolerance cutting and reliable operation.

Fastest cutting speeds and best precision compared to any competitive abrasive water jet in the industry.

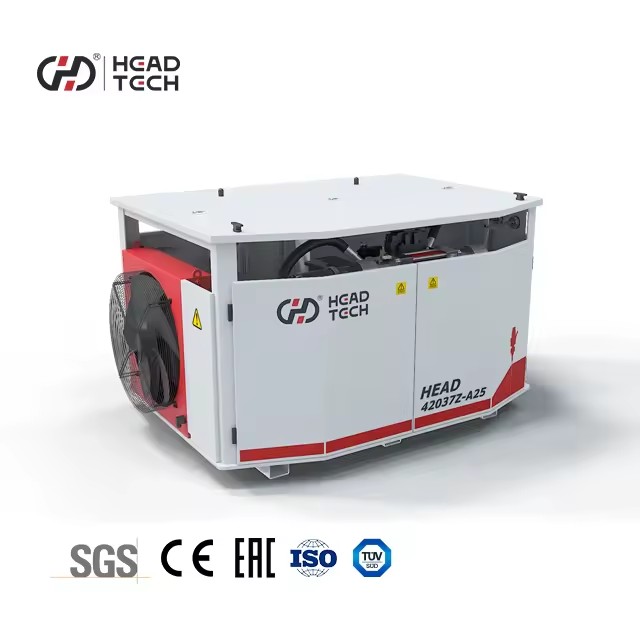

1. The main parts of the intensifier is from Accustream brand 2. The main motor is Siemens(Beide)brand, and power is 37kw, 50hz 3. The accumulator is 1.2L, and free maintenance for life. 4. The pump has the function of low pressure and high pressure exchange function, when drill the first hole, it will be low pressure and when cutting it will change into high pressure, the process is controlled by professional water jet software. 5. The intensifier pump is working very stable, and most customers are using it for working. 6. The amount of water flow is 3.8L/min, the abrasive amount is 20kg/h, the diameter of nozzle is 1mm, and the diameter of orifice is 0.33mm, these data is the most proper match for higher efficiency and economical work, for different materials and different thickness, only need to change the cutting speed can get the good cutting result, only need to change other data. 7. The intensifier pump will be test for 24 hours before leave from factory, which can guarantee the safety and the stable of machine working

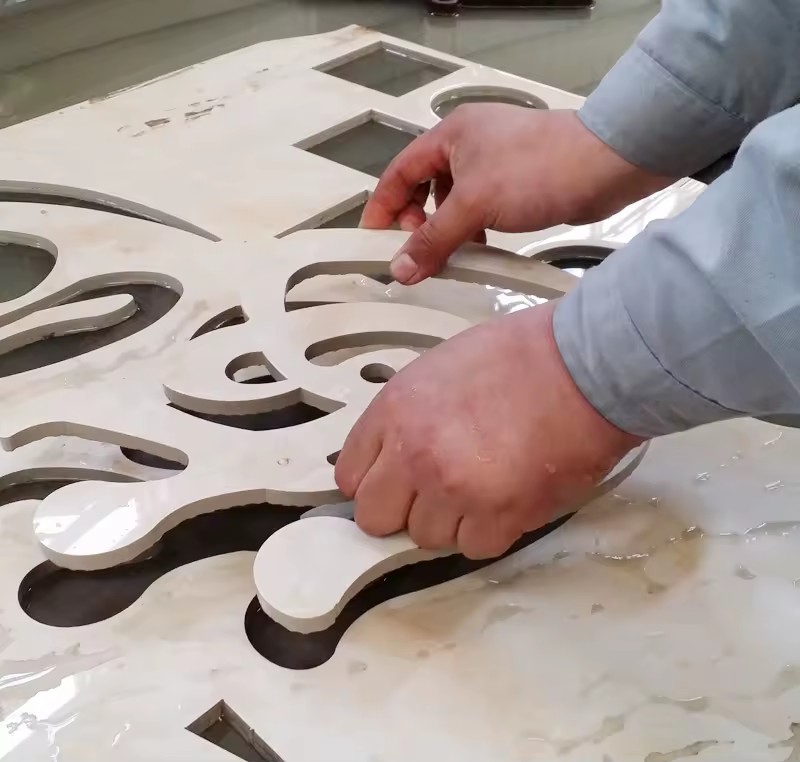

Cutting Samples

After sale

We provide professional advice from qualified technicians，committed to providing leading waterjet cutting machine support to promote the development of order to provide timely on-site support for European customers, we have Srdjan Vasiljević, a waterjet technician, who has rich experience in waterjet installation and service.

Foreign after-sales engineer

This is our foreign engineer

Srdjan Vasiljević

who can provide you with localization services to ensure that your after-sales service has no

worries.

After-sale follow up with

waterjet,think what you think.Provide you with timely and reliable after-sales service. Customer needs are the biggest driving force in our actions and solving customer problems is a way for to realize its own value. Waterjet looks forward to working with you.Let us go hand in hand to achieve a win-win situation!

We are looking for an experienced waterjet operator. If you are interested please

Credit insurance is the first, 100% reply in time, professional logistics team will escort your cargo.

Our Service

Our after-sales service can solve customer problems online within 24 hours.

We support online video installation tutorials.

We have engineers abroad and can provide localized after-sales service

About our company

Customer Feedback

Packing & Delivery

Our Package Advantage

1. Our

Wooden Case

is after fumigation treatment. Needn't timber inspection,saving shipping time.

2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3. The outmost is Wooden Case With Fixed Formwork.

4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Before delivery

we would do the test about

20-30

working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
